Factory Q-BOX Plus DVB S2+T2 Combo TV Decoder 1080P HD Digital TV Receiver Satellite TV Tuner H.264 EPG Smart Set Top Box

DVB S2+T2 combo receiver H.264
Bright Spot: DVB-S2+T2 +Network Application, USB Port, Wi-Fi, Youtube,Tik tok
Dailymotion
Ⅰ. Technical specification
Product Type Name Produce Type Number T2+S2
Main Features
STB Type DVB-S2+T2 Combo Receiver
Main Chipset GX6605S
Memory 512Mbit DDR2 f@800MHz
Flash 8M bytes
Function/Interface CVBS,AR,AL,YPbPr,SPDIF,HDMI, 1*USB2.0,LEDDisplay，LNB IN(DVB-S/S2),ANT(DVB-T/T2),7 Keys on Front Panel
Special Features
Heat Sink Yes
TUNER Type R848
Demodulator Type AVL6762
Ⅱ. Hardware Features

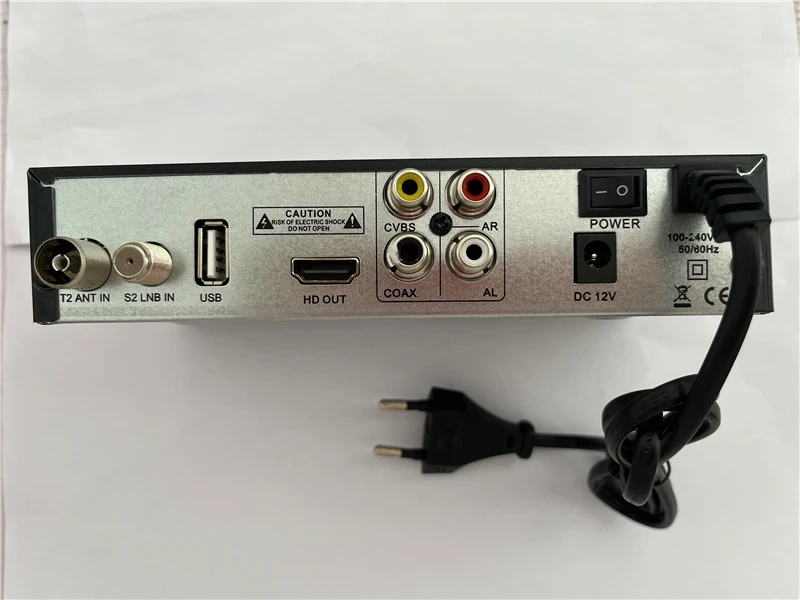

Rear panel
USB 2.0 NO
T2 ANT IN For DVB-T/T2 signal input
S2 LNB IN For DVB-S/S2 signal input
COAXIAL For Coaxial output for other audio decoder device
HDMI 19 PIN Female HDMI 1.3
AC-IN AC 100～250V，50Hz/60Hz
RF OUT NO
CVBS+R/L Audio+YPbPr 4 RCA for CVBS+L/R Audio

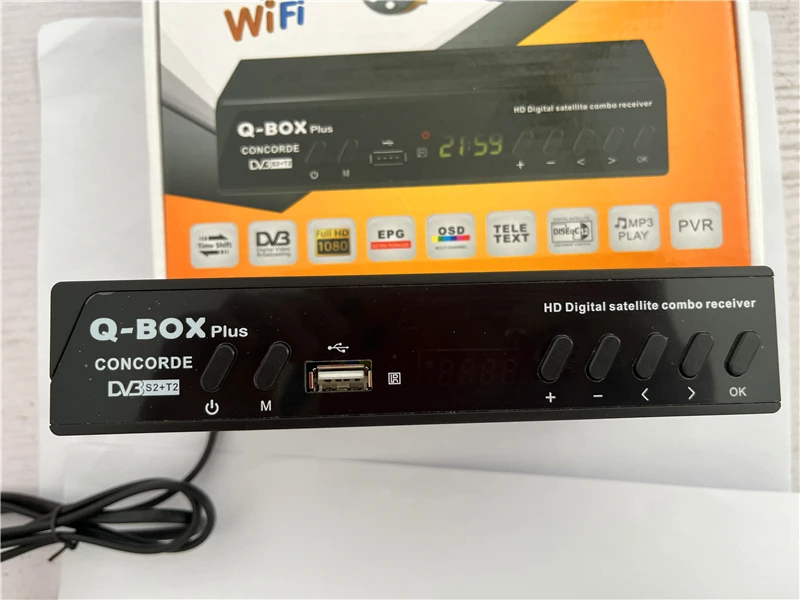

Front panel
USB 2.0 For USB PVR, Timeshift and Media Player, Wi-Fi
Ⅲ. Software General Features(DVB-S/S2/T/T2)
MPEG MPEG-2 SD, MPEG-2 HD, H.264/MPEG-4 SD, H.264/MPEG-4 HD
SCPC/MCPC SCPC and MCPC receivable from C/Ku band satellite
PAL/NTSC Automatic PAL/NTSC conversion
Channels Number 4000 channels TV and Radio programs
Favorites 8different favorite groups selection
OSD Language OSDLanguage foroptions:English,French,German,Italian
Spanish,Swedish,Portuguese,Finland,Holland,Turkish, Czech,Greece,Denish,Thai,Arabic
EPG Fully support to 7 days Electronic Program Guide(EPG)
PIG Picture in Graphics(PIG) support
Color OSD 256 color/8bit On Screen Display
NIT Search User can set NIT Search On/Off when execute DVBS2 Search
DiSEqC DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V, 0/22K, 0/12V LNB control
Channel Edit Various channel editing functions(favorite, moving, locking, renaming, deleting and sorting)
Parental Control Parental control for channels
Easy Menu Easy to use Menu System
Soft Upgrade Software upgrades through USB port, Support OTA.
Timer 25Timer Reservations, automatically switch to a specific channel
Subtitle Subtitle support DVB EN300743 and EBU
Teletext Teletext support DVB ETS300472 by VBI and OSD
Save Channel Automatic save for last channel
Sort Channel Channel list can be sorted by alphabetic A-Z,Pay-Free, Favorite,Lock, Sat
Multi-resolution output Dual display – HD and SD simultaneous
USB/Disk format Support FAT/FAT32/NTFS big capacity hard disk
HDMI Interface 480p_60;480i_30;576i_25; 576p_50; 720p_60;720p_50; 1080i_25;1080p_60;1080p_50
Game Games for options (Tetris, Othello, Sudoku.)
Recorder Recording one channel, can view another channel under the same TP.
Multimedia Support TS/MPG/MKV/AVI/ASF/FLV/MP4/WMA/WMV/VOB/MOV/
DAT/SRT/SUB/BMP/
JPG/JPEG/GIF/PNG/TIF/MP3/M4A files
Network Application YouTube/ Youprn/Dailymotion are ready.
USB Wi-Fi Dongle MTK7601
Ⅳ.Electric Performance
1. Main Chip Sets
CPU frequency 608MHz
Flash Memory 64Mbit/8Mbyte SPI FLASH
DDR Memory 512Mbit
2. DVB-S/S2 Tuner
Tuner Type R848
Frequency Range 950 ～ 2150MHz for DVB-S/S2
Input Impedance 75Ω
LNBPowerand Vertical13VDC;Horizontal 18VDC @ 400mA (max)
Polarization 22KHz±0.4KHz(0.6V±0.2V)tone, Overload Protection
Input Level Range -65dBm ～ -25dBm
Loop-Through NO
3. DVB-T/T2
Tuner Tuner Type R848
Frequency Range 174MHZ-860MHZ
Input Impedance 75Ω
Input Level Range Min -78dbm max -20dbm（64QAM,8K 1/8,7/8）
4. DVB-S/S2/T/T2
DVBS2 Demo standard DVB-S,DVB-S2
DVBS2 Demodulation QPSK, 8PSK
DVBS2 Symbol Rate 1 ～ 55MSPS
DVBS2 Code Rate 1/2,2/3,3/4,5/6,7/8 forDVBS,1/2,3/5,2/3,3/4,4/5,5/
6,8/9,9/10for DVBS2
DVBT2 Demo standard DVB-T, DVB-T2
DVBT2 Demodulation COFDM, 16QAM, 64QAM, 256QAM
DVBT2 Guard Intervals 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
DVBT2 Code Rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
5. TSDemux
Demultiplexer MPEG-2 ISO/IEC 13818-1
Input Bit Rate Max 120Mbit/s
6. Video Decoder
Video Decode MPEG-2 ISO/IEC 13818-2 MP@ML, H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@HL
Aspect Ratio 4:3、16:9
Video Resolution 1920×1080,1280×720,720×480
7. Audio
Decode Audio Decode MPEG-1 layerI/II，PCM down mixIEC958
SPDIF，Dolby 5.1 channel，Dolby down mix 2 channel，Dolby Prologic2(Optional)
Sound Mode LEFT/RIGHT/STEREO/MONO
Sampling Frequency 32KHz、44.1KHz、48KHz
8. AV Output
Video Bandwidth SD: 5.0MHz(-3dB),HD:30MHz(-3dB)
Video Impedance 75Ω
Video Voltage Level 1.0Vp-p
Audio Freq. Range 20～20KHz
Audio Impedance 600Ω
Audio Voltage Level 2Vrms(5.6Vp-p)
9. Environment Input
Voltage AC 00～250V，50Hz/60Hz
Consumption Max 8W
Standby ＜1W
Temperature 0～40℃
Humidity <95％
