[Fast delivery] 3KW 1.8KW Hybrid Solar Inverter 12V 24V 220V Off-Grid Pure Sine Inverter with 80A MPPT Solar Charge Controller
Description
- High-concerned chemical: None
- is_customized: Yes
- Output Current: MPPT 80A
- Model Number: SP
- Size: 34.80*28.20*10.50cm
- Output Type: SINGLE
- Weight: 6.5kg
- Brand Name: Y&H
- Output Frequency: 50Hz/60Hz(Auto sensing)
- Is Smart Device: Yes
- Origin: Mainland China
- Certification: CE
- Type: DC/AC Inverters
- Phase: Single Phase
- Input Voltage: 12V/24V
- Rated Load Power: 1800W/3000W
- PV Array MPPT Voltage Range: 90~430Vdc
- Max. PV Array Open Circuit Voltage: 450Vdc
- Max Charging Current (AC charger plus solar charger): 80Amp
- Safety Certification: CE
- Nominal Input Voltage: 230VAC
- Feature 1: solar power inverter
- Feature 2: 12v solar regulator
- Feature 3: full sine solar Inverters
- Feature 4: 24V hybrid solar inverter
- Feature 5: sine wave inverter 12v 230v motorhome
- Feature 6: Hybrid Solar Inversor
After EU customers order, the inverter will be shipped from our local EU warehouse within 24 hours.
The delivery time is about 3-7 days.
Please keep the default shipping from China when placing the order, so that when you make the final checkout The price will be automatically discounted to about 20% lower than the displayed price.
when you order before, please contact us first, thank you.
Features：
|
Models |
SP-2200W-12V-M80A |
SP-3200W-24V-M80A |
|
RatedPower |
2200VA/1800W |
3200VA/3000W |
|
INPUT |
||
|
Voltage |
230Vac |
|
|
Selectable Voltage Range |
(170Vac~280Vac)±2%ï¼›(90Vac-280Vac)±2% |
|
|
Frequency Range |
50Hz/60Hz (Autodetection) |
|
|
OUTPUT |
||
|
AC Voltage Regulation (Batt.Mode) |
230VAC±5% |
|
|
Surge power |
4400VA |
6400VA |
|
Transfer Time |
10ms(forpersonalcomputers)/20ms(forhomeappliances) |
|
|
Waveform |
PureSineWave |
|
|
BATTERY&ACCHARGER |
||
|
Battery Voltage |
12VDC |
24VDC |
|
Floating Charge Voltage |
13.5VDC |
27VDC |
|
Overcharge Protection |
15.5VDC |
31VDC |
|
Maximum charge current |
60A |
60A |
|
SOLARCHARGER |
||
|
MAX PV Array Power |
2000W |
3000W |
|
MPPT Range@Operating Voltage |
55-450VDC |
|
|
MaximumPVArrayOpenCircuit Voltage |
450VDC |
|
|
MaximumChargingCurrent |
80A |
|
|
Maximum Efficiency |
98% |
|
|
PHYSICAL |
||
|
Dimension.D*W*H(mm) |
348x282x105mm |
|
|
Net Weight (kg) |
5 |
5.5kg |
|
Communi cati on Interface |
RS232/RS485(Standard)/GPRS/WIFI(Optional) |
|
|
OPERATINGENVIRONMENT |
||
|
Humidity |
5%to95%RelativeHumidity(Non-condensing) |
|
|
OperatingTemperature |
-10°Cto55°C |
|
|
StorageTemperature |
-15°Cto60°C |
|
SP-2200VA/1800W
SP-3200VA/3000W

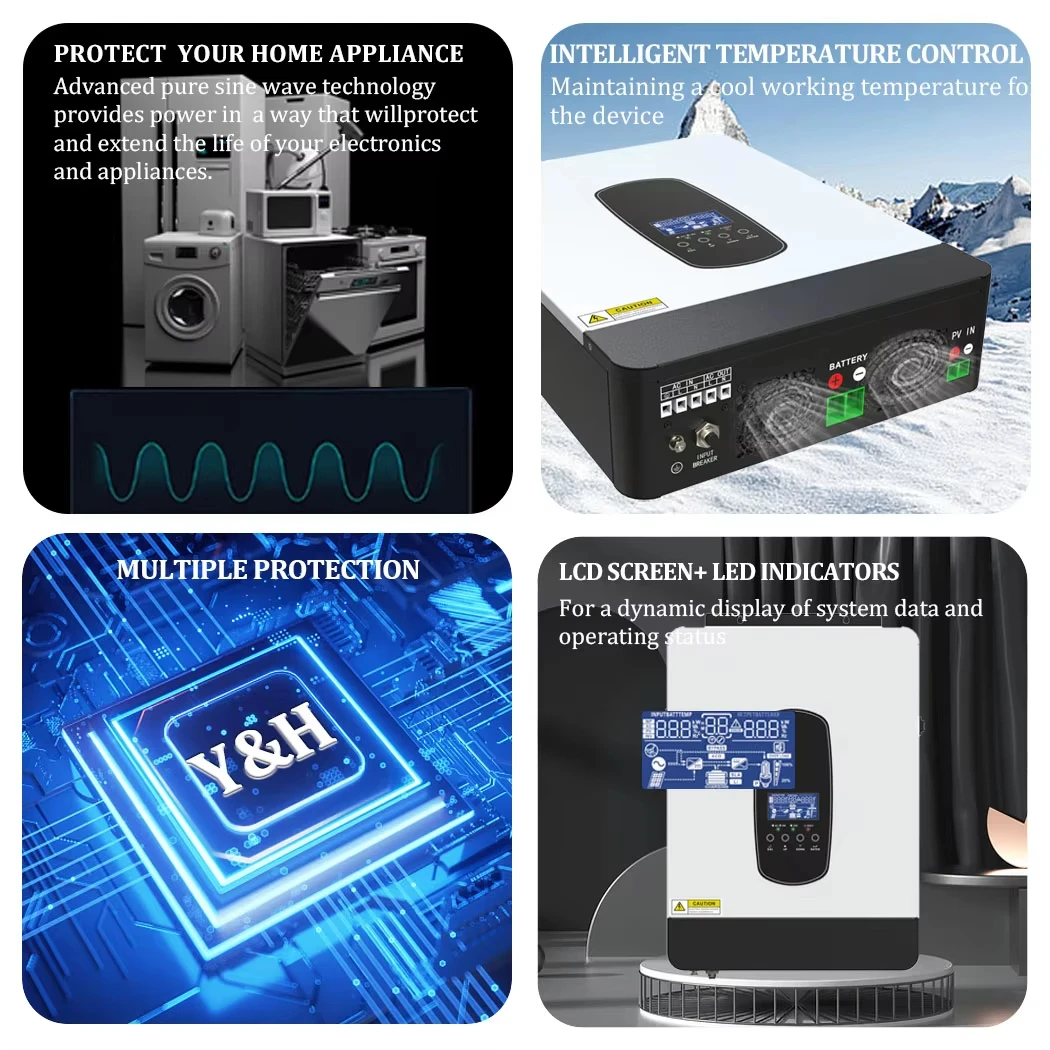

w/LCD & LED DISPLAY:
LCD display designand 3 LED indicators for dynamic display of system data and operating status, Configurable battery charging current, AC/Solar Charger priority and Load Supply Priority via LCD setting.Support WIFI remote monitoring, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere. (Not included).
MULTIPLE CHARGING MODES:
Off Grid Solar Inverter have 4 charging modes are optional, i.e. Only Solar, Mains Frist , Solar Frist and Mains & Solar hybrid charging;and 2 output modes are available, i.e. Solar Frist and SBU Priority, uninterrupted power supply to meet different application requirements. And compatible to mains voltage or generator power, Auto restart while AC is recovering.
Pure sine Wave Inverter:
1800W/3000W Pure sine Wave Inverter AC 220/230/240V (Single phase/A Hot Leg 230V Output, Can’t Output 110V AC), built in 80A Mppt charge controller, is a new all-in-one hybrid solar inverter charger, fit for 12V/24V Lead-Acid (Seal, AGM,Gel, Flooded) and Lithium battery
WIDE RANGE OF USES:
MPPT Inverter Charger Pure sine Wave 1800W/3000W for RV Camping Boat Home Emergency ect.. Can be accessed to a variety of household and office loads, including Oven, rice cooker, lamps, televisions, fans and other AC loads.
Bulit in 80amp mppt controller, which integrates solar energy storage &means charging energy storage and AC sine wave output.It can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV power supply, security monitoring system, emergency lighting system, field power system, household power system, etc.
>>>Returns
If you receive an item that is not as described, please contact us within 7 days and return the correct item.
If you receive a DOA (Damage on Arrival) item or a defective product, please contact us. We will offer an exchange or refund after communication.
>>> 1 Year Warranty
We stand behind our products so you are always covered!
We offer 1 year warranty. Please read the following important details about the warranty policy.
Warranty does not apply to cases caused by misuse, abuse, negligence, accident, improper application, improper installation or alteration.
>>>Warranty Process
1. Determine the cause of product failure through pictures, videos and text descriptions provided by the customer and remotely guide the customer to troubleshoot the problem;
2. during the warranty period, provide customers with spare parts such as motherboards that need to be replaced free of charge;
3. within the warranty period, for the maintenance can not be resolved after-sales problems, for the customer to replace the new product.
>>Evaluation
If there is any problem with the payment, delivery or received product, please contact us first. Negative feedback will not help to solve the problem.
>>Duties
Import duties, taxes and other charges are not included in the item price or shipping cost. These costs are the responsibility of the buyer.
Please check with your country’s customs department to determine these additional costs before bidding/buying.
>>>Shipping and Handling
Most of the items in our store will be shipped within 2 business days after Aliexpress verifies payment!
The quoted shipping cost does not include the extra cost for remote areas listed by the courier company
The ETA (Estimated Time of Arrival) shown in the listing is given by the shipping company, but cannot be used as a reason for delivery delay disputes. We are not responsible for any delivery delays, including but not limited to customs postage checks, strikes, force majeure, etc.
Russia buyers need to fill in full name; Brazil buyers need to leave CPF/CPNJ Number; Chile buyers need to leave RUT Number.
Additional information
| Color | SP-1800W-12V, SP-1800W-12V-WiFi, SP-3000W-24V, SP-3000W-24V-WiFi |
|---|---|
| High-concerned chemical | None |
| is_customized | Yes |
| Output Current | MPPT 80A |
| Model Number | SP |
| Size | 34.80*28.20*10.50cm |
| Output Type | SINGLE |
| Weight | 6.5kg |
| Brand Name | Y&H |
| Output Frequency | 50Hz/60Hz(Auto sensing) |
| Is Smart Device | Yes |
| Origin | Mainland China |
| Certification | CE |
| Type | DC/AC Inverters |
| Phase | Single Phase |
| Input Voltage | 12V/24V |
| Rated Load Power | 1800W/3000W |
| PV Array MPPT Voltage Range | 90~430Vdc |
| Max. PV Array Open Circuit Voltage | 450Vdc |
| Max Charging Current (AC charger plus solar charger) | 80Amp |
| Safety Certification | CE |
| Nominal Input Voltage | 230VAC |
| Feature 1 | solar power inverter |
| Feature 2 | 12v solar regulator |
| Feature 3 | full sine solar Inverters |
| Feature 4 | 24V hybrid solar inverter |
| Feature 5 | sine wave inverter 12v 230v motorhome |
| Feature 6 | Hybrid Solar Inversor |
| Output Voltage | 220-240V |
| Ships From | UNITED KINGDOM, brazil, GERMANY, United States |
