Fingerprint access control relay module DC7v-30v door lock controller Switch fingerprint induction electric lock control board

1005006091404090

22.28$ – 35.20$

In Stock

(0 customer reviews)

Color

Clear

Description

High-concerned chemical: None
Model Number: DX-100D
Origin: Mainland China
Item Type: Exit Button
Input voltage: DC7V-30V
Output Type: Relay NO/NC/COM
Verification method: Fingerprint

Ultifunctional fingerprint identification electric lock control module; compatible with DC7-30V voltage; multiple control modes to meet your various needs; plug-in connection, convenient installation; suitable for DIY user modification, can be used for access control, car control , Electrical control, industrial control and other occasions.

Product Features:

1. Compatible with voltages in the range of DC7V-30V;

2. Three control modes can be switched: Inching mode mode, self-locking mode, and ignition mode;

3. In Inching mode, the output time can be adjusted, and the output can be up to 15 minutes;

4. Relay normally open normally closed contact signal output

5.The relay supports loads with a current of less than 10A

6. The standard storage capacity is 50 fingerprints, and the storage capacity can be upgraded to 300 or 500;

7. Can be connected to the exit button;

Three control modes:

Inching mode: turn on after fingerprint recognition; automatically turn off after releasing the finger and reaching the set delay time.

Self-locking mode: turn on after recognizing the fingerprint; after releasing the finger, it will be disconnected immediately after re-identifying the fingerprint.

Ignition mode: keep the fingerprint recognition unreleased; it will keep on all the time, and it will disconnect immediately after releasing the finger

Packing list:

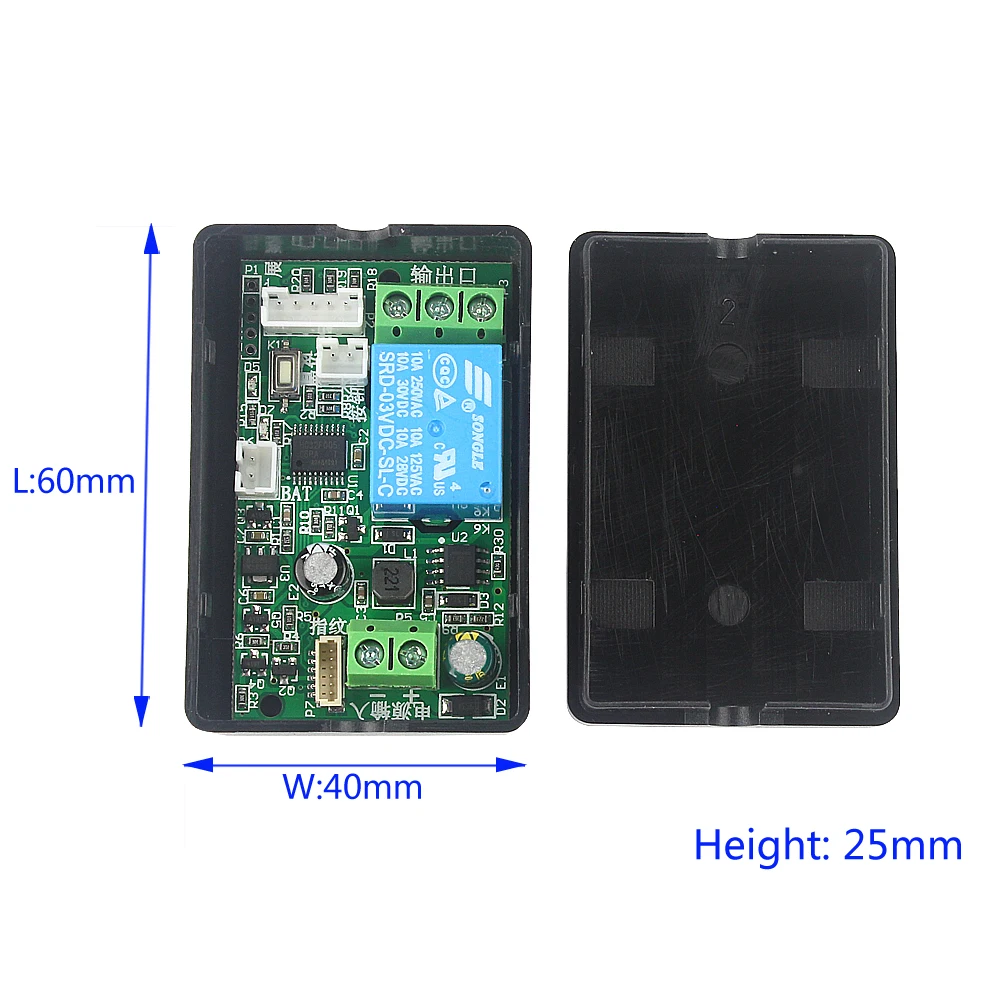

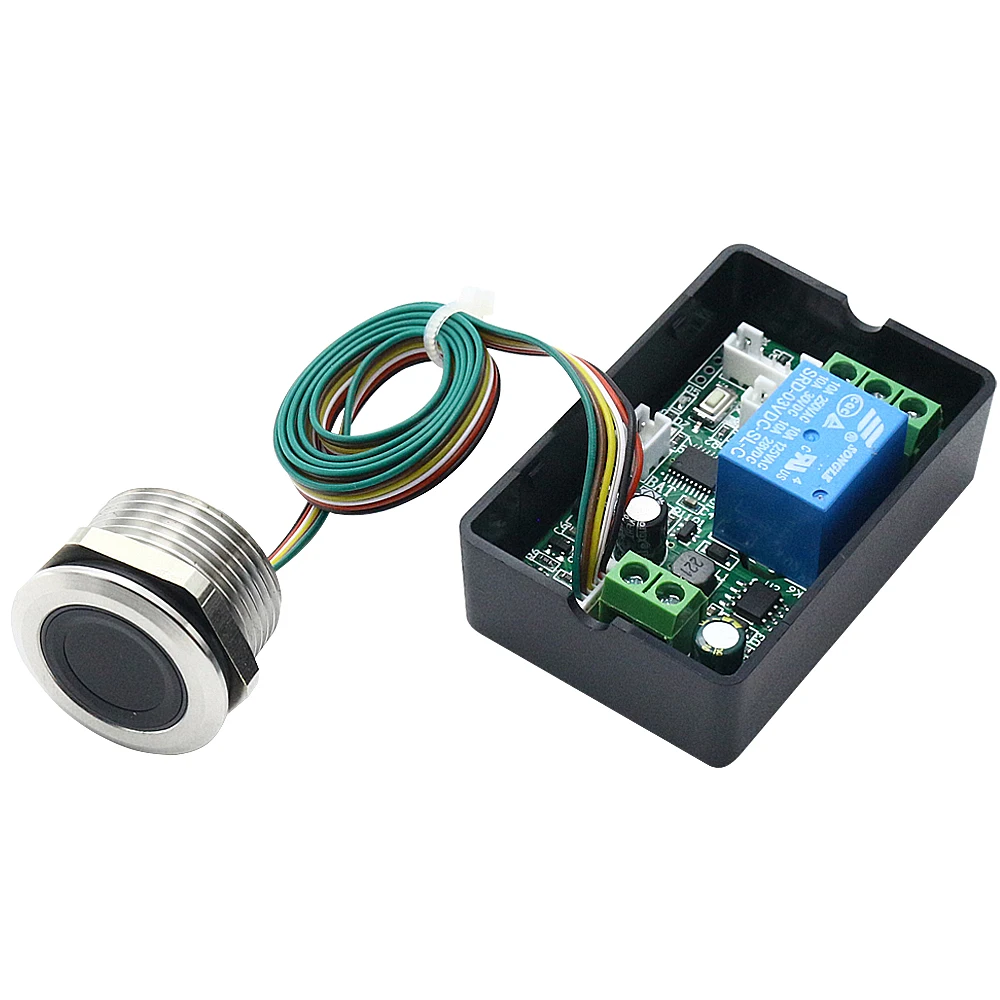

Control board + shell x1, fingerprint module x1, connection line x2

Additional information

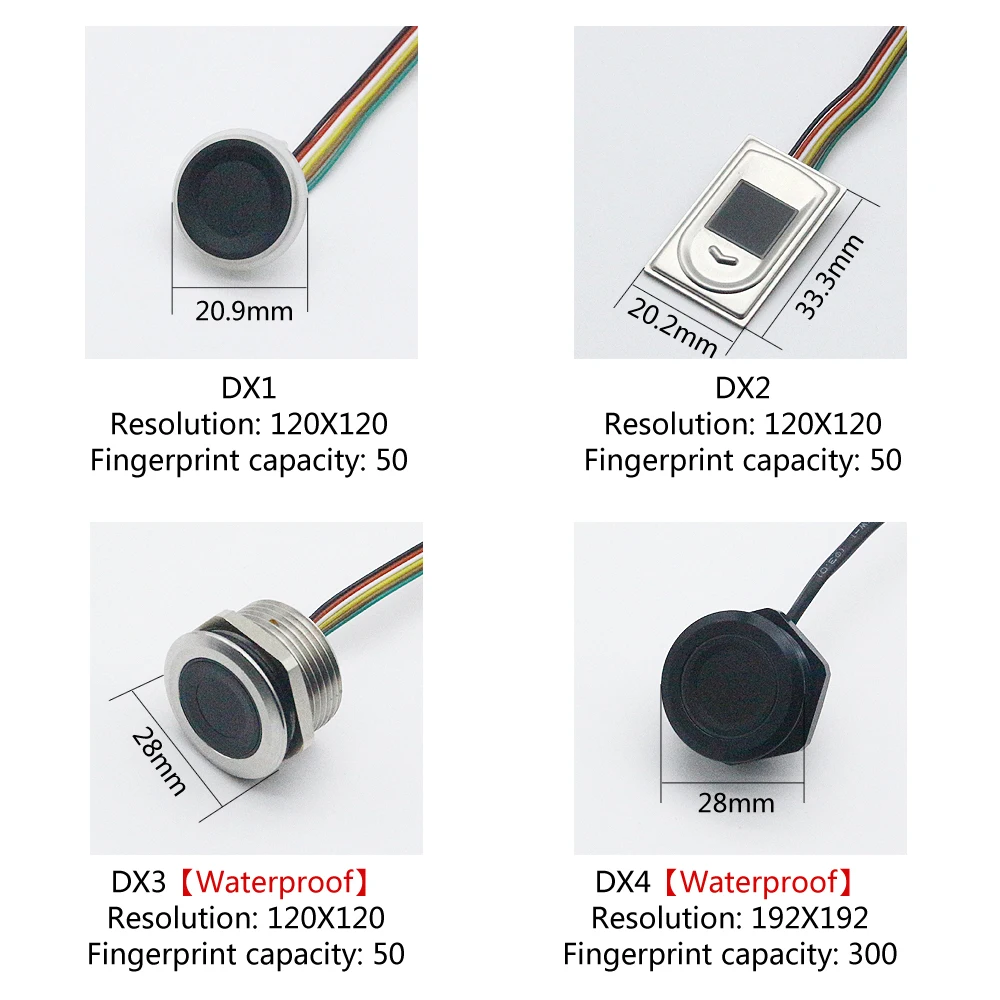

Color	DX1 and 100D, DX2 and 100D, DX3 and 100D, DX4-A and 100D, DX4-B and 100D
High-concerned chemical	None
Model Number	DX-100D
Origin	Mainland China
Item Type	Exit Button
Input voltage	DC7V-30V
Output Type	Relay NO/NC/COM
Verification method	Fingerprint
