Description
- High-concerned chemical: None
- Capacity: 10 – 20Ah
- Voltage: 36v
- Type: Lithium battery
- Brand Name: ACEBEI-POWER
- Origin: Mainland China
- Certification: CE,RoHS
- Voltage: 36V optional
- Capacity: 7.5Ah 10.5Ah 10.4Ah 12.8Ah 14Ah
- Cells: Brand/ LG/ Panasonic 18650 3.7V Cells
- BMS: 20A
- Fit for Motors: 250W 300W 350W 400W 500W
- Cycle Life: 800~1000 cycles
- Warranty: 1 Year
- Certificate: CE UL RoHS UN38.3 MSDS
- Brand: Acepower
- Battery Type: Built-in Folding E-Bike Battery
- Fit for bikes 1: ANCHEER AM1908 AM001908 ebike battery
- Fit for bikes 2: ADO A16 freeel Z03
Current link is for item DCH-014

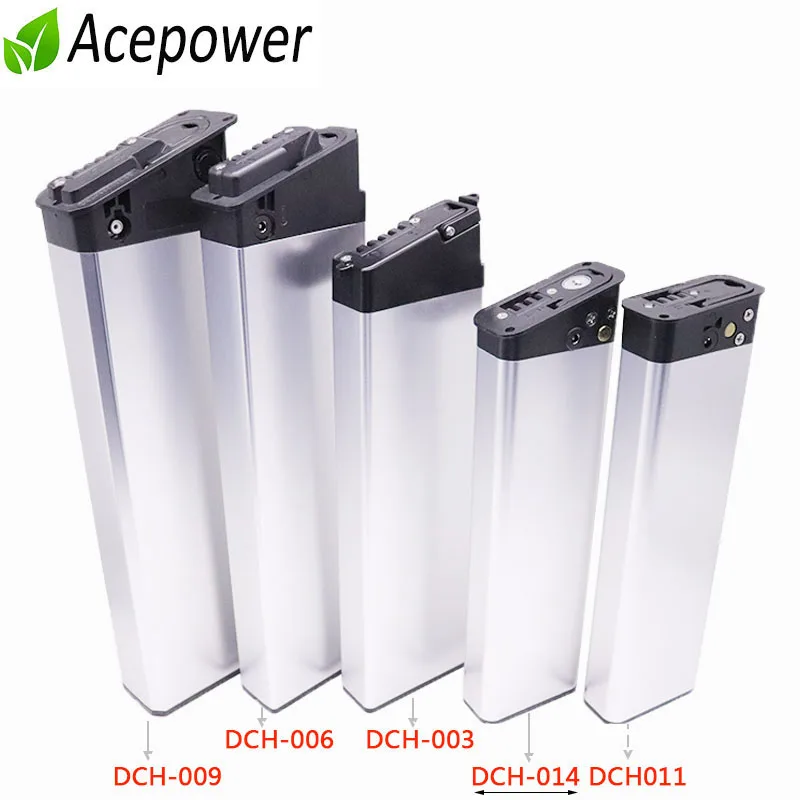

If need others model DCH-006, DCH-009, DCH-003, DCH011, or other similar style batteries, please contact us.
★★Attention!!!

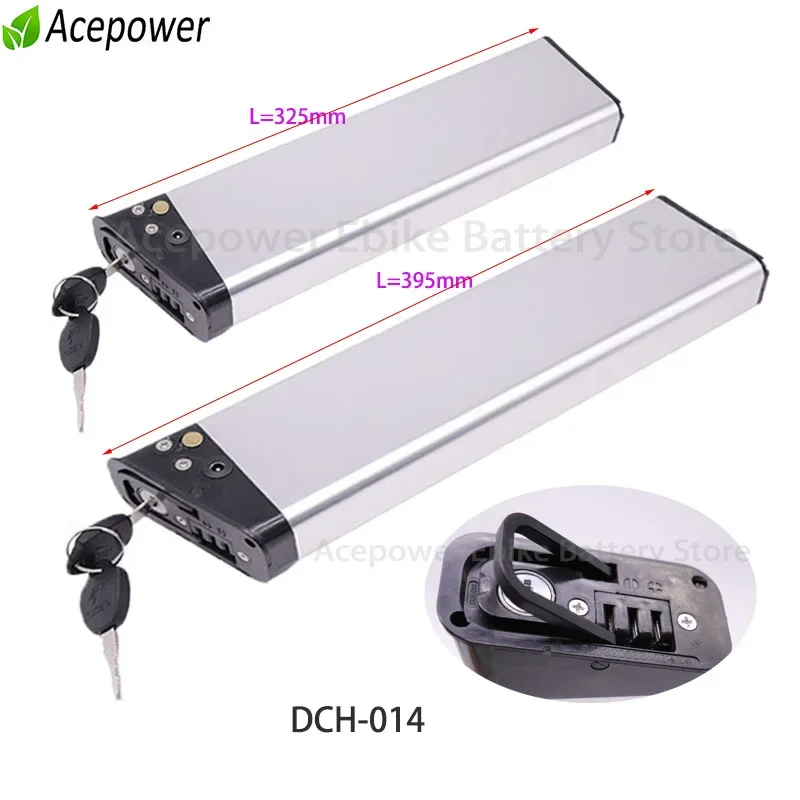

1. There are two versions of DCH-014 battery with different lengths, version A=length L325mm,
version B=length L395mm, please pay attention to the size when purchasing.
2. If your original battery is L325mm, then you can only choose L325mm;
If your original battery is L395mm, you can choose both two lengths
DCH-014 version A=length L325mm

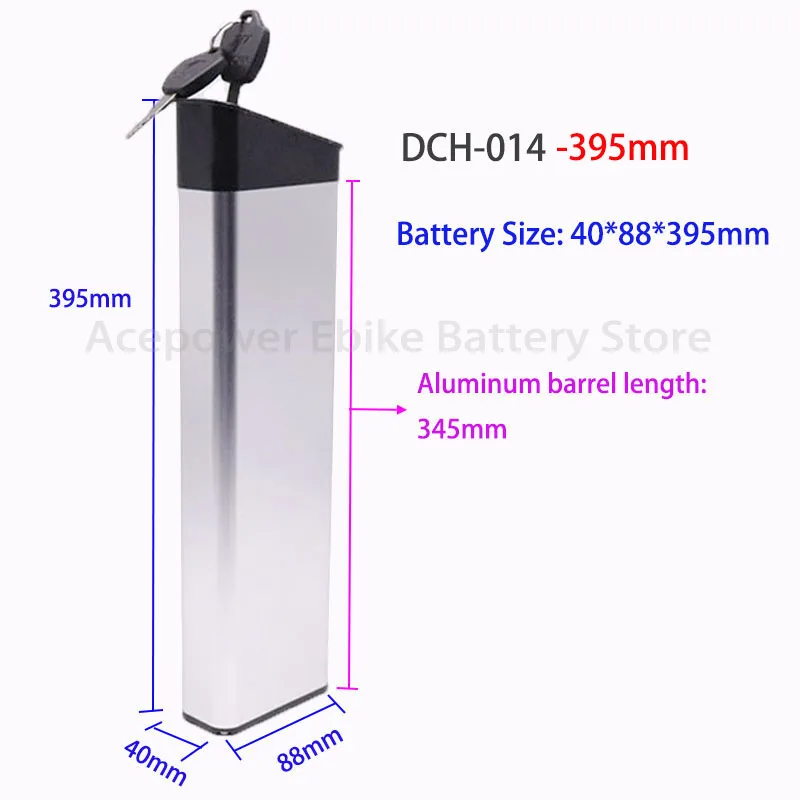

DCH-014 version B=length L395mm
Battery details
Battery Specification:
DCH-014 version A=length L325mm | |||||
Battery Parameter | L325mm | L325mm | L325mm | L325mm | L325mm |
Composed Type | 10S 3P | ||||
Cells | Brand | Brand | Brand | Panasonic | SamsungLG 3500mAh |
Battery Weight(appr.) | 2.1kg | ||||
Battery Size(appr.) | 40*88*325mm | ||||
Charging Time | 3.5-4.5h | 4.5-5h | 4.5-5.5h | 5-5.5h | 5-6h |
DCH-014 version B=length L395mm | |||||
Battery Parameter | L395mm | L395mm | L395mm | L395mm | L395mm |
Composed Type | 10S 4P | ||||
Cells | Brand | Brand | Brand | Panasonic | SamsungLG 3500mAh |
Battery Weight(appr.) | 2.5kg | ||||
Battery Size(appr.) | 40*88*395mm | ||||
Charging Time | 5-6h | 6-7h | 6.5-7h | 7-8h | 3A fast charger |
Common parameters： | DCH-014 L325mm/L395mm |
Charging Cut-off Voltage | 42V |
Discharge Cut-off Voltage | 30V |
Charger | 2A |
BMS | 20A |
Fit for Motors | 36V 200w 250w 350w 400w 450w 500w |
Discharge Temperature | -20~65°C |
Charging Temperature | 0~45°C |
Cycle Life | 80% Capacity after 1000 cycles |
Warranty | 1 Year |

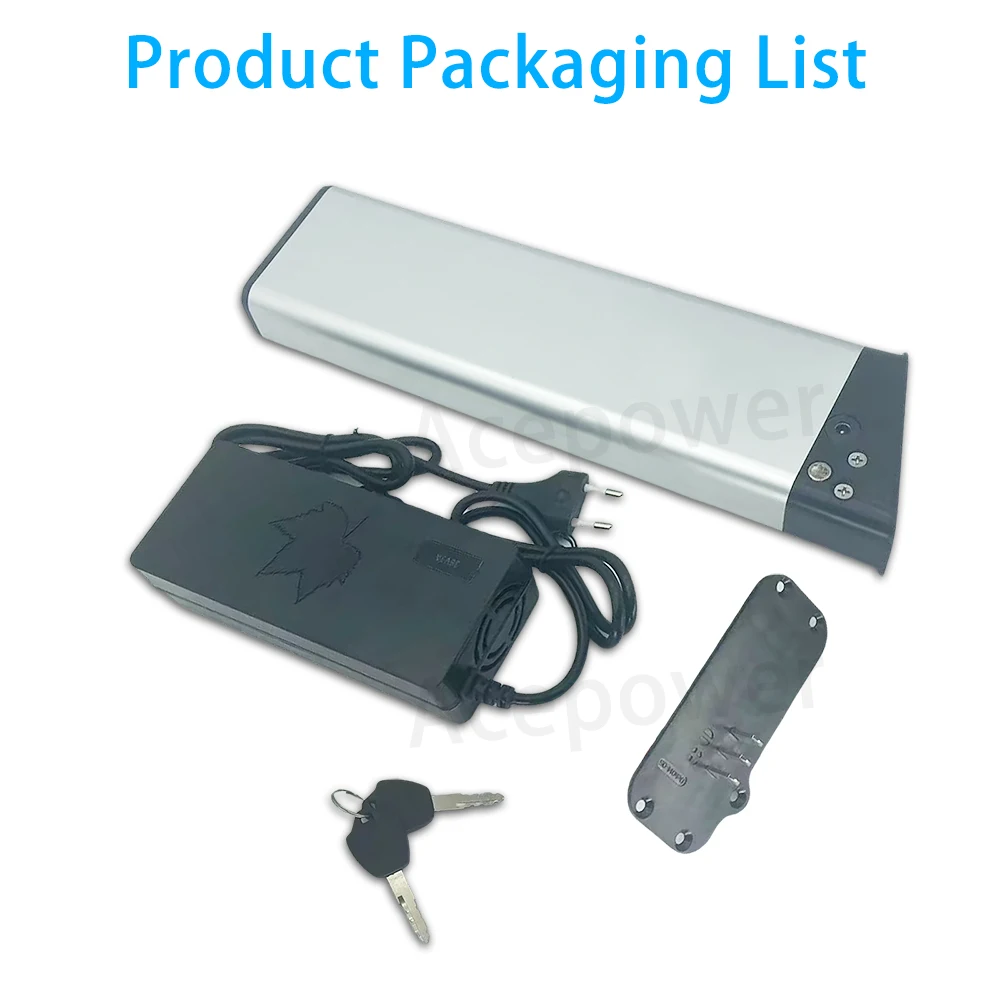

Packing List:
Battery * 1
Charger * 1
Key * 2
Discharge connector * 1
Warranty
Product: Battery |
12 Months Quality warranty 1. We provide 1 year warranty for all electric bike batteries. |
Condition The warranty is not valid if the battery is entered water, or damaged by man-made, or used over-power/ over-voltage, or if it is damaged due to incorrect operation, or if it's over-warranty time. Whenever has any problem (including above problem or over-warranty), you also can contact us to provide relative details and we will help or provide suggestion. |
Tips
1. The payment isn't include remote fee, if your address belong to remote address, please contact with us about remote fees before you place order. 2. Battery can't be delivered to any Island address, please contact us for checking before you place order to Island address. |
1. Each countries postal code is necessary to provide for international shipping, please make sure your city name and postal code are correct and matched. (including Ireland) 2. Korean customers need to provide your "individual customs pass number" or date of birth on order note as Korean recently rules. 3. Japanese customers need to provide Japanese address and contact information |
Your satisfaction and positive feedback is very important for us. It will be very kind of you to leave us with 5 Stars feedback if you are satisfied with our items and services. If you have any problems, don't hesitate to contact us, we will do our best to serve with you. |
