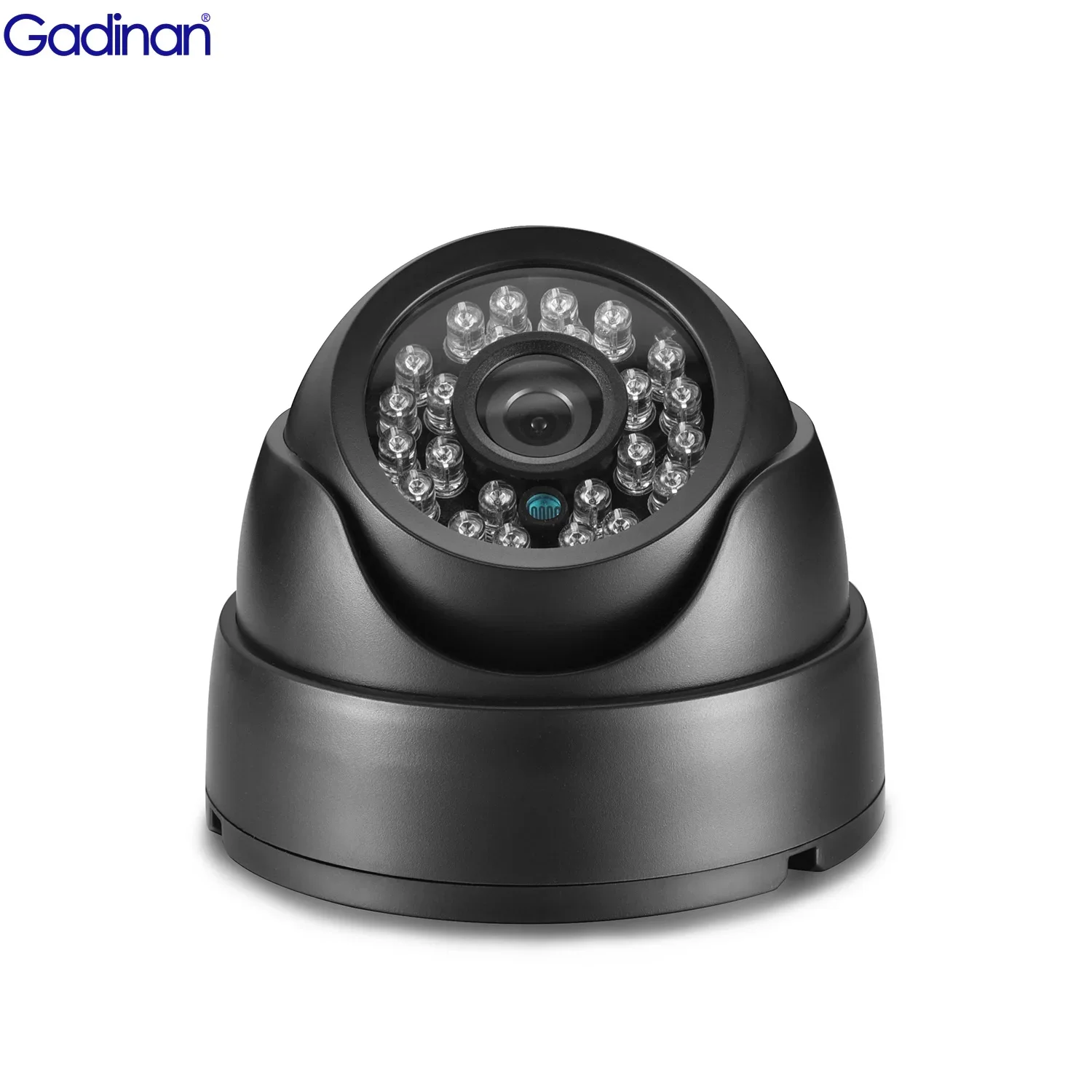

Gadinan 24pcs IR LED High Definition Infrared Night Vision Security Home Outdoor Surveillance Camera 5MP 1080P AHD CCTV Camera
Description
- High-concerned chemical: None
- Zoom type: None
- Zoom: None
- Lens Quantity: Single Lens
- Scene: Indoor
- Megapixels: 5 MP
- TF Card: None
- Power Supply: Normal
- Internal Storage: None
- Installation: Ceiling
- Color: black
- is_customized: No
- Minimum Illumination(Lux): 0lux when IR on
- Viewing Angle : 85°
- Video Compression Format: H.264
- IR Distance(m): 10~25M
- Dimensions (L x W x D)(mm): 9.2*6CM
- Power Supply(V): 12V
- Power Consumption(W): 3W
- Supported Mobile Systems: Windows Mobile,Android,iOS
- Sensor Brand: SmartSens
- Sensor: CMOS
- Model Number: A000254
- Supported Operating Systems: Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10
- Lens (mm): 8mm,6mm,3.6mm,2.8mm
- Connectivity: Closed System/CCTV Wired
- High Definition: 5.0 Megapixels
- Style: Mini Camera
- Brand Name: Gadinan
- Origin: Mainland China
AHD features:
Qualitative video without latencies Description:
*MUST work with AHD DVR,Can not work on Analogue DVR/CVI DVR.Pls check your DVR before purchase!!!
1. AHD 720P,1080P,5MP
2. 2.8mm/3.6mm/6mm/8mm HD lens

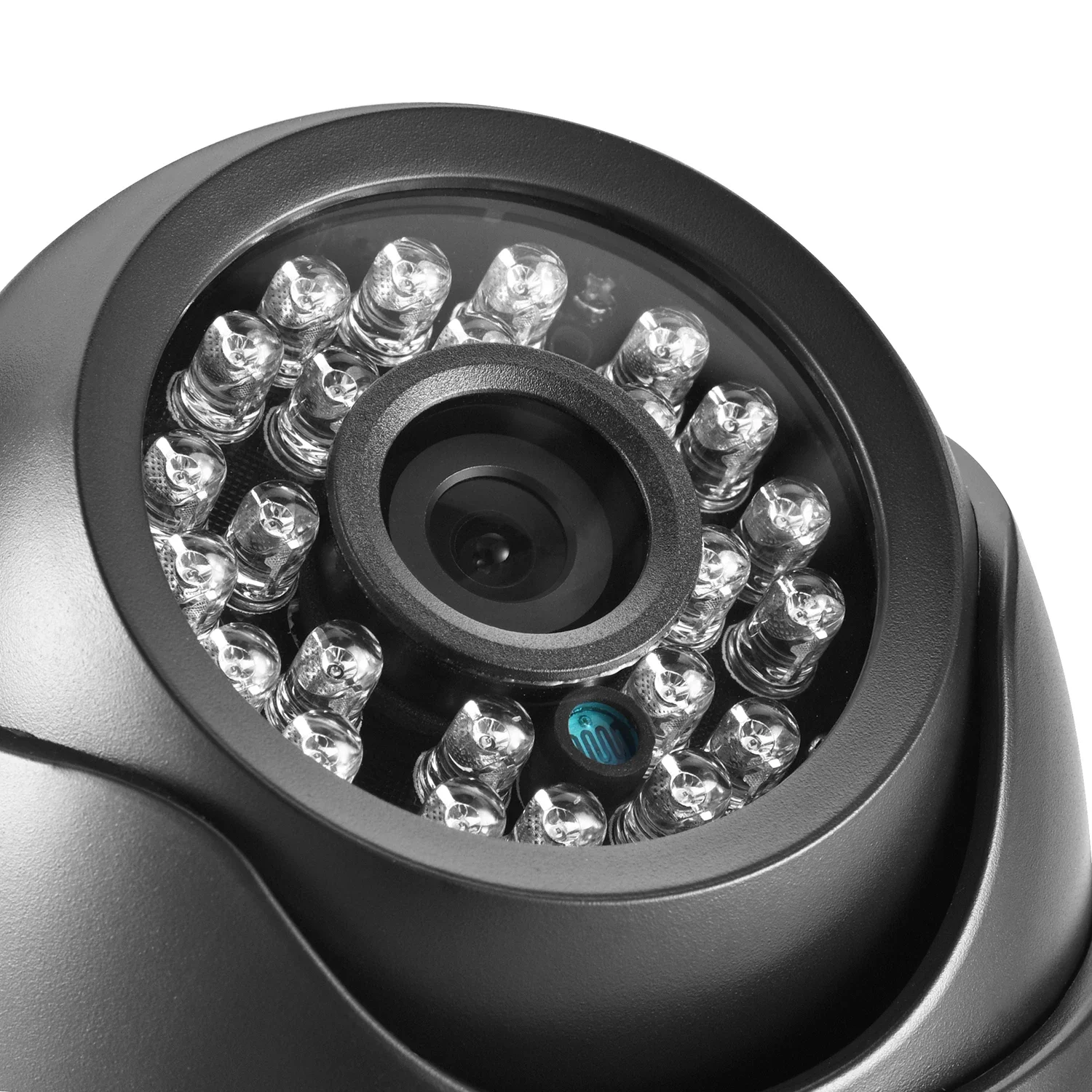

3. 24pcs IR LEDS , 10~25MÂ IR distance
4. ABS plastic,indoor use
•Support onvlf, can work with third-part NVR.
•Mobile phone viewing (iOS,android) depends on NVR APP.
Specifications:
|
Model |
AHD 720P,1080P,5MP |
|
Sensor |
CMOS sensor |
|
Minimum Illumination |
Color:0.01Lux,(F1.2,AGC ON),0Lux with IR |
|
Black & White:0.001Lux,(F1.2,AGC ON),0Lux with IR |
|
|
Photosensitive Resistance |
1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
|
Shutter |
1/50(1/60) seconds to 1/10,000 seconds |
|
Day and Night Function |
Support IR-CUT |
|
Infrared light |
24pcs IR Leds |
|
Lens |
2.8mm/3.6mm/6mm/8mm |
|
Synchronous Mode |
inter-sync |
|
Noise-signal Ratio |
>58dB |
|
Temperature and Humidity |
– 10’C ~ 60’C, humidity is less than 90% (no condensation) |
|
Power |
DC12V±10% |
|
Consumption |
<5W |
|
Dimension |
9.2*6cm |
|
Housing material |
ABS plastic |
Packaging included:Â Â Â
1x AHD CameraÂ
NOTE:
1.Only "720P/1080P/5MP" Camera: Does not include power supply,
   if you need come with  12V 1A power supply , please choose "720Pwith 1A power"/"1080P with 12V 1A power"/"5MP with 12V 1A  power",The power plug has EU / US / AU / UK, we will send it according to different countries
2.please make sure you know AHD Camera must use  AHD Format DVR before you place the order !!!Â
5MP AHD DVR support AHD 5MP/1080P/720P camera
1080P AHD DVR not support AHD 5MP camera,support AHD 1080P/720P camera
720P AHD DVR not support AHD 5MP/1080P camera,just support AHD 720P camera
Additional information
| Sensor Size | 1080P, 1080P with 1A power, 5MP, 5MP with 1A power |
|---|---|
| High-concerned chemical | None |
| Zoom type | None |
| Zoom | None |
| Lens Quantity | Single Lens |
| Scene | Indoor |
| Megapixels | 5 MP |
| TF Card | None |
| Power Supply | Normal |
| Internal Storage | None |
| Installation | Ceiling |
| Color | black |
| is_customized | No |
| Minimum Illumination(Lux) | 0lux when IR on |
| Viewing Angle | 85° |
| Video Compression Format | H.264 |
| IR Distance(m) | 10~25M |
| Dimensions (L x W x D)(mm) | 9.2*6CM |
| Power Supply(V) | 12V |
| Power Consumption(W) | 3W |
| Supported Mobile Systems | Windows Mobile,Android,iOS |
| Sensor Brand | SmartSens |
| Sensor | CMOS |
| Model Number | A000254 |
| Supported Operating Systems | Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10 |
| Lens (mm) | 8mm,6mm,3.6mm,2.8mm |
| Connectivity | Closed System/CCTV Wired |
| High Definition | 5.0 Megapixels |
| Style | Mini Camera |
| Brand Name | Gadinan |
| Origin | Mainland China |
| Signal System | NTSC, PAL |
| Focus | 2.8mm, 3.6mm, 6mm, 8mm |
