Gadinan AHD Camera 5MP 1080P 720P Indoor Outdoor Night Vision Face Capture Playback CCTV Video Surveillance Security Camera
Description
- High-concerned chemical: None
- Zoom type: None
- Zoom: None
- Lens Quantity: Single Lens
- AI Functions: Face Comparison
- Color Night Vision: No
- IP Rating: IP66
- Scene: Indoor and outdoor
- Megapixels: 5 MP
- TF Card: None
- Power Supply: Normal
- Installation: Side
- Color: WHITE
- is_customized: No
- Audio Output: None
- Minimum Illumination(Lux): color 0.01Lux@F1.2,black/white 0.001Lux@F1.2
- Viewing Angle : 85°
- IR Distance(m): 5-25M
- Dimensions (L x W x D)(mm): 100*70mm(body)
- Power Supply(V): DC 12V
- Power Consumption(W): 3W
- Supported Mobile Systems: Android,iOS
- Sensor Brand: SmartSens
- Sensor: CMOS
- Model Number: H5AHD
- Supported Operating Systems: No
- Lens (mm): 3.6mm,2.8mm
- Connectivity: Closed System/CCTV Wired
- High Definition: 5.0 Megapixels
- Style: Bullet Camera
- Brand Name: Gadinan
- Origin: Mainland China
- Special Features: Waterproof / Weatherproof
- Certification: CE
- Shell Material: Plastic
- Smart home platform: Other
- Feature: AHD(Analog High Definition)
- IR-CUT: Auto Switch
- Video Compression Format: h.264/h.265+
Lens:2.8mm 3.6mm 6mm 8mm Optional

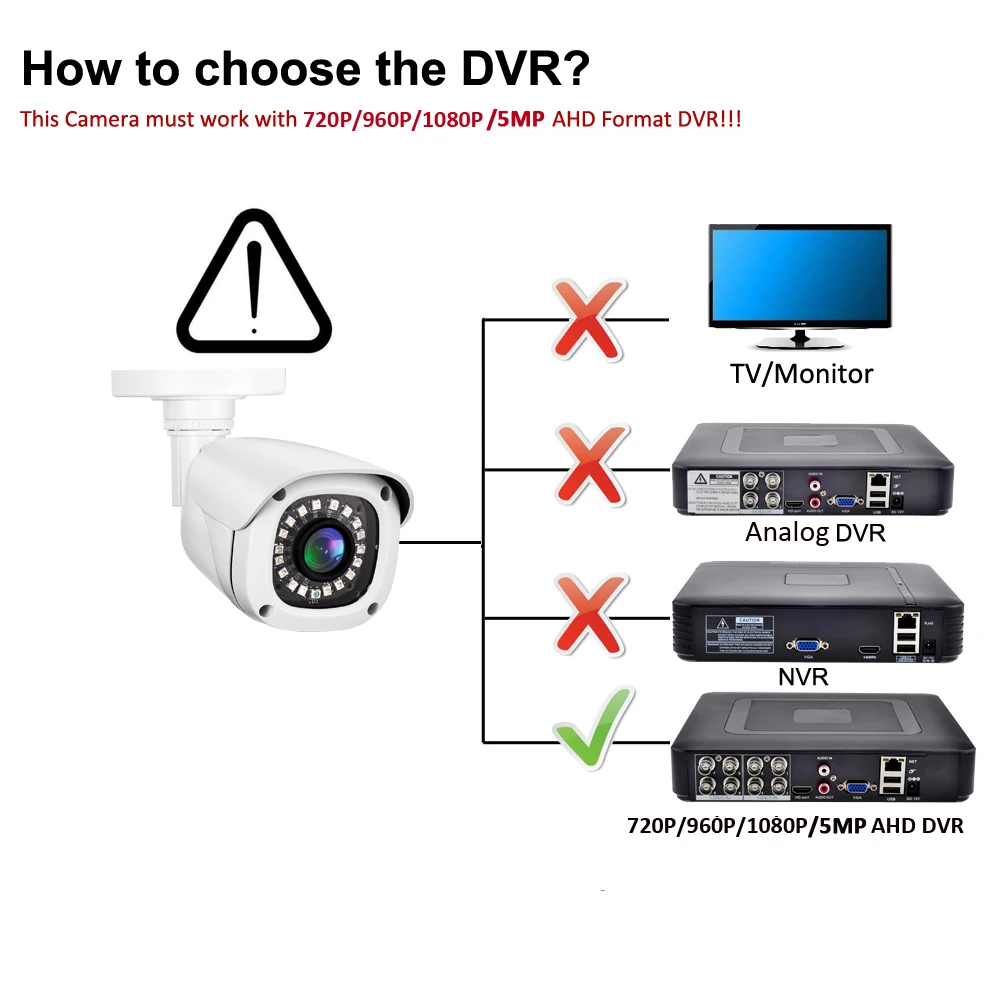

NOTE：This is AHD Camera , AHD Camera must use AHD DVR to make it working ! Don't support Analog DVR /NVR, it cann't directly connect to the TV/LCD monitor,please take notice !!!
Why AHD?
As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost?
Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
How AHD can be beneficial to us?
• Upgraded to analog HD seamlessly with Low-cost and simple installation value-added solution. Go after the conventional analog system topology and give a   full consideration to users’ operation habit.
• Megapixel & uncompressed image quality.
• Long range & non-latency reliable video transmission without additions of relay devices.
• Strong anti-interference capability & solid interface protection. Free of high-frequent electromagnetic radiation; constant signal transmission and display without  problems as frame drop and lock loss occurred.
• An open analog HD transmission system established and evolved industry chain developed to sustainably improve the technical standard.

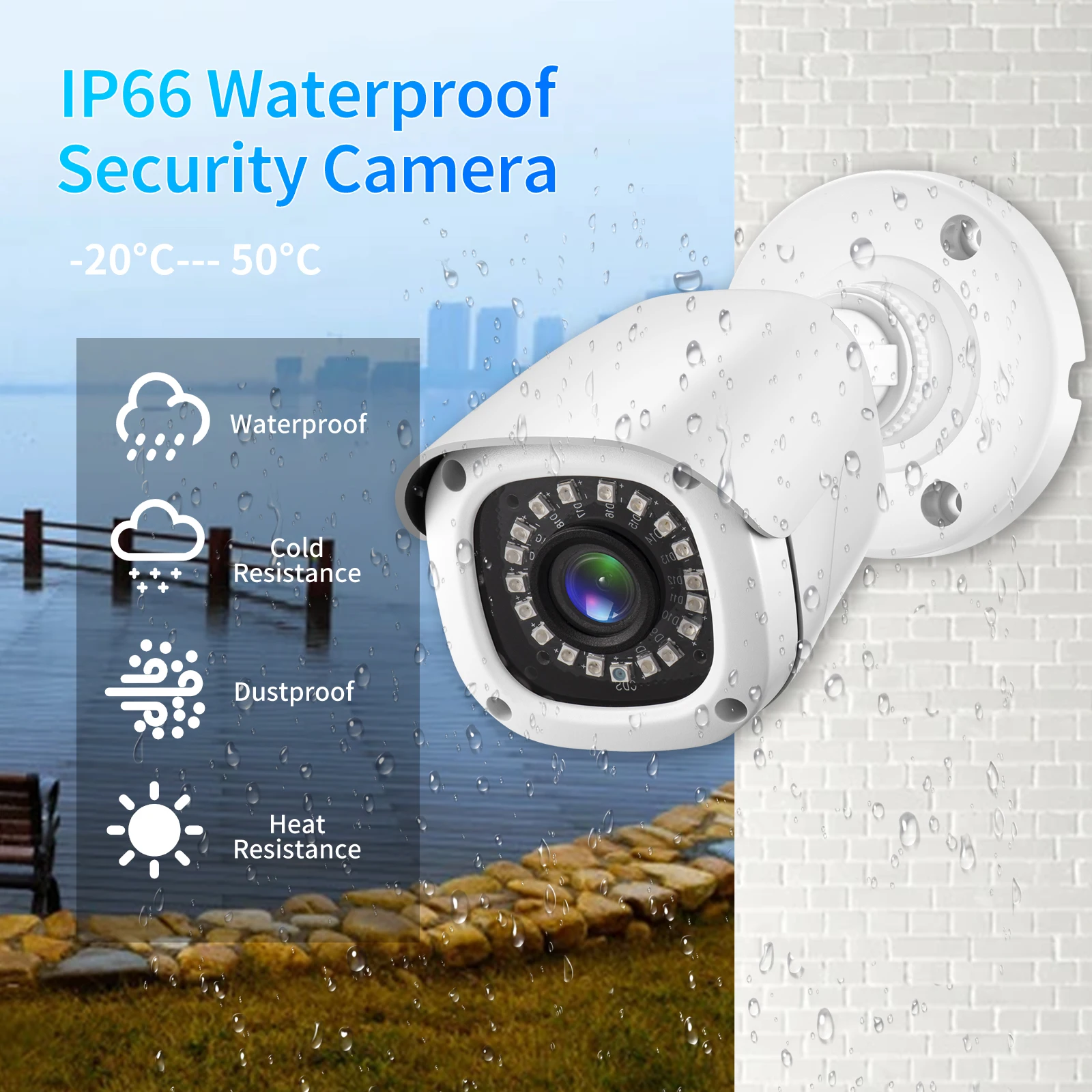

Waterproof Security Camera
Suitable for a variety of places
Locate incident Video with Smart Playback
Very important!!!
This is AHD Camera , AHD Camera must use AHD DVR to make it working ! Don't support Analog DVR /NVR, it cann't directly connect to the TV/LCD monitor,please take notice !!!
Description
1. AHD 720P,1080P,5MP
2. 2.8mm,3.6mm,6mm HDÂ lens optional
3. Color CMOS Sensor, ICR
4. ABS plastic housing,bullet camera outdoor indoor use
5. 18pcs IR leds light , 5-25M Max IR distance
|
Model |
AHD 720P,1080P,5MP |
|
Sensor |
CMOS sensor |
|
Minimum Illumination |
Color:0.01Lux,(F1.2,AGC ON),0Lux with IR |
|
Black & White:0.001Lux,(F1.2,AGC ON),0Lux with IR |
|
|
Photosensitive Resistance |
1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
|
Shutter |
1/50(1/60) seconds to 1/10,000 seconds |
|
Day and Night Function |
Support IR-CUT |
|
Infrared light |
18pcs IR Leds |
|
Lens |
2.8mm/3.6mm/6mm/8mm |
|
Synchronous Mode |
inter-sync |
|
Noise-signal Ratio |
>58dB |
|
Temperature and Humidity |
– 10’C ~ 60’C, humidity is less than 90% (no condensation) |
|
Power |
DC12V±10% |
|
Consumption |
<5W |
|
Dimension |
16.6*6.5cm |
|
Housing material |
ABS plastic |
Packaging included:
1xAHDÂ Camera(DC 12V Power supply not included)
Note:if you buy AHD 5MP camera, make sure your DVR is AHD 5MP DVR.
AHD camera must be connected to AHD DVR, not analog 960H DVR or TV monitor directly.
Warm Note:
|
Additional information
| High-concerned chemical | None |
|---|---|
| Zoom type | None |
| Zoom | None |
| Lens Quantity | Single Lens |
| AI Functions | Face Comparison |
| Color Night Vision | No |
| IP Rating | IP66 |
| Scene | Indoor and outdoor |
| Megapixels | 5 MP |
| TF Card | None |
| Power Supply | Normal |
| Installation | Side |
| Color | WHITE |
| is_customized | No |
| Audio Output | None |
| Minimum Illumination(Lux) | color 0.01Lux@F1.2,black/white 0.001Lux@F1.2 |
| Viewing Angle | 85° |
| IR Distance(m) | 5-25M |
| Dimensions (L x W x D)(mm) | 100*70mm(body) |
| Power Supply(V) | DC 12V |
| Power Consumption(W) | 3W |
| Supported Mobile Systems | Android,iOS |
| Sensor Brand | SmartSens |
| Sensor | CMOS |
| Model Number | H5AHD |
| Supported Operating Systems | No |
| Lens (mm) | 3.6mm,2.8mm |
| Connectivity | Closed System/CCTV Wired |
| High Definition | 5.0 Megapixels |
| Style | Bullet Camera |
| Brand Name | Gadinan |
| Origin | Mainland China |
| Special Features | Waterproof / Weatherproof |
| Certification | CE |
| Shell Material | Plastic |
| Smart home platform | Other |
| Feature | AHD(Analog High Definition) |
| IR-CUT | Auto Switch |
| Video Compression Format | h.264/h.265+ |
| Sensor Size | 1080P(2MP), 5MP, 720P(1MP) |
| Signal System | NTSC, PAL |
| Focus | 2.8mm, 3.6mm |
