Summary

      The Vapor Series continues to lead in innovation, now fully compatible with the  O4 Air Unit Pro.
The GEPRC team has redesigned the lens mount and added vibration-damping silicone to minimize resonance. With newly designed side plates with a sharp, bold look, the frame is more striking and seamlessly integrates with the  O4 Air Unit Pro.
Powered by the STM32F722 MCU and the TAKER H60_BLS 60A 4-in-1 ESC combo, it delivers quick, precise response and powerful output. Paired with SPEEDX2 E-series high-performance motors, the system offers smooth handling and explosive power, creating an immersive flying experience where the FPV drone feels like an extension of yourself.
The Vapor O4 series is available in Wide X and DC models, with both 5-inch and 6-inch size options to suit every flying need.

Feature

1. Supports the  O4 Air Unit Pro with a powerful CMOS sensor for better light sensitivity and sharper image detail.

2. CNC aluminum alloy lens mount enhances the bold, mech-style look.

3.  Comes with GEPRC SPEEDX2 E series motors for strong, responsive power.

4.  Front lip design adds extra protection for the lens, making it more crash-resistant.

5.  Classic 5mm carbon fiber arms with newly molded side plates for a tough, balanced frame.

Note: Contents vary by selected WTFPV or O4 Pro specifications.

Note: The WTFPV version does not come with any VTX, camera, antenna

Specfication—Vapor-X5 O4 Pro WTFPV

• Model: Vapor-X5 O4 Pro WTFPV

• Frame: GEP-Vapor-X5 O4 Pro frame

• Wheelbase: 230 mm

• Top Plate: 2.0 mm

• Middle Plate: 2.0 mm

• Bottom Plate：2.5 mm

• Arm Thickness：5.0 mm

• FC: GEP-F722-HD v2

• MCU: STM32F722

• Gyro: ICM42688-P(SPI)

• Barometer: BMP280

• OSD: Betaflight OSD w/AT7456E

• ESC: TAKER H60_BLS 60A 4IN1 ESC

• VTX: /

• Camera: /

• Antenna: /

• Connector: XT60

• GPS：/

• 5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV

• 5-inch Propeller: GEMFAN 5136

• Vapor-X5  O4 Pro WTFPV PNP  Version Weight: 399g±5g

• Receiver: /

• Recommended Battery: 6S LiPo 1550mAh – 2200mAh

• Flight Time: 14-19 min

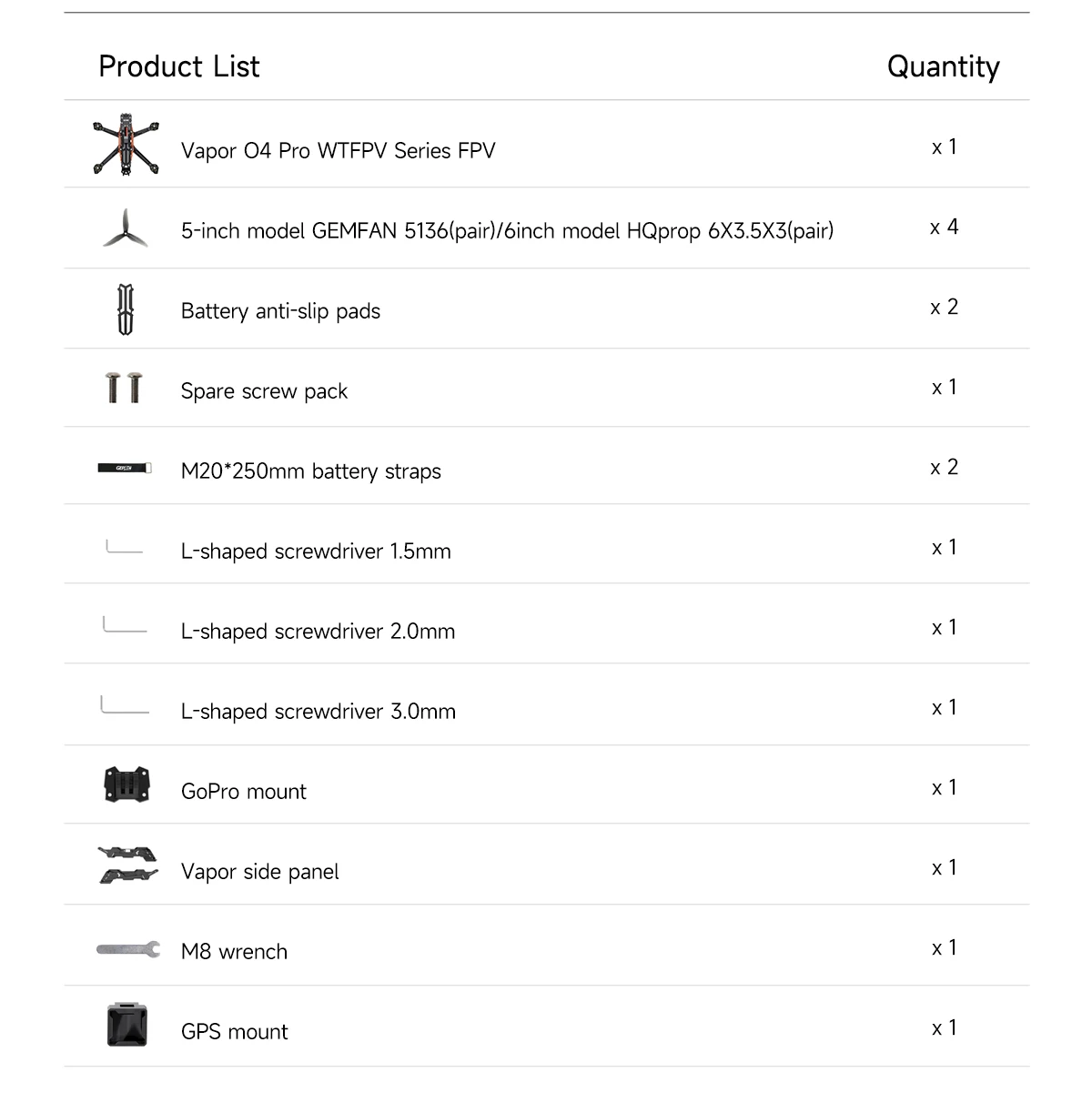

Product List:
1 x Vapor-X5  O4 Pro WTFPV
2 x GEMFAN 5136
2 x Battery anti-slip pads

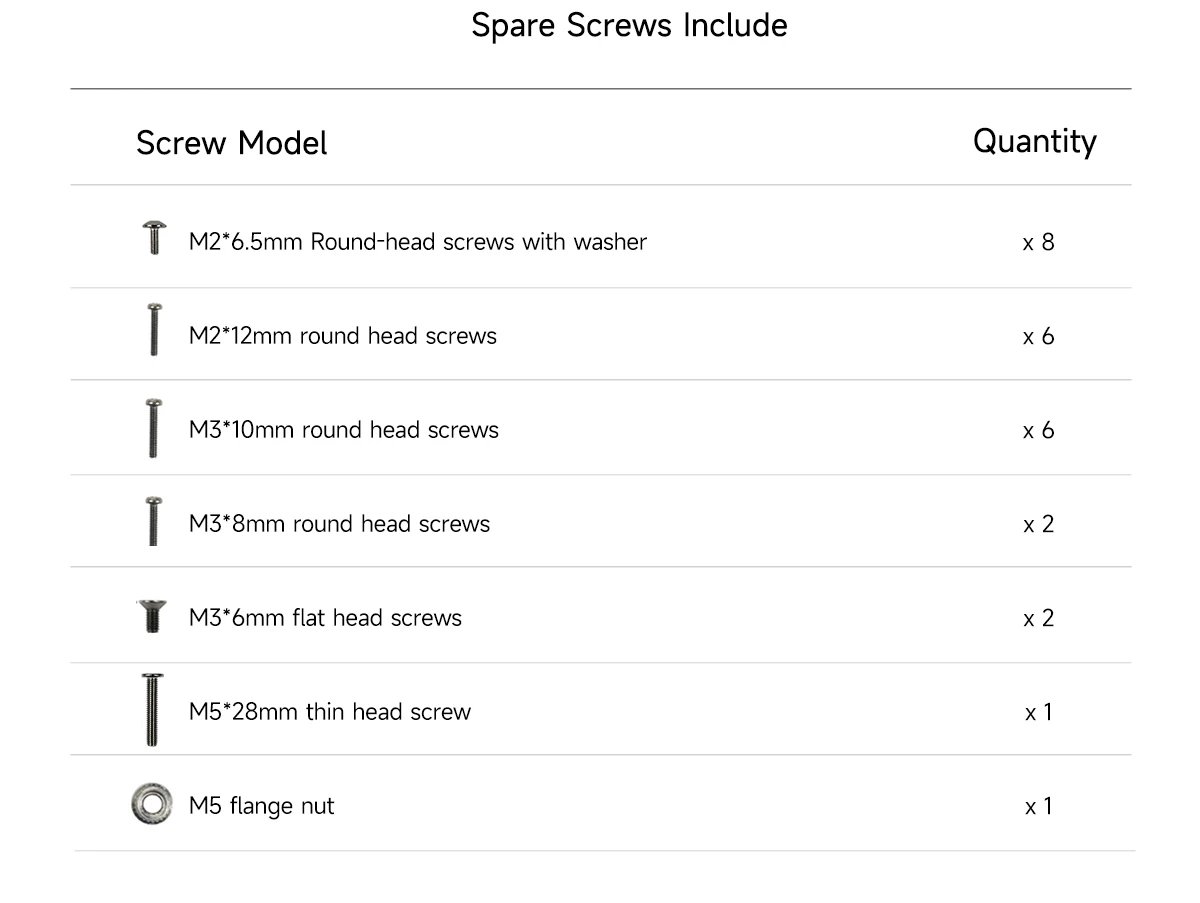

1 x Spare screw pack
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x L-shaped screwdriver 3.0mm
1 x GoPro mount
1 x GPS mount
1 x Vapor side panel

———————————————————————

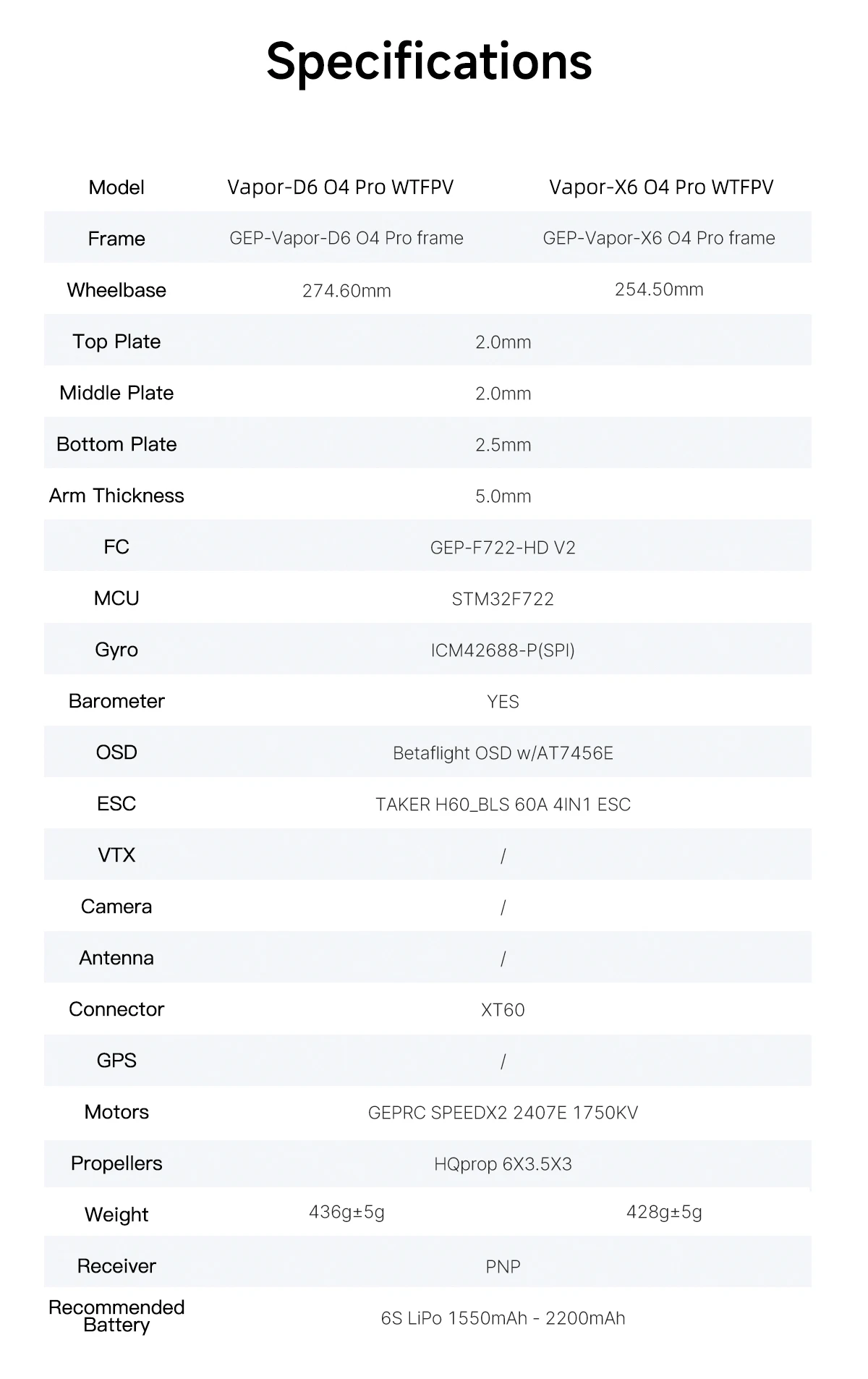

Specfication—Vapor-X6 O4 Pro WTFPV

• Frame: GEP-Vapor-X6 O4 Pro frame

• Wheelbase: 254.5 mm

• Top Plate: 2.0 mm

• Middle Plate: 2.0 mm

• Bottom Plate: 2.5 mm

• Arm Thickness: 5.0 mm

• FC: GEP-F722-HD v2

• MCU: STM32F722

• Gyro: ICM42688-P(SPI)

• Barometer: BMP280

• OSD: Betaflight OSD w/AT7456E

• ESC: TAKER H60_BLS 60A 4IN1 ESC

• VTX: /

• Camera: /

• Antenna: /

• Connector: XT60

• GPS：/

• 6-inch Motor: GEPRC SPEEDX2 2407E 1750KV

• 6-inch Propeller: HQprop 6X3.5X3

• Vapor-X6 O4 Pro WTFPV PNP Version Weight：428g±5g

• Receiver: /

• Recommended Battery: 6S LiPo 1550mAh – 2200mAh

• Flight Time: 14-19  min

Product List:
