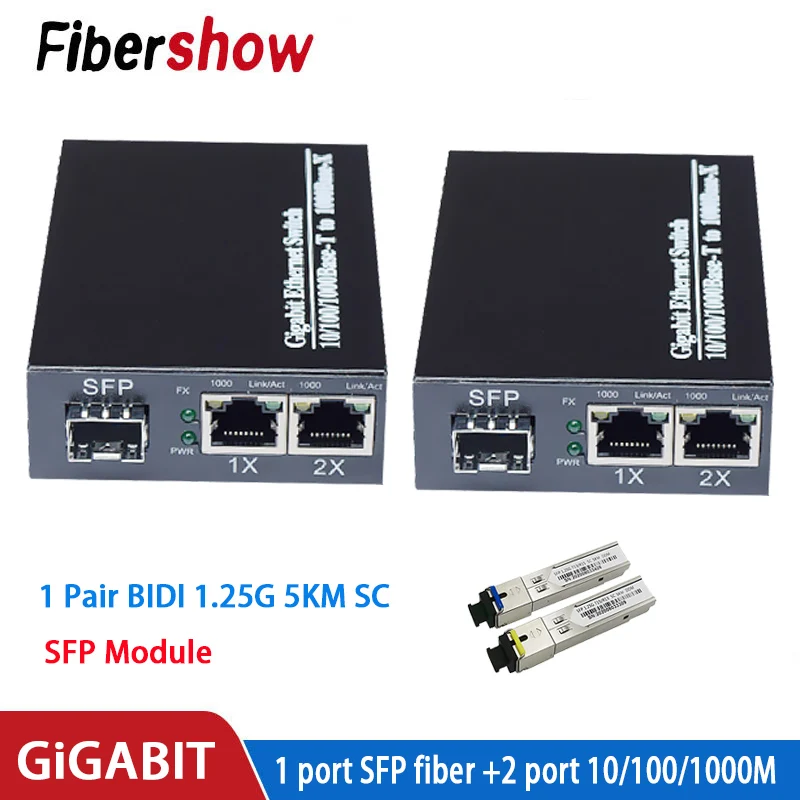

Gigabit media converter 1 port sfp to 2 rj45 gigabit optical fiber GPOn/Epon OLT ethernet for ip camera 10/100/1000M
Description
- Wireless function: No
- High-concerned chemical: None
- Fiber Type: Single Mode
- Compatible: Ubiquiti,QSFPTEK,Mikrotik,Cisco,TP-link,D-Link,Linksys,IBM,Dell,AVAGO,Avaya,H3C,Huawei
- Connector Type: SC/UPC
- Item Length: 1m
- Model Number: SFP-0102-1
- Brand Name: tapirapeco
- Origin: Mainland China

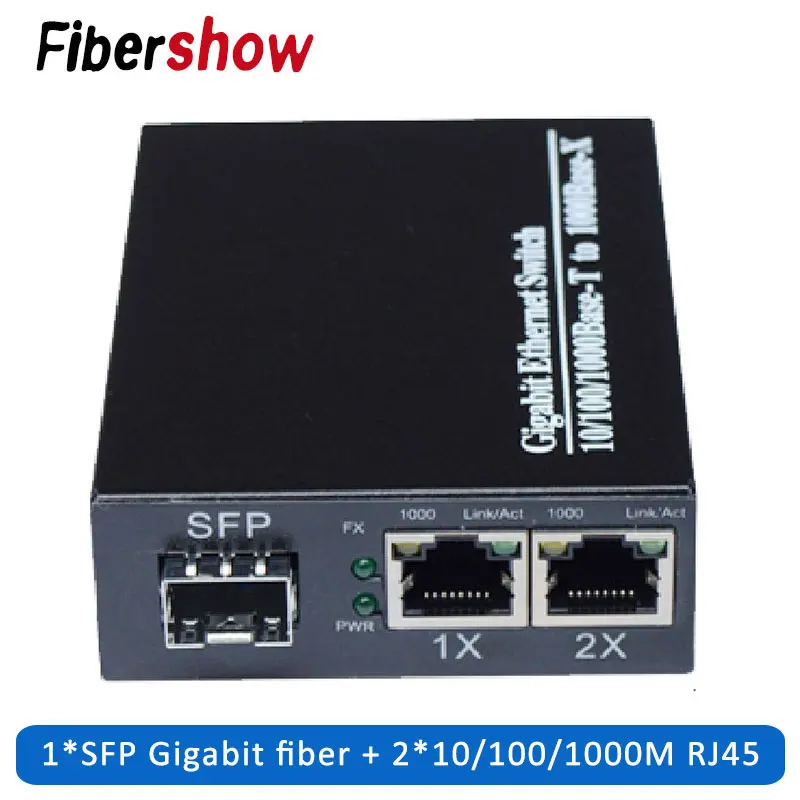

SFP Fiber to RJ45 converter gigabit SFP media converter 1000Mbps SFP Gigabit Fiber Optical Converter Board
10/100/1000 Mbps SFP Slot Ethernet Media Converter
Overview                                 Â
This 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between
10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers’requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 80 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.
Key Features                               Â
* Modular design, plug and play
* Complies with IEEE 10/100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards
* Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex
* Available in single fiber WDM versions – 1310/1550 nm wavelengths used
* Supports automatic cross of twisted pair ports
* Alarm LED illuminates to indicate link failure, status LEDs for easy monitoring of device's status
Specifications:
|
Standards |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3z 1000Base-SX/LX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree |
|
Ethernet Port |
Connector: RJ45 Data Rate:10/100M or 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level |
|
Fiber Port |
Connector: SC/FC/ST/SFP slot Data Rate: 155M or 1.25Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～120km |
|
Performance |
Processing Type: Store and Forward MAC Table Size:4K/6K/8K Buffer Space: 500kbs/1Mbit/2Mbit Jumbo Packet: 1518 bytes Back bandwidth: 3.8G/5.6G/7.2G Time Delay: ＜150μs |
|
Power |
Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5V Power Consumption: 2.2W～3.5W |
|
Transmissin Distance |
Twisted Pair: 100m (CAT5e, CAT6 cables) Muti-mode: 2km Single-mode: 3/20/40/60/80/100km |
|
MTBF |
100, 000 hours |
|
Warranty |
1 year |
|
Environment |
Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation) |
|
Mechanical Structures |
Dimension: 215×107×26mm Weight: 0.15 PCB  main board |
|
OEM&ODM |
Supportive |
Additional information
| Color | LC 20KM EU Power, LC 5KM EU Power, no sfp EU Power, SC 20KM EU Power, SC 5KM EU Power |
|---|---|
| Wireless function | No |
| High-concerned chemical | None |
| Fiber Type | Single Mode |
| Compatible | Ubiquiti,QSFPTEK,Mikrotik,Cisco,TP-link,D-Link,Linksys,IBM,Dell,AVAGO,Avaya,H3C,Huawei |
| Connector Type | SC/UPC |
| Item Length | 1m |
| Model Number | SFP-0102-1 |
| Brand Name | tapirapeco |
| Origin | Mainland China |
