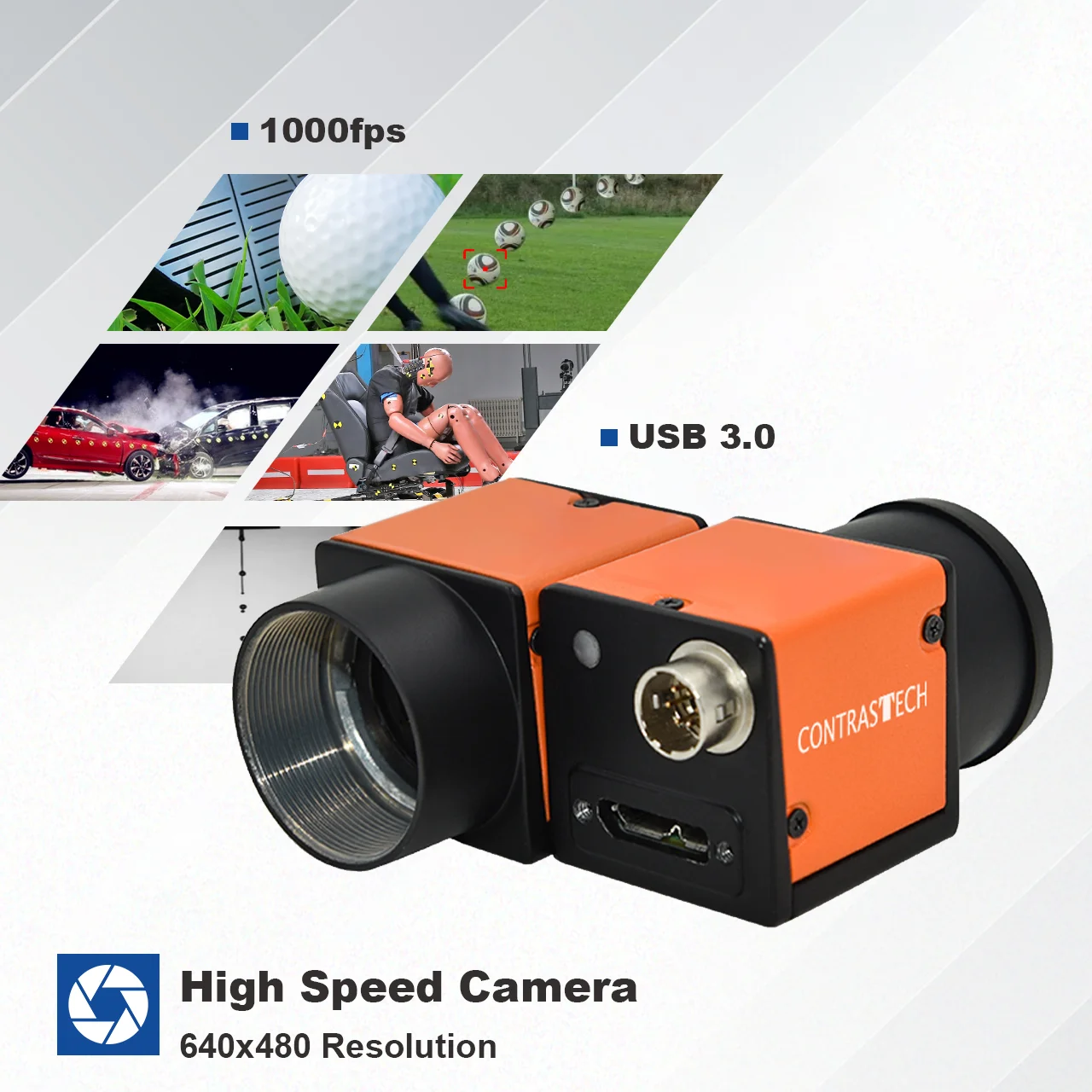

Global Shutter Industrial Camera 1000fps USB3.0 High FPS Vision Inspection GigE High Speed Camera For Ball Trajectory Analysis
Description
- High-concerned chemical: None
- Model Number: Mars640-815um/uc
- Brand Name: CONTRASTECH
- Origin: Mainland China
- Certification: CE
- Sensor: Onsemi Python300
- Resolution (HxV pixels): 640 * 480
- Frame Rate: 815fps
- Pixel Size(μm2): 4.8
- Sensor Size: 1/4 inch
- Bit Depth: 8/10
- Interface: USB3.0
- Shutter Type: Global Shutter
- Application1: Professional Golf Swing Analysis
- Application2: Ball Trajectory & Spin Tracking
- Application3: High-Speed Industrial Inspection
- Application4: Robotic Vision & Navigation
- Application5: Biomechanical Motion Capture
- Application6: Scientific Research & Lab Testing
- Application7: Automated Sorting Systems
- Application8: Billiards/Pool Ball Tracking
- Application9: Electronic Component Assembly
- Application10: Drone-Based High-Speed Imaging
- Feature1: Ultra-High Frame Rate (Up to 815 FPS)
- Feature2: True Global Shutter Technology
- Feature3: Industrial-Grade PYTHON 300/IMX287 Sensor
- Feature4: USB 3.0 / GigE Vision Interface

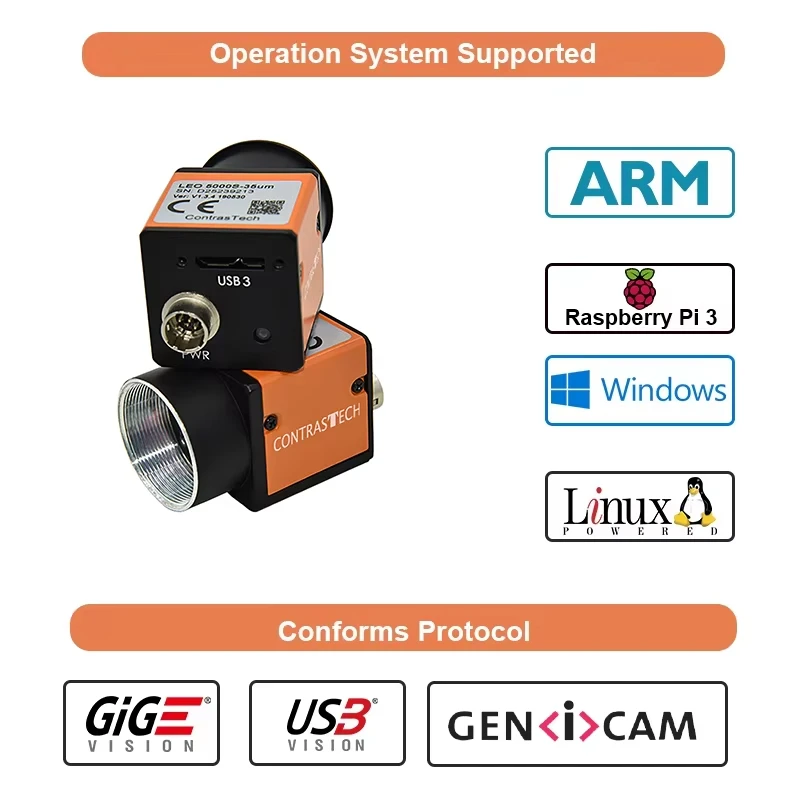

- Feature5: GenICam & USB3 Vision Compliance
- Feature6: Hardware & Software Triggering
- Feature7: Compact & Robust Housing
- Feature8: Low Latency Data Transmission

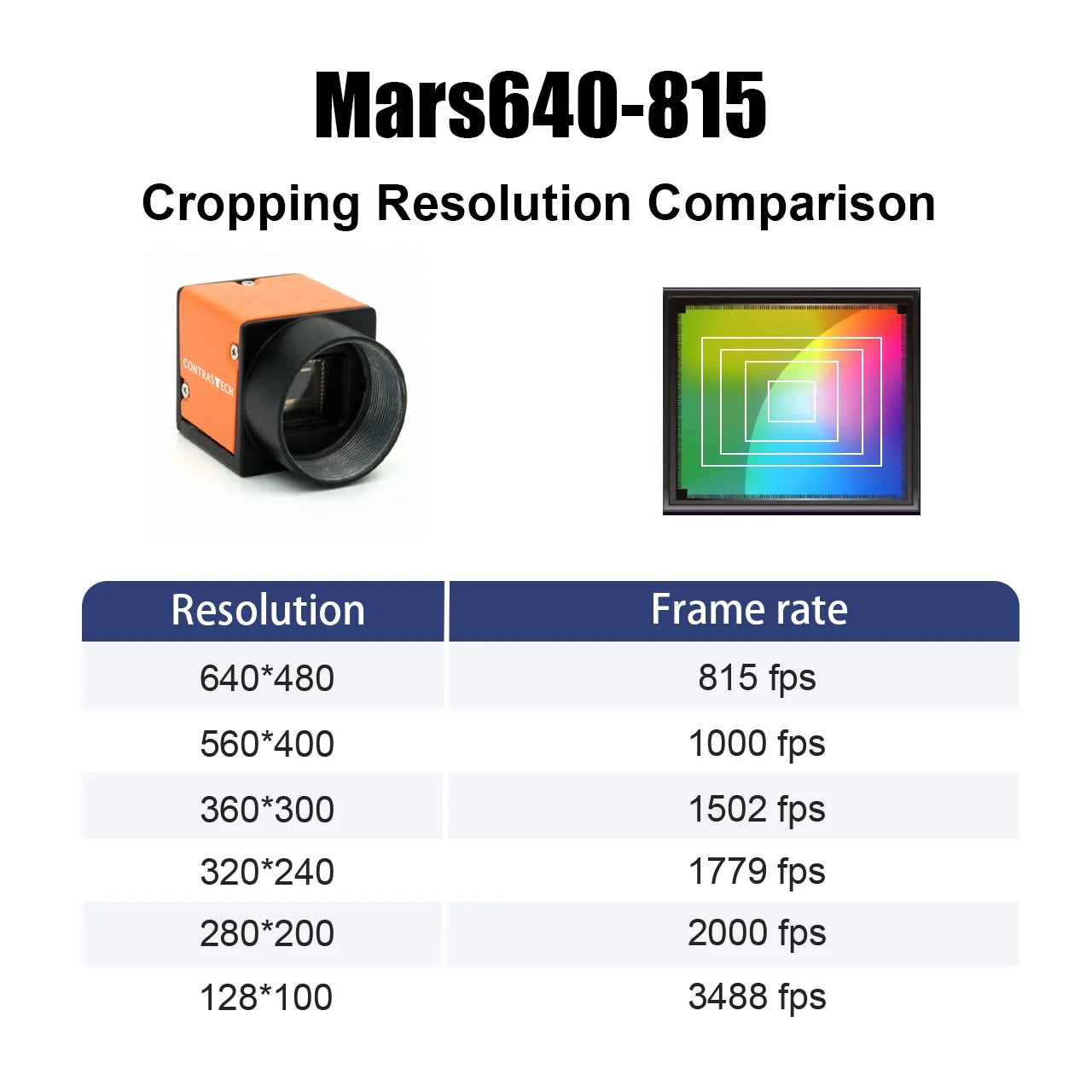

- Feature9: Flexible ROI (Region of Interest) Settings
- Feature10: Long-Term Stability & Reliability
- Optional lenses: 2.8-12mm lens
Global Shutter Industrial Camera 815fps USB3.0 High FPS Vision Inspection GigE High Speed Camera For Ball Trajectory Analysis
Key Features
■USB 3.0 interface with plug and play capability, SB3.0 power supply
Please Note: High-Speed cameras up to 815fps can place extreme demands on hard disk write speeds when saving image sequences or un compredded video directly. If you need strict guarantees that no frames will be lost, you will need to consider writing a program for memory buffering or using Contrastech commercial software(HSS) for the purpose. [Contact us to get trial version]
Programming language:
Mars series cameras support C#/C++Builder/Cti/Delphi/Halcon/LabView/Python/VB/VC/VisionPro
Applications
â– Football Tracing
â– Surface Patch Detection
â– Visual Positioning
â– Size Measuring
â– QR Code Reading
â– VR/AR
■Golf（Need to develop software independently）
Camera Packed List
1*Camera
1*Date cable
1*IO cable
USB3.0 Cable Packed List
1*Date cable
Camera Specifications
|
Model |
Pixel |
Resolution |
Frame Rate |
Shutter Type |
Sensor |
Pixel Size |
Bit Depth |
Color |
|
640-815UM |
0.3MP |
640X480 |
815 FPS |
Global Shutter |
1/4" PYTHON 300 |
4.8μm |
8/10 Bits |
Mono |
|
640-815UC |
0.3MP |
640X480 |
815 FPS |
Global Shutter |
1/4" PYTSHON 300 |
4.8μm |
8/10 Bits |
Color |
Lens Specifications
|
Part Name |
Sensor Format |
EFL |
Aperture |
M.O.D. |
|
VT-LEM0620 |
1/1.8'' |
6mm |
F2.0 |
0.1m |
|
VT-LEM0820 |
1/1.8'' |
8mm |
F2.0 |
0.1m |
|
VT-LEM1220 |
1/1.8'' |
12mm |
F2.0 |
0.1m |
|
VT-LEM1620 |
1/1.8'' |
16mm |
F2.0 |
0.1m |
|
VT-LEM2520 |
1/1.8'' |
25mm |
F2.0 |
0.1m |
|
VT-LEM3520 |
1/1.8'' |
35mm |
F2.0 |
0.2m |
|
VT-LEM5028 |
1/1.8'' |
50mm |
F2.8 |
0.3m |
|
VT-LEM0281216i |
1/2'' |
2.8-12mm |
F1.6 |
0.3m |
Additional information
| Color | 0.3M 815fps Camera-C, 0.3M 815fps Camera-M, Cam with 12mm lens, Cam with 16mm lens, Cam with 25mm lens, Cam with 35mm lens, Cam with 50mm lens, Cam with 6mm lens, Cam with 8mm lens, Cam with2.8-12mm len, Only USB3.0 Cable |
|---|---|
| High-concerned chemical | None |
| Model Number | Mars640-815um/uc |
| Brand Name | CONTRASTECH |
| Origin | Mainland China |
| Certification | CE |
| Sensor | Onsemi Python300 |
| Resolution (HxV pixels) | 640 * 480 |
| Frame Rate | 815fps |
| Pixel Size(μm2) | 4.8 |
| Sensor Size | 1/4 inch |
| Bit Depth | 8/10 |
| Interface | USB3.0 |
| Shutter Type | Global Shutter |
| Application1 | Professional Golf Swing Analysis |
| Application2 | Ball Trajectory & Spin Tracking |
| Application3 | High-Speed Industrial Inspection |
| Application4 | Robotic Vision & Navigation |
| Application5 | Biomechanical Motion Capture |
| Application6 | Scientific Research & Lab Testing |
| Application7 | Automated Sorting Systems |
| Application8 | Billiards/Pool Ball Tracking |
| Application9 | Electronic Component Assembly |
| Application10 | Drone-Based High-Speed Imaging |
| Feature1 | Ultra-High Frame Rate (Up to 815 FPS) |
| Feature2 | True Global Shutter Technology |
| Feature3 | Industrial-Grade PYTHON 300/IMX287 Sensor |
| Feature4 | USB 3.0 / GigE Vision Interface |
| Feature5 | GenICam & USB3 Vision Compliance |
| Feature6 | Hardware & Software Triggering |
| Feature7 | Compact & Robust Housing |
| Feature8 | Low Latency Data Transmission |
| Feature9 | Flexible ROI (Region of Interest) Settings |
| Feature10 | Long-Term Stability & Reliability |
| Optional lenses | 2.8-12mm lens |
