Green Wifi Bird Box Camera Audio 1920P 1080P IR CUT Night Vision RTSP FTP Mini IP IPC Pet Nest Bird Watching 2.8mm lens Camhi
Description
- Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
- High-concerned chemical: None
- Zoom type: None
- Zoom: None
- Lens Quantity: Single Lens
- AI Functions: Motion Detection
- Color Night Vision: No
- Operating Temperature: -10°-60°
- IP Rating: Other
- App name: Other
- Power Mode: Mains Electricity
- Rechargeable Battery Capability: Other
- Rechargeable Battery: None
- Scene: Indoor
- Movement Range(Pan): Other
- Megapixels: 5 MP
- TF Card: None
- Power Supply: Normal
- Internal Storage: None
- Installation: Embedded
- Color: green
- is_customized: No
- Audio Output: None
- Minimum Illumination(Lux): 0.01
- Viewing Angle : 100°
- Video Compression Format: H.264,H.265
- IR Distance(m): 1-5M
- Dimensions (L x W x D)(mm): 41X41MM
- Power Supply(V): 12V
- Alarm Action: FTP Photo,Email Photo,Local Alarm
- Power Consumption(W): 3
- Supported Mobile Systems: Android,iOS
- Sensor Brand: SmartSens
- Sensor: CMOS
- Model Number: HQ-M21
- Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
- Lens (mm): 3.6mm
- Connectivity: IP/Network Wireless
- High Definition: 5.0 Megapixels
- Style: Mini Camera
- Brand Name: HQCAM
- Origin: Mainland China
- Special Features: Vandal-proof
- Certification: CE
- Alarm Type: FTP Photo
- Shell Material: Metal
- Smart home platform: None
- Optical Zoom: None
- Power Source: Normal
CE Certificate
RED Report-2.4G Wifi WST21N060115-2ER

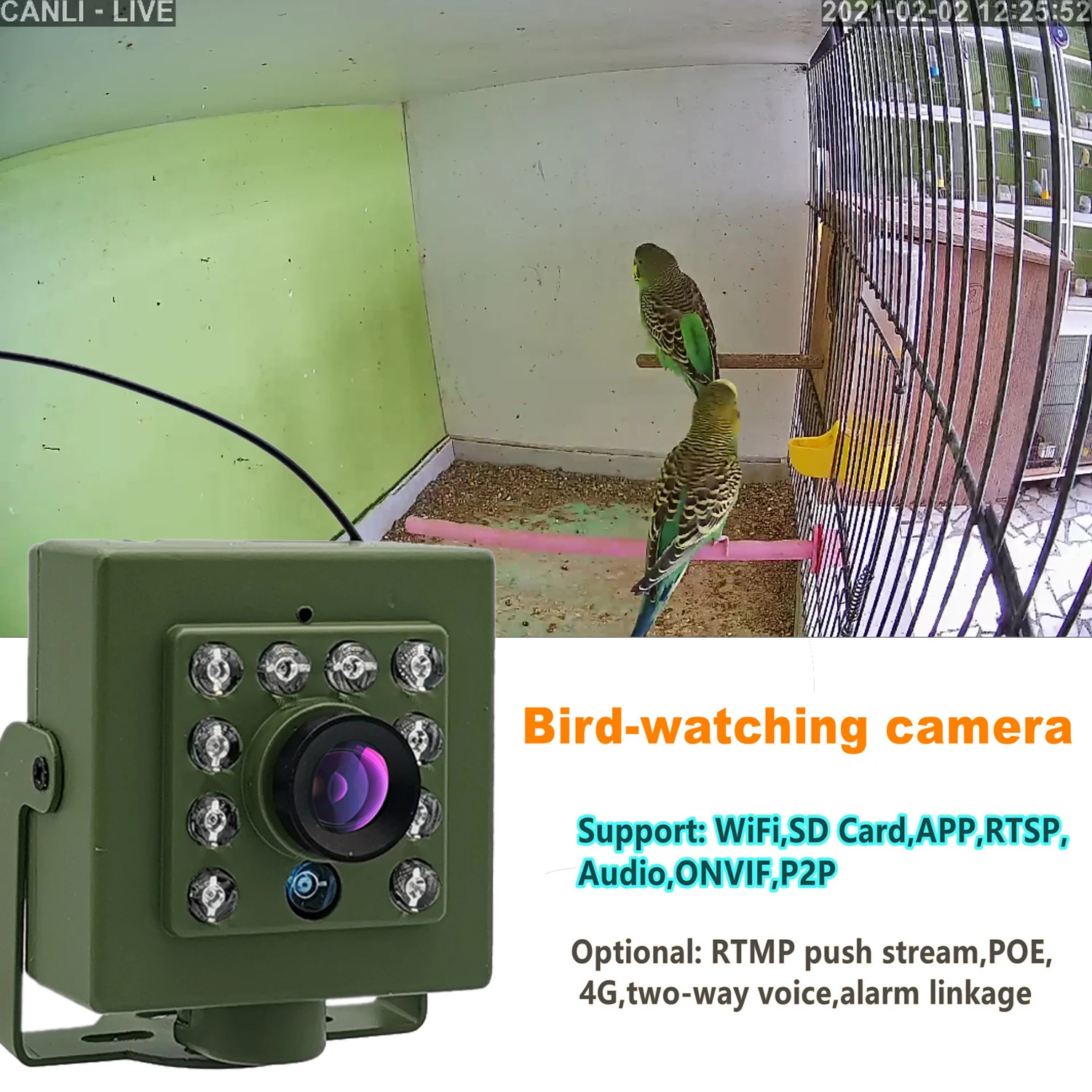

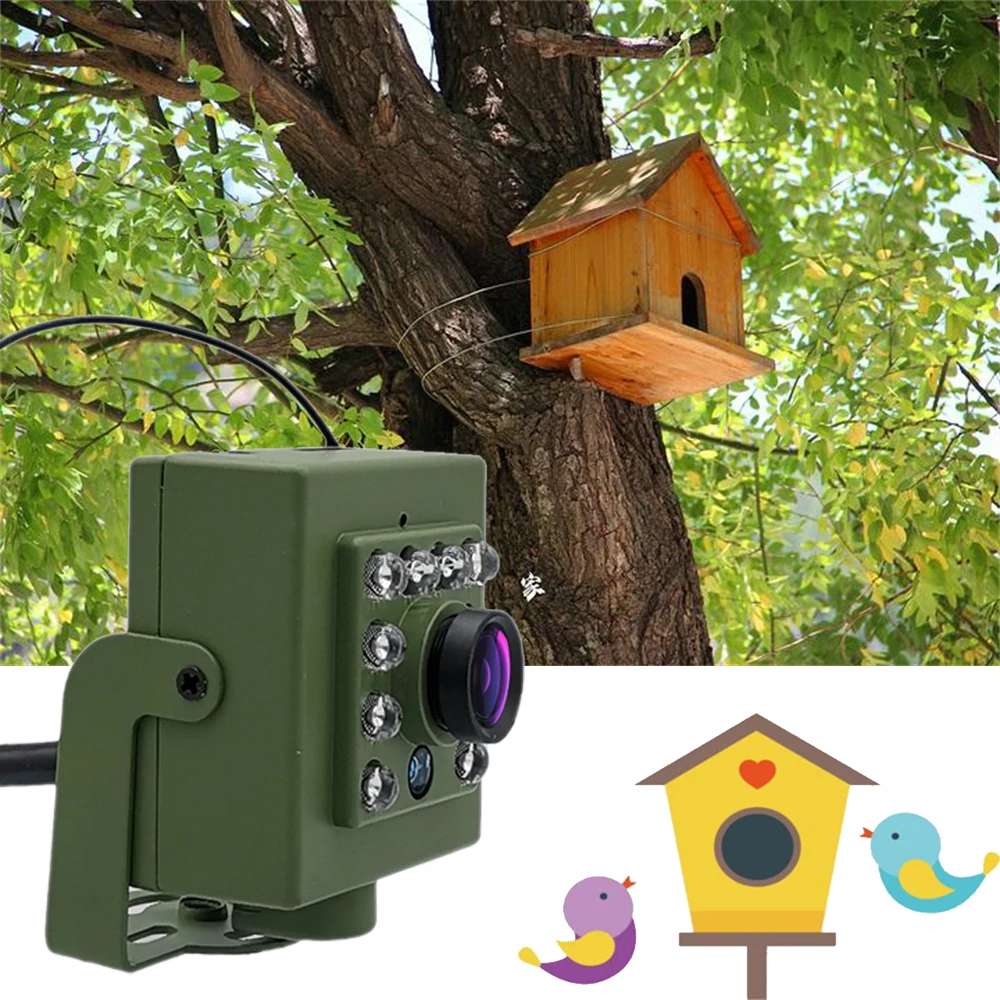

Our bird box camera with WiFi connection is our most popular camera for bringing nature indoors. Using the camhi or camhipro app you can watch nesting birds on your smartphone or tablet in HD.
It’s straightforward to set up: simply connect up the power, mount the camera in your bird box and connect to your WiFi network. You can stream the camera live on your device, watch pre-recorded footage, and share the best bits with friends and family.
Camera default focal length: 30-50cm
Features:

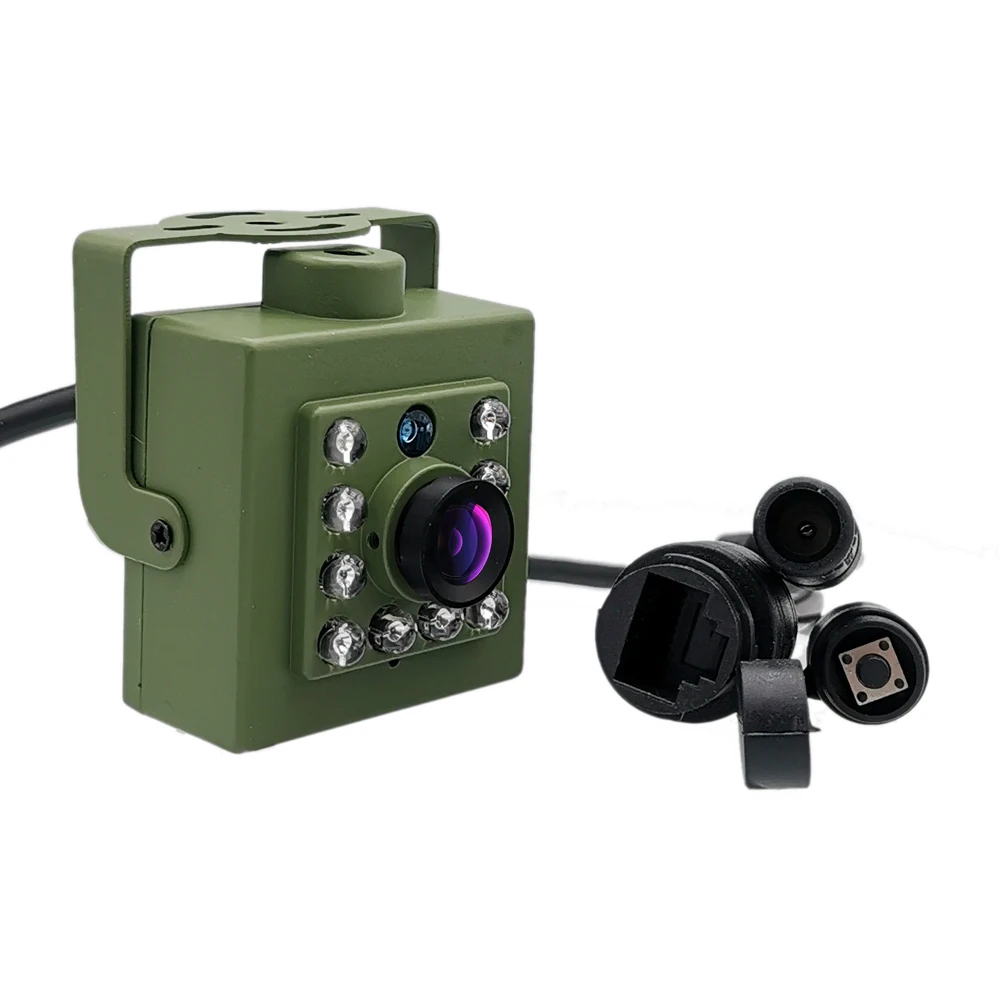

Support both WiFi connection and wired cable connection
Support Acess Point (AP WiFi) connection, you can connect camera by AP mode and live view / playback/ control pan tilt zoom even without internet
Camera built in memory card slot, Support TF card / micro SD card up to 128G
Support Motion detection Recording and email alarm.
Support send alarm pictures to the e-mail address,
Support upload alarm pictures and videos to the FTP server,
Support record alarm pictures and videos to Micro SD card,
Support alarm mobile phone message push
Support remote view and remote control pan tilt zoom from phone app /PC client at any time and any place
Support playback memory card records from phone app
Built in IR-CUT, Support both day and night vision,
Provide android & ios APPÂ and multi-channel CMS PC client software.
Elegant outline and easy installation.
Phone app :CamHi camhipro
Support QR code login.
Support Plug n Play P2P
Support On,vif , camera can work with On,vif NVR recorder!
Different angle lens available
109 degree lens is 2.8mm, and the standard configuration is 3.6mm lens, about 90 degrees
Hi dden infrared lamp
940nm infrared lamp, invisible light source to human eyes, no harm to birds and animals, very hi dden
Supports up to 128 GB memory card(Excluding TF card)
Customer real case presentation:
Size
Q1: Is it wifi camera?
Re: Yes, it is wireless ip camera with wifi antenna.
Q2: Does it support sd card?
Re: YES, it bulits a sd card slot,you can install a micro SD card to save records.
Q3 Can i watch the camera video from another place remotely? What is the app for phone?
Re: Yes, you can. The phone app named" CamHi". (User ID: admin; Password: admin)
Q4: Can i record the video into SD card or my computer hard disk or i have to use this camera with a recorder NVR?
Re: Yes, you can record video to your Micro sd card / PC hard disk, and you can also use it with a recorder NVR and record it into NVR hard disk. Both are OK!
Q5: Does it support ON,VIF?
Re: Yes.
Q6: What browser access is supported?
Re：Support for Internet Explorer, other browsers can switch to IE compatibility mode can also be accessed, may remind you to download the plugin
Q7: Not a clear picture?
Re：Check whether it is the first stream. The first stream is the clearest
To check whether the focal length of the lens is correct, you can try to slowly rotate the lens, pay attention to loosen the small screws near the lens
Q8: How long is the power extension cord appropriate?
Re：The power extension cable used should not exceed 5 meters, and the extension cable of more than 5 meters is recommended to buy a power adapter above DC12V3A for power supply, otherwise it will lead to frequent restart of the power supply camera or no picture
Q9: The PC client software displays a message indicating that the password is incorrect or unavailable
Re: Please contact us for the latest version of the PC client software
Specifications:
|
Model |
 Bird box camera |
|
|
Video |
Sensor |
2.0megapixel. 1/2.8" CMOS
5.0megapixel. 1/2.7" CMOS
|
|
Video resolution |
Main stream: 1920*1080P@25fps, 1280×720@25fps
Sub stream: 640×480/640×352@25fps, 320×240/320×176@25fps Main stream: 2560×1920@20fps, 2560×1440@15fps
Sub stream:800×600/800×448@25fps, 640×480/640×352@25fps |
|
|
Video compression |
H.264Â H.265 |
|
|
Lens |
2.8MM Lens default , |
|
|
View angle |
100 degree |
|
|
Night vision |
10pcs  infrared LEDs, night vision distance 1-4m, 940nm ir leds default , |
|
|
Alarm |
Motion detecting alarm |
Can set 4 independent detection region (1-100 sensitivity can be set) |
|
Alarm linkage |
Alarm send pictures to the mailbox, |
|
|
Alarm recording |
Support Micro SD card and PC client linkage alarm recording |
|
|
Network |
Wireless |
IEEE 802.11 b/g/n |
|
Ethernet |
RJ45 Ethernet |
|
|
On,vif protocol |
Support ON VIF 2.4(backward compatible) |
|
|
Storage |
Micro SD card |
Support up to 128G micro SD card |
|
Recording mode |
Alarm record, timing record, |
|
|
Video playback |
Support APP, IE browser, remote client play and download the video |
|
|
Audio |
YES ,build with Mic |
|
|
Horizontal speed |
/ |
|
|
Vertical speed |
/ |
|
|
Preset |
/ |
|
|
General specification |
Power |
DC12V 2A |
|
Operating environment |
Environment -20℃~+60℃(-4℉~+140℉), |
|
|
Shell material |
metal shell(Waterproof not supported) |
|
|
Waterproof level |
NA |
|
|
Product size |
/ |
|
|
Product weight |
||
|
Package size |
/ |
|
|
Package weight |
||
|
Reset button |
Support |
|
Packing list:
Additional information
| Sensor Size | 2MP WIFI, 5MP WIFI |
|---|---|
| Whether or Not 50Vac or 75Vdc or Higher Power Supply | No |
| High-concerned chemical | None |
| Zoom type | None |
| Zoom | None |
| Lens Quantity | Single Lens |
| AI Functions | Motion Detection |
| Color Night Vision | No |
| Operating Temperature | -10°-60° |
| IP Rating | Other |
| App name | Other |
| Power Mode | Mains Electricity |
| Rechargeable Battery Capability | Other |
| Rechargeable Battery | None |
| Scene | Indoor |
| Movement Range(Pan) | Other |
| Megapixels | 5 MP |
| TF Card | None |
| Power Supply | Normal |
| Internal Storage | None |
| Installation | Embedded |
| Color | green |
| is_customized | No |
| Audio Output | None |
| Minimum Illumination(Lux) | 0.01 |
| Viewing Angle | 100° |
| Video Compression Format | H.264,H.265 |
| IR Distance(m) | 1-5M |
| Dimensions (L x W x D)(mm) | 41X41MM |
| Power Supply(V) | 12V |
| Alarm Action | FTP Photo,Email Photo,Local Alarm |
| Power Consumption(W) | 3 |
| Supported Mobile Systems | Android,iOS |
| Sensor Brand | SmartSens |
| Sensor | CMOS |
| Model Number | HQ-M21 |
| Supported Operating Systems | Windows 98,Windows XP,Windows Vista,Windows 7,macOS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003 |
| Lens (mm) | 3.6mm |
| Connectivity | IP/Network Wireless |
| High Definition | 5.0 Megapixels |
| Style | Mini Camera |
| Brand Name | HQCAM |
| Origin | Mainland China |
| Special Features | Vandal-proof |
| Certification | CE |
| Alarm Type | FTP Photo |
| Shell Material | Metal |
| Smart home platform | None |
| Optical Zoom | None |
| Power Source | Normal |
| Plug Type | EU Plug, UK Plug |
