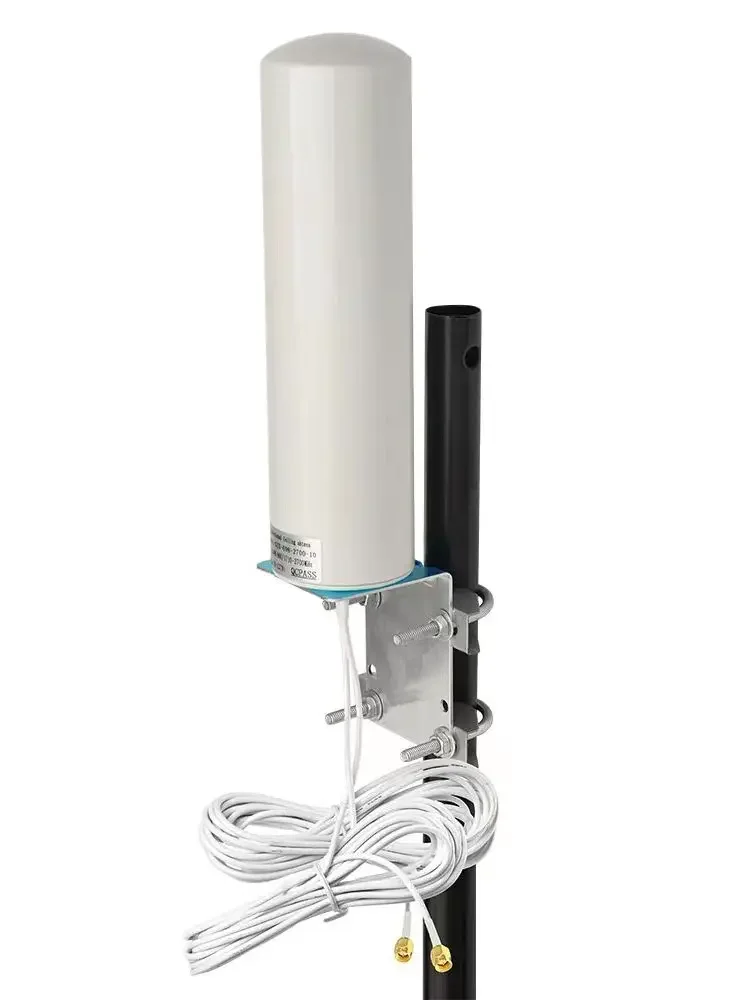

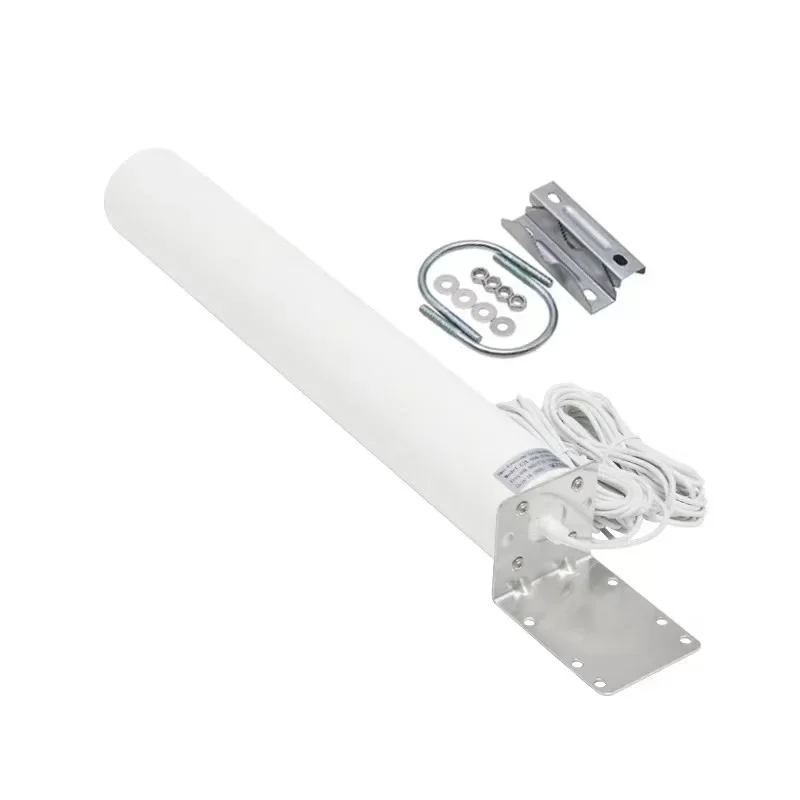

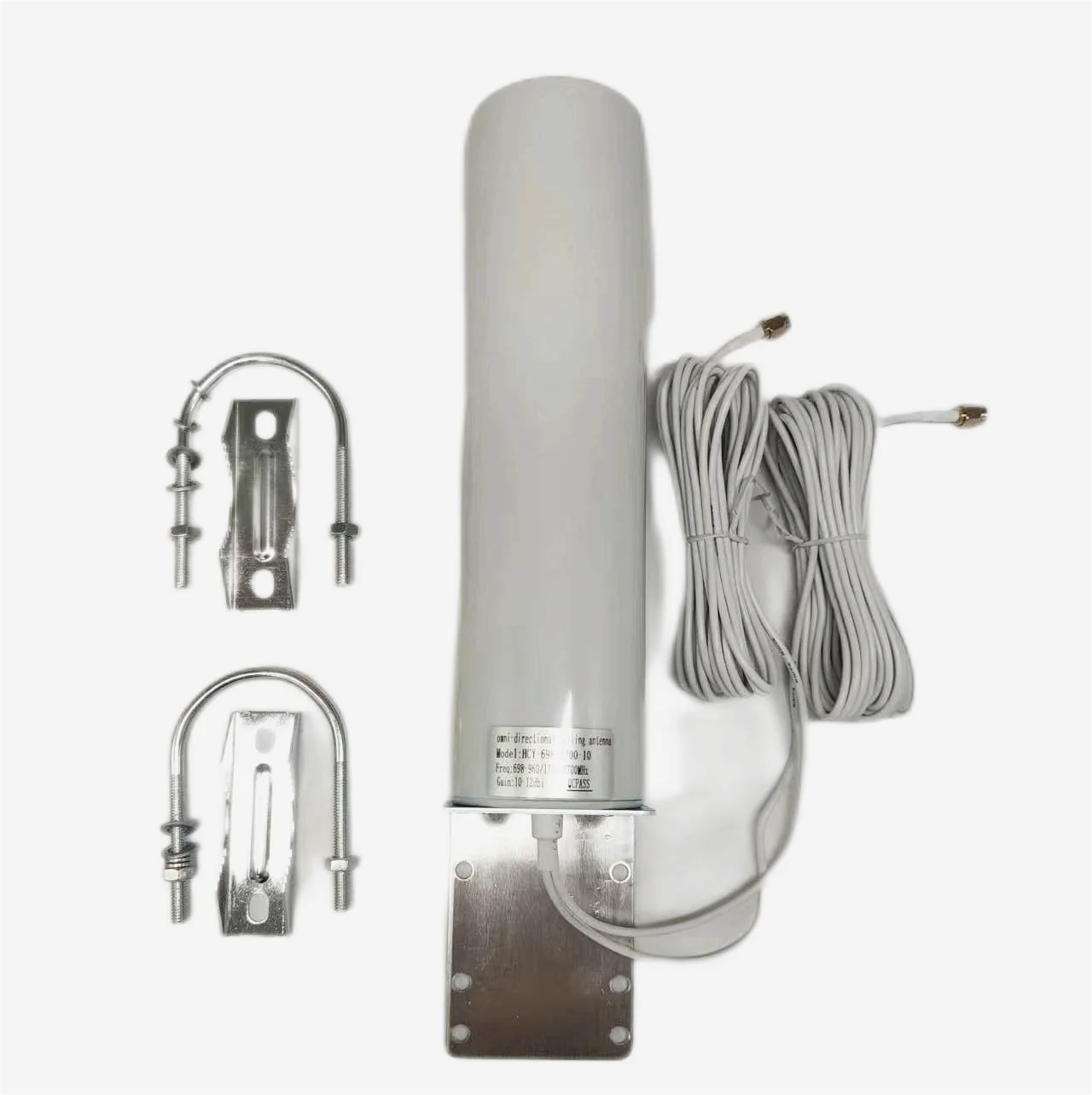

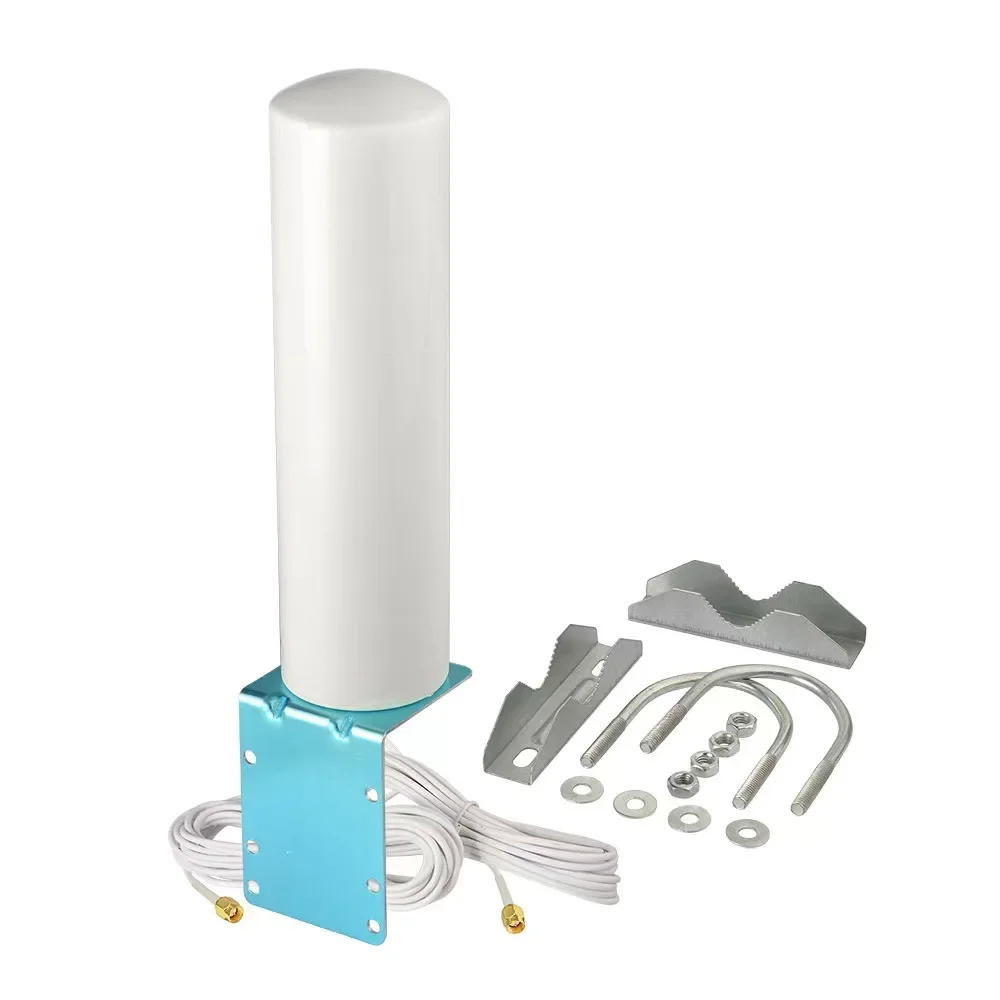

Gun barrel antenna 3G/4G mobile phone signal amplifier router network card omnidirectional external antenna
Description
- High-concerned chemical: None
- Gain(dB): 10-12dbi
- Brand Name: Xinda Ark
- Origin: Mainland China
- Certification: CE
Product parameters:
1. Compatible with 3g4g mobile broadband modem router, easy installation without software.
2. Service conditions: corresponding interface SMA / TS9 / crc9, corresponding frequency band of equipment
3. Compatibility List: 3G 4G router modem
4. It can be used indoors or outdoors to enhance and maintain good signal quality.
5. Frequency range: 698-960 / 1710-2700mhz
6. Standing wave: < 2.5
7. Gain: 10-12dbi
8. Installation type: vertical
9. Radiation: Omni
10. Power input: 10W
11. Input impedance: 50 ohms

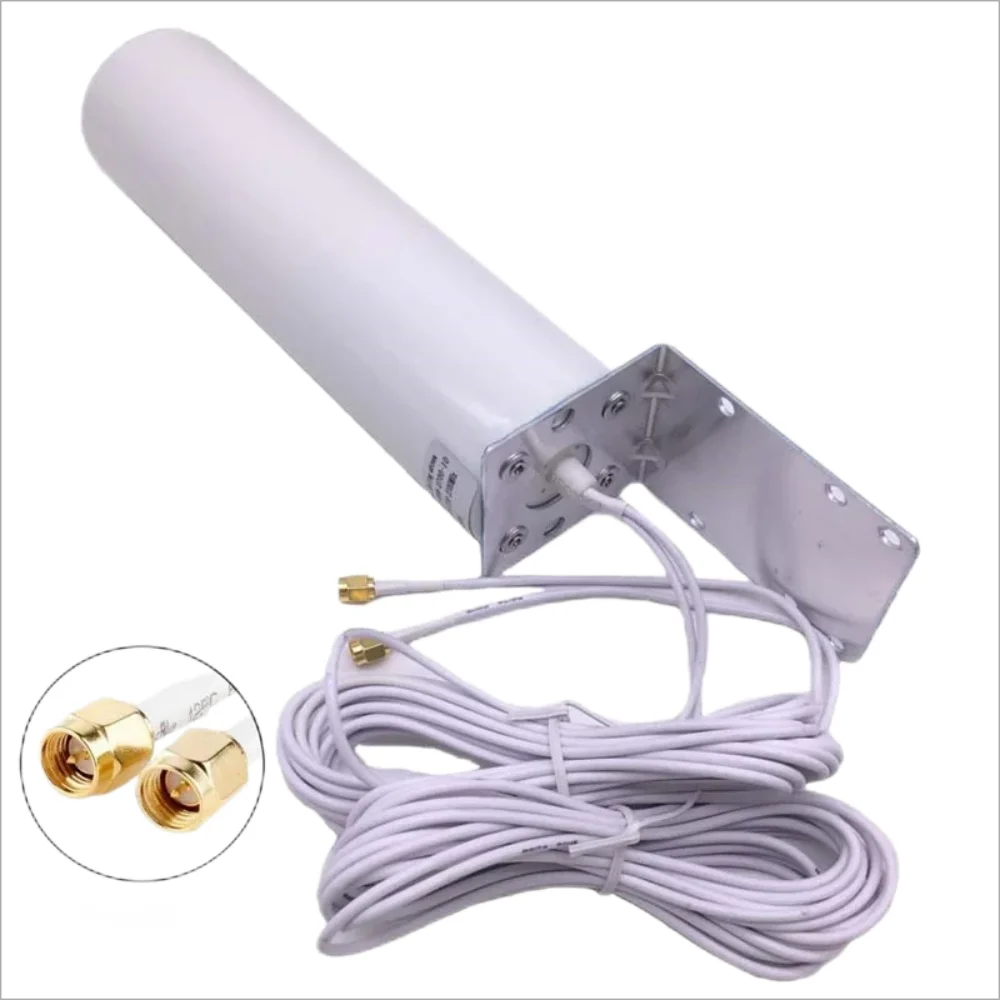

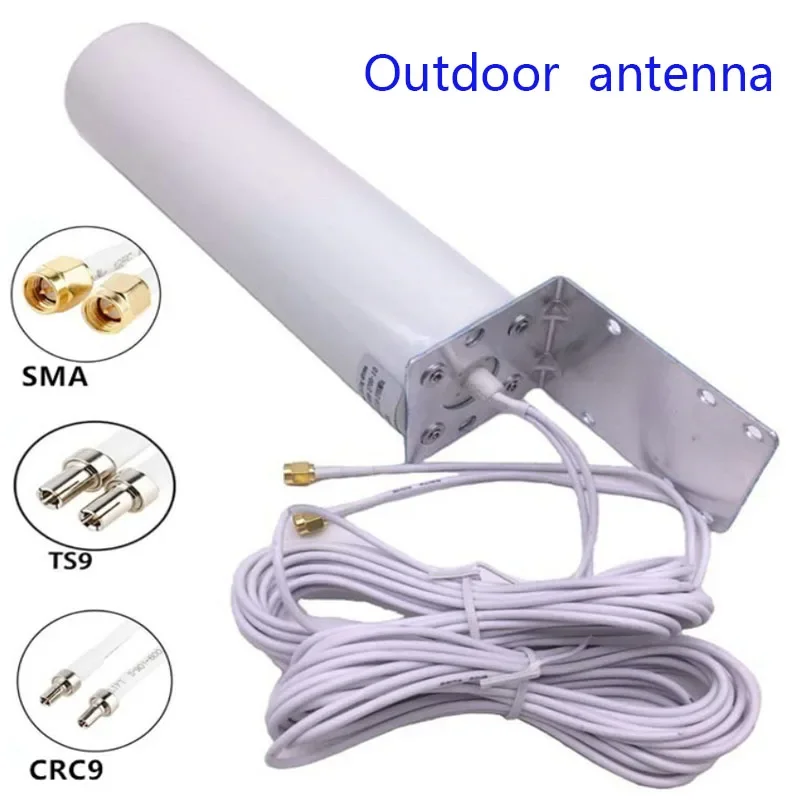

12. Connector type: SMA (default), TS9, crc9 or other
13. Type: RG174 (white)
14. Cable length: 10m

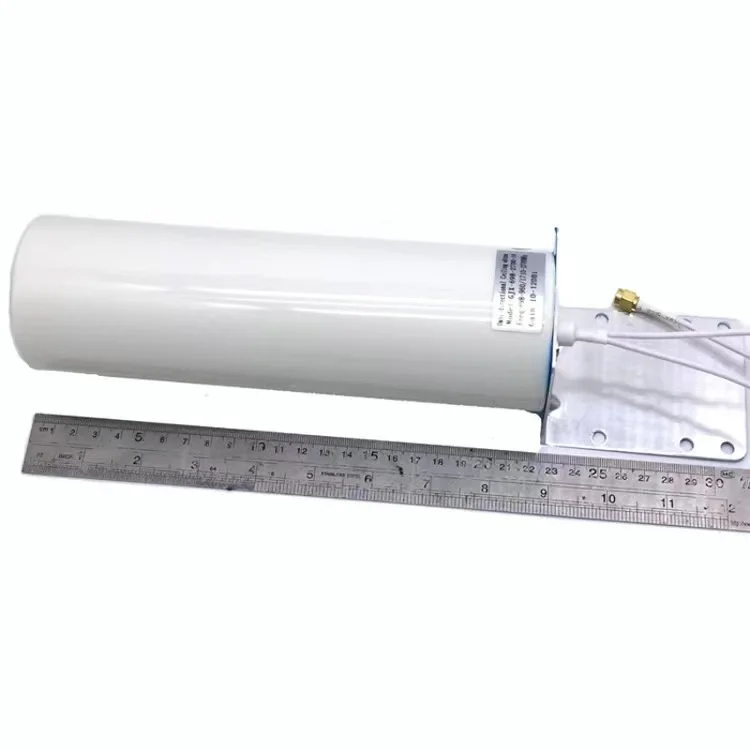

15. Product size: 23 x 6.5 x 6.5cm
Package size: 36x7x7c
16. Material: metal + plastic
17. Main color: white
18. Installation Tips:
The antenna shall be installed vertically to maximize performance
The antenna shall not be mounted on metal
Additional information
| Color | 10mCRC9, 10mSMA, 10mTS9, 5mCRC9, 5mSMA, 5mTS9 |
|---|---|
| High-concerned chemical | None |
| Gain(dB) | 10-12dbi |
| Brand Name | Xinda Ark |
| Origin | Mainland China |
| Certification | CE |
