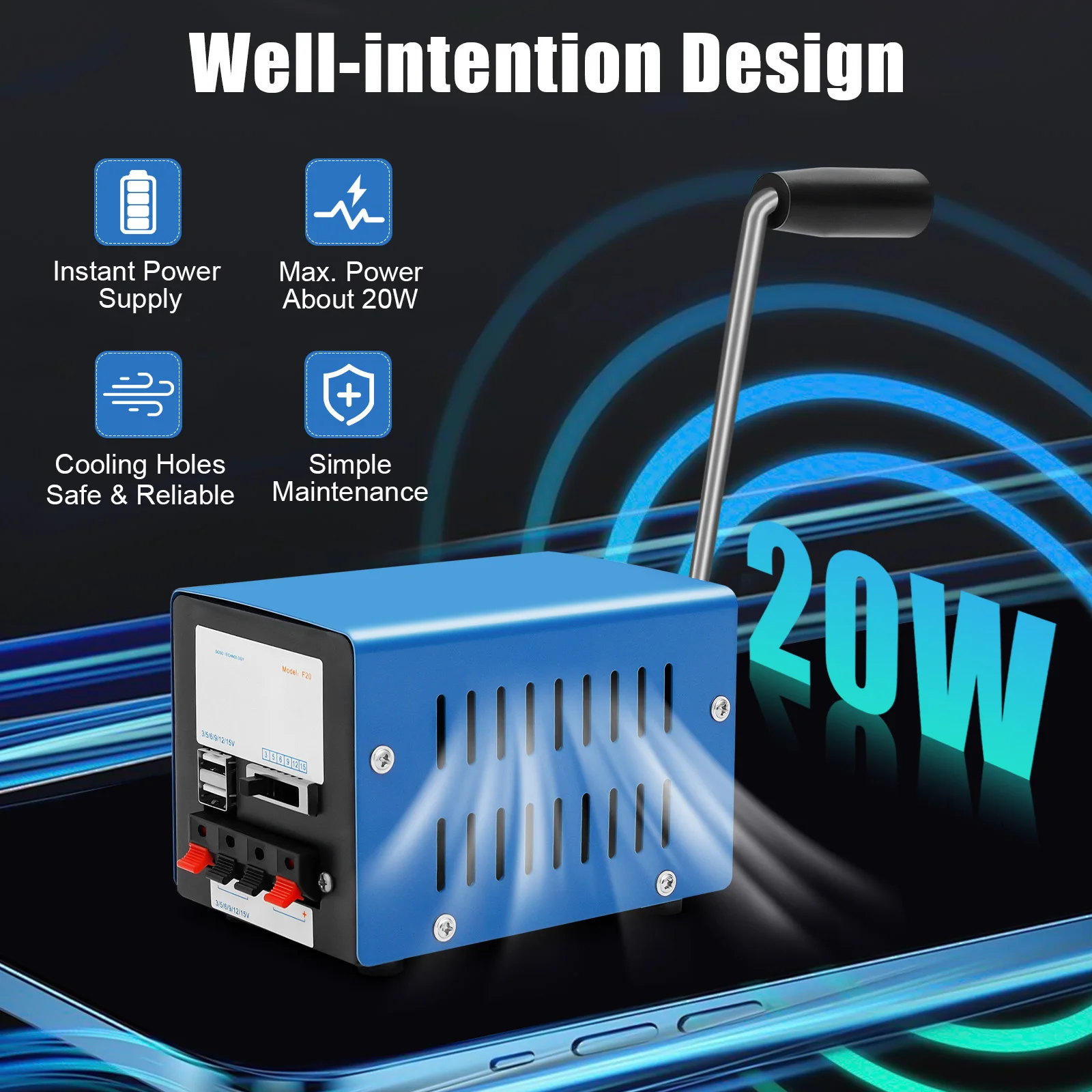

Hand Crank Generator 20W Portable Emergency Power Bank with 5V USB Output for Outdoor Survival Camping Travel Phone Charger

Description

Application

It can be used as an emergency power source to charge various kinds of electronic products in the absence of utility power and oil power generation. It can be actively applied in the state of field operations, field trips, rescue operations, natural disasters, survival training, emergency communication, long-term power shortages, traveling, and emergency power. It is mainly for low-power communication radios, walkie-talkies, laptops, cell phones, video cameras, digital cameras, MP4, MP3, radios, flashlight lighting, various lamps, automobiles, various kinds of measuring instruments, and other portable products. It can directly charge various batteries such as lithium batteries, hydrogen batteries, and lead-acid batteries.Package Included

1* Manual Crank Generator

1* Handle

1* English ManualSpecification

Model: F20

Color: Blue

Material: Metal

Style: Modern

Shape: Rectangular

Mount Type: Freestanding

Assembly Required: Yes

Operation Mode: Manual

Maximum Direct Output Voltage: Approx. 28V

No Load Output Voltage/ Current: 3V/6.6A, 5V/4A, 6V/3.3A, 9V/2.2A, 12V/1.6A, 15V/1.3A (The Actual Current will Vary with the Capacity of the Charged Product Battery.)

Maximum Power: About 20W

Product Size: 12.7*8.6*8.8cm/5*3.39*3.46in

Package Size: 19*10*12cm/7.48*3.94*4.72in

Gross Weight: 0.82kg/1.81lbsNotes

1. The faster the shaking speed of the product, the greater the power generation, with a maximum power generation of about 20W. The faster the shaking speed, the higher the voltage at the unstable output terminal. If the shaking speed is too slow, it will not be able to stabilize the output.

2. Please read the instruction manual completely before use, and pay particular attention to the safety instructions included.

3. Please note that it does not store electricity internally.

4. Please crank the generator clockwise, and do not crank the handle at high speed when connecting electrical appliances smaller than 3W!

5. Please note that its USB port output voltage follows the regulator switch linkage, when using the USB interface, be sure to first set the regulator switch to 5V.

6. The voltage output from its voltage regulator output terminal follows the linkage of the voltage regulator switch, and its voltage regulator output terminal will output as much as the voltage regulator switch is set to.

7. The direct output of the generator outputs the voltage of the core generator. According to the unstable voltage output based on the hand-cranking speed, the faster the speed, the higher the voltage.

8. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.
