HappyModel Crux35 ELRS V2 (URAT ELRS) – 3.5inch 4S FPV Freestyle Racing Drone Quadcopter
Description
- High-concerned chemical: None
- Is Electric: No Battery
- Anti-wind Ability: other
- Drone Weight: other
- Takeoff Weight: other
- Transit Time (Days): other
- Video Capture Resolution: Other
- Indoor/Outdoor Use: Indoor-Outdoor
- Camera Mount Type: Other
- Controller Mode: MODE1,MODE2
- Model Number: Crux35
- Flight Time: <5
- Controller Battery: other
- Control Channels: 2 CHANNELS
- Is Batteries Included: No
- Remote Distance: other
- Remote Control: No
- Aerial Photography: No
- Package Includes: Original Box
- Material: Plastic
- Brand Name: AIRFORTH
- Origin: Mainland China
- Recommend Age: 14+y
NOTICED: SPI ELRS version Crux35 were discontinued. The new ELRS V2 version comes with CrazyF411 ELRS AIO flight controller built-in UART ExpressLRS receiver.

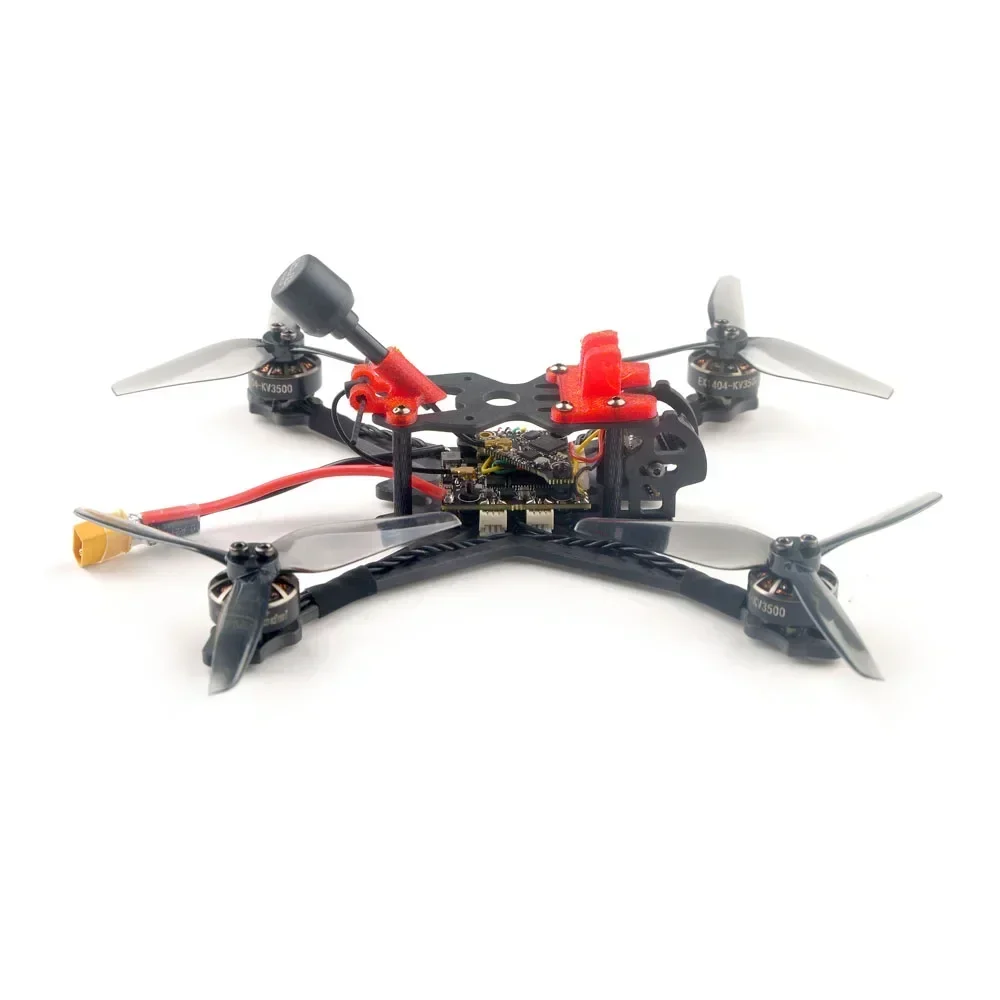

CRUX35 is an ultra-lightweight 3.5Inch FPV Freestyle FPV Racing Drone, the weight of the whole drone is only 87g for the analog version. The Crux35 serials drone use Happymodel EX1404 high-efficiency motor and HQPROP 3.5-inch three-blade propeller to ensure the largest thrust-to-weight ratio under the most efficient premise, which can bring you a smooth Freestyle flying experience.
The analog version is equipped with CADDXFPV Ant ant camera.
The receiver version can be UART ExpressLRS and SPI Frsky (S-FHSS compatible) for choose.
ExpressLRS is the most popular RC link system by now , it could performance very well with Crux35.
Features:
Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone
HD video transmission and analog video transmission are optional
Integrated ExpressLRS UART receiver or Frsky SPI D8/D16 receiver
High efficiency EX1404 power system
Can be equipped with Naked Gopro or SMO4K
Support 3-4S battery 4S 750mah battery is recommended, maximum support 4S 1100mah
Specifications:
Brand: Happymodel
Product name: Crux35
Wheelbase: 150mm

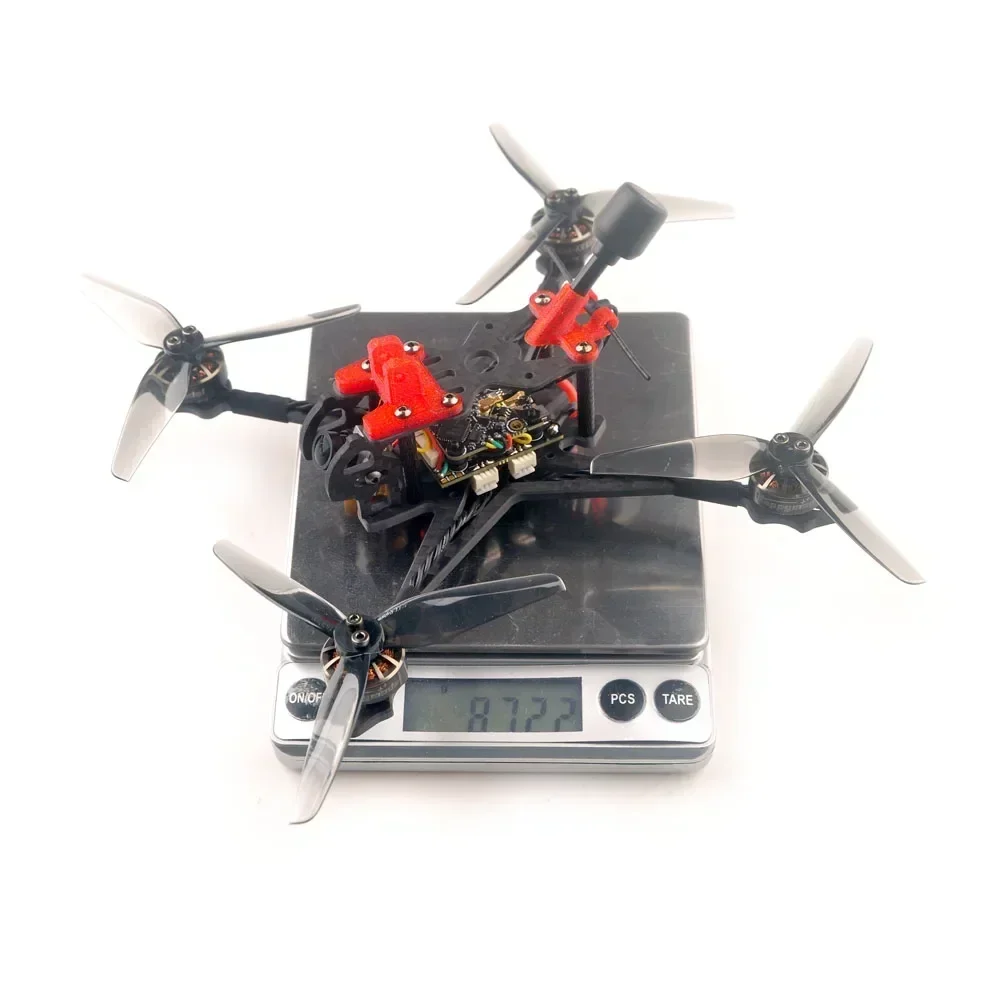

Weight: Crux35 87gram
Size: 130mmx130mmx45mm(without propellers)
Receiver option: UART ExpressLRS 2.4GHz
SPI Frsky D8/D16 (S-FHSS compatible)
Camera and VTX option:
Analog version Ant+OVX303 or OVX306 VTX
Flying time: 9min~15min 4s 750mah battery
Package includes:
|
Item Name |
Crux35 |
Crux35 HDZERO |
Crux35 HD DJI |
|
Crux35 Frame |
1 |
1 |
1 |
|
Option1: ELRS X1 FC with SPI ELRS(Discontinued) |
1 |
1 |
1 |
|
Option2:CrazyF411 ELRS FC with UART ELRS |
|||
|
Option3: CrazyF411 FRSKY FC SPI Frsky |
|||
|
CaddxFPV Digital HD Camera Nebula Nano Kit
Or Runcam Link Wasp Nano |
0 |
0 |
1 |
|
HDZERO Whoop VTX+ Rucam HDZERO Camera |
0 |
1 |
0 |
|
Analog FPV Camera Caddx Ant |
1 |
0 |
0 |
|
Happymodel OVX303 5.8G analog VTX |
1 |
0 |
0 |
|
Happymodel EX1404 KV3500 brushless motor |
4 |
4 |
4 |
|
HQProp T3.5X2X3Grey (4cw+4ccw) |
1 |
1 |
1 |
|
Screw Driver |
1 |
1 |
1 |
|
Buckle Velcro for battery |
1 |
1 |
1 |
|
Motor |
Mode: EX1404 |
|
|
Propellers |
Propeller Diameter: 3.5 inch |
|
|
Flight controller
(UART ELRS Version) CrazybeeF411 ELRS |
|
|
|
Flight controller
(SPI ELRS Version) ELRS X1 (Discontinued) |
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) |
|
|
Flight controller |
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) |
|
|
Onboard 4in1 ESC |
MCU upgraded to EFM8BB21 |
|
|
Onboard UART ExpressLRS 2.4GHz Receiver( UART ELRS version) |
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz |
|
|
Onboard SPI Frsky 2.4GHz receiver (Frsky Version) |
SPI BUS receiver |
|
Caddx ANT 1200tvl camera
(Analog version) |
Image Sensor: 1/3″ CMOS Sensor |
|
OVX303 5.8Ghz VTX |
Model: OVX303 |
|
OVX306 5.8Ghz VTX |
Model: OVX306 |
Additional information
| Color | URAT ELRS |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Anti-wind Ability | other |
| Drone Weight | other |
| Takeoff Weight | other |
| Transit Time (Days) | other |
| Video Capture Resolution | Other |
| Indoor/Outdoor Use | Indoor-Outdoor |
| Camera Mount Type | Other |
| Controller Mode | MODE1,MODE2 |
| Model Number | Crux35 |
| Flight Time | <5 |
| Controller Battery | other |
| Control Channels | 2 CHANNELS |
| Is Batteries Included | No |
| Remote Distance | other |
| Remote Control | No |
| Aerial Photography | No |
| Package Includes | Original Box |
| Material | Plastic |
| Brand Name | AIRFORTH |
| Origin | Mainland China |
| Recommend Age | 14+y |
