Happymodel Mobula8 1-2S 85mm Micro FPV Racing Brushless RC Drone Whoop Quadcopter Drone ELRS/FRSLY Receiver X12 AIO Caddx Ant
Description
- Anti-wind Ability: /
- Drone Weight: /
- Takeoff Weight: /
- Transit Time (Days): /
- Camera Mount Type: Other
- Indoor/Outdoor Use: Outdoor
- Operator Skill Level: Beginner
- Video Capture Resolution: Other
- Controller Mode: MODE2,MODE1
- Flight Time: 5~10
- Control Channels: 2 CHANNELS
- Remote Control: No
- Package Includes: Original Box
- Features: Other
- Origin: Mainland China
- Brand Name: EACHINE

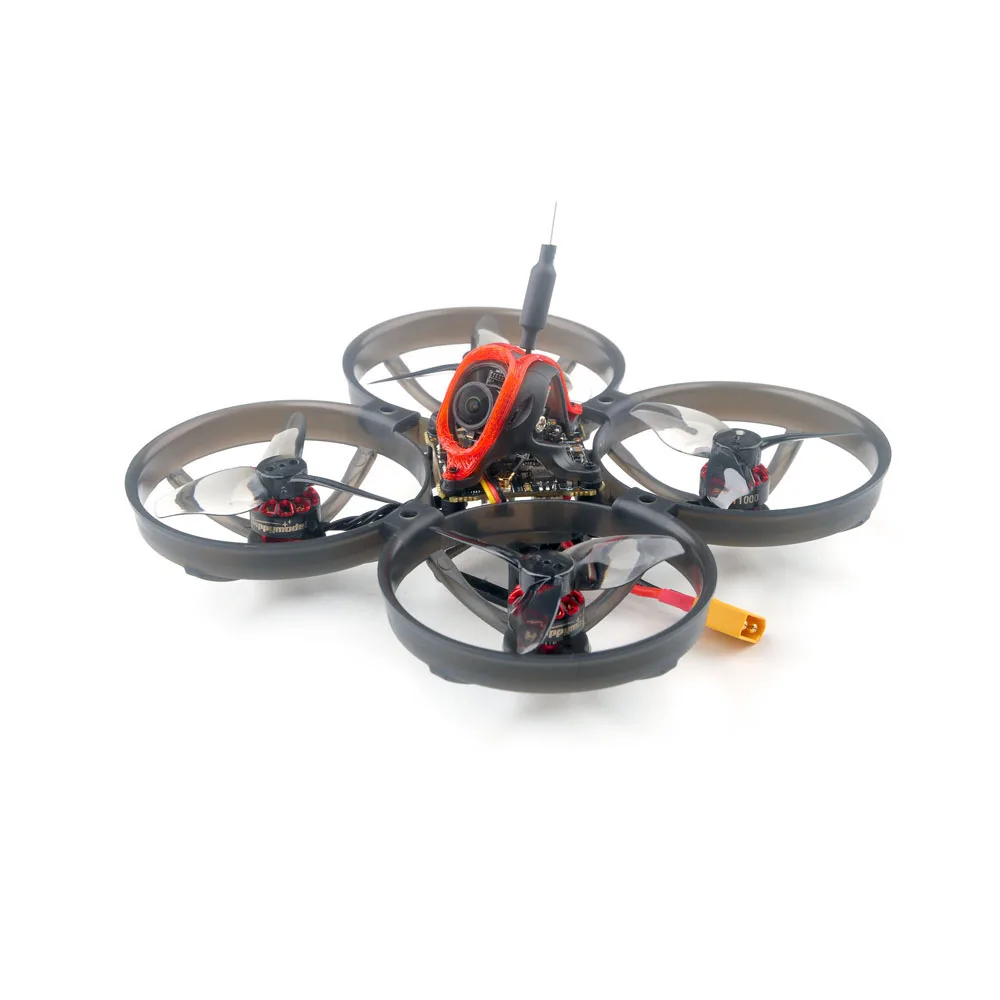

Are you tired of the power performance of the 1S whoop you own Do you want more power to ripping and roaring in your backyard Yes, here comes Mobula8, which is Happymodel's first attempt on an 85mm frame. It comes with an X12 series flight controller, EX1103 KV11000 motor, and Gemfan Hurricane 2023 tri-blade propeller, which has excellent power performance and extremely smooth flight.
Features:
Comes with X12 5IN1 AIO flight controller built-in 2.4G ELRS V2.0 and OPENVTX
VTX Power up to 400mW, with high-grade imaging performance
ELRS V2.0 (Default), provides firmware to support ELRS V3.0
Smooth and Powerful EX1103 KV110000 motors
CaddxFPV Ant FPV camera, full-featured nano camera
Compatible with 1S-2S Lipo / LIHV battery, which provides more selection in flight.
Recommend 2S 450mah/550mah/650mah battery (Not include)
Specifications:
Brand Name: Happymodel
Item Name: Mobula8 1-2S 85mm Micro FPV whoop drone
Wheelbase: 85mm
Size: 120mm*120mm*50mm
Weight: 43g
Receiver option:
2.4G ELRS SPI(Support ELRS v2.0, provide firmware could compatible with elrs v3.0)
SPI Frsky D8/D16 not compatible with EMAX E6 radio
SPI Flysky AFHDS2A
PNP (without onboard receiver)
TBS version(with external TBS CRSF NANO RX)
|
EX1103 KV11000 brushless motor |
Mode: EX1103 KV11000 |
|
Configu-ration:9N12P |
|
|
Stator Diamter:11mm |
|
|
Stator Length:3mm |
|
|
Shaft Diameter:Φ1.5mm |
|
|
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm |
|
|
Weight(g):3.8g |
|
|
No.of Cells(Lipo):1-2S |
|
|
Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw) |
Weight:0.88g |
|
Material: PC |
|
|
Pitch:2.3inch |
|
|
Props Dia:52.17mm |
|
|
Center Thickness:5mm |
|
|
Center Hole Dia:1.5mm |
|
|
X12 5-IN-1 AIO flight controller |
X12 ELRS V2.1 flight controller built-in ELRS 2.4G receiver Target: CRAZYBEEF4SX1280 |
|
X12 Frsky V2.1 flight controller built-in SPI Frsky 2.4G receiver Target: CRAZYBEEF4FR |
|
|
X12 Flysky V1.0 flight controller built-in SPI Flysky 2.4G receiver Target: CRAZYBEEF4FS |
|
|
X12 PNP V1.1 flight controller without onboard receiver Target: CRAZYBEEF4DX |
|
|
MCU:STM32F411CEU6 (100MHZ, 512K FLASH) |
|
|
Sensor: ICM20689 or ICM42688P(SPI connection) |
|
|
Mount hole size: 25.5mm*25.5mm |
|
|
Power supply: 1-2S battery input (DC 2.9V-8.7V) |
|
|
Built-in 12A(each) Blheli_S 4in1 ESC |
|
|
Built-in Betaflight OSD(SPI Control) |
|
|
Built-in 5.8G OpenVTX 0mw~400mw |
|
|
Built-in ExpressLRS 2.4G,Frsky D8/D16,Flysky AFHDS 2A |
|
|
Built-in voltage detection |
|
|
Built-in current sensor |
|
|
Onboard 4in1 ESC |
Power supply: 1-2S LiPo/LiPo HV |
|
Current: 12A continuous peak 15A (3 seconds) |
|
|
Support BLHeliSuite programmable |
|
|
Firmware target: Z_H_30 |
|
|
Default protocol: DSHOT300 |
|
|
Support Bluejay firmware |
|
|
Onboard SPI ExpressLRS 2.4GHz Receiver |
Packet Rate option: 50Hz/150Hz/250Hz/500Hz |
|
ExpressLRS Firmware version: V2.0 |
|
|
RF Frequency: 2.4GHz |
|
|
Antenna : SMD antenna |
|
|
Telemetry output Power: <12dBm |
|
|
Receiver protocol: SPI ExpressLRS |
|
|
Compatible with ExpressLRS V2.0 TX Module |
|
|
Couldn’t flash separately ExpressLRS firmware |
|
|
Could flash FC firmware to support ExpressLRS v3.0 TX module |
|
|
Onboard SPI Frsky D8/D16 receiver Versio |
SPI BUS receiver Frsky D8/D16 compatible |
|
Compatible Non EU transmitter D8/D16 modelChannels: 8ch/16ch |
|
|
No ground interference ( Transmitter and receiver 1 m from the ground): 200meterFailsafe support |
|
|
Onboard SPI Flysky receiver Version |
SPI BUS receiver |
|
Protocol: AFHDS-2A |
|
|
Channels: 14ch(AFHDS-2A) |
|
|
No ground interference ( Transmitter and receiver 1 m from the ground): 200meter |
|
|
Failsafe support |
|
|
PNP Version |
Full UART1 for external Receiver |
|
Support CRSF/GHOST/SBUS/IBUS/DSMX protocol |
|
|
IR1 pad(invert RX1) used for SBUS input |
|
|
External TBS CRSF Nano receiver version |
Original TBS Receiver, CRSF Protocol , Official TBS transmitter compatible |
|
Onboard 5.8g OPENVTX |
Firmware version: OPENVTX |
|
Smartaudio v2.1 |
|
|
PIT Mode support |
|
|
RCE Mode support |
|
|
Channels:48ch |
|
|
Transmitting Power: 0/RCE/25mw/100mw/400mw |
|
|
Power supply: DC 5V |
|
|
Current (5v): <650ma (400mw) |
|
|
Caddx ANT 1200tvl camera |
Image Sensor: 1/3″ CMOS Sensor |
|
Horizontal Resolution: 1200 TVL |
|
|
TV System: NTSC or PAL |
|
|
IMAGE: 16:9 or 4:3 |
|
|
Synchronization: Internal |
|
|
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 |
|
|
S/N Ratio : >52dB (AGC OFF) |
|
|
Video Output: CVBS |
|
|
Lens: 1.8mm |
|
|
Min. Illumination: 0.001Lux@F1.2 |
|
|
Auto Gain Control: YES |
|
|
WDR: Global WDR |
|
|
DNR: 3D DNR |
|
|
Dimensions: 14*14mm(with bracket to 19*19mm) |
|
|
Wide Power Input: DC 3.7-18V |
|
|
Weight: 2g (N.W.) |
Package Included:
1* Happymodel Mobula8 RC Drone
