Description
- High-concerned chemical: None
- Brand Name: YUN DUAN
- Model Number: SXG120*120
- Guide Width or Diameter: 15mm
- Origin: Mainland China
- Certification: CE
- Ballscrew type: SFU1605/SFU1610
- Ballscrew accuracy: C7 level
- Effective stroke: 50mm-1200mm Optional
- Slider Type: 2*HGR15
- Maximum speed: 500mm/s
- Repeat positioning accuracy: 0.02mm-0.03
- Slide Material: Aviation aluminum
- Type 1: linear actuator
- Type 2: z axis cnc
- Type 3: linear rail
- Type 4: cnc z axis
- Type 5: cnc table
- Type 6: linear stage
- Type 7: xy table
- Type 8: SFU1605
- Type 9: cnc axis
- Type 10: sliding table
- Type 11: linear guide
- Type 12: linear module
- Type 13: linear guide rail
- Type 14: xyz gantry
- Type 15: linear axis
- Type 16: cnc sliding table
- Type 17: xyz stage
- Type 18: double linear rail
- Type 19: slide table
- Type 20: Nema 34 slide table
- Type 21: Nema 23 slide table
- Type 22: Nema 23 linear rail
●If you choose '' For Nema23 Bracket '':

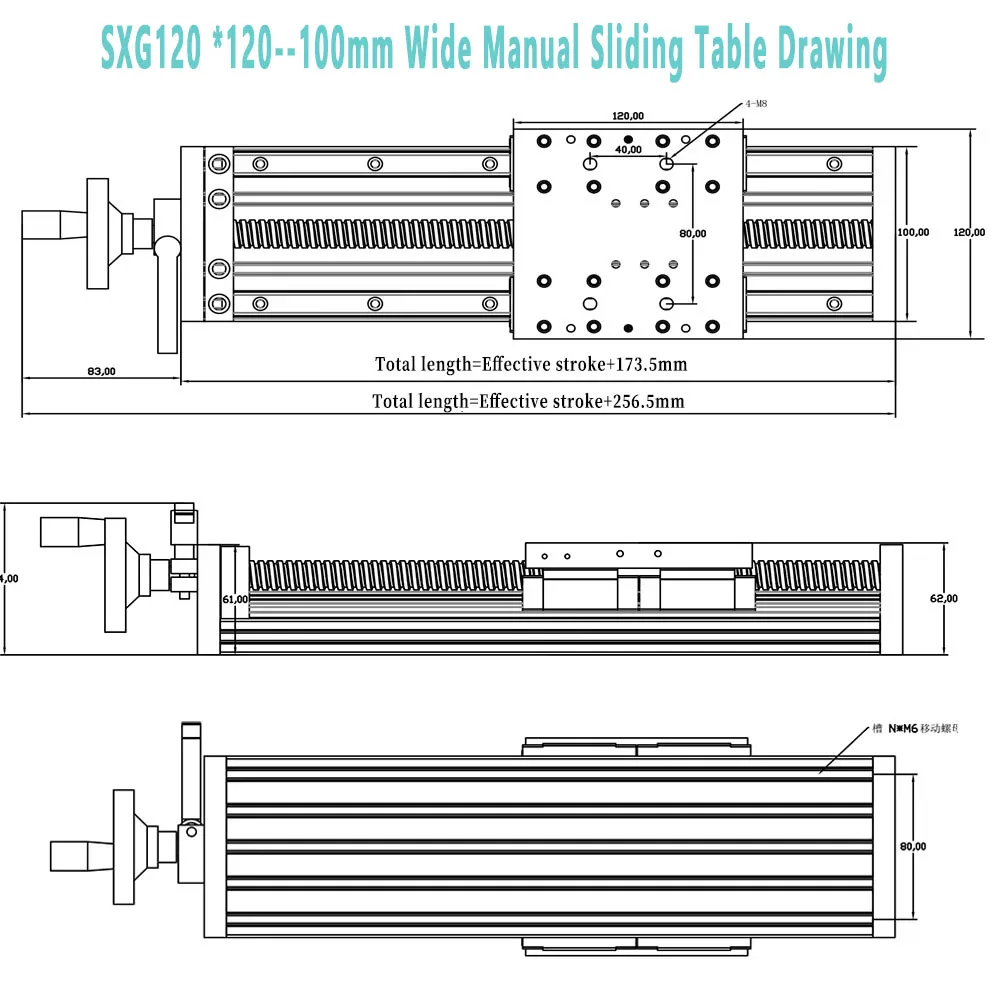

1.3D drawings can be obtained by contacting customer service

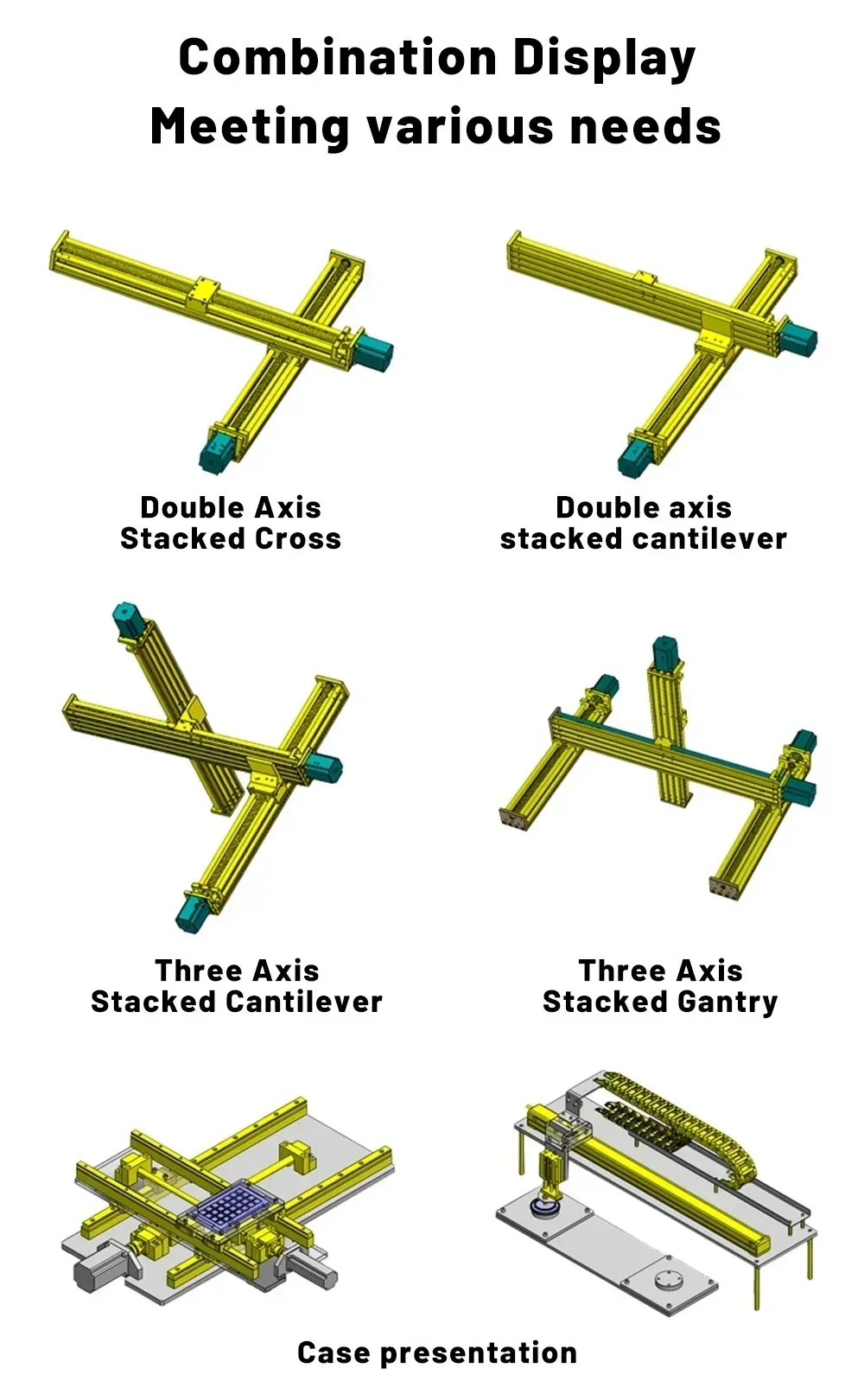

2.To build XZ, XY, XYZ axis, it is necessary to customize the connecting plate, please contact customer service for quotation.
3. If you need a slide table with a stepper motor and driver,please contact customer service for quotation.

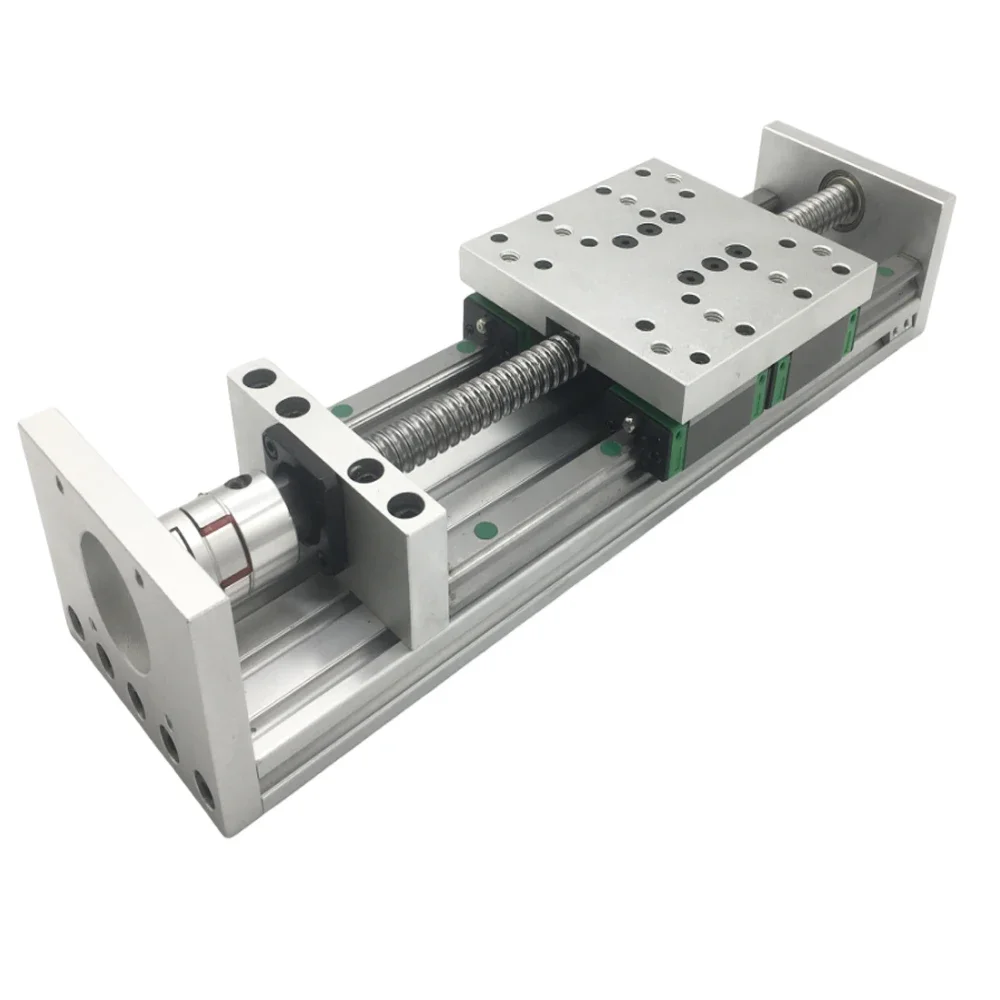

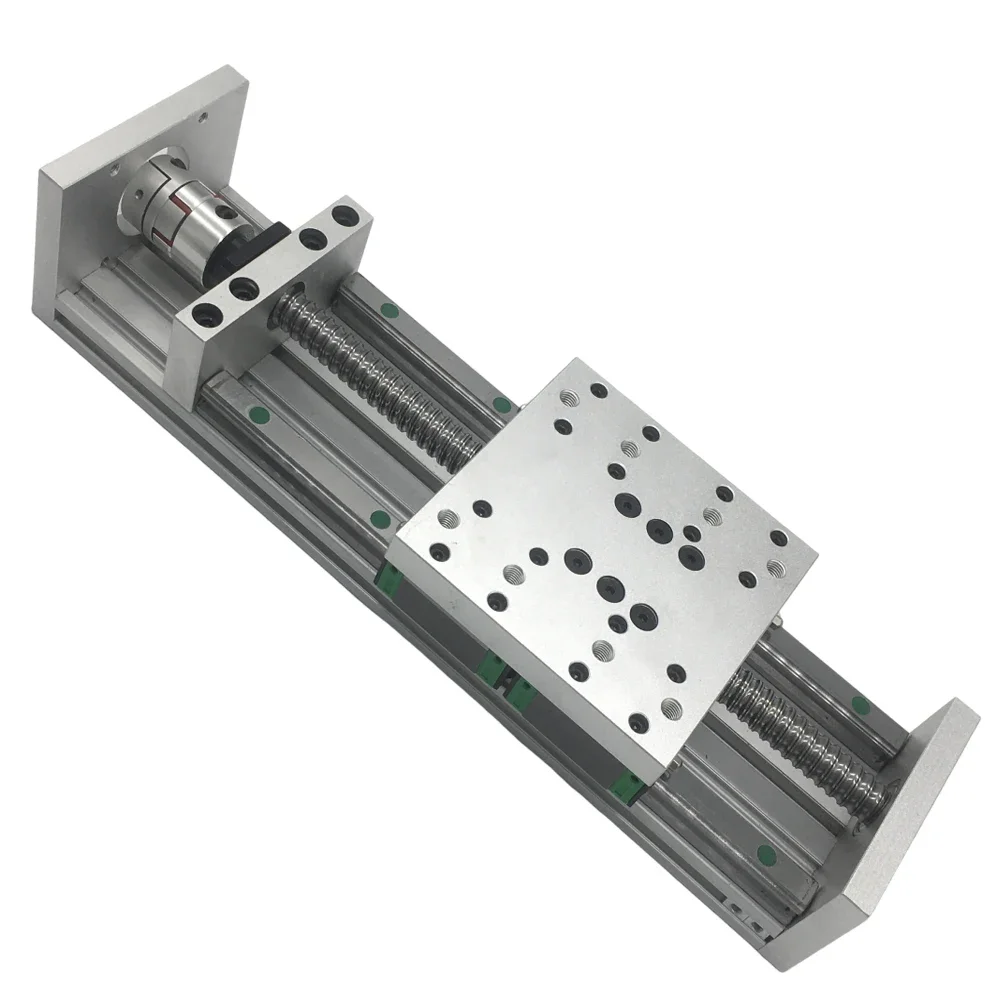

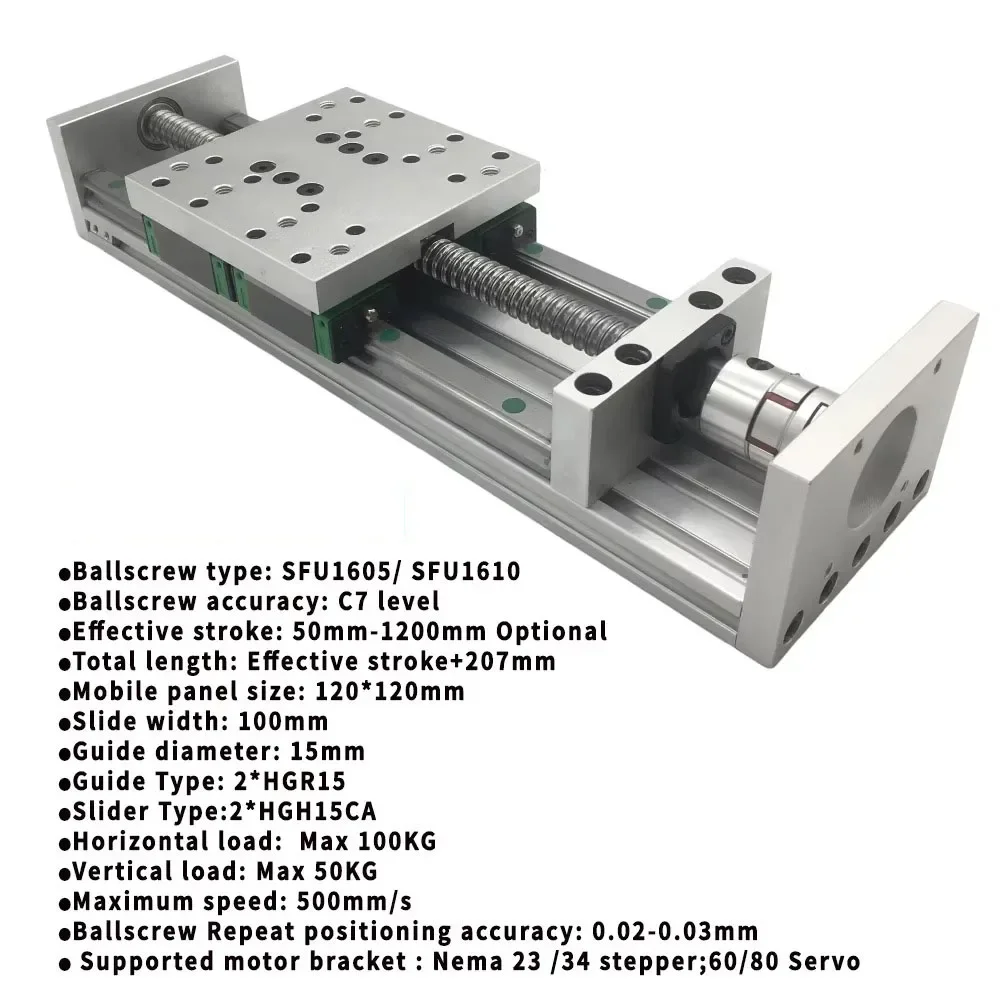

●Model: SXG120*120

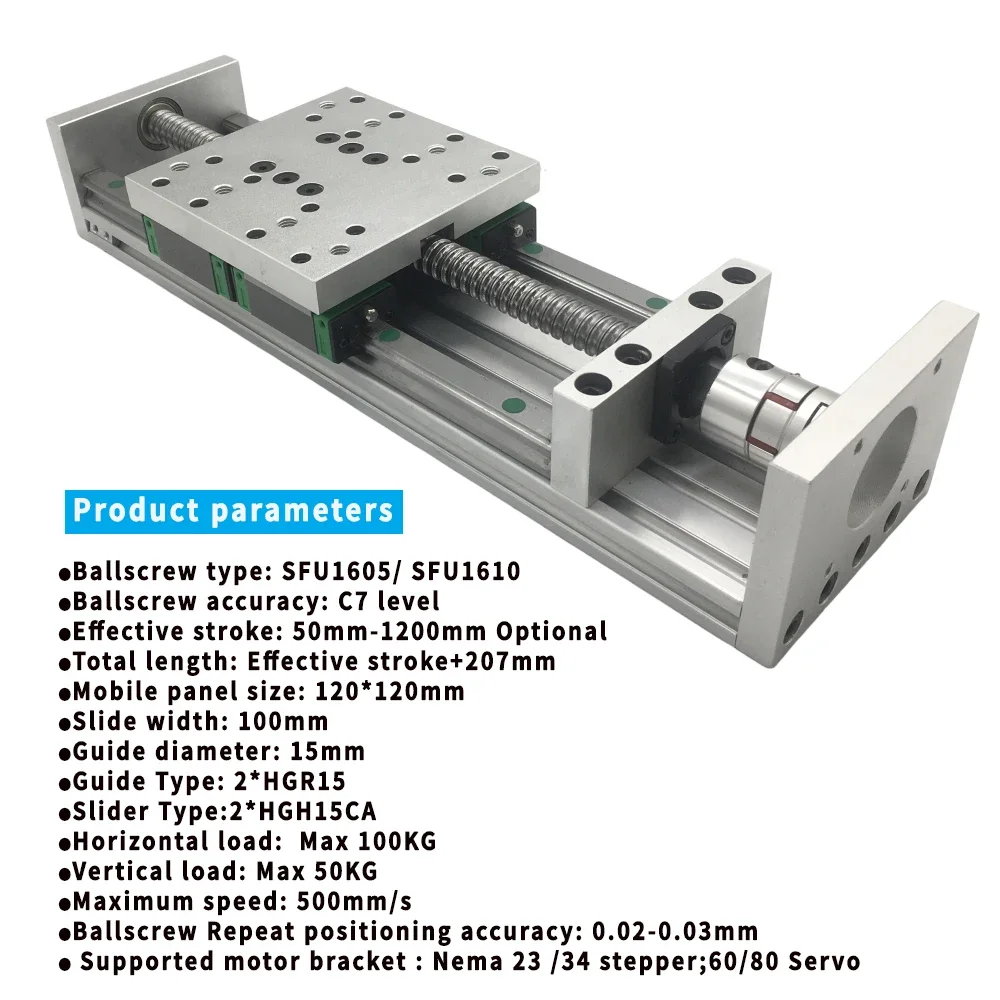

●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1610
●Ballscrew accuracy: C7 level
●Effective stroke: 50mm-1200mm Optional

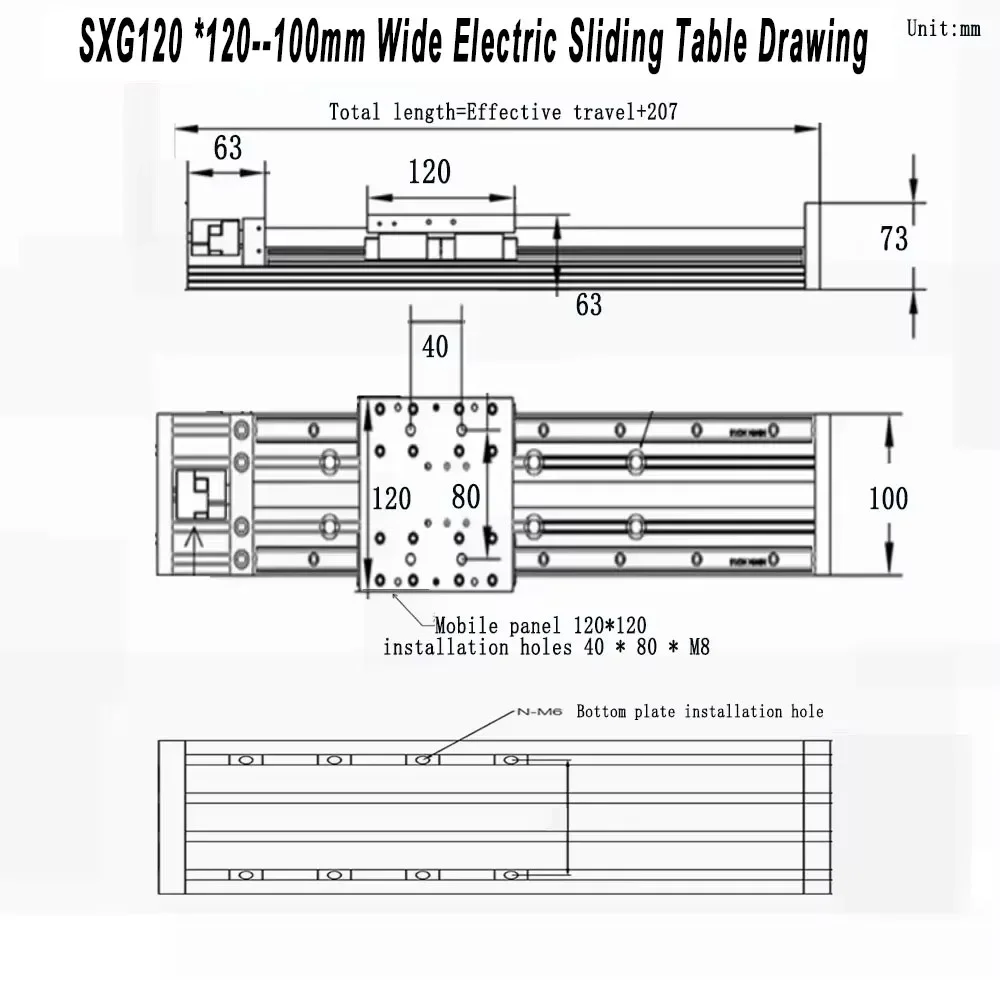

●Total length: Effective stroke+207mm
●Mobile panel size: 120*120mm
●Slide width: 100mm
●Guide diameter: 15mm

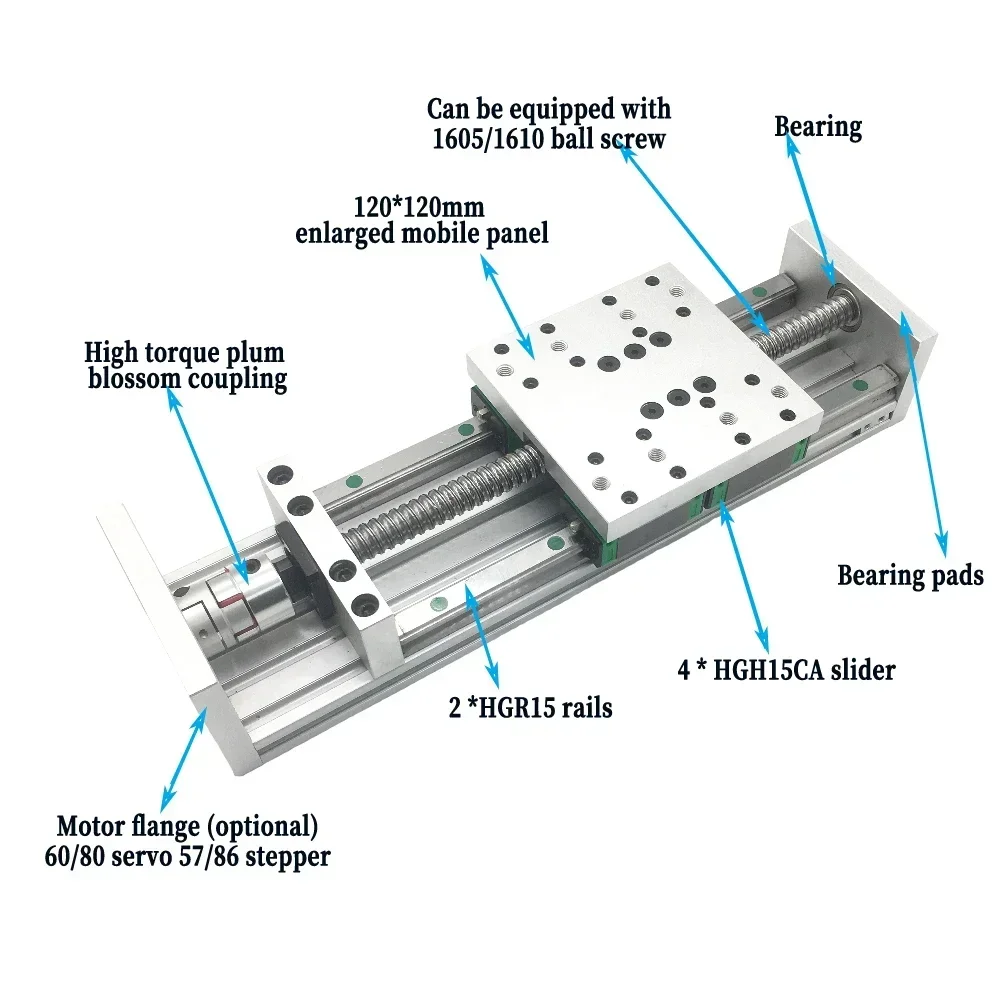

●Guide Type: 2*HGR15
●Slider Type:2*HGH15CA
●Horizontal load: Max 100KG
●Vertical load: Max 50KG
●Maximum speed: 500mm/s
●Ballscrew Repeat positioning accuracy: 0.02-0.03mm
● Supported motor bracket : Nema 23 /34stepper motor;60/80 Sevor Motor
●Ballscrew and linear rail material: Carbon steel and bearing steel
●Base plate material: Aluminium alloy
