HGR20 HGR15 2PCS Square Guide Linear Rail + 4PCS HGH15CA / HGH20CA /HGW20CC Carriage
Description
- High-concerned chemical: None
- Brand Name: wzcscnc
- Model Number: HGR15 / HGR20
- Guide Width or Diameter: 15mm / 20mm
- Origin: Mainland China
- Certification: None
- Block: HGH15CA / HGH20CA / HGW20CC
- Guide Length: Any length can be offered
- Application: CNC router machine
- Material: Bearing steel

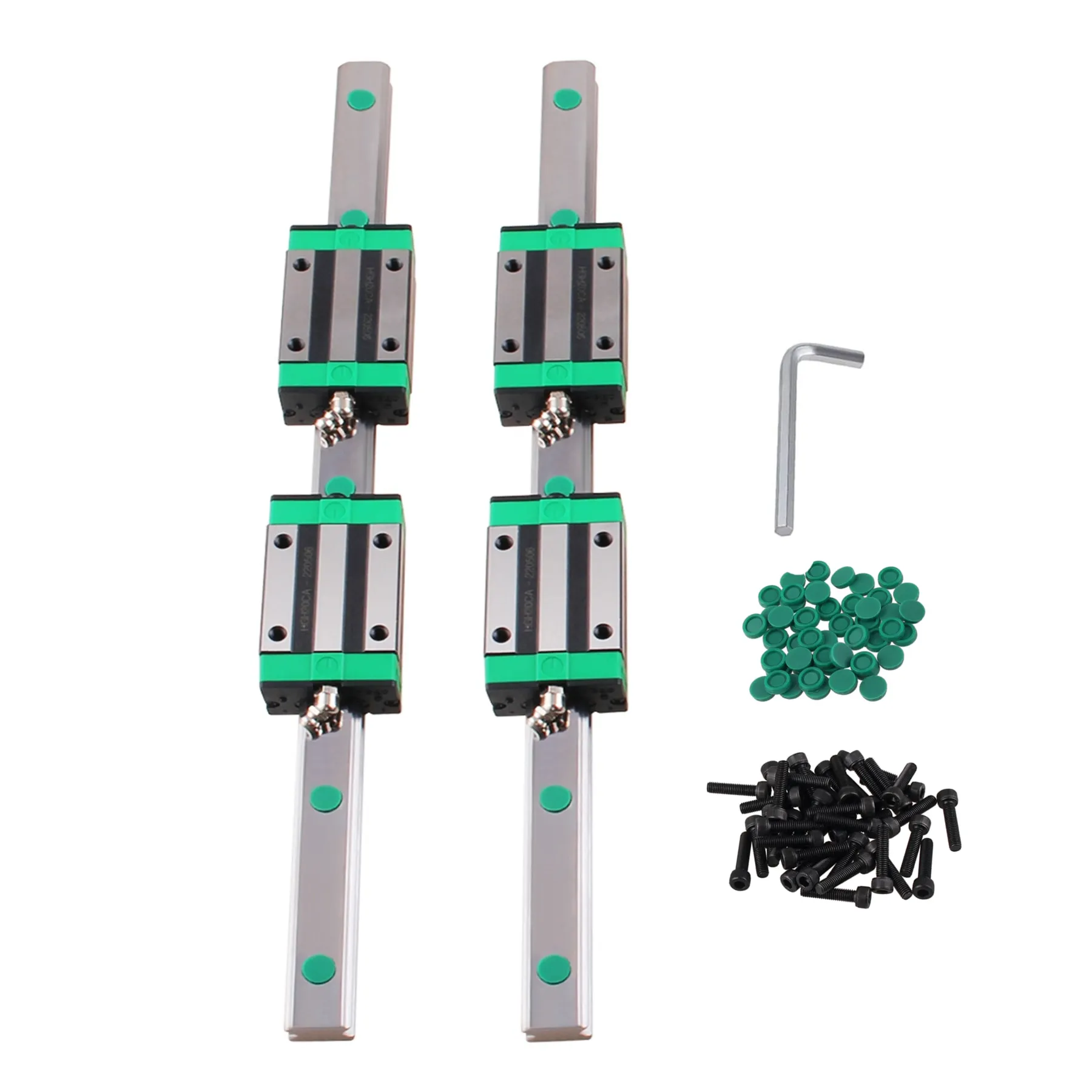

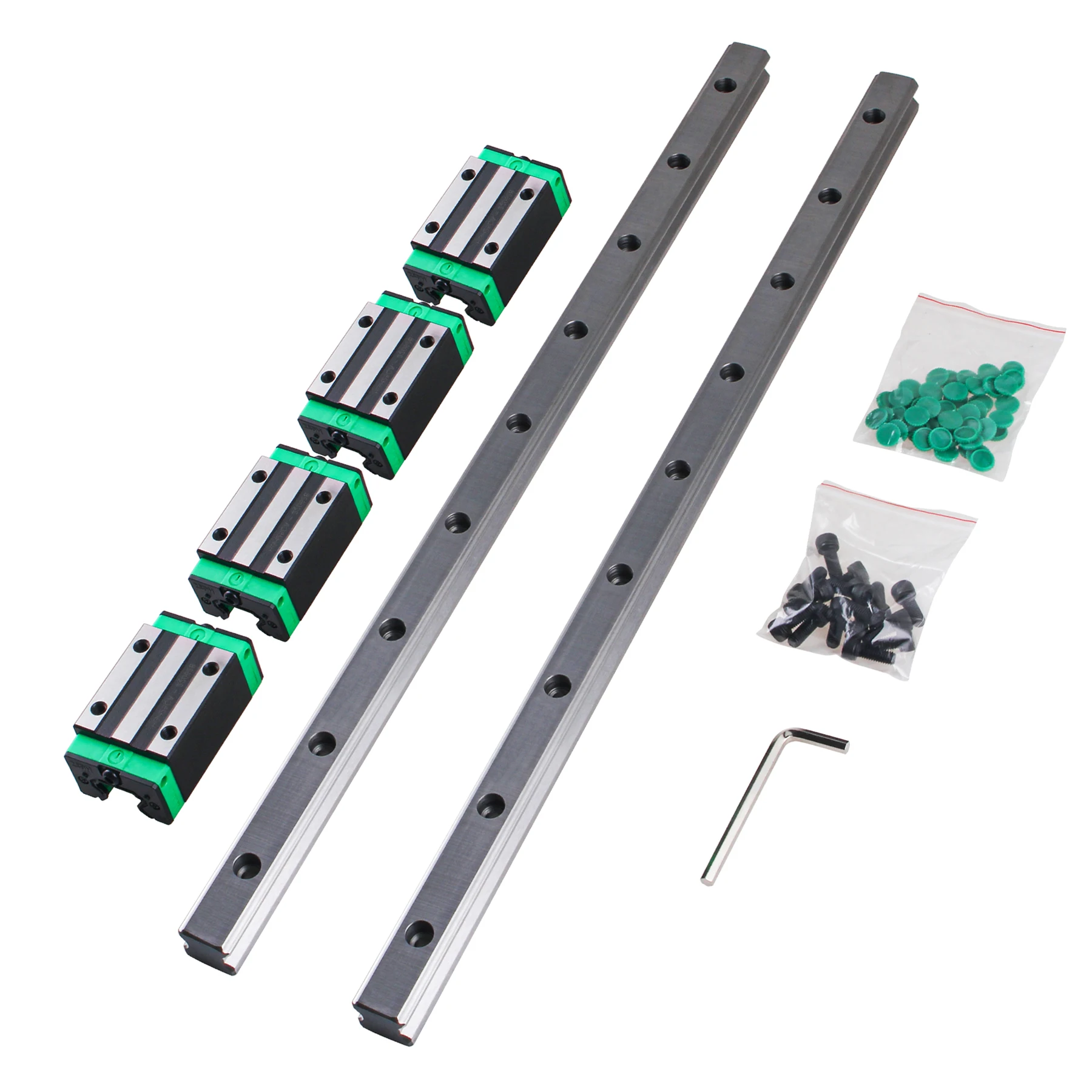

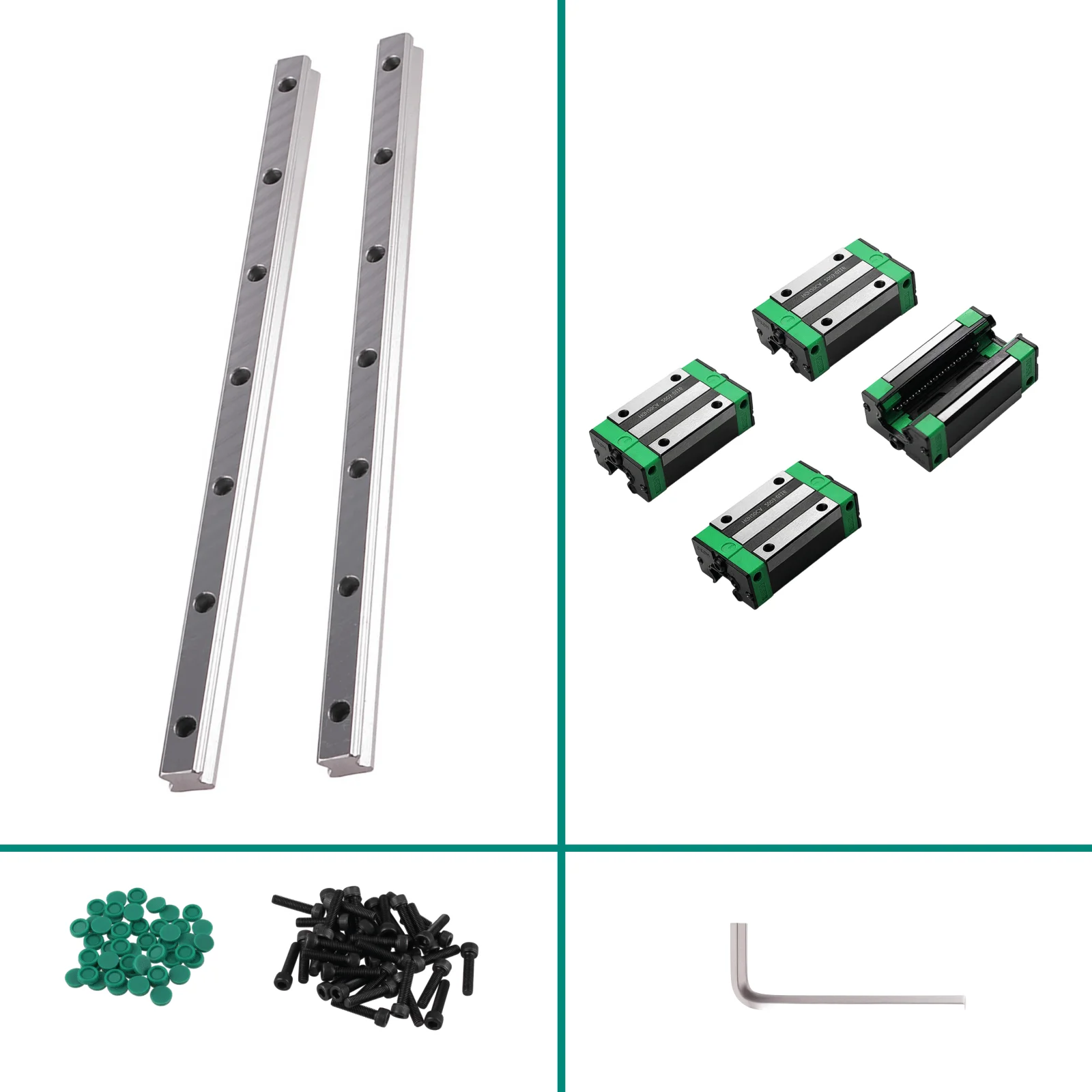

Package included:
2 x HGR Linear Rail + 4 x HGH-CA Slider Block
HGR15 Linear Guide Rail
Guide Rail Height: 15mm
Guide Rail Width: 15mm
Fixed Bolt Size: M4*16 (mm)
HGR20 Linear Guide Rail
Guide Rail Height: 17.5mm
Guide Rail Width: 20mm
Fixed Bolt Size: M5*16 (mm)
Slide Block
Model: HGH15CA / HGH20CA / HGW20CC
Block Mounting: Mounting from Top
Note:
1. Please buy with our linear rail together. This carriage can only work with our linear rail.
2. Please allow minor error due to manual measurement. Thank you! Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3. The plastic spacer inside the bearing block should be pushed out by the rail as you install it onto the rail; Removing this spacer prior to installation on the rail can cause bearings to be lost.
Additional information
| Ships From | UNITED KINGDOM, Australia, GERMANY, Russian Federation, United States |
|---|---|
| High-concerned chemical | None |
| Brand Name | wzcscnc |
| Model Number | HGR15 / HGR20 |
| Guide Width or Diameter | 15mm / 20mm |
| Origin | Mainland China |
| Certification | None |
| Block | HGH15CA / HGH20CA / HGW20CC |
| Guide Length | Any length can be offered |
| Application | CNC router machine |
| Material | Bearing steel |
| Guide Length | 1000mm, 1200mm, 1500mm, 1700mm, 1800mm, 2000mm, 200mm, 2200mm, 300mm, 400mm, 500mm, 600mm, 700mm, 750mm, 800mm, 900mm |
| Color | 2Rail 4HGH15CA, 2Rail 4HGH20CA, 2Rail 4HGH20CC |
