High Precision One-step Fiber Cleaver Alloy Fiber optic cutting tool Cold connection/hot melt/SM/MM Automatic Fiber optic cutter
Description
- Power Source: Non-Powered
- Wireless function: No
- High-concerned chemical: None
- Model Number: One-step Fiber Cleaver
- Brand Name: BYXGD
- Origin: Mainland China
- Feature: One step Cutting
- Applicable optical fiber: singlemode & multimode fibres
- Blade lifespan: 51000 times
- Number of cutting ports: 24
- Blade material: Tungsten steel
- Function: Blade – Fully automatic reset
- Special design: Waste material storage box
🔥 High Precision Tungsten Steel Fiber Cleaver | Perfect for Fusion & Cold Splicing 🔥
This fully automatic one-step optical fiber cleaver enables you to complete a precise cut simply by pressing the top cover—no need to manually push the blade slide. It automatically resets when you release the top cover, eliminating the hassle of manual resetting.

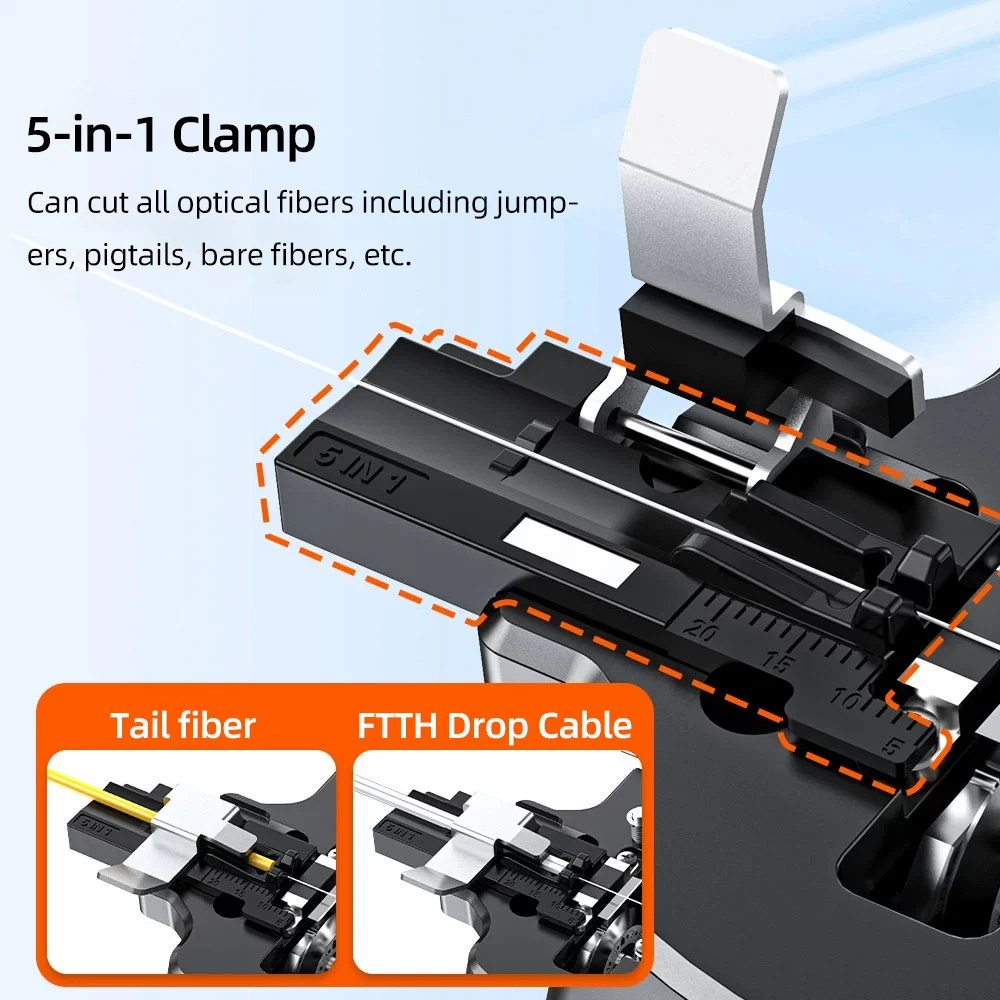

Equipped with a 24-position tungsten steel blade, it delivers an ultra-precise cutting angle of ≈0.3° (far exceeding the industry standard of ≤0.5°) and supports up to 50,000 cuts, ensuring minimal fusion loss for stable signal transmission. The 3-in-1 fixture is compatible with 250μm bare fiber, 900μm pigtail, and 3.0mm drop cable, while the built-in waste fiber box keeps your workspace tidy.
Ideal for FTTH/FTTX fiber-to-the-home projects, this heavy-duty fiber cleaver with aviation aluminum alloy housing works reliably from -40°C to 80°C, making it the perfect fiber cleaver for fusion splicer and cold splicing applications.
Fully automatic
one-step fiber cleaver
Say goodbye to traditional multi-step fiber cutters. Simply secure the fiber in the slot, press down, and the fiber is cut—no additional steps required.
Adjustable knife body height：
1. Release the safety lock on the back first.
2. Loosen the fixing screws
3. Twist the adjustment screw and adjust it to the desired height
‌High-Quality Slide Rail – Easy to Operate, Smooth Performance, Long-Lasting Durability‌

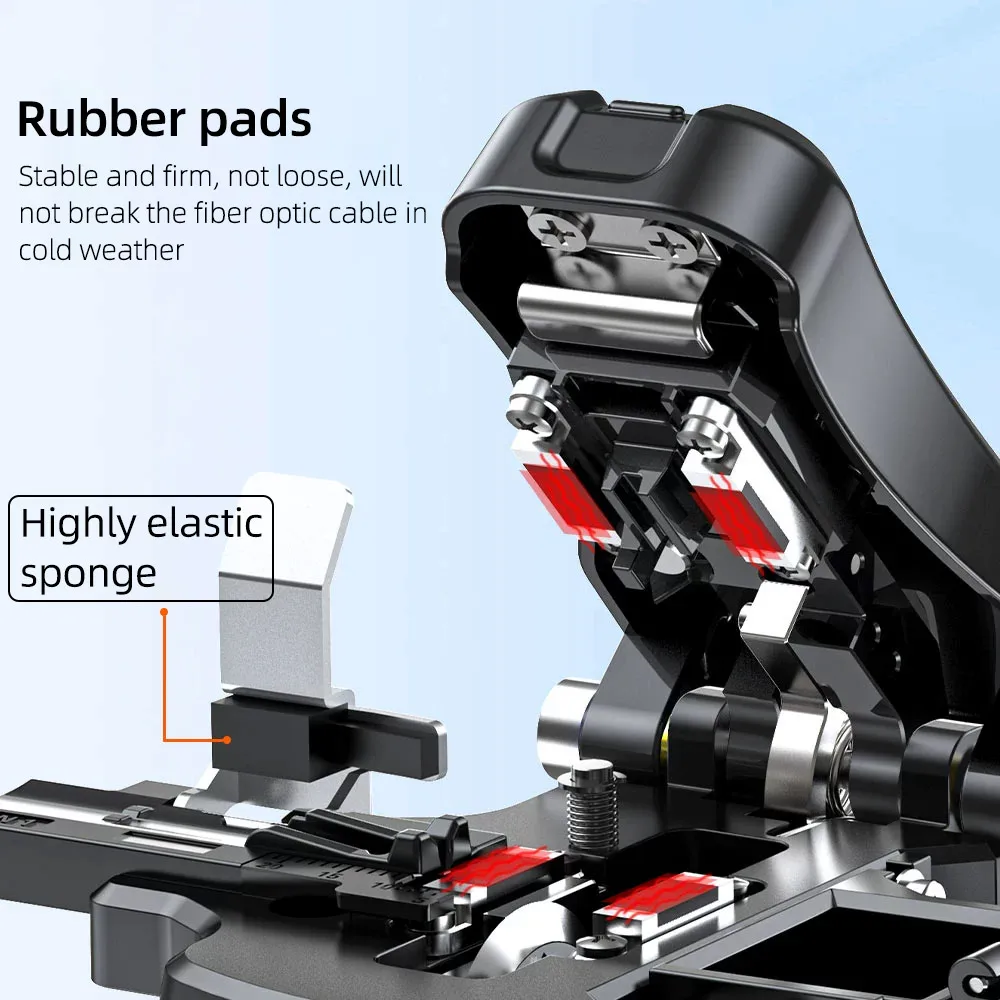

Anti-Fiber Breakage
Rubber Pressure Pad
Highly elastic and wear-resistant rubber clamp prevents fiber damage, even in cold weather conditions
Drop-resistant design
Withstands falls from up to 3 meters — blade angular error remains under 0.3mm (blade is re-adjustable)
Features a removable base for quick and easy clearance of debris, dust, and residue
‌Nanoscale-Precision Tungsten Steel Blade‌ – Engineered for exceptional hardness and long-term edge retention
‌Built-In Waste Fiber Collection Box‌ – Keeps your worksite clean and simplifies post-operation cleanup
‌Anti-Slip Pressure Pad‌ – Ensures stable, level-controlled cutting by maintaining uniform contact pressure
‌Drop-Resistant Construction‌ – Survives 3m drops with ≤0.3mm angular deviation, blade fully recalibratable
‌Removable Base Design‌ – Enables fast, tool-free maintenance for debris and residue clearance
Additional information
| Color | A-3, A-3 with 3blades, A3 with 1blades |
|---|---|
| Power Source | Non-Powered |
| Wireless function | No |
| High-concerned chemical | None |
| Model Number | One-step Fiber Cleaver |
| Brand Name | BYXGD |
| Origin | Mainland China |
| Feature | One step Cutting |
| Applicable optical fiber | singlemode & multimode fibres |
| Blade lifespan | 51000 times |
| Number of cutting ports | 24 |
| Blade material | Tungsten steel |
| Function | Blade – Fully automatic reset |
| Special design | Waste material storage box |
