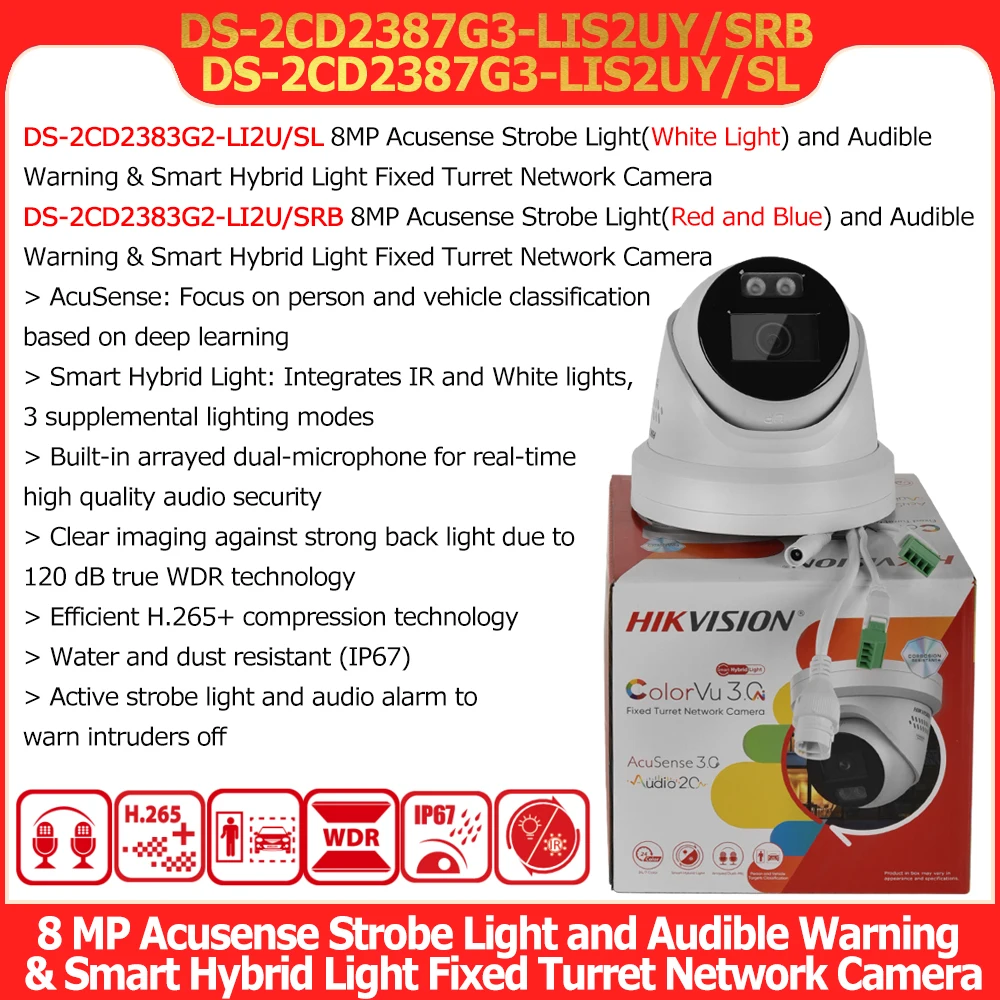

Hikvision DS-2CD2387G3-LIS2UY/SL DS-2CD2387G3-LIS2UY/SRB 8MP 4K Smart Hybrid Light ColorVu3.0 Acusense3.0 POE Network IP Camera

Hikvision DS-2CD2387G3-LIS2UY/SL DS-2CD2387G3-LIS2UY/SRB 8MP 4K Smart Hybrid Light ColorVu3.0 Acusense3.0 POE Network IP Camera Blue&Red Light 1/1.8 F1.0  Audio2.0 AI ISP&WDR

8MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera

DS-2CD2383G2-LI2U/SL 8MP Acusense Strobe Light(White Light) and Audible Warning & Smart Hybrid Light Fixed Turret Network Camera

DS-2CD2383G2-LI2U/SRB 8MP Acusense Strobe Light(Red and Blue) and Audible Warning & Smart Hybrid Light Fixed Turret Network Camera

> HikAI-ISP for excellent noise reduction effect

> 24/7 colorful imaging via ColorVu technology

> Scene-adaptive WDR

> Focus on Person and Vehicle classification based on deep learning

> Built-in arrayed dual-microphone for real-time high quality audio security

> Provide real-time security via built-in two-way audio

> Anti-corrosion design, providing reliability and longevity compared to standard (NEMA4X)

> Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes

> Water and dust resistant (IP67)

> Audio and alarm interface available

> Active strobe light and audio alarm to warn intruders off

1. Camera

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 3840 × 2160
Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time: 1 s to 1/100,000 s
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

2. Lens

Lens Type: Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV:2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°;4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°

• Lens Mount: M16
  Iris Type: Fixed
  Aperture: F1.0
  Depth of Field:2.8 mm: 3.3 m to ∞;4 mm: 3.8 m to ∞

3. DORI:2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m;4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

4. Illuminator

Supplement Light Type: White Light, IR
Supplement Light Range: Up to 30 m
Smart Supplement Light: Yes
IR Wavelength: 850 nm

5. Video

Main Stream:50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720);60 Hz: 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360);60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream:50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

• Third stream is supported under certain settings.

Video Compression:

• Main stream: H.265/H.264/H.264+/H.265+;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264

• Third stream is supported under certain settings.

Video Bit Rate: 32 Kbps to 16 Mbps
H.264 Type: Baseline Profile, Main Profile, High Profile
H.265 Type: Main Profile
Bit Rate Control: CBR, VBR
Scalable Video Coding (SVC): H.264 and H.265 encoding
Region of Interest (ROI): 1 fixed region for main stream

6. Audio

Audio Type: Mono sound
Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate:64 Kbps (G.711ulaw/G.711alaw);16 Kbps (G.722.1);16 Kbps (G.726);32 to 192 Kbps (MP2L2);8 to 320 Kbps (MP3);16 to 64 Kbps (AAC-LC)

• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
  Environment Noise Filtering: Yes

7. Network

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View: Up to 6 channels
API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

8. User/Host:Up to 32 users;3 user levels: administrator, operator, and user

9. Security:Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

10. Network Storage:NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

11. Client:iVMS-4200, Hik-Connect, Hik-Central

12. Web Browser

Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+;Local service: Chrome 80+, Firefox 80+, Edge 89+

13. Image

Image Parameters Switch: Yes
Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch: Day, Night, Auto, Schedule
Image Enhancement: BLC, HLC, 3D DNR
SNR: ≥ 52 dB
Wide Dynamic Range (WDR): 130 dB
Privacy Mask: 4 programmable polygon privacy masks

14. Interface

Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker: Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.

15. Audio

Built-in Microphone:Arrayed dual-microphone;1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key: Yes

16. Event

Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event: Scene change detection
Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, strobe light flashing

17. Deep Learning Function

Face Capture: Yes

18. Perimeter Protection:Line crossing, intrusion, region entrance, region exiting;Support alarm triggering by specified target types (human and vehicle)

19. General

Power:12 VDC ± 25%, 1.29 A, max. 15.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection;PoE: IEEE 802.3at, Class 4, max. 17 W

Material: Cover: metal, main body: metal

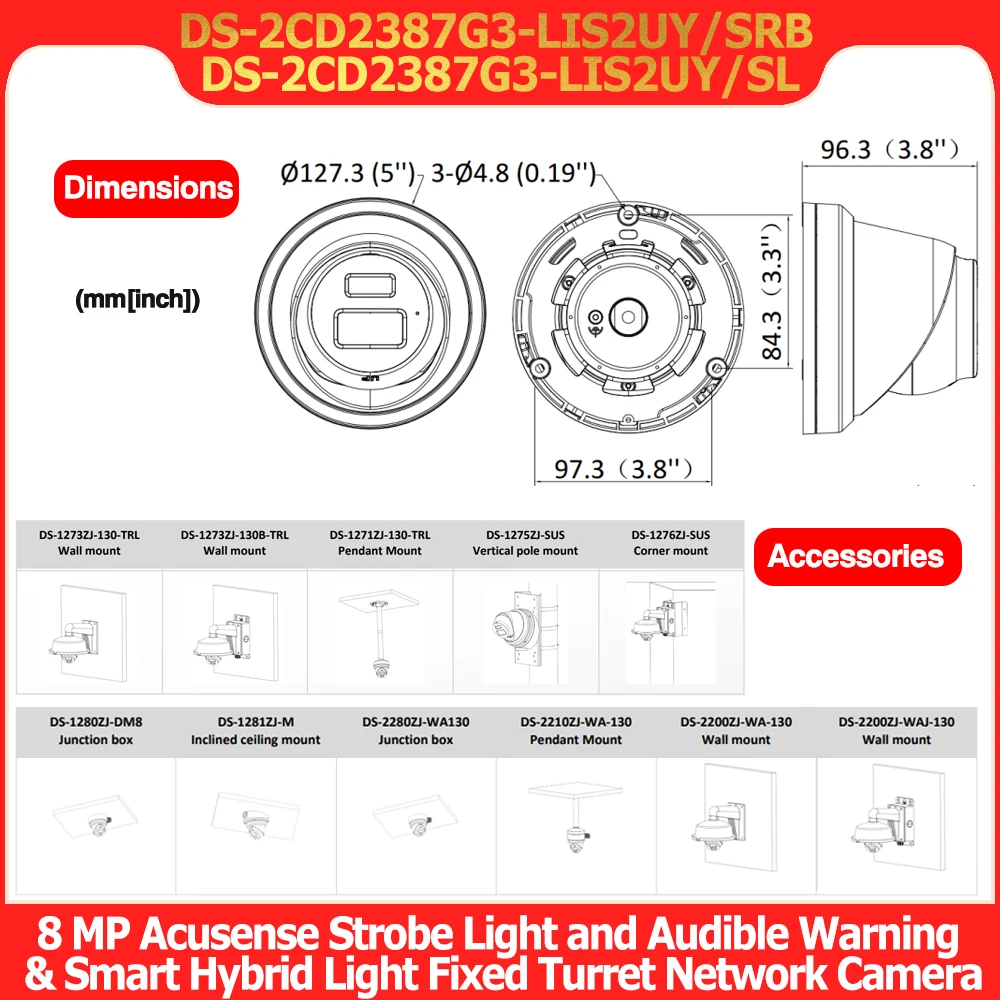

Dimension: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
Package Dimension: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight: Approx. 820 g (1.8 lb.)
With Package Weight: Approx. 1200 g (2.6 lb.)

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

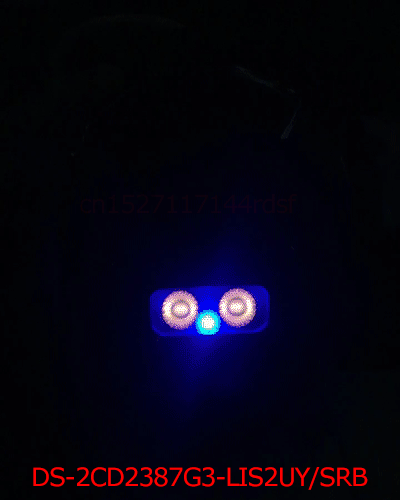

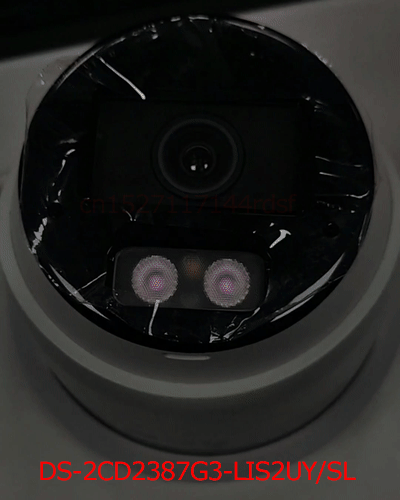

20. Flashing Light:/SRB model: Red and Blue Light ; /SLmodel: White Light

21. Approval

EMC:CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021;RCM: AS/NZS CISPR 32: 2015;IC: ICES-003: Issue 7;KC: KN32: 2015, KN35: 2015

Safety:UL: UL 62368-1;CB: IEC 62368-1: 2014+A11;CE-LVD: EN 62368-1: 2014/A11: 2017

Environment: CE-RoHS: 2011/65/EU
Protection: IP67: IEC 60529-2013
Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018)
