Hococa 1/2/3 Gang Tuya Zigbee 3.0 Kinetic Wireless Switches Diy Whole House Smart Switch Without Battery Waterproof

Important Note: the switch panel only has RF433 function and does not have Zigbee function. It needs to be paired with a Zigbee receiver to use. Do not buy the switch panel alone, as it will not work!

Advantages

1. Borderless large panel, lifetime battery free, press to generate electricity, green and environmentally friendly
2. It can be controlled by wireless switch, mobile APP, or connected to mainstream smart speakers for voice control
3. No wiring required, easy to install, saves labor and materials
4. The receiver adopts zero flame wiring, no flicker, stable and reliable
5. The receiver comes with overload protection and is made of PC flame-retardant material for greater safety

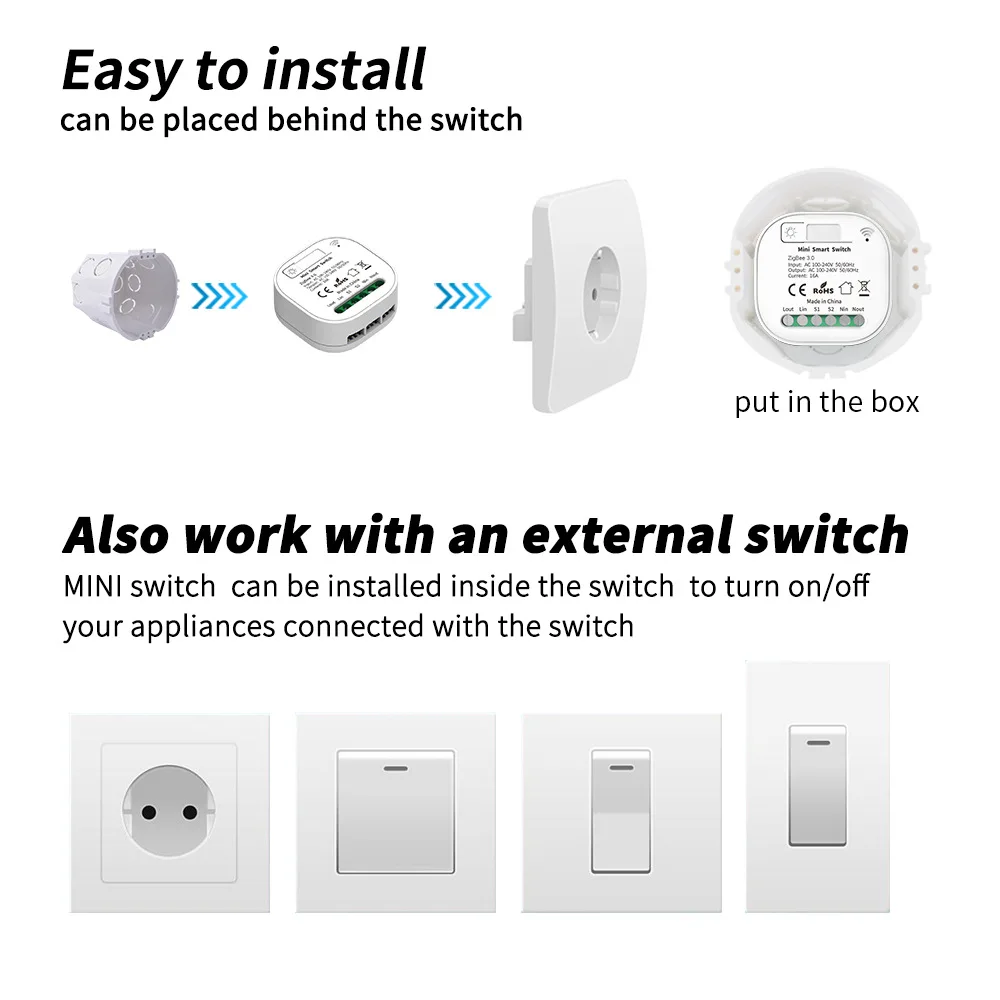

7. The receiver is designed with a small size and can be placed in the bottom box of the switch. It can also be inserted into the lamp tube to meet various fixing methods
8. Rebound switch, powerful feedback, good hand feel
9. Matte finish craftsmanship, minimalist design, beautiful and generous appearance
10. 86 standard size, reserved with screw holes, flexible and diverse installation options
11. Available in white, gray, gold, black, and can also be customized for large quantities
12. After 200000 press tests, we provide original factory warranty services
13.Widely used: This product can be used in esidence, hotel, villa, hospital construction sites, gardens, homes, farms, factories, offices, laboratories, supermarkets. Any device can be remotely controlled through a remote control, such as light,rolling shutters, fences, fans, desk lamps

Technical parameters

1.Operating voltage: receiver AC 100-240V 50/60Hz,transmitter Kinetic power generation
2.Wireless distance: about 100 meters (open space) ，about 50 meters (no partition) (this data is the obstacle free test distance of the experimental open space, theactual distance will vary depending on the use environment and the obstacles, please take the actual distance as the standard)
3.Receiver size:48x49x23mm Transmitter size:86x86x16.5mm
4.Rated Current:AC 10A/16A
5.Standby power:<0.15W
6.Working frequency: RF433MHZ
7.Storage switch quantity:Can store 10 wireless switch panel(can be made)

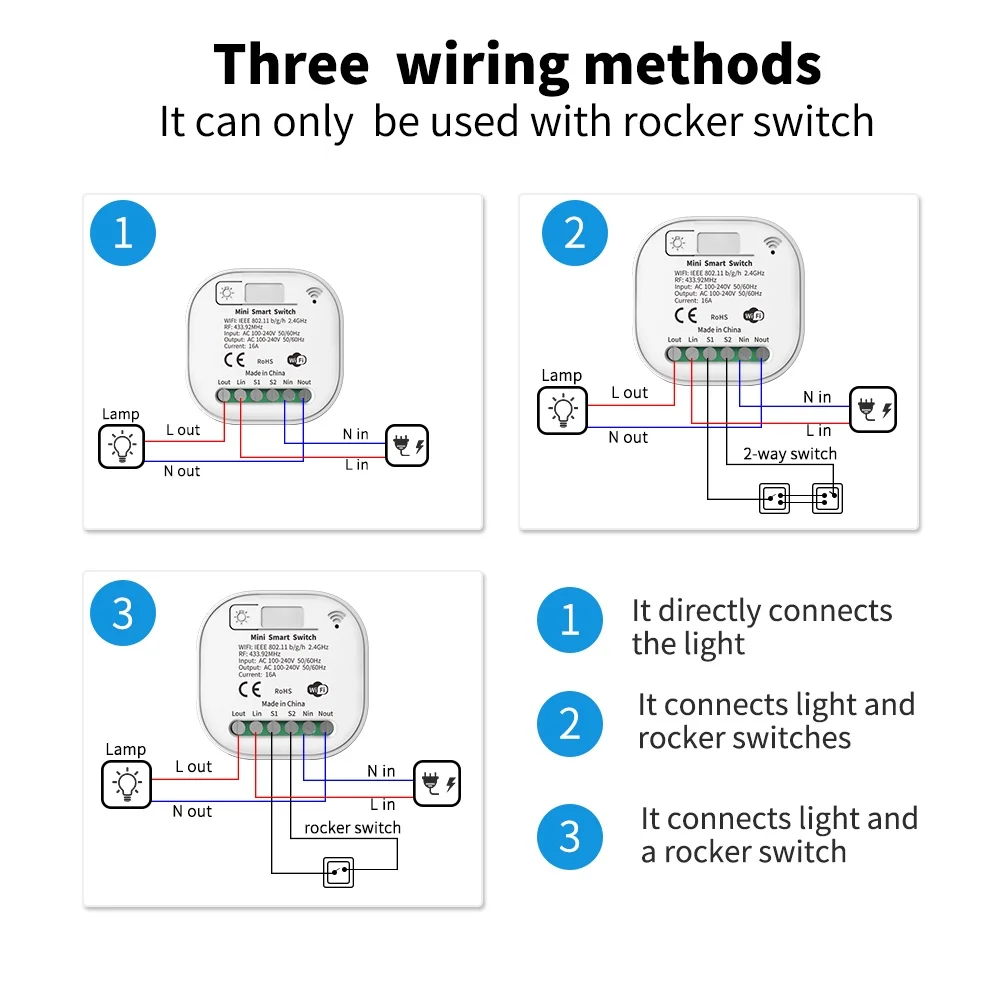

8.Wiring method：
wireless light switch receiver needs to be connected to a live wire and a neutral wire.
The (Lin) marked on the receiver is connected to the power live wire (incoming live wire), and the (Nin) is connected to the power neutral wire (incoming neutral wire).
(Lout) connects the live wire of the device that needs to be controlled (outgoing live wire), and (Nout) connects the neutral wire of the device that needs to be controlled (outgoing neutral wire).

Please note:

1. Our product needs to be used in conjunction, and purchasing a transmitter or receiver alone will not work unless you have previously purchased our product and need to purchase additional accessories.
2. Our product uses RF433 communication, but it cannot be mixed with other RF433 products because in addition to frequency, it also needs to meet the requirements of decoding and coding speed.
3.Wireless control does not require a power supply and can be used outdoors or in humid environments. Pressing to generate electricity does not pose a risk of electric shock
4.Cut off all power before installing the receiver.
5. Cannot be installed inside a metal box as metal will shield signals and cannot be used.

FAQ:

1.Do I need to pair the product after receiving it?
If you purchase a complete set of products, they will be matched correctly at the factory. You only need to connect the receiver to the power and it can be used.
2.Is it possible to add accessories later after purchasing the product?
If the purchased products are all of our kind, they can be equipped with accessories at any time, just pair them after receiving the goods.
3.Why can't your product be mixed with products of the same frequency on the market?
This is indeed difficult to mix for several reasons. Firstly, other people's products may be encrypted and not allowed to be mixed with products from other manufacturers; Secondly, although they are all products with the same frequency, other factors need to be considered, such as decoding and the speed of sending data packets.
