Description
- High-concerned chemical: None
- Slice Thickness: 0.1-0.4mm
- Printing Speed: 200mm/s
- Wireless Connectivity: Wi-Fi
- Power Supply: 110V/220V AC
- Auto Leveling: Yes
- Language: English
- Maximum Printing Speed: 400mm/s
- Operating System: Windows,Linus,Mac
- Bed Temp: 90
- Consumables Diameter: 1.75mm
- Slice Software: Ideamaker
- File Format: GCode
- Fliament: PLA/PETG/ABS/TPU/Wood.etc
- Nozzle Diameter: 0.4mm

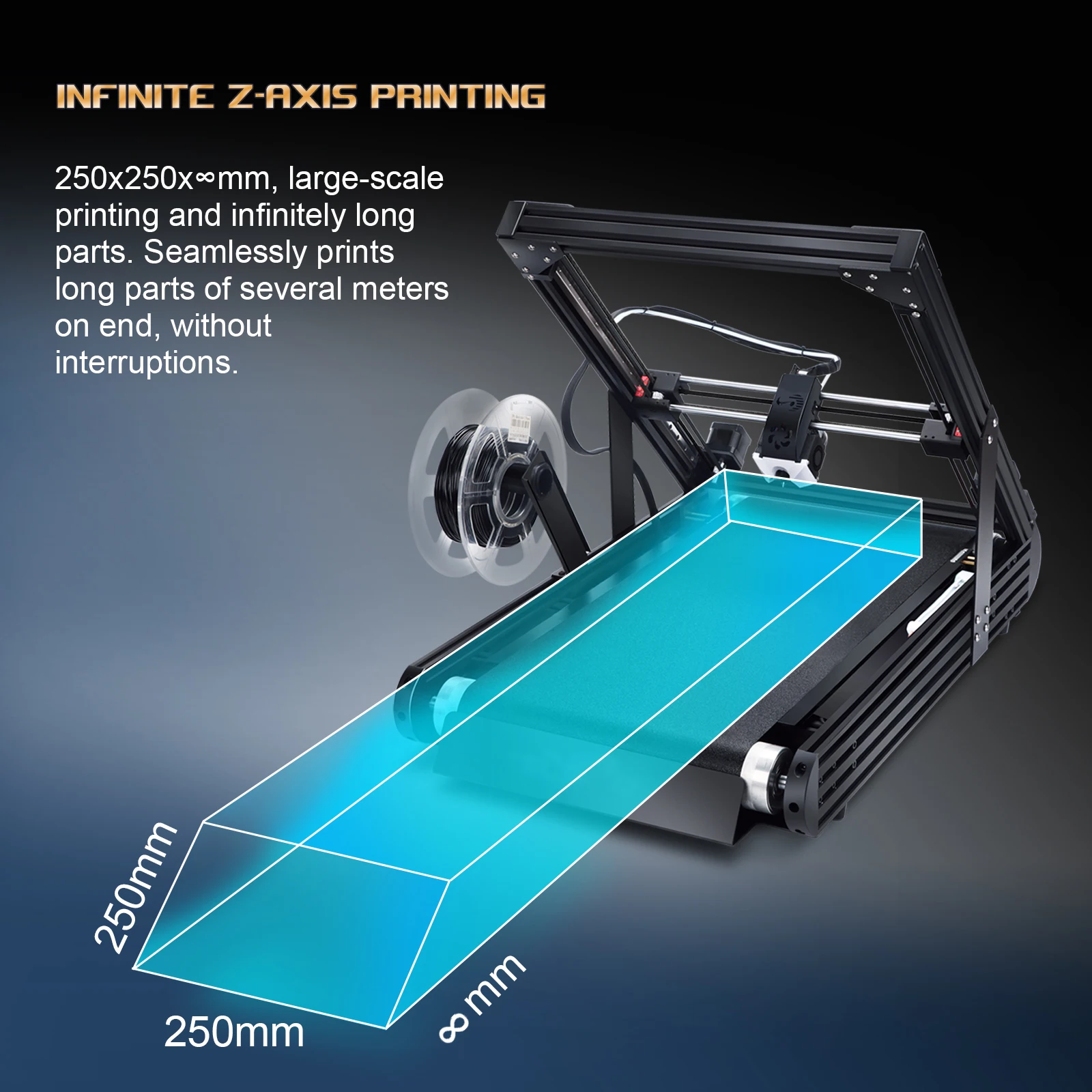

- Maximum Print Size: 250*250*unlimited mm
- Molding Technology: FDM
- Interface Type: SD
- CE Certification: Yes
- Brand Name: IdeaFormer
- IDEAFORMER Model: IR3V2
- Origin: Mainland China
- Precision: ±0.2mm
- Voltage: 110-220V
- Certification: CE

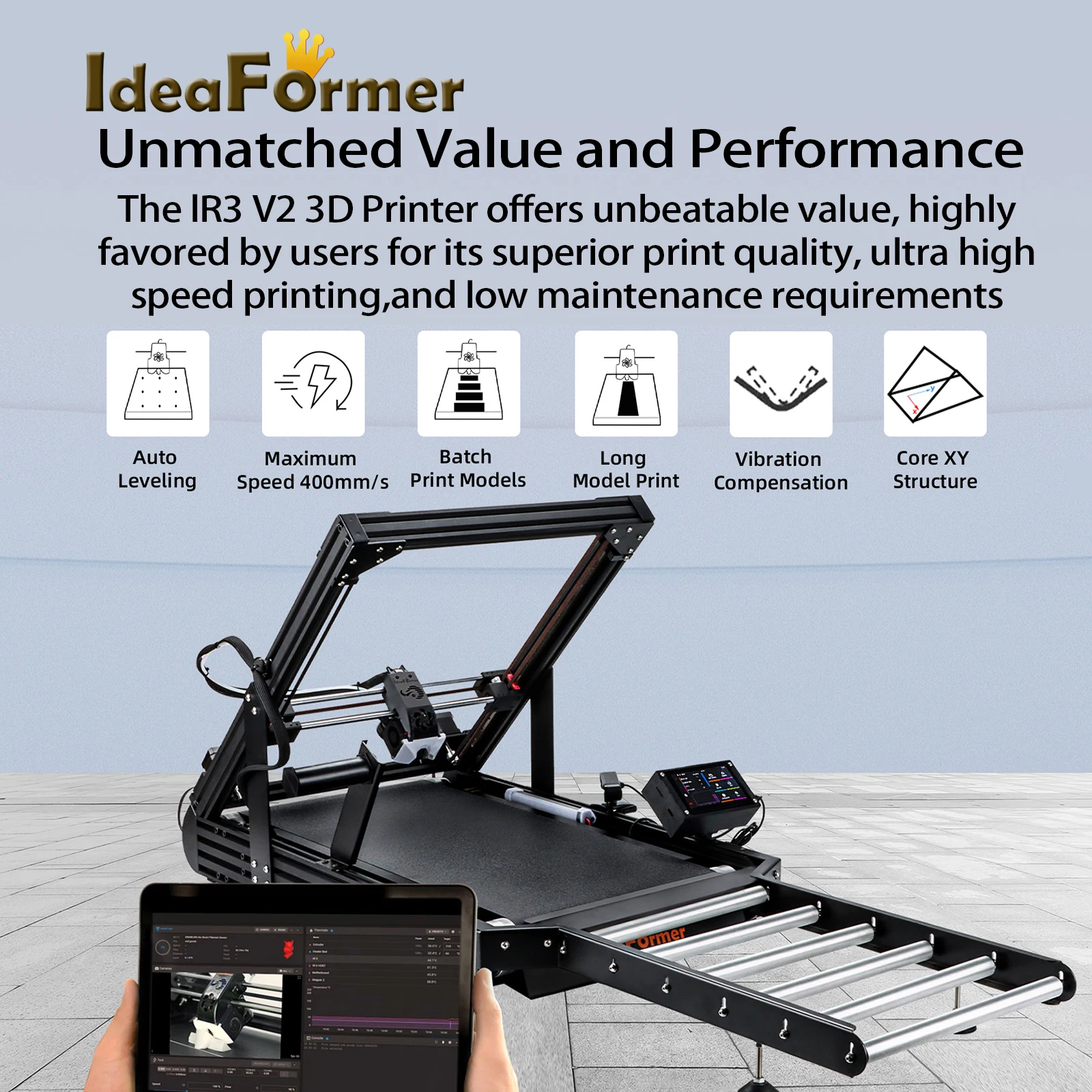

IR3 V2 Belt Printer advantages

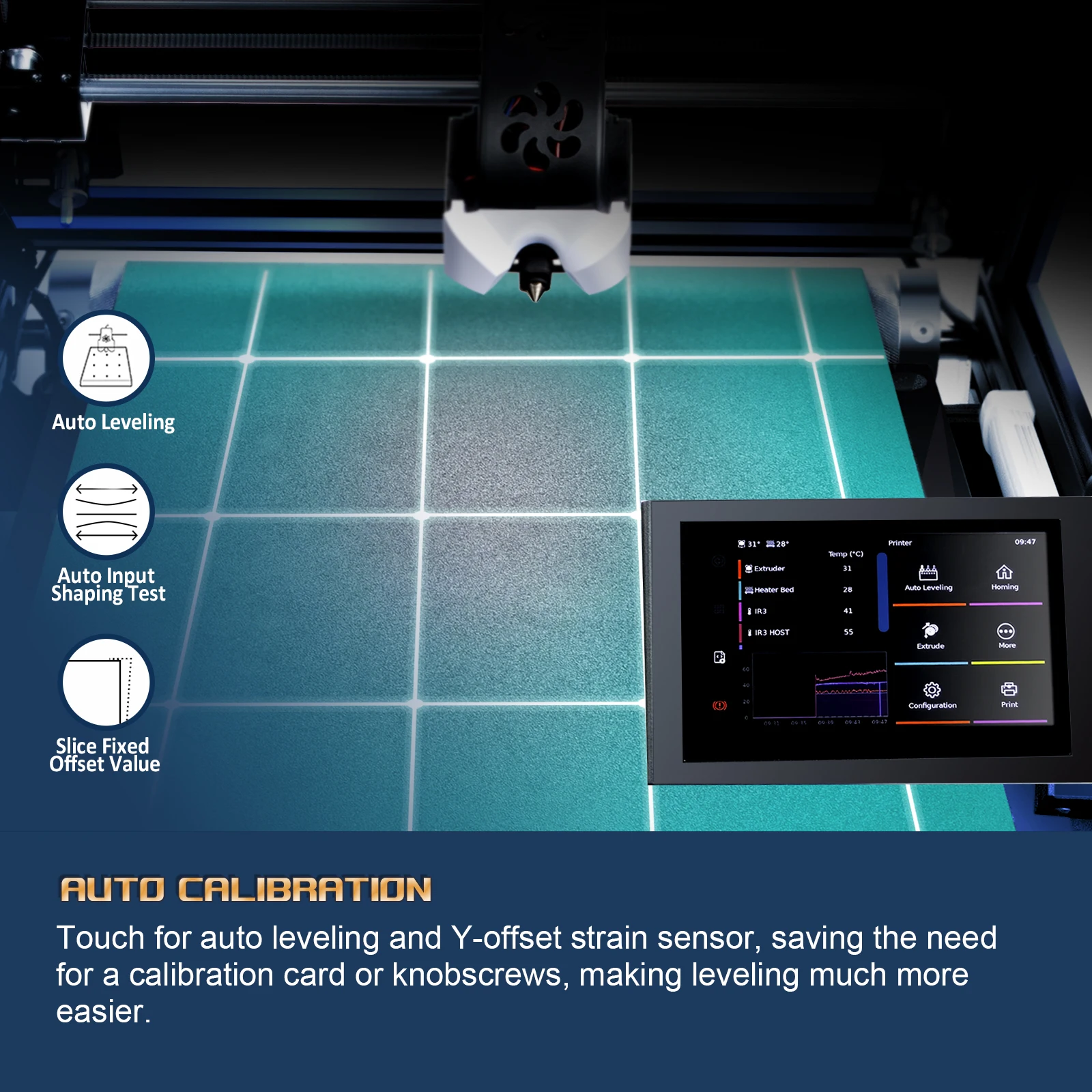

1.100% auto leveling by machine after assembled. Print head with senser , it will detect the distance with the bed platfrom , and matched with the slice setting Y offset -0.1 to -0.2mm , then it will sticker well on the belt .

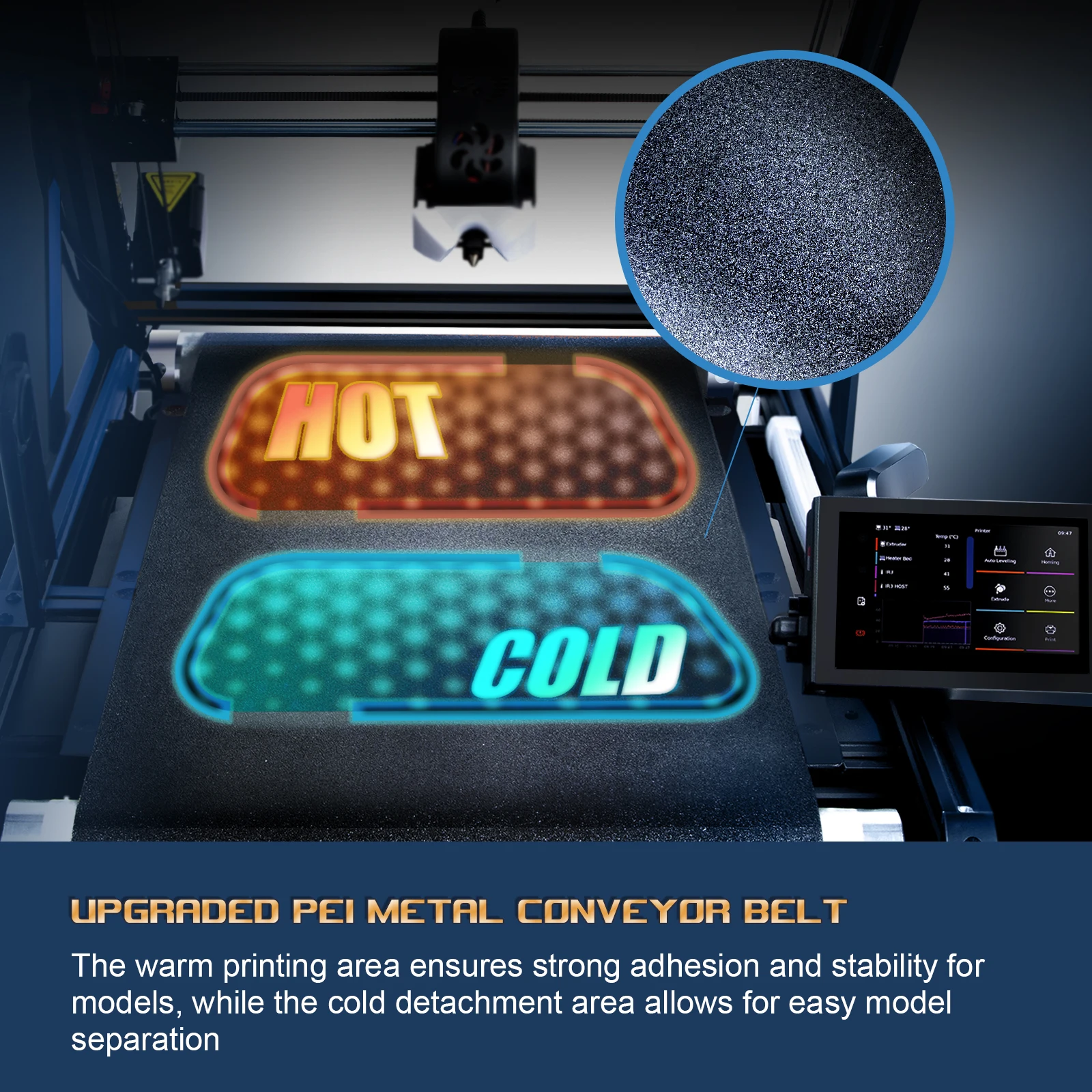

2. Metal conveyor belt , mainly coated with PEI . Printing area is warm , it is good for sticker models on, and it is strong hardness, High models on it will not shaking. Detach model area is cold , it is easy to sepreate the model from the conveyor belt.

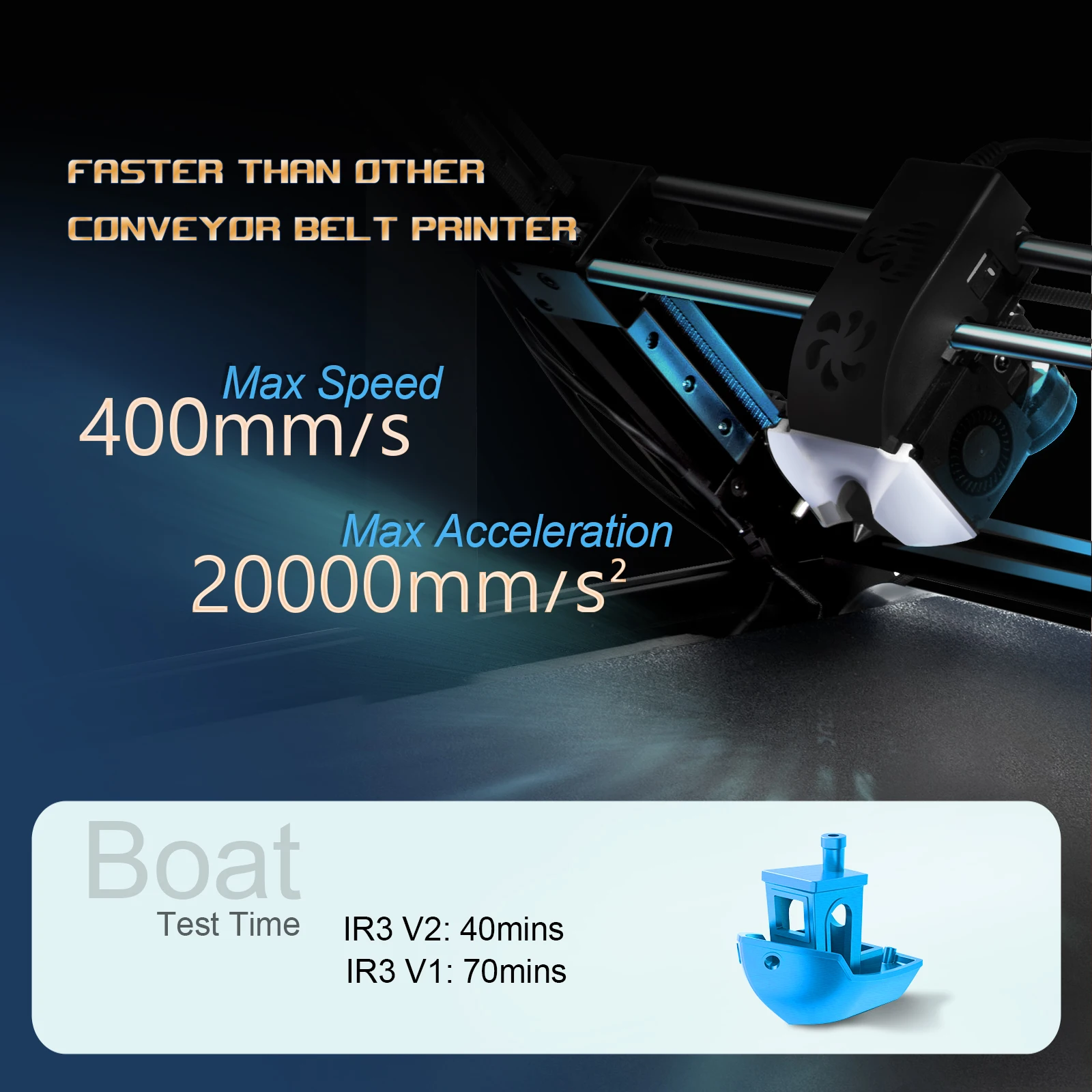

3. Klipper firmware(Fully Open Source)/Fast printing . Pring speed is over 400 + mm/s , Powered by the open-source Klipper system klipper firmware and designed the xy axis move very smooth, z axis is powerful with gearbox and we put it inside the roller.
4. Lost step detect . while printing a model , there have many reasons cause a layer shift/lost step . such as x y z axis moving wrong (dust or something on the moving system by a mistake ); models didn’t sticker well , expecially for this 45 degree printing , each layer need touched the belt ( filament temperature setting wrong, or the models is too complicated and didn’t added support correctly ); print speed too fast , etc . while lost step happened , it may cause the print head hitting the edge of the printer or scratch the belt , with this detect function , printer will stop print while these situation happened . so it can protect the print head and the conveyor belt . then you need check the reason for this lost step .
5. Enclosure box . for print high temperature filament , such as abs nylon etc. keep the model not warp up and crack .
6. Extend roll . for print long model, keep the print side sticker well , and keep the model not bent.
7. Wifi and Camera . It can be remote control by phone or computer, if filament enough , you can keep it wokring for long time even you are not behind the printer.
8. Led light , you can check the status at mid night .
9. Filament inputting detect , if filament didn't keep going over 12mm , printer will pause printing . Then you need check if there was something wrong with filament or clog the nozzle , or the filament run out . after reload the filament , it can continue to printing.
10. Easy assembly and Stable printing . base on auto leveling , it sticker very well, metal belt keep models no shaking.
IR3 V2 specification
Customer feedback
d***A (verified owner) –
Fast delivery. Device arrived well packaged and safe.
Construction until the 1st. Press no 30 minutes.
Great service after difficulties with the firmware. Thanks James Ye.
Gladly again.
AliExpress Shopper (verified owner) –
He is magnificent!
С***й (verified owner) –
The seller is reliable, well done, sent everything, everything came as described, and also included 5 printer nozzles as a gift. Thank you very much, I will definitely order more printers from him. We have a lot of production, after testing, I want to order a batch of several pieces.
У***ч (verified owner) –
I think this printing scheme will soon outperform existing ones. The device is unusual and functional. An interesting slicer, had to dig a bit, but overall everything is clear. Haven’t tried the volumes yet, but I liked the first print and the process itself. Thanks to this printing concept, the parts turn out to be stronger in my opinion. This is certainly without testing on a stand, but in hands they are truly sturdy. The packaging is reinforced concrete, they didn’t skimp on polystyrene foam.
AliExpress Shopper (verified owner) –
It’s nice and just as close to perfect. I want to help some people (as helping people is literally my business) in terms of 3d coordinates the infinite z axis is actually an infinite y axis (since the model print is coming towards/away you infinitely). . . That should help people who don’t want to download a different slicer (for example in bambu studio you would type 999999 in the y parameter when creating a custom printer), you must also select klipper as your g-code flavor in printer settings -badbxarwrld
F***z (verified owner) –
An incredible and wonderful printer, complete and beautiful.
К***ы (verified owner) –
A wonderful printer! Fast, accurate. After the Ender 3 V3 SE, it’s just space 🙂 The printer was ordered on December 12th and arrived in Izhevsk on February 5th on the second attempt (the first time something happened at Chinese customs, and the printer was returned to the seller). But the wait was worth it. Special thanks to the seller for not having to pay customs duties.
The only downside is the lack of support for such printers on the part of Orca slicer. However, I’m getting used to using my own slicer. The benches turned out great!
I recommend it to everyone!
