IFlight Nazgul XL5 ECO BNF 6S 5 inch FPV Drone 245mm Wheelbase 5mm Arm compatible Max Speed 190 Km/h RC Racing Drone
Description
- High-concerned chemical: None
- Is Electric: No Battery
- Anti-wind Ability: 6
- Drone Weight: 6
- Takeoff Weight: 12
- Transit Time (Days): 20
- Video Capture Resolution: 1080p FHD
- Indoor/Outdoor Use: Indoor-Outdoor
- Camera Mount Type: Fixed Camera Mount
- Controller Mode: MODE1,MODE2
- Flight Time: 10~20
- Controller Battery: NO
- Control Channels: 2 CHANNELS
- Is Batteries Included: No
- Remote Distance: 20
- Remote Control: No
- Type: HELICOPTER
- Aerial Photography: Yes
- Package Includes: Original Box
- Material: Metal
- Features: App-Controlled
- Origin: Mainland China
- Recommend Age: 14+y

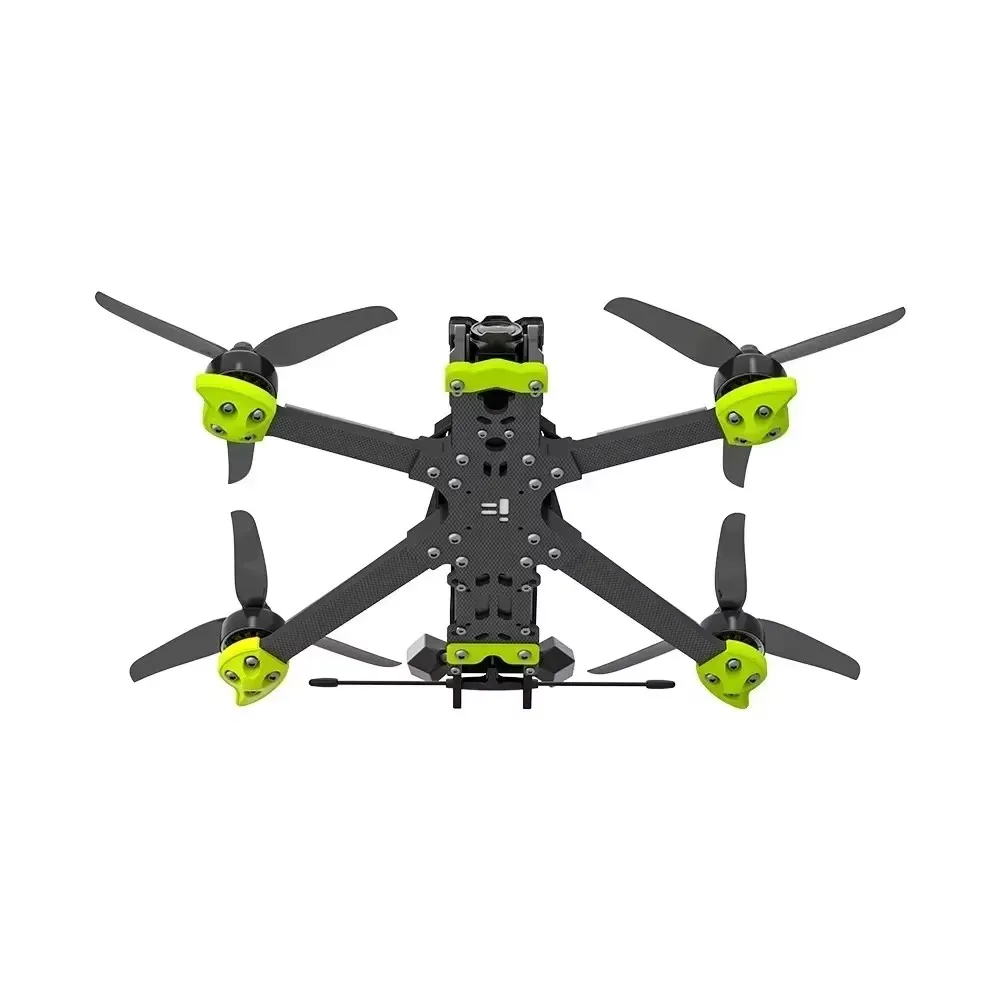

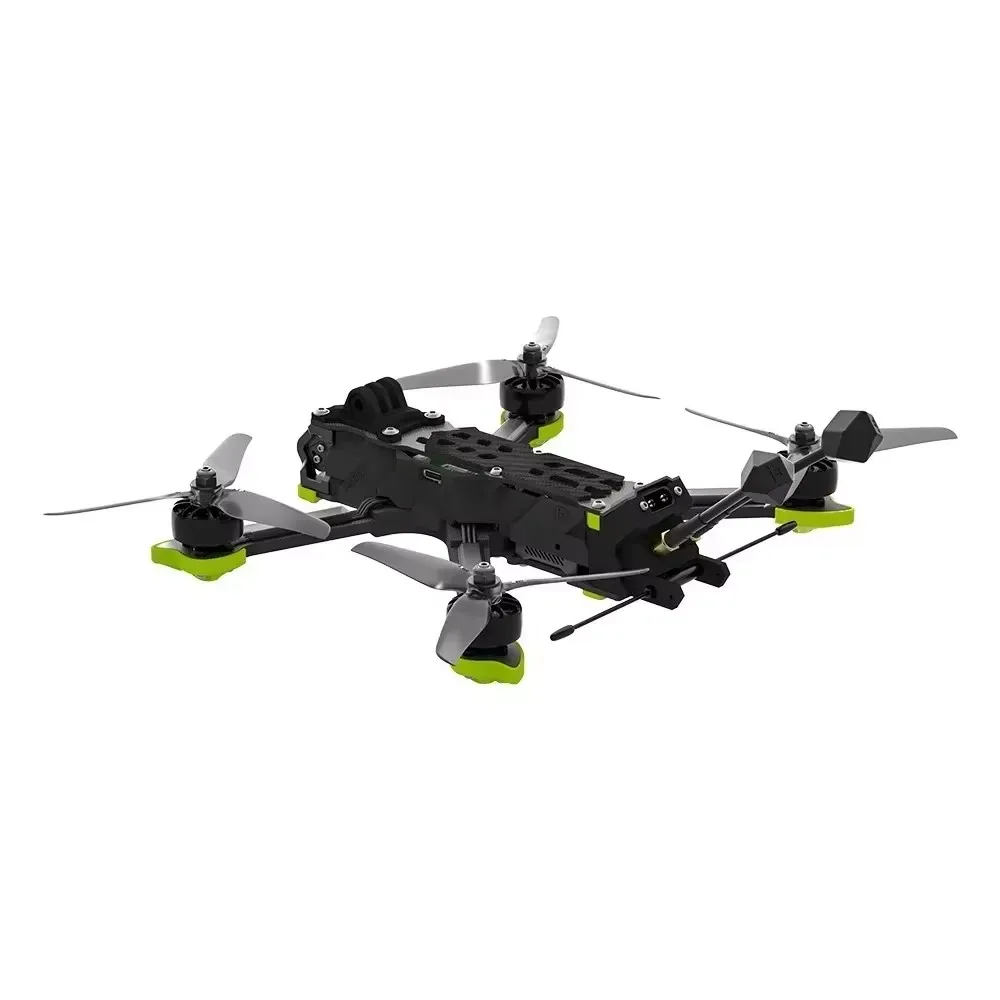

1.Introducing Nazgul XL5 ECO – the 5-inch standard Freestyle drone that redefines performance and value.
2.Featuring an BLITZ F7 flight controller, BLITZ 1.6W VTX, and BLITZ E55 ESC, the Nazgul XL5 ECO delivers unparalleled performance and reliability.
3.The carbon fiber with aluminum camera mount offers lightweight durability, while the included GoPro mount provides versatility for capturing your epic freestyle flights.
4.Take your flying experience to new heights with Nazgul XL5 ECO.
Lightweight and Durable
A combination of carbon fiber and aluminum ensures a lightweight yet robust structure for your camera equipment. Designed for clear video output without propellers obstructing the view, enhancing the aesthetic quality of your aerial footage.
Anti-Spark Filter
Plugging in a battery can create a loud spark at the connector which is caused by the high battery current rushing into the low ESR capacitor first as well as filling up ESC capacitance. We've added a protective circuit to extend the lifespan of XT60 connectors and prevent rapid voltage or current spikes which can protect your electronics from damage.
Enhance user experience and streamline maintenance
Equipped with a built-in buzzer and receiver mount, convenient maintenance and adjustments to the receiver.
DIY customized space
Create your own personalized space with the flexibility of standard 20×20 and 30.5×30.5 mounting holes, ensuring compatibility with popular flight stacks and VTX systems available in the market. Tailor your setup to your liking and enjoy a seamless integration process with these versatile mounting options.
Geometry: True-X
FC: BLITZ F7 Flight Controller
ESC: BLITZ E55 4-IN-1 ESC
Video Transmission: BLITZ 1.6W VTX
Frame: 245mm wheelbase
Motor: XING-E Pro 2207 1800KV motors
Prop: Nazgul F5 propellers
Weight: 418g(Without Battery)
Dimensions (L×W×H): 173×173×34±2 mm
Diagonal Distance: 245mm
Max Speed: 190 Km/h (Manual Mode)
Maximum Takeoff Altitude: 3200 m
Max Hover Time: Approx. 7.5 mins (No Load with 6S 1400mAh Battery)
Max Wind Speed Resistance: Level 7
Operating Temperature Range:-10° to 40° C (14° to 104° F)
Antennas: Single Antenna
GNSS: GPS+SBAS+Galileo+QZSS+Glonass(Optional)
Product Name: BLITZ 5.8G 1.6W VTX
Output Power: 0-25-400-800-1600mw
Input Volts: 7-34V(2-8S)
Working Current: 25.2V,≤pit @20mA,≤25mw@65mA,≤400mw@130mA,≤800mw@150mA,≤1600mw@250mA
Transmission fre: 40CH(A-B-E-F-R)
Antenna Interface: MMCX
Mounting Hole: 30.5×30.5/Φ3mm
Weight: 18.9g (Antenna not included)
Dimensions: 38.5×38.5mm
1 x Nazgul XL5 ECO 6S Analog BNF
1 x Antennas
2 x Battery pads
2 x Nazgul F5 Prop(Pairs)
All iFlight BNFs are tested before shipment to guarantee the highest quality.
If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
1. iFlight products may be used for civilian purposes only and any direct or indirect use of iFlight products for or in connection with the following is prohibited:
(1)Any military combat purpose or military combat related use;
(2)Terrorist activities: The purchaser also shall require its customers or end users to comply with the foregoing requirements.
2. If party A has violated applicable export control or economic sanctions laws and regulations, Party B has the right to immediately suspend delivery of products to Party A or terminate relevant cooperation without any liability.
Additional information
| Color | ELRS 868 900MHz RX, iFlight ELRS 2.4GHz, TBS NANO 868 915, Without RX (PNP) |
|---|---|
| High-concerned chemical | None |
| Is Electric | No Battery |
| Anti-wind Ability | 6 |
| Drone Weight | 6 |
| Takeoff Weight | 12 |
| Transit Time (Days) | 20 |
| Video Capture Resolution | 1080p FHD |
| Indoor/Outdoor Use | Indoor-Outdoor |
| Camera Mount Type | Fixed Camera Mount |
| Controller Mode | MODE1,MODE2 |
| Flight Time | 10~20 |
| Controller Battery | NO |
| Control Channels | 2 CHANNELS |
| Is Batteries Included | No |
| Remote Distance | 20 |
| Remote Control | No |
| Type | HELICOPTER |
| Aerial Photography | Yes |
| Package Includes | Original Box |
| Material | Metal |
| Features | App-Controlled |
| Origin | Mainland China |
| Recommend Age | 14+y |
