IMX990 1.3MP SWIR Industrial Camera 1280×1024 91fps GigE Short-Wave Infrared Inspection Ace 2 for Fruit Quality &Machine Vision
Description
- High-concerned chemical: None
- Model Number: iCt-SWG130S-Pro
- Brand Name: CONTRASTECH
- Origin: Mainland China
- Certification: CE
- Resolution: 1280 x 1024
- Frame Rate: 91 fps
- Sensor: IMX990 (1/2"CMOS InGaAs)
- Pixel Size: 5 μm x 5 μm
- Spectral Range: 400~1700nm
- Bit Depth: 12
- Shutter Type: Global
- SNR: 56 dB
- Dynamic Range: 52 dB
- Image Format: Mono8/10/10Packed/Mono12/Mono12Packed
- ROI: Support
- Buffer: 256MB
- Interface: GigE, PoE
- Lens Mount: C-Mount
- Size: 29x29x42 mm(98g) (excluding lens mount and rear port interface)
- Application1: Fruit Spoilage Detection
- Application2: Semiconductor Wafer Inspection
- Application3: Food Quality Inspection
- Application4: Plastic & Material Sorting
- Application5: Packaging Inspection (Through Plastic)
- Application6: Fog / Smoke Penetration Imaging
- Application7: Silicon & Electronic Component Inspection
- Application8: Agricultural & Crop Analysis
- Application9: Non-Destructive Testing (NDT)
- Application10: Low-Light / Night Vision Imaging
- Application11: Pharmaceutical Inspection
- Application12: Battery & EV Cell Inspection
- Application13: Recycling & Waste Sorting
- Application14: Laser Beam Profiling (NIR-SWIR)
- Application15: Moisture Content Analysis
- Feature1: SWIR camera 400-1700nm
- Feature2: Compact design with four-side mounting support
- Feature3: 1280×1024 SWIR imaging
- Feature4: Ace 2 SWIR/Cheetah 640/SWIR1300
🔹 🌐 Product Description

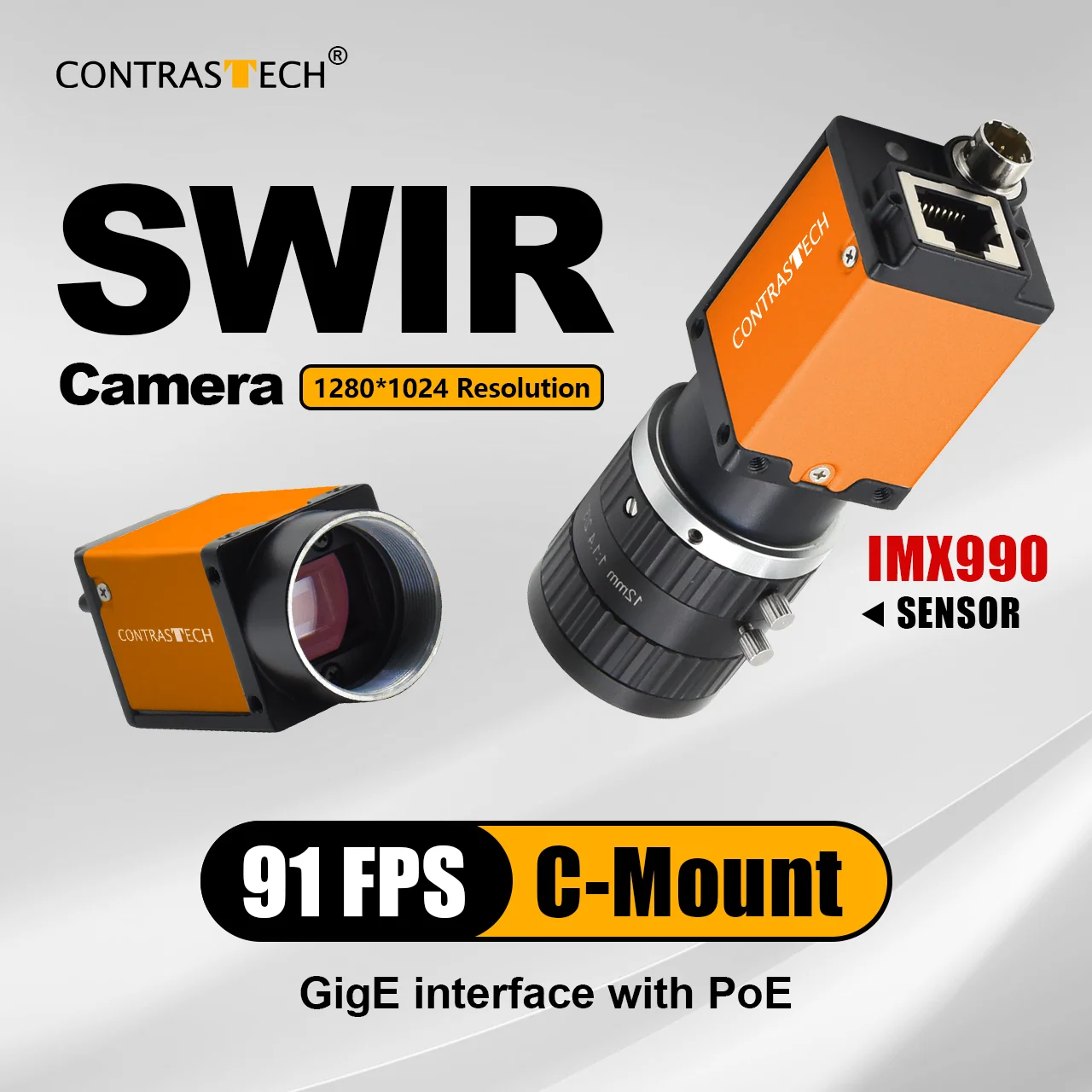

iCt-SWG130S-Pro 1.3MP IMX990 SWIR Industrial Camera delivers high-sensitivity short wave infrared (SWIR) imaging across 400–1700nm with 1280×1024 resolution and 91 fps for real-time inspection and automated vision systems. Equipped with the Sony IMX990 InGaAs sensor and global shutter, it ensures low distortion and high contrast even on fast moving production lines. Fully compliant with GigE Vision 2.0 / GenICam, this SWIR camera enables stable data transfer, 256MB onboard cache and flexible integration.
🔹 🧠 Key Features
-
High Resolution: 1.3 Megapixel (1280×1024) image quality
-
Smooth 91 fps Output: Ideal for conveyor and high speed inspection
-

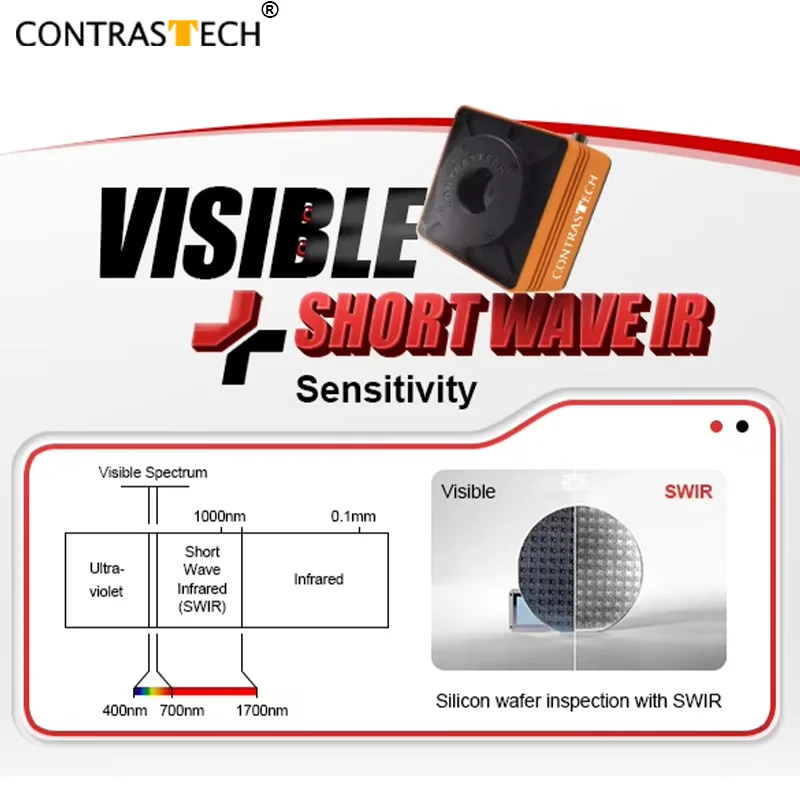

Wide Spectral Sensitivity: 400–1700nm SWIR imaging
-
Global Shutter: No motion blur on fast targets
-
GigE Vision Compliant: Long distance data transfer up to 100m
-
Adjustable Gain: 1–32× with LUT, gamma, contrast & 3D noise reduction
-
Compact Industrial Design: C-mount, flexible installation
-
Applications: Fruit spoilage detection, silicon wafer inspection, fog & packaging scanning
-
Easy Integration: SDK & third party support for auto vision platforms
🔹 🛠️ Typical Applications
-
🍎 Fruit spoilage & quality detection
-
🍖 Food processing & contamination detection
-
📦 Packaging contents inspection
-
🧪 Material classification & spectroscopy
-
🏭 Automated machine vision inspection systems
|
Model
|
iCt-SWG130S-Pro
|
|
Resolution
|
1280 × 1024
|
|
Frame Rate
|
91 fps
|
|
Sensor
|
IMX990 (1/2"CMOS InGaAs)
|
|
Pixel Size
|
5 μm × 5 μm
|
|
Spectral Range
|
400~1700nm
|
|
Bit Depth
|
12bit
|
|
Shutter Type
|
Global
|
|
SNR
|
56 dB
|
|
Dynamic Range
|
52 dB
|
|
Image Format
|
Mono8/10/10Packed/Mono12/Mono12Packed
|
|
Binning
|
off, 1×2, 2×1, 2×2, 1×4, 4×1, 2×4, 4×2, 4×4, 3×3, 1×6, 6×1, 6×6
|
|
ROI
|
Support
|
|
Gain
|
1 ～32X
|
|
Exposure Time
|
Ultra-Short: 3 μs ~ 14 μs Standard: 15 μs ~ 10s
|
|
Image Acquisition Mode
|
Software Trigger, Hardware Trigger, Free Run
|
|
SPC
|
Support
|
|
Buffer
|
256MB
|
|
Interface
|
GigE, PoE
|
Visible + SWIR Lens Specification
камера SWIR промышленная для инспекции, 산업용 SWIR 카메라 검사용, cámara SWIR industrial para inspección 400–1700nm
Additional information
| Color | 1.3MP 91fps GigE-Cam, Cam with 12mm lens, Cam with 16mm lens, Cam with 25mm lens, Cam with 35mm lens, Only 12mm lens, Only 16mm lens, Only 25mm lens, Only 35mm lens, Only 3m Cable |
|---|---|
| High-concerned chemical | None |
| Model Number | iCt-SWG130S-Pro |
| Brand Name | CONTRASTECH |
| Origin | Mainland China |
| Certification | CE |
| Resolution | 1280 x 1024 |
| Frame Rate | 91 fps |
| Sensor | IMX990 (1/2"CMOS InGaAs) |
| Pixel Size | 5 μm x 5 μm |
| Spectral Range | 400~1700nm |
| Bit Depth | 12 |
| Shutter Type | Global |
| SNR | 56 dB |
| Dynamic Range | 52 dB |
| Image Format | Mono8/10/10Packed/Mono12/Mono12Packed |
| ROI | Support |
| Buffer | 256MB |
| Interface | GigE, PoE |
| Lens Mount | C-Mount |
| Size | 29x29x42 mm(98g) (excluding lens mount and rear port interface) |
| Application1 | Fruit Spoilage Detection |
| Application2 | Semiconductor Wafer Inspection |
| Application3 | Food Quality Inspection |
| Application4 | Plastic & Material Sorting |
| Application5 | Packaging Inspection (Through Plastic) |
| Application6 | Fog / Smoke Penetration Imaging |
| Application7 | Silicon & Electronic Component Inspection |
| Application8 | Agricultural & Crop Analysis |
| Application9 | Non-Destructive Testing (NDT) |
| Application10 | Low-Light / Night Vision Imaging |
| Application11 | Pharmaceutical Inspection |
| Application12 | Battery & EV Cell Inspection |
| Application13 | Recycling & Waste Sorting |
| Application14 | Laser Beam Profiling (NIR-SWIR) |
| Application15 | Moisture Content Analysis |
| Feature1 | SWIR camera 400-1700nm |
| Feature2 | Compact design with four-side mounting support |
| Feature3 | 1280×1024 SWIR imaging |
| Feature4 | Ace 2 SWIR/Cheetah 640/SWIR1300 |
