Industrial Camera 5MP Global Shutter High Speed GigE Vision Camera for Machine Vision Systems

Industrial Camera 5MP Global Shutter High Speed GigE Vision Camera for Machine Vision Systems

(0 customer reviews)

~~649.48$~~ 564.28$

In Stock

Description

High-concerned chemical: None
Model Number: MV-GE501GC/M
Brand Name: NoEnName_Null
Origin: Mainland China
Product Name: GigE Industrial Camera for Machine Vision, Automation, Quality Inspection, Robotics, AI Applications
Model: MV-GE501GC/M
Sensor: Cmos
Pixel: 5MP
Pixel Size: 3.45um
Sensor size: 2/3"
Color: Color/ Mono
Frame Rate: 24fps
Resolution: 2448×2048
Warranty: 2 years
Place of Origin: Hunan, China

-Support 100 meters transmission or POE (optional).
-Compatible with gige vision standard.
-With hardware image processing acceleration.
-Support multiple cameras to work at the same time.
-Data packet retransmission technology to ensure reliable data transmission.
-Provide SDK, easy to use and convenient.
-Support external trigger and flash.
-SDK supports Windows and Linux systems.
-SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

-Camera name can be modified to distinguish multiple cameras easily.

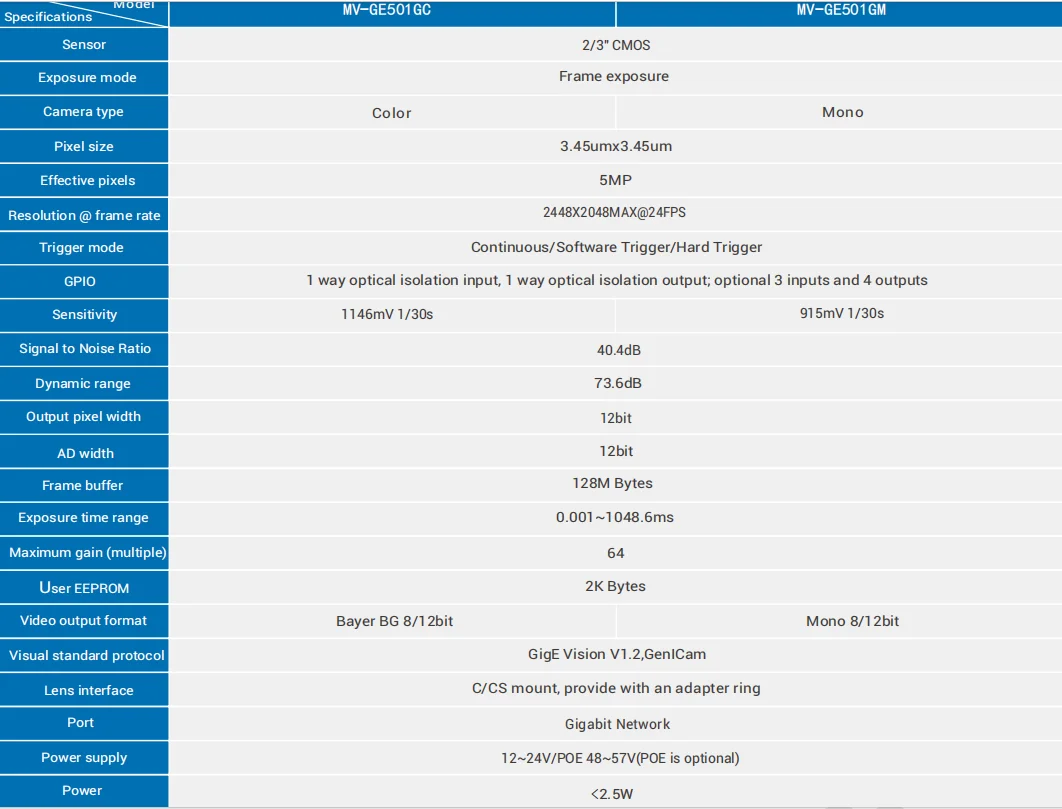

Product Paramenters

Detail Information
Product Item	Mindvsion 5.0MP Industrial Camera Factory direct 5MP HD camera Color/mono to choose from Provide SDK support halcon, vision por
Model Number	MV-GE501GC/M
Color	Monochrome/Color
Pixel	5MP
Pixel size	3.45um
Resolution	2488×2048
Exposure time range (ms)	0.019-19922.7ms
Shutter	Global Shutter
Sensor	CMOS
Lens Mount	C Mouth
GPIO	1 way optical isolation input, one way optical isolation output; Optional 3 input 4 output
Data interface	RJ45Gigabit Ethernet interface
Frame Buffer	32M Bytes
User-defined data area	2K Bytes
Power Requirements	9~12V/POE48~57V(POE is optional)

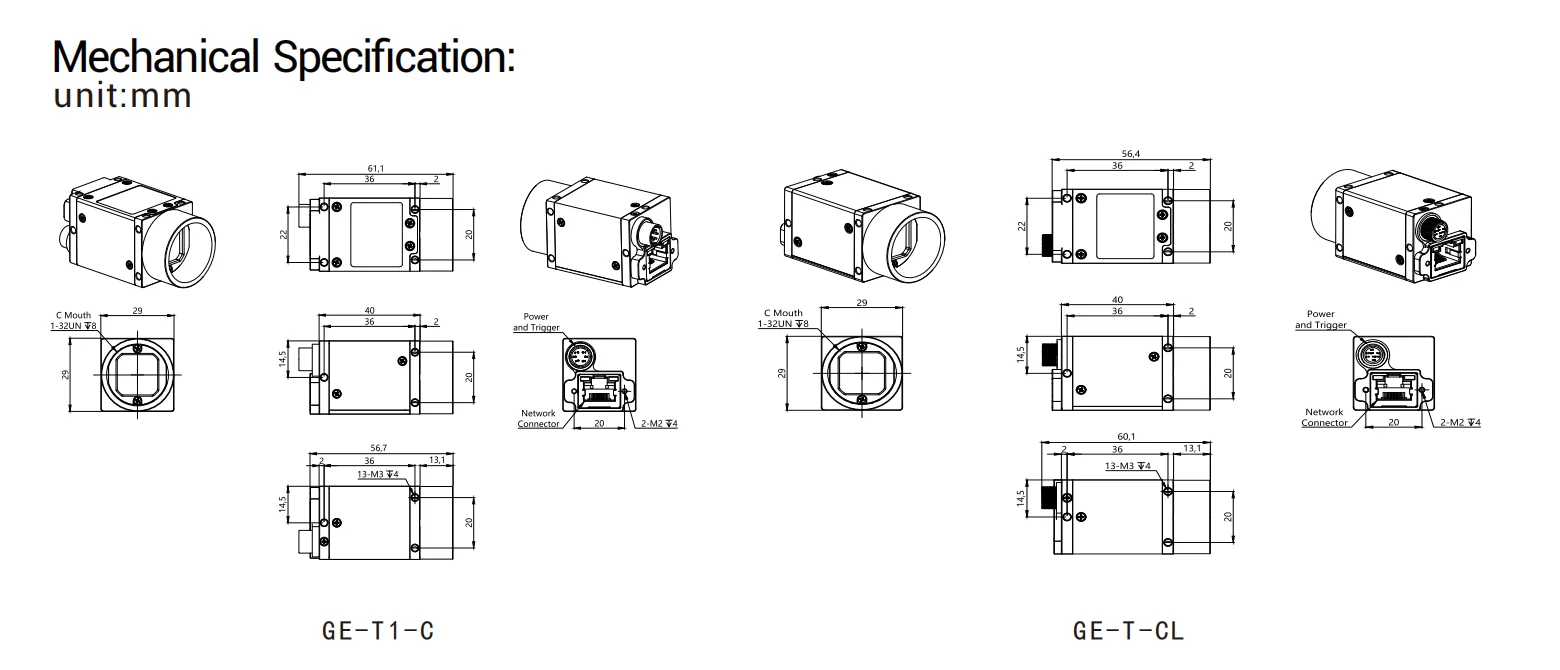

Dimensions	292940(mm)
weight	<75g
Operating temperature	0~50℃
Operating System	WINXP, WIN7/8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers (customizable)
Driver	DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components
Other Functions	Support Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation, sharpness, color to mono, color temperature correction, anti-color, Color,trigger mode, frame rate control

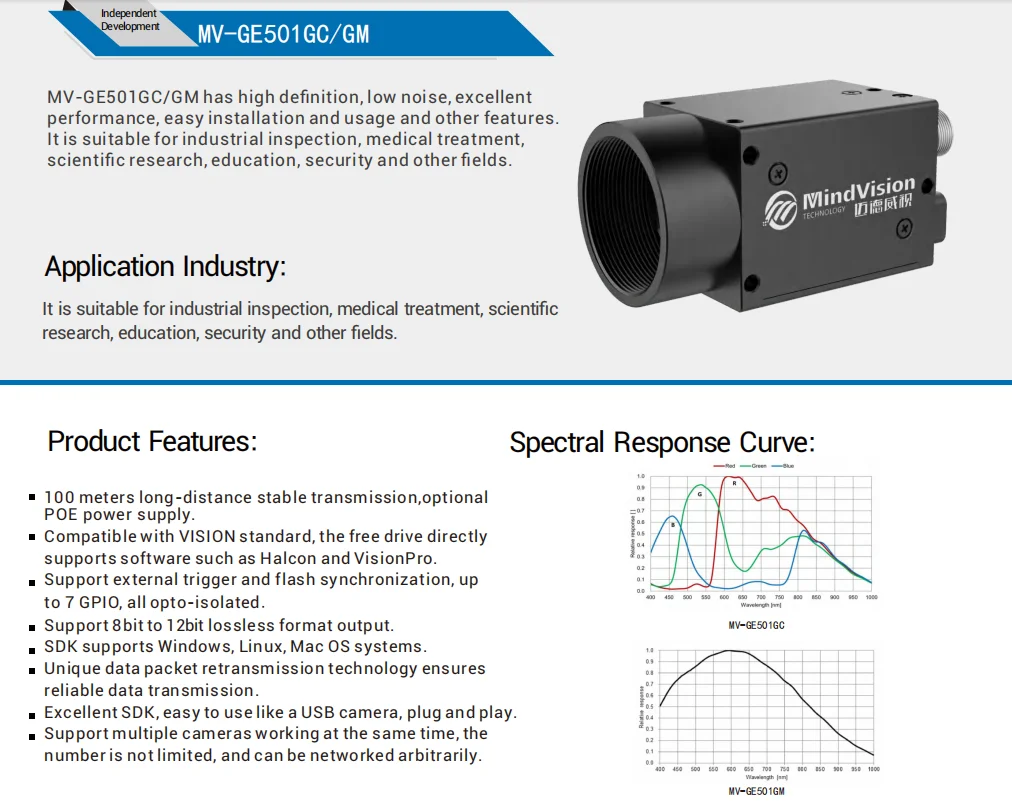

GigE Series Features:

FAQ

Q. Can you provide SDK?

A:Yes,we provide SDK,and it supports secondary development.

Q. How to choose the color of industrial camera?

A:If you do size measurement without detecting the color of the image, you can choose monochrome camera. Monochrome camera transmits a grayscale image, which is more conducive to size measurement.If you need to identify product chromatic aberration, such as comparison, a color camera is suitable for you.

Q. How to choose the shutter of industrial camera?

A:If you need to shoot still objects, we recommend that you choose a camera with a rolling shutter, which will be more cost-effective;If you need to shoot moving objects, global shutter camera much better for you.

Q. How to choose the shutter of industrial camera?

Q. What is the maximum number of cameras supported to work at the same time?

A:As long as the trigger source is the same, you can take pictures synchronously.

Q. What is the difference about CCD and CMOS?

A:CCD has a better image quality than CMOS, but the price and power is higher.CMOS sensor has the characteristics of high sensitivity and high integration.
Q. Support after-sales?
A:Yes, Any questions about industrial camera can contact us.
