Description
- High-concerned chemical: None
- Capacity: 10 – 20Ah
- Voltage: 48v
- Type: Lithium battery
- Brand Name: ACEBEI-POWER
- Origin: Mainland China
- Certification: CE,RoHS
- Capacity: 10.4Ah / 12Ah / 12.8Ah / 13.6Ah / 14Ah
- Cells: Brand/ LG/ Panasonic/Samsung 18650 3.7V Cells
- BMS: 20A / 30A
- Fit for Motors: 0-1000w
- Cycle Life: 800~1000 cycles
- Warranty: 1 Year
- Battery Type: Built-in Folding E Bike Battery
- Fit for Bike 1: LAFLY X-3/X-5
- Fit for Bike 2: JINGHMA R7 R5, etc…

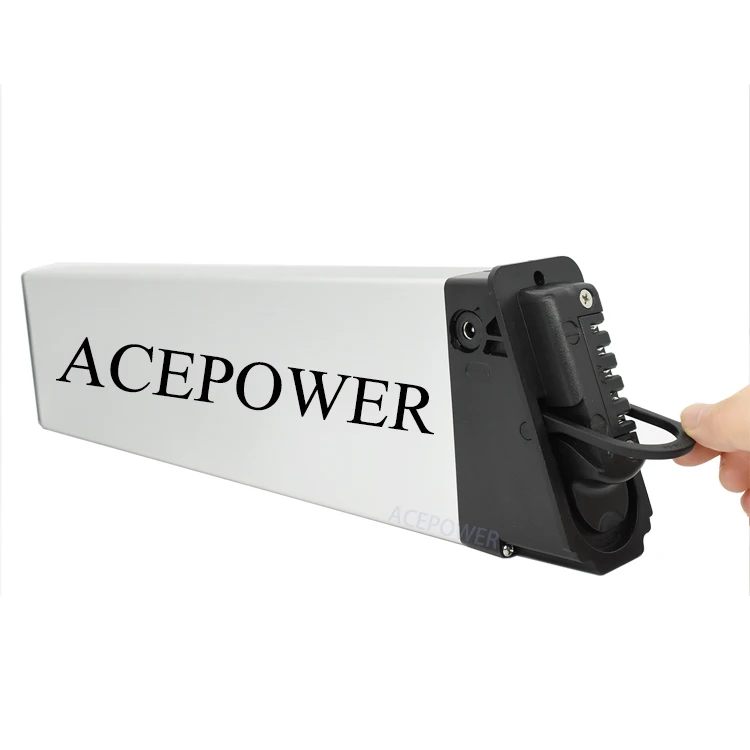

LAFLY X3 X5 JINGHMA R7 R5 Ebike Battery 48V 14Ah 12.8Ah 10Ah DCH006 Battery Akku for Samebike LO26 20LVXD30 Electric XP2.0 Ebike

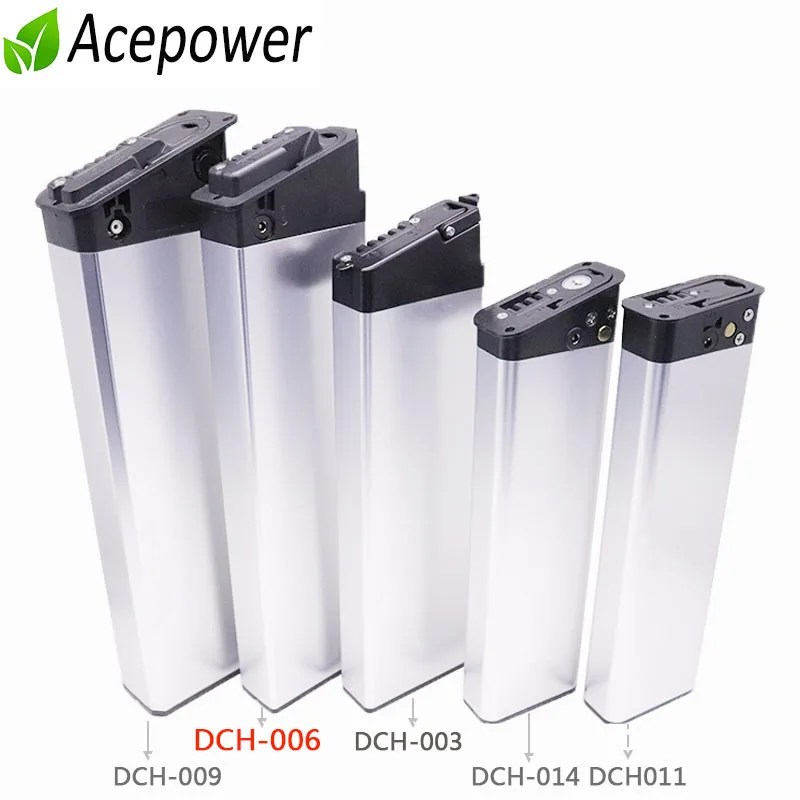

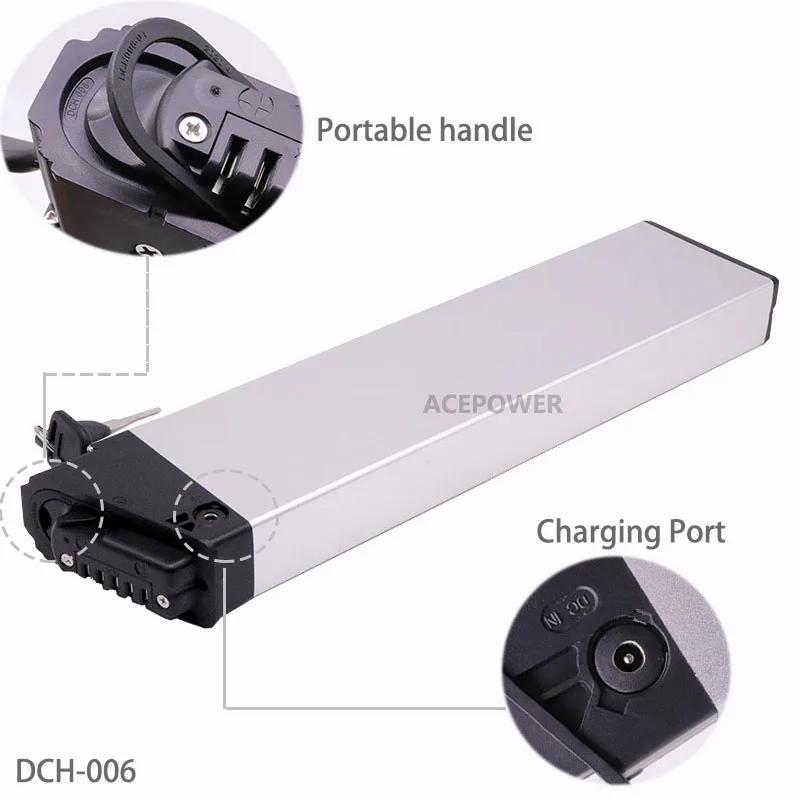

Current link is item DCH-006 430mm Type
This Battery DCH-006 430mm type fit for Samebike LO26, 20LVXD30, LAFLY X3 X5 JINGHMA R7 R5 perfectly!

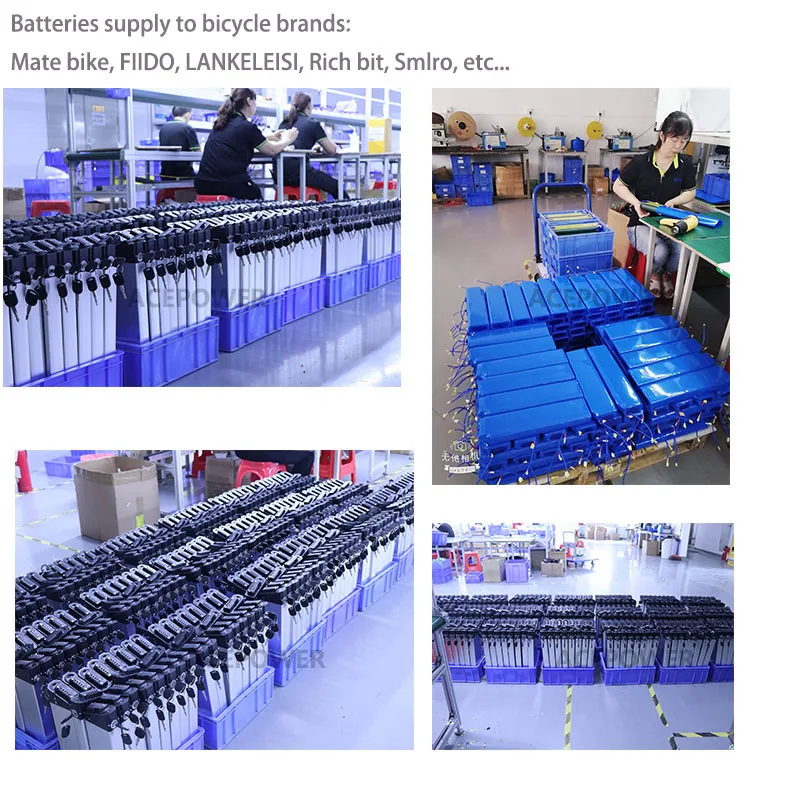

The Samebike, Mate bike, Engwe bike, LANKELEISI, rich bit， MYATU ect.. Many bicycles also will use this model or similar model battery on their different model bicycles.

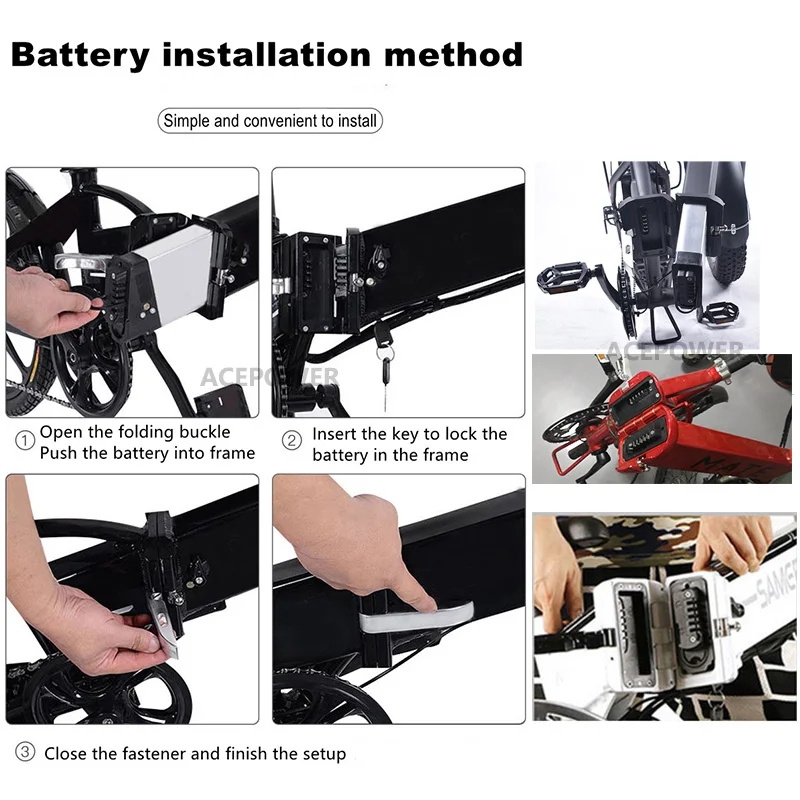

So how to know whether this battery can install inside my bike?
1. Please measure your old battery's size firstly, if size is almost same, then check the apperance, charging port position,
If same as ours, then can install. (This currently link battery is DCH-006 430mm length)
2. Please make sure you order a same voltage's battery as your bike motor.
If old battery is 48V 7.5Ah, 8.7Ah, 11.6Ah 12.5Ah, can I use with 48V 14Ah battery to replace it?
—Yes, Ah is just the capacity of the battery, have no other influence on using.
Battery Specification:
Battery Parameter | 48V 10Ah | 48V 13.6Ah |
Composed Type | 13S 4P | 13S 4P |
Cells | Brand | Panasoni/c |
Battery Weight(appr.) | 3.15kg | |

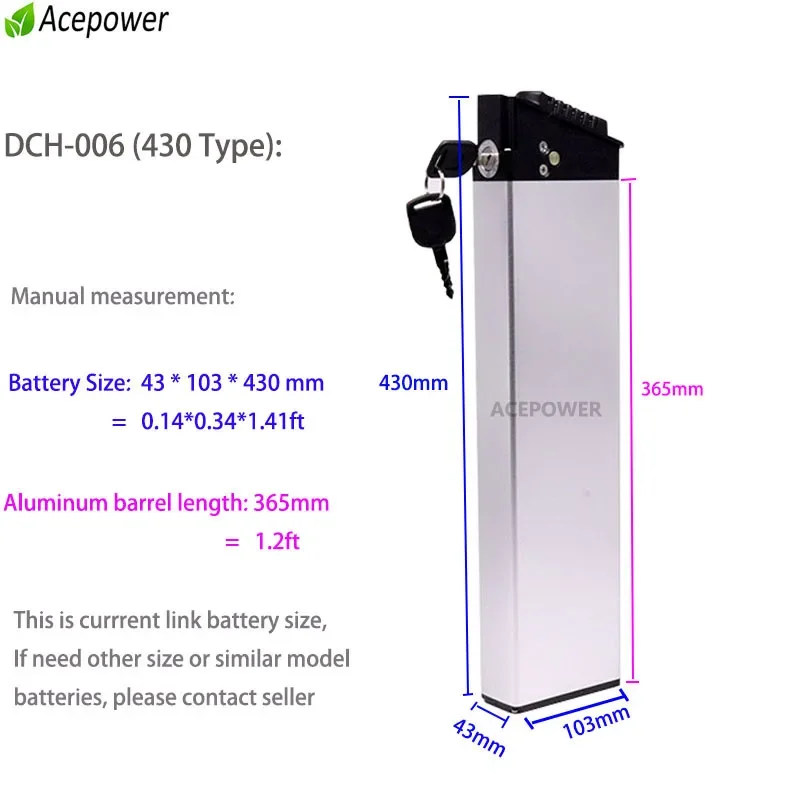

Battery Size(appr.) | 43*103*430mm | |
BMS | 13S 18-20A | |
Fit for Motors | 48V 250w 350w 500w | |
Charging Time | 5-6h | 6.5-8h |
Battery Parameter | 48V 12Ah | 48V 12.8Ah | 48V 14Ah |
Composed Type | 13S 4P | 13S 4P | 13S 4P |
Cells | Brand | Brand | L G/Sam-sung 3500mAh |
Battery Weight(appr.) | 3.15kg | ||
Battery Size(appr.) | 43*103*430mm | ||
BMS | 13S 30A | ||
Fit for Motors | 48V 250w 350w 500w | ||
Charging Time | 6-7h | 6.5-7.5h | 7-8h |
Common parameters： | 48V Battery |
Charging Cut-off Voltage | 54.6V |
Discharge Cut-off Voltage | 39V |
Charger | 2A |
Discharge Temperature | -20~65°C |
Charging Temperature | 0~45°C |
Cycle Life | 800-1000 cycles |
Warranty | 1 Year |

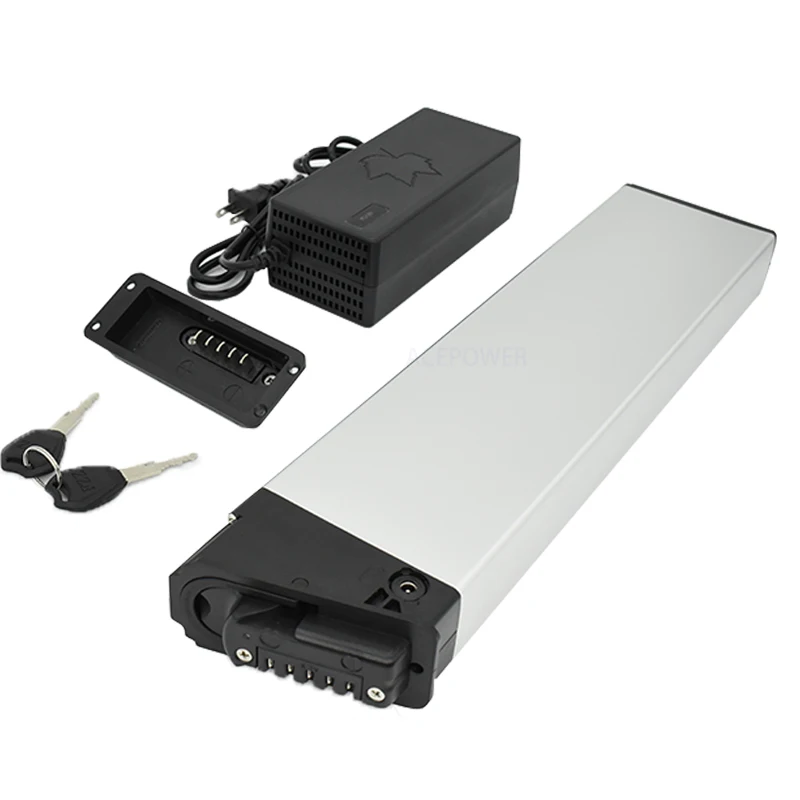

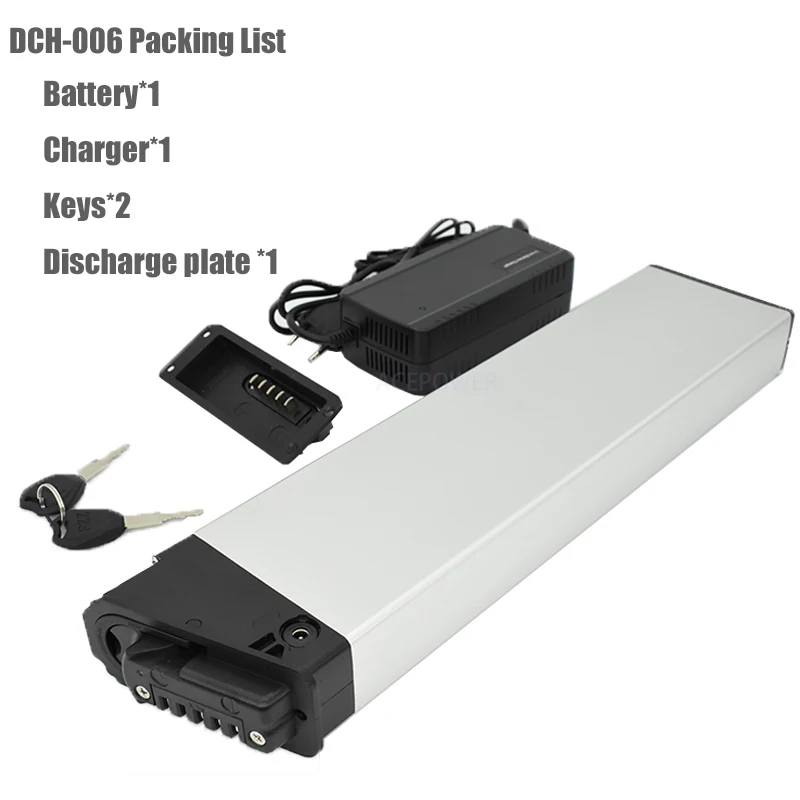

Packing List:
Battery * 1
Charger * 1
Keys * 2
Discharge connector * 1

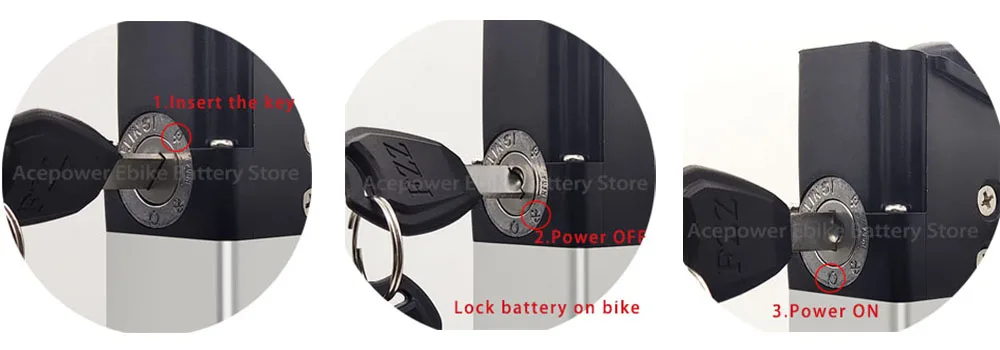

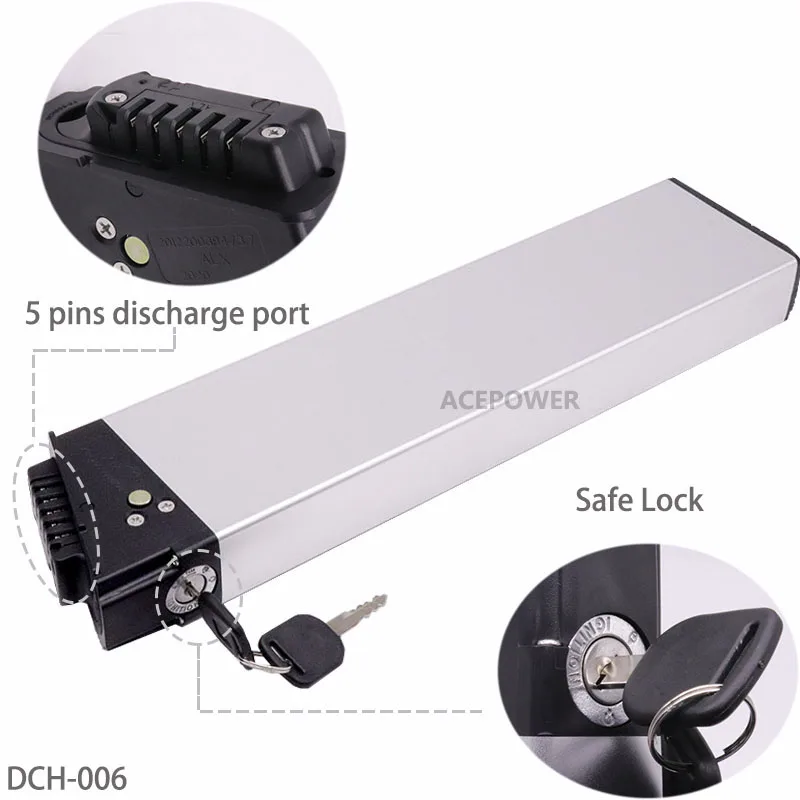

Important Notice for DCH-006's lock design:
Function 1. Lock the battery inside the bike frame. (with this function 1 )
Function 2. The lock is also the battery's power (on/off) switch. (with this function 2 too by defaultly)
So: Before riding, please turn battery's key to the end to open battery's power on.
