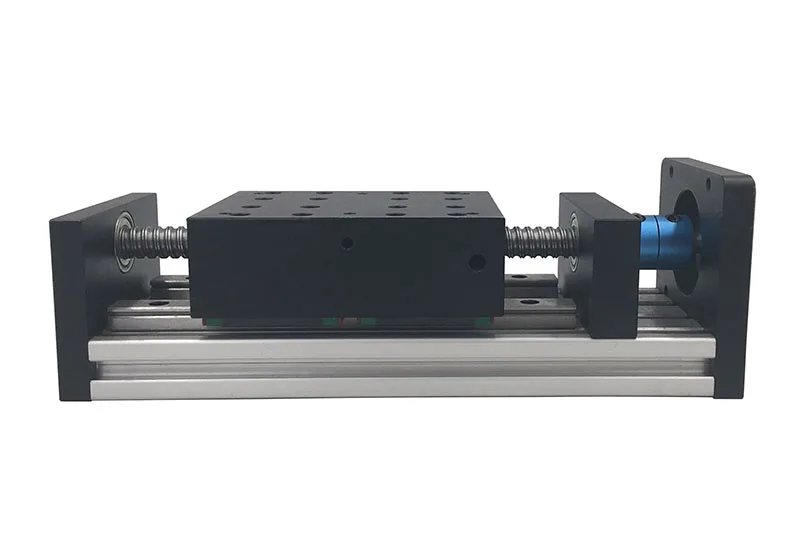

Linear Guid Double Square Sliding Table SFU 1204/1605/1610 Block Carriage Ball Screw Platform XYZ Motion Stage 4PCS Sliders

Description

1* Sliding Table
1* 8mm to 8mm Coupling

Note:
1.3D drawings can be obtained by contacting customer service

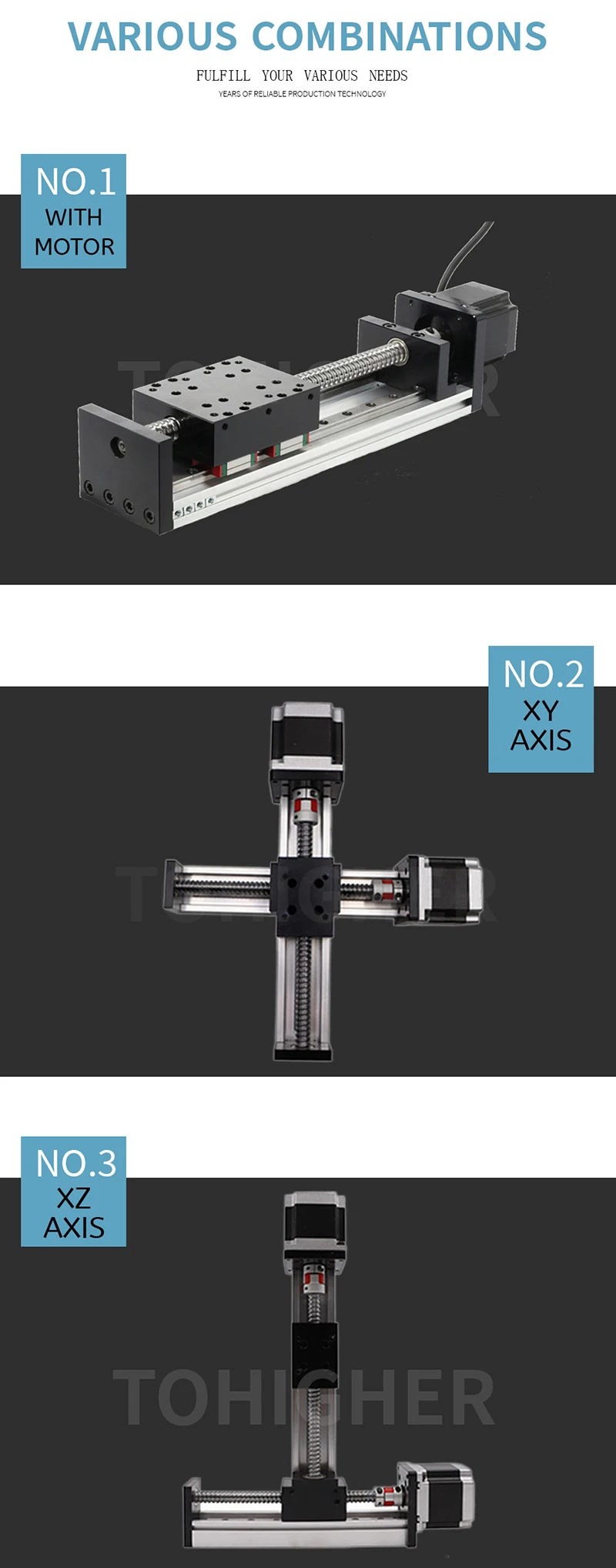

2.To build XZ, XY, XYZ axis, it is necessary to customize the connecting plate, please contact customer service for quotation.
3.The slide table is configured with Nema23 motor bracket by default, other brackets can be customized, please contact customer service for details.

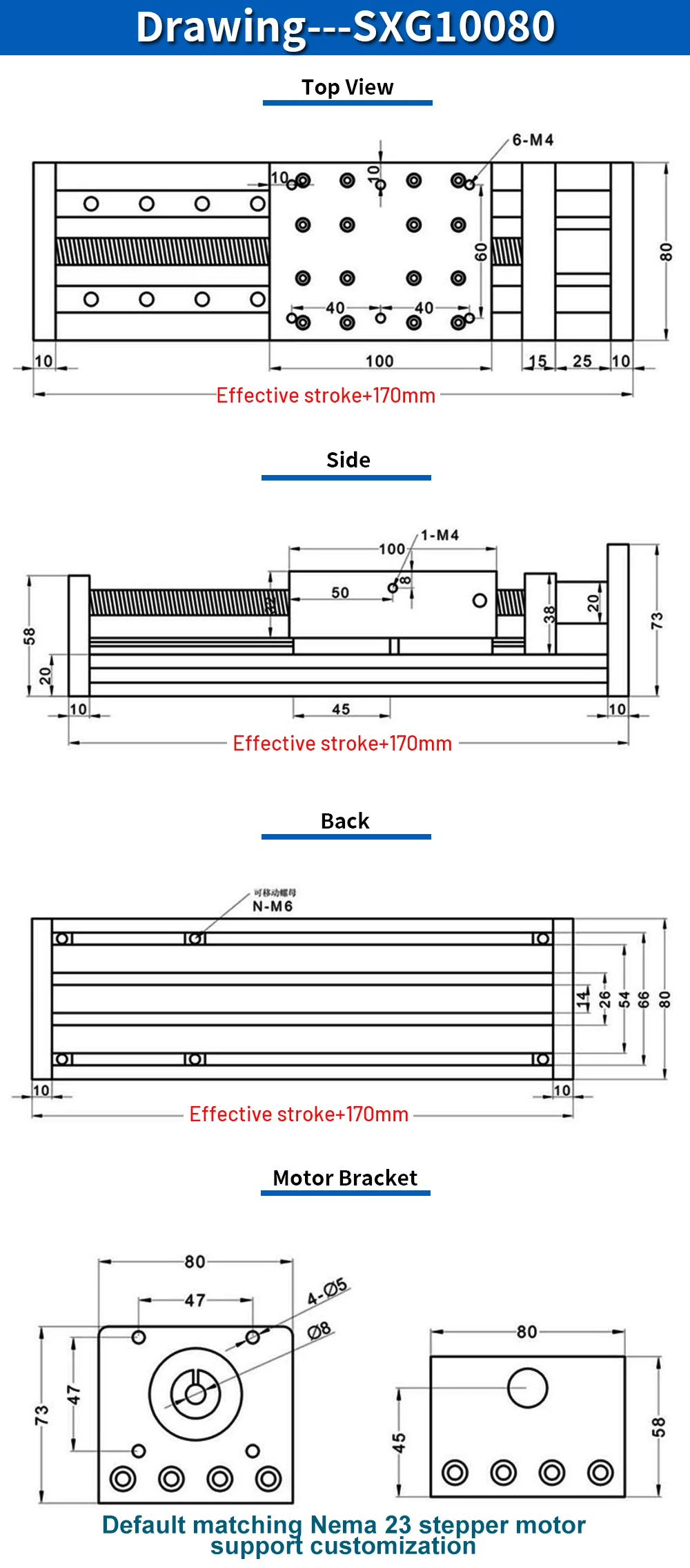

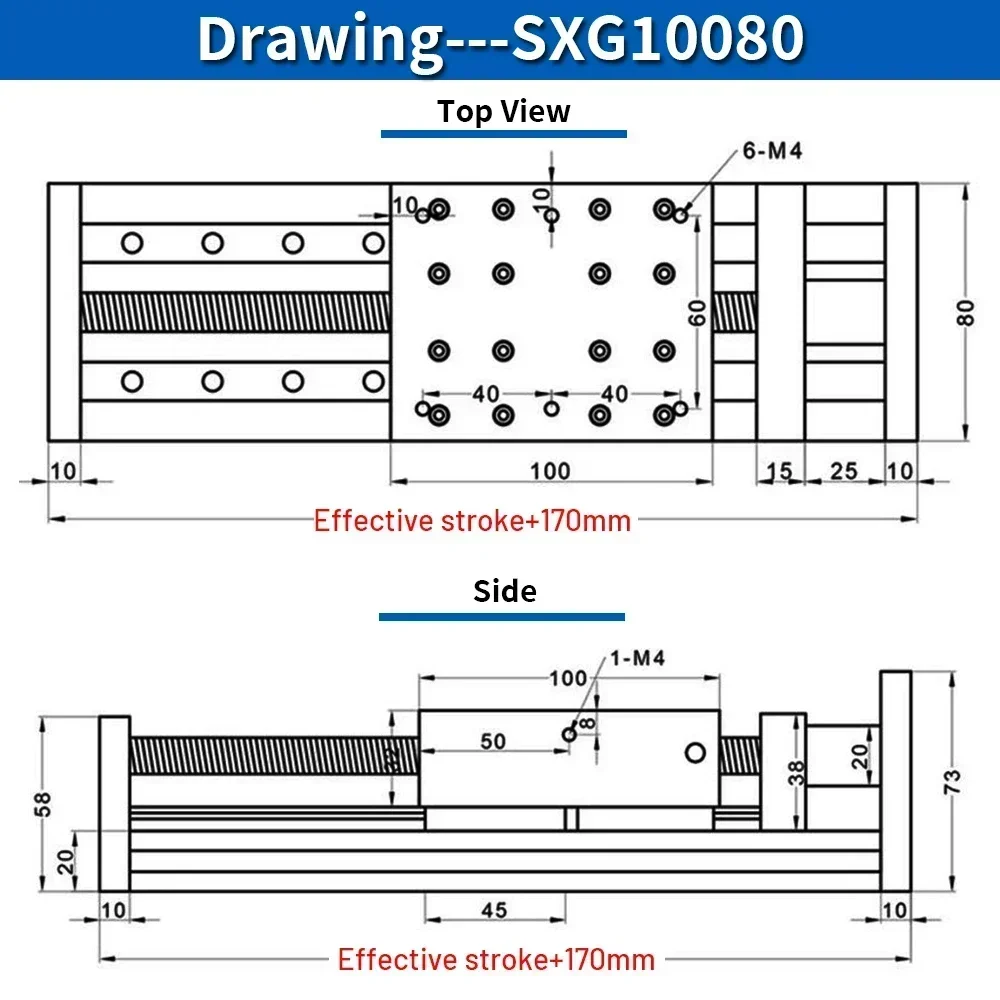

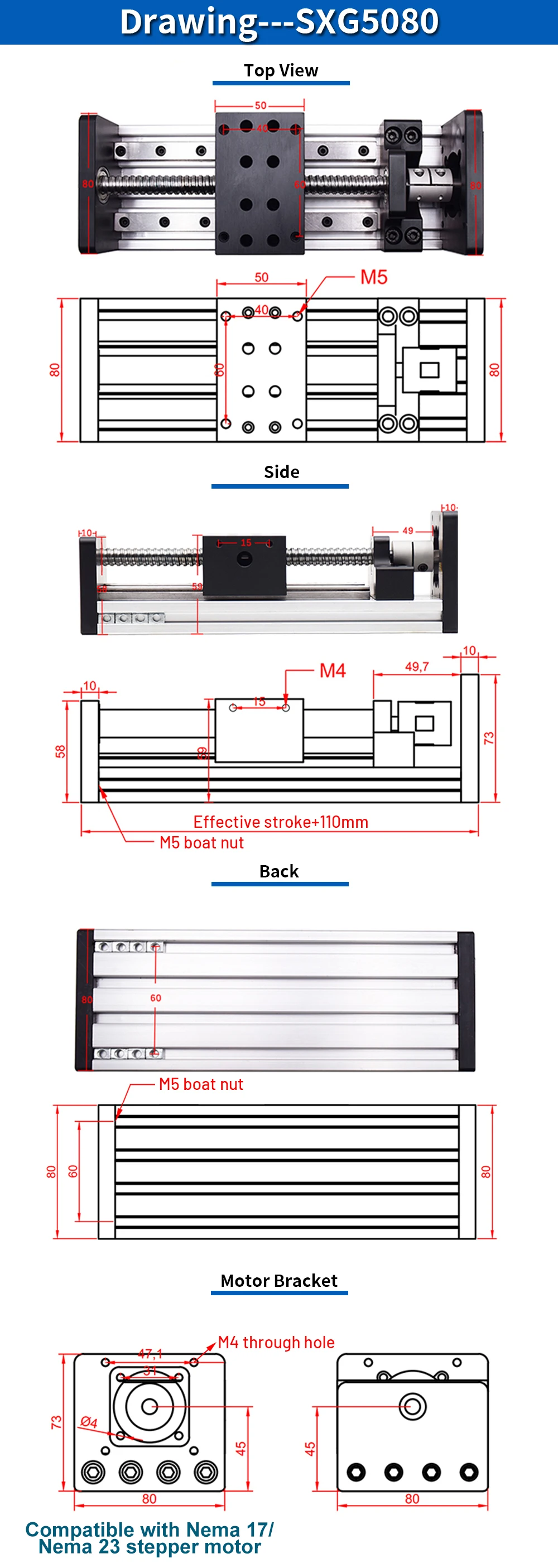

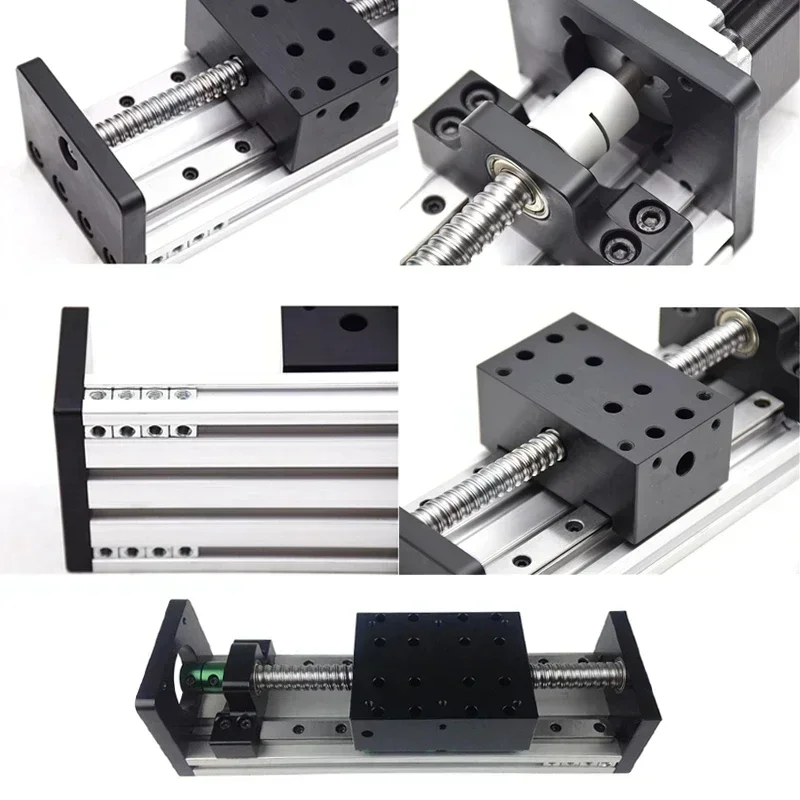

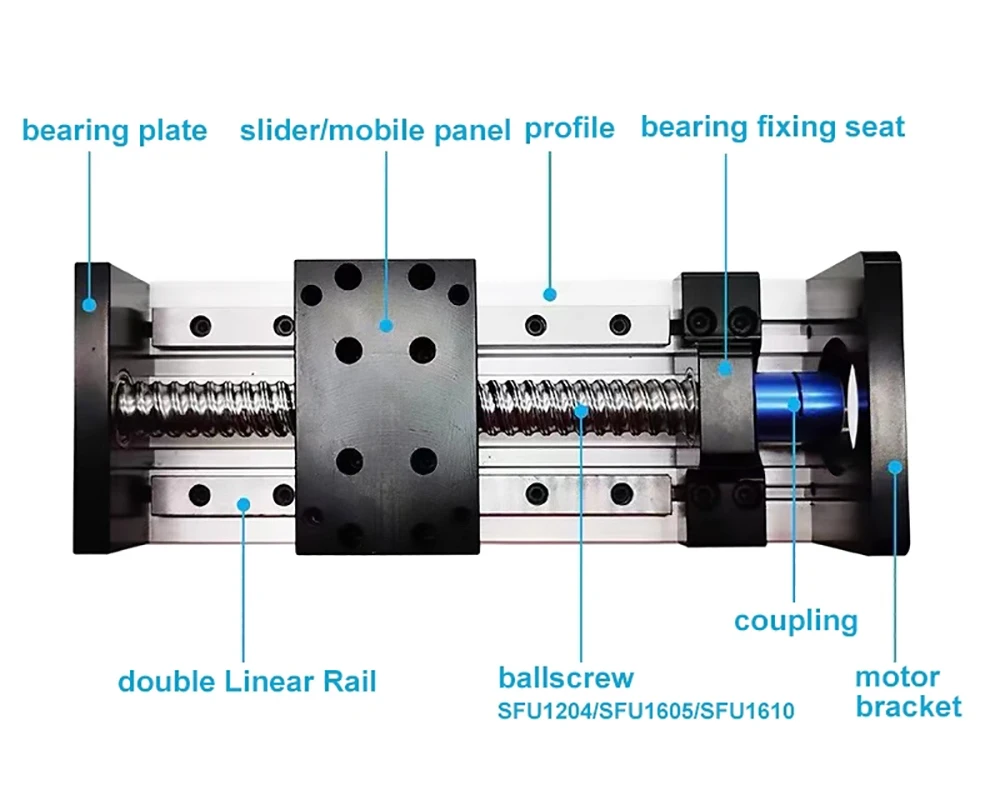

●Model: SXG5080 (50*80mm table) / SXG10080 (100*80mm table)

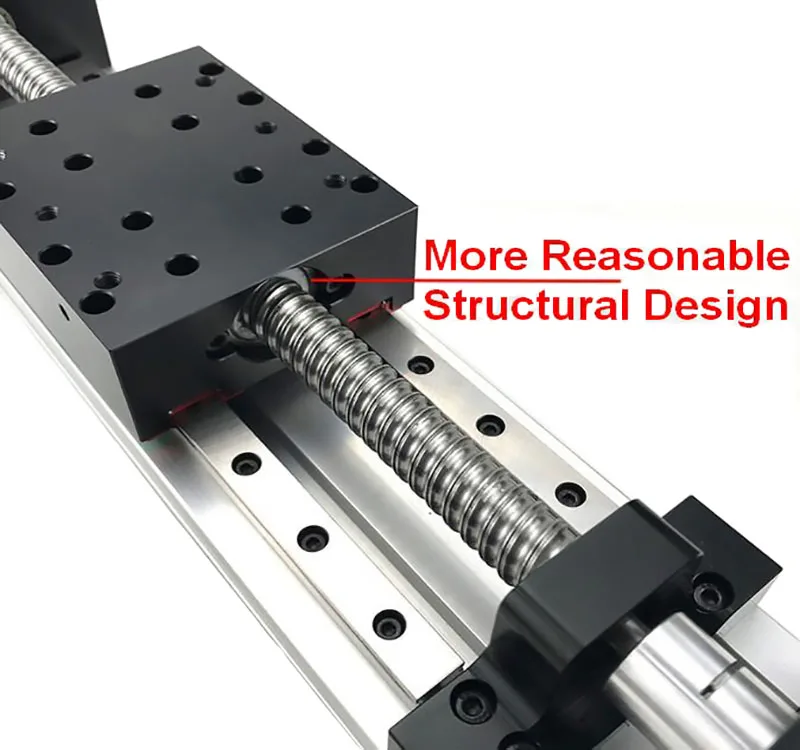

●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)/ SFU1204/ SFU1610
●Ballscrew accuracy: C7 level
●Effective stroke: 100mm-1000mm Optional
●Total length:
            Effective stroke+110mm (50*80 Table)
Effective stroke+170mm (100*80 Table)

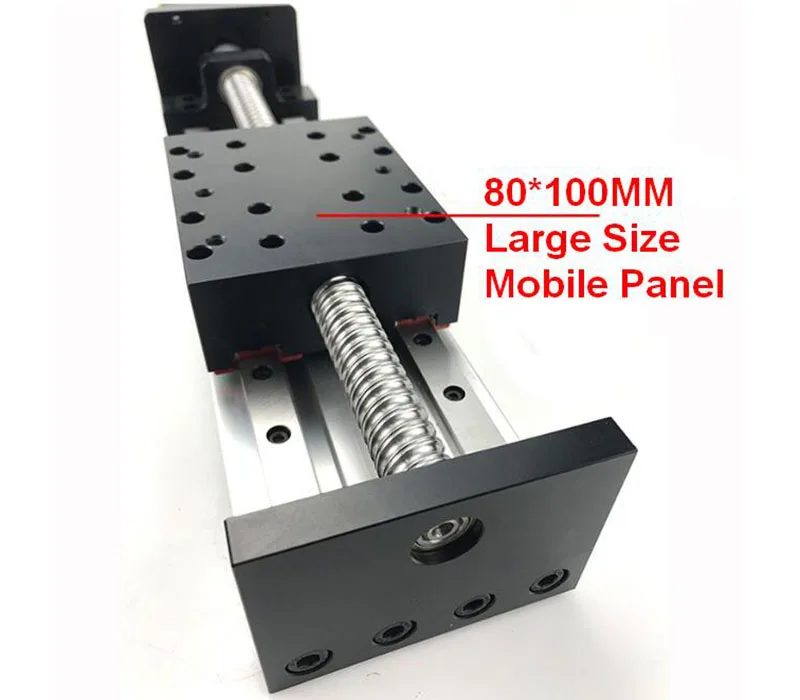

●Mobile panel size: 50*80mm/ 80*100mmm

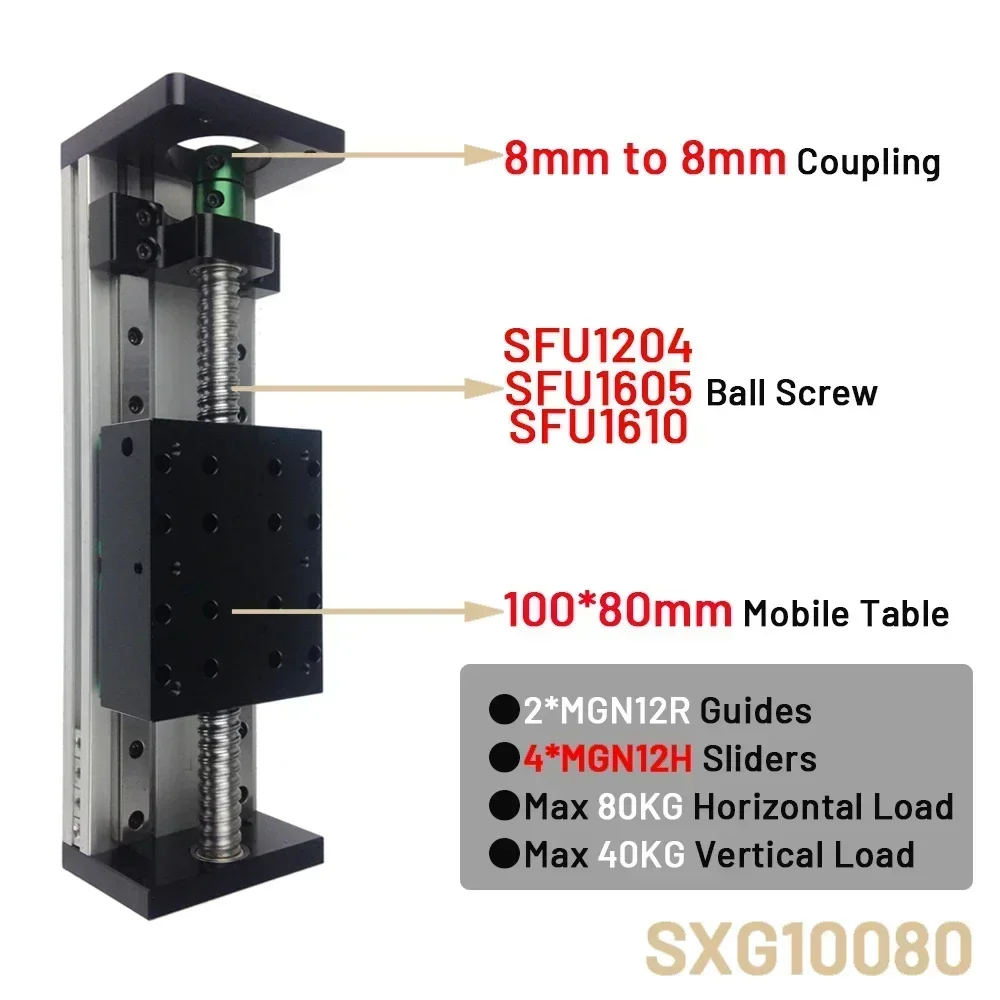

●Guide diameter: 12mm

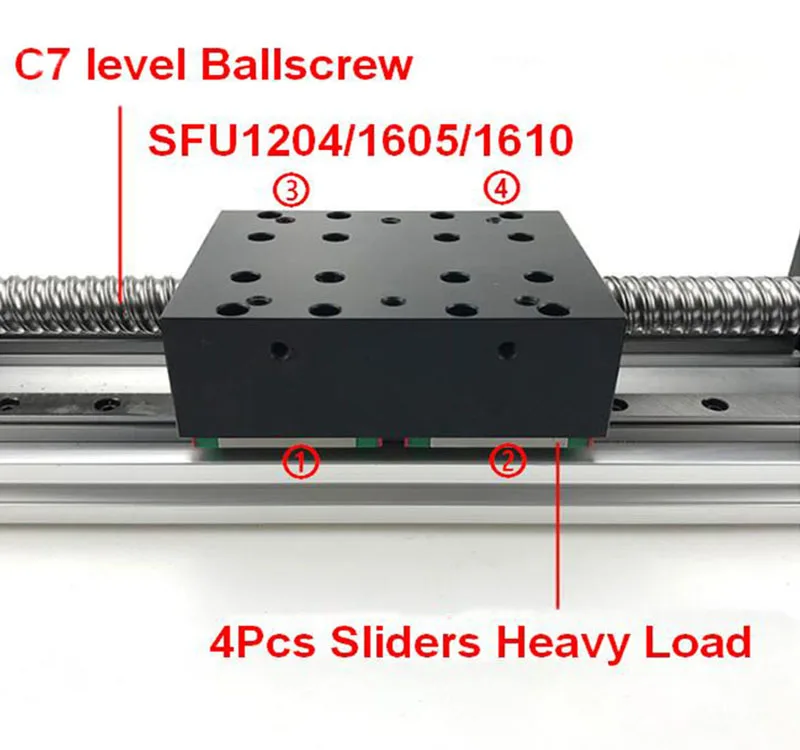

●Guide Type: 2*MGN12R
●Slider Type:
2*MGN12H (for 50*80mm table);
4*MGN12H (for 80*100mm table)
●Horizontal load:
Max 50KG (for 50*80mm table);
            Max 80KG (for 80*100mm table)
●Vertical load:
Max 20KG (for 50*80mm table);
            Max 40KG (for 80*100mm table)
●Maximum speed: 500mm/s
●Ballscrew Repeat positioning accuracy: 0.02-0.03mm
● Supported motor bracket (support customization):
            SXG5080  Compatible with Nema 17/ Nema 23 stepper motor;
            SXG10080 Default matching Nema 23 stepper motor
●Ballscrew and linear rail material: Carbon steel and bearing steel
●Base plate material: Aluminium alloy
