LM2596 Multi Channel Switching Power Supply 3.3V/5V/12V/ADJ Adjustable Voltage Output Power Supply Module DC-DC Step-Down Board

LM2596 Multi Channel Switching Power Supply 3.3V/5V/12V/ADJ Adjustable Voltage Output Power Supply Module DC-DC Step-Down Board

(0 customer reviews)

19.72$

In Stock

Description

Type: others
Rated Capacity: ＜40VA
High-concerned chemical: None
is_customized: No
Output Current: 3A
Model Number: LM2596
Brand Name: Gaqqee
Output Type: Other
Origin: Mainland China
Certification: CE
Module type: switching power supply
Input voltage: 5V-40V,multiple 3.3V, 5V, 12V, ADJ
Output current: 3A (MAX)
Conversion efficiency: 85%
Output power: 9.9W 3.3V / 15W 5V / 36W 12V / 36W ADJ
Static power consumption: 26mA
Switching frequency: 150KHz
Module Enable: None
Module protection: reverse polarity protection
Module feature 1: low noise
Module feature 2: low ripple
Module feature 3: with input and output power supply
Module feature 4: indicator light
Module feature 5: with positioning hole

LM2596 Multi Channel Switching Power Supply 3.3V/5V/12V/ADJ Adjustable Voltage Output Power Supply Module DC-DC Step-Down Board

Feature:
The LM2596 is a switching voltage regulator of a step-down power management monolithic integrated circuit, capable of outputting a drive current of 3A, with good linearity and load regulation characteristics.

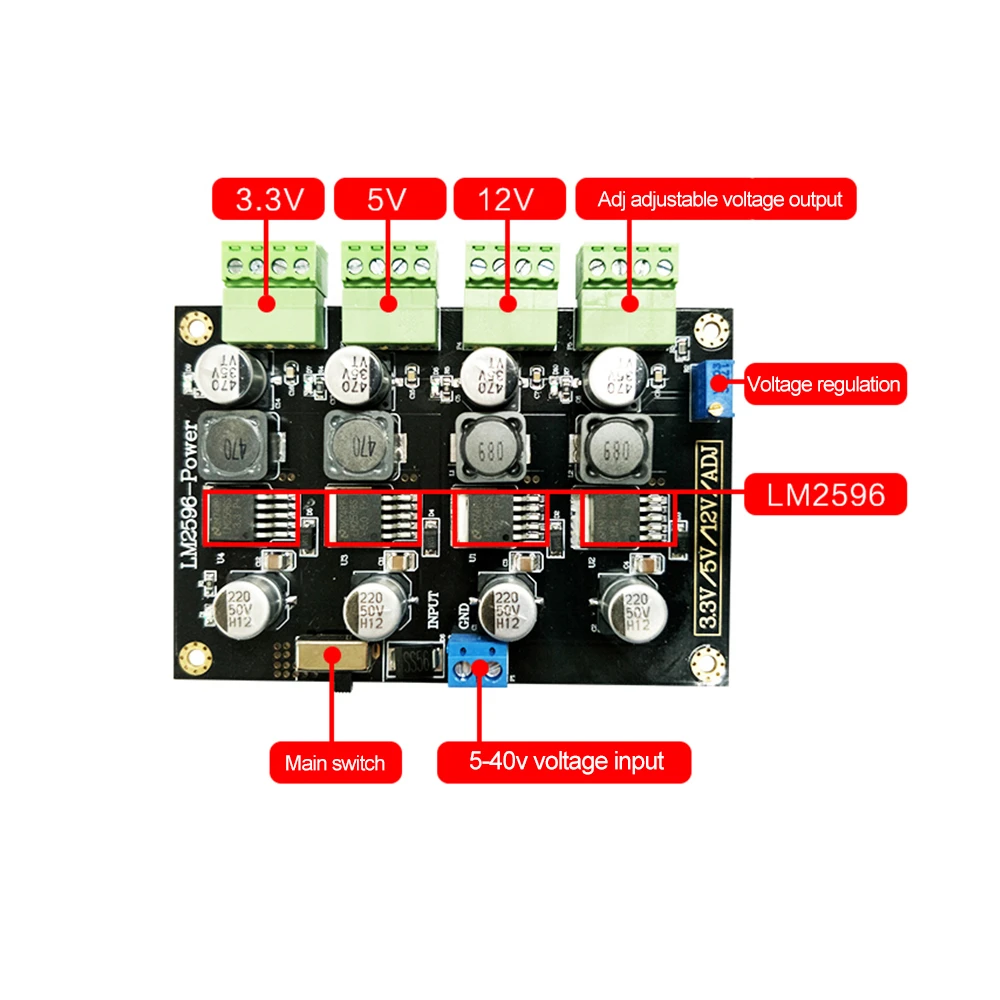

This module integrates 4 pieces of LM2596, which can output 3.3V, 5V, 12V, ADJ four sets of power at the same time
The module is laid out and wired in strict accordance with the design specifications of the power circuit
The material is generous, using SMD aluminum electrolytic capacitors, high-Q high-power inductors to ensure stable output voltage

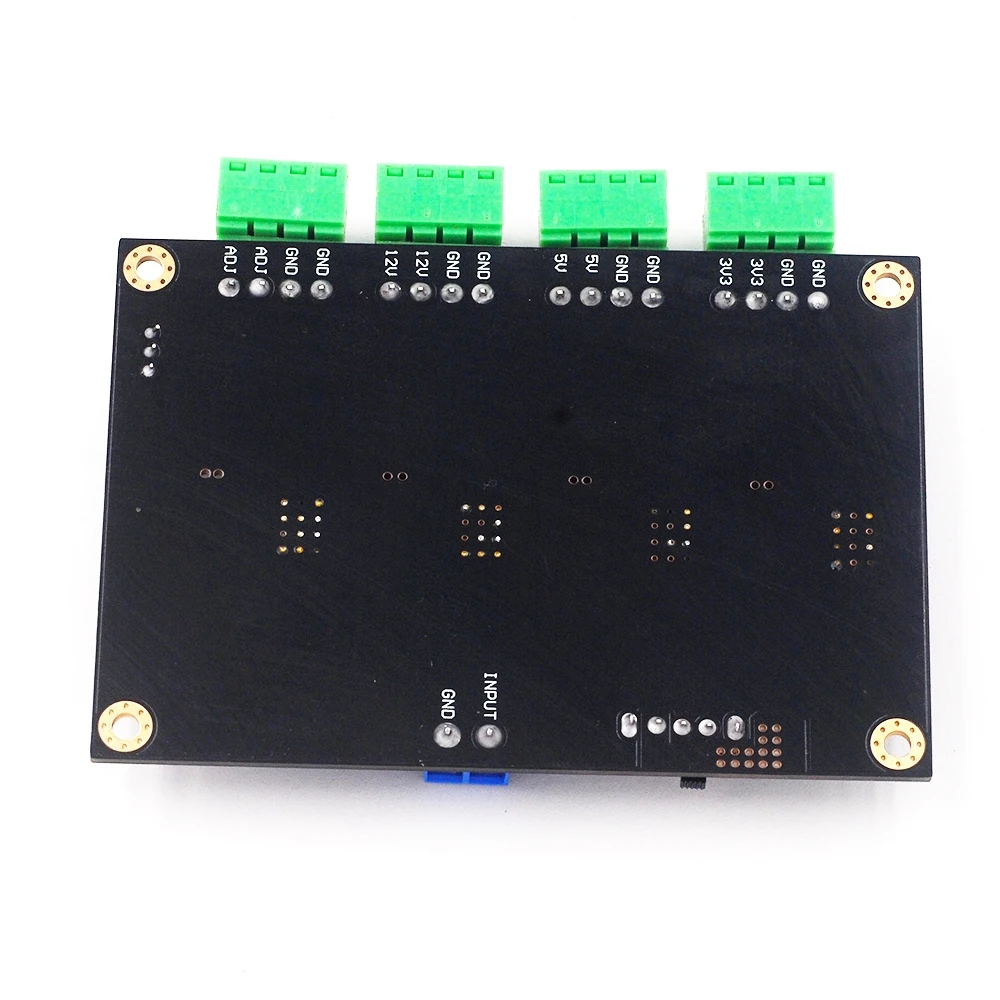

The window processing on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip
Suitable for student learning competitions and power needs in corporate or personal project development.

Specifications:
Module model: LM2596 multi-channel power supply
Module type: switching power supply
Input voltage: 5V-40V
Input voltage: multiple 3.3V, 5V, 12V, ADJ
Output current: 3A (MAX), the maximum single-channel current of the module is 3A, and the total current does not exceed 5A
Conversion efficiency: 85%
Output power: 9.9W 3.3V / 15W 5V / 36W 12V / 36W ADJ
Static power consumption: 26mA
Switching frequency: 150KHz
Module Enable: None
Module protection: reverse polarity protection
Module features: low noise, low ripple; with input and output power supply; indicator light; with positioning hole
Module application: industrial automation control, LED lighting, industrial control equipment, communication equipment, power equipment, instrumentation

Package Included:
LM2596 multi-channel power supply X1
