Description
- High-concerned chemical: None
- Model Number: SC411WSC-EU-V6C
- is_customized: Yes
- Brand Name: LoraTap
- Voltage: 110-240V
- Wattage: 600W
- Origin: Mainland China
- Certification: CE,RoHS
- App Name: Tuya, Smart Life
- App Type: Free App, Support Android and IOS
- Need a Hub: No
- Voice Control: Google Home, Amazon Alexa
- application: DIY
- Color: White
- Wireless Protocol: 2.4GHz Wi-Fi(not support 5GHz Wi-Fi),LoraTap Private RF 868Mhz
- Battery Type: Coin Battery CR2032
- Battery Included?: Yes
- works with: Classic 4 Wires AC motor
- Compatible with: Tubular Motor with 4 wires
- Panel Type: Glass Touch Panel
- 3 Buttons: Open, Stop, Close
- Switch Dimensions: 86mm*86mm*35mm
- Plastic Material: Fireproof ABS
- Factory Quality: ISO9001:2015 factory
- Certification: CE, RED, EMC, RoHS
Note before order:
– The RF curtain remote can just work with the roller shutter switch in this listing, because the curtain switch in this listing is RF + WiFi version.
– Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
– Please contact the seller online if you have any questions for compatibility.
Features
– Backlight Function: You can turn the backlight function on or off in the app.
– RF Remote Control: Built-in RF module, you can use the remote control curtain control.
– App Remote Control: Support Smart Life APP /Tuya APP.
– Voice Control: Compatible with Amazon Alexa, Google Home.
– Touch Panel Control: Tempered glass touch panel, safe and high quality, moisture-proof, safe operation even with wet hands.
– Running Time Setting: The running time can be set from 1-120 seconds, suitable for the use of large blinds.
– Timer and Schedule: You can set a timer to open or close the curtains at a specified time.
– Device Sharing: You can create group in the APP to manage all the blinds in your house and share the devices to all your family members.
Specification
Input voltage: 100-250 VAC, 50 / 60Hz
Max Load: 600 W
Wiring: Neutral Wire, L1, L2, Earth Wire
Wireless Protocol: Wi-Fi 2.4GHz(Not support 5Ghz)
RF Remote Frequency: 868Mhz(Legal Frequency Band in Europe)
App Name: Smart Life or Tuya
Voice Control: Google Home, Amazon Echo Alexa
Colour: White
Plastic Material: Fireproof ABS
Standby Consumption: below 0.5W
Switch Dimensions: 86mm * 86mm * 35mm
Certification: CE, RED, RoHS
Produced by ISO9001:2015 factory: Yes
Patented Product: Yes
New Backlight Function
You can turn the backlight on or off manually, or set the time to turn it on and off through the APP to avoid disturbing sleep.
Voice Control
– Compatible with Amazon Alexa, Google Home.
– Open and close curtains by voice control.
RF Remote Control
– Use a Remote to control the curtain blinds, ( Open, Pause, Close) Control Range up to 30m.
– Built in RF module, enable you can remote control your blinds shutter even if WiFi is not available.
App Remote Control
– Support Smart Life APP /Tuya APP.
– You can use Tuya or Smart Life APP to remotely control the opening and closing of curtains.

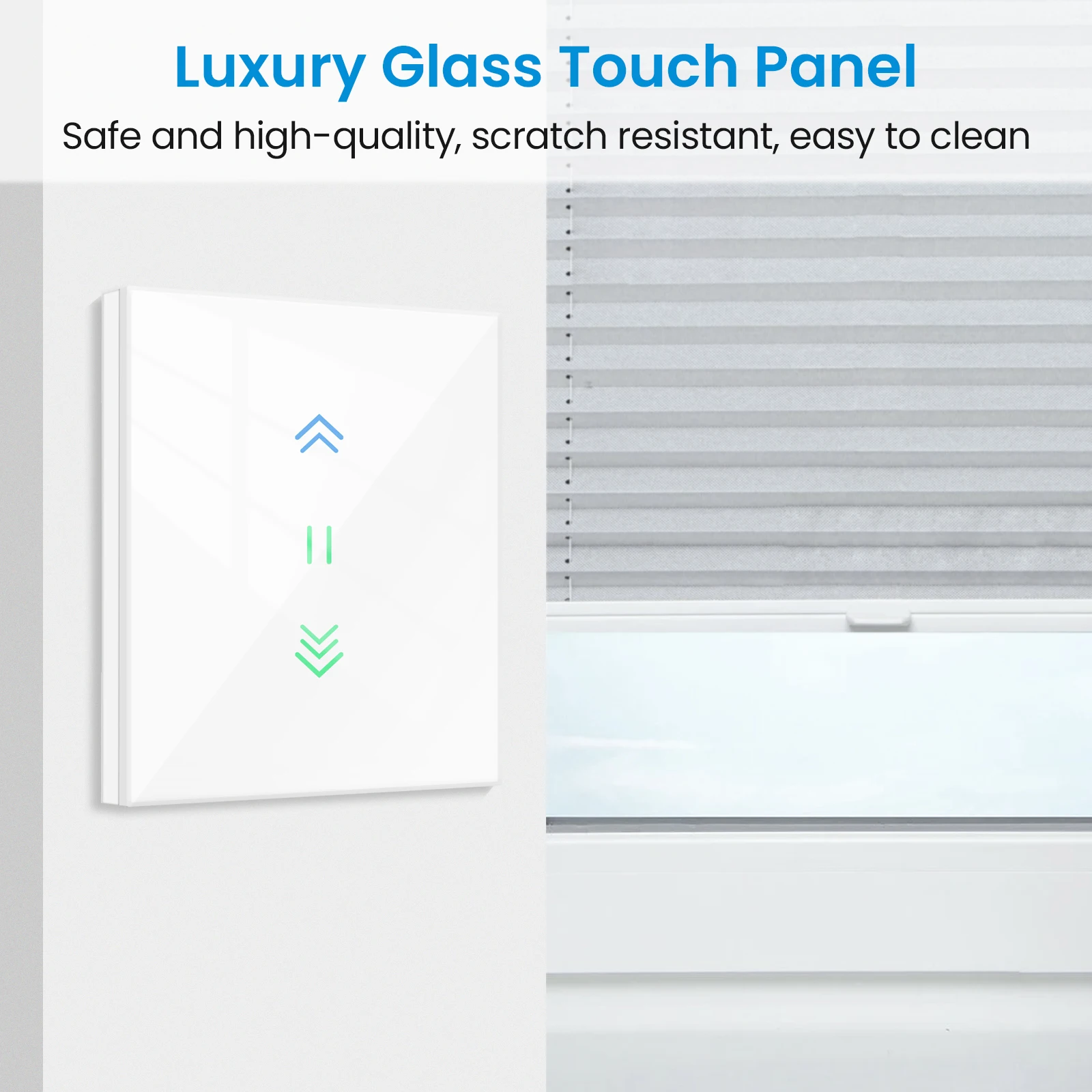

Luxury Glass Touch Panel
Tempered glass touch panel, safe and high quality, moisture-proof, safe operation even with wet hands.
Size and Wiring
Running Time Setting
The running time can be set from 1-120 seconds, suitable for the use of large blinds.
Timer Function
– You can set a timer to open or close the curtains at a specified time.
What's in the Box?
1 * EU Standard RF+WiFi Curtain Switch(the quantity depend on your option)
1 * 3-Button Remote
1 * Remote Wall Bracket
1 * Lanyard
1 * Blue Cable for Wiring
1 * User Guide
1 * Terminal
2 * Screw Kits
1 * Double-Sided Adhesive Tape
