Description
- High-concerned chemical: None
- Battery Included: No
- is_customized: Yes
- Brand Name: LoraTap
- Voltage: 110-240V
- Wattage: 600W
- Origin: Mainland China
- Certification: CE,RoHS
LoraTap 5th Generation WiFi Smart Curtain Blinds Switch

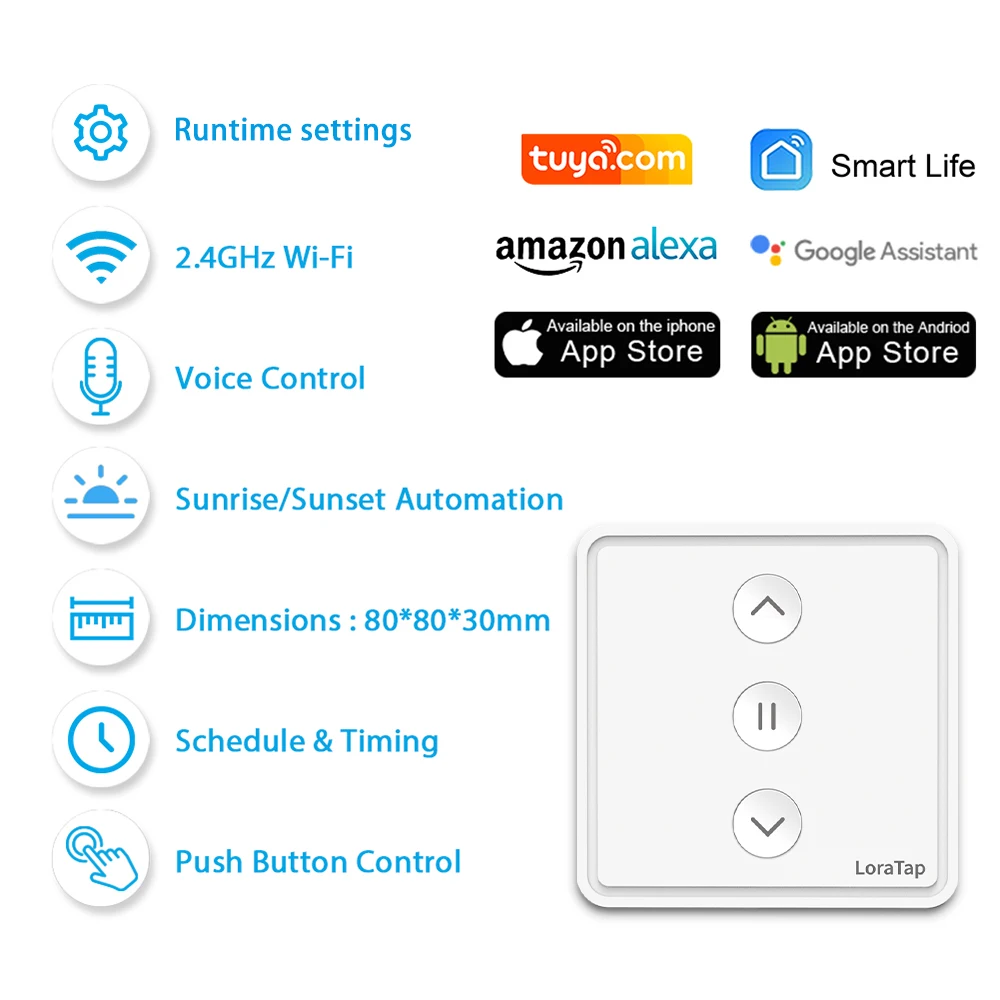

Features
– Voice Control: Compatible with Alexa and Google Home.
– App Remote Control: Support Smart Life APP /Tuya APP.

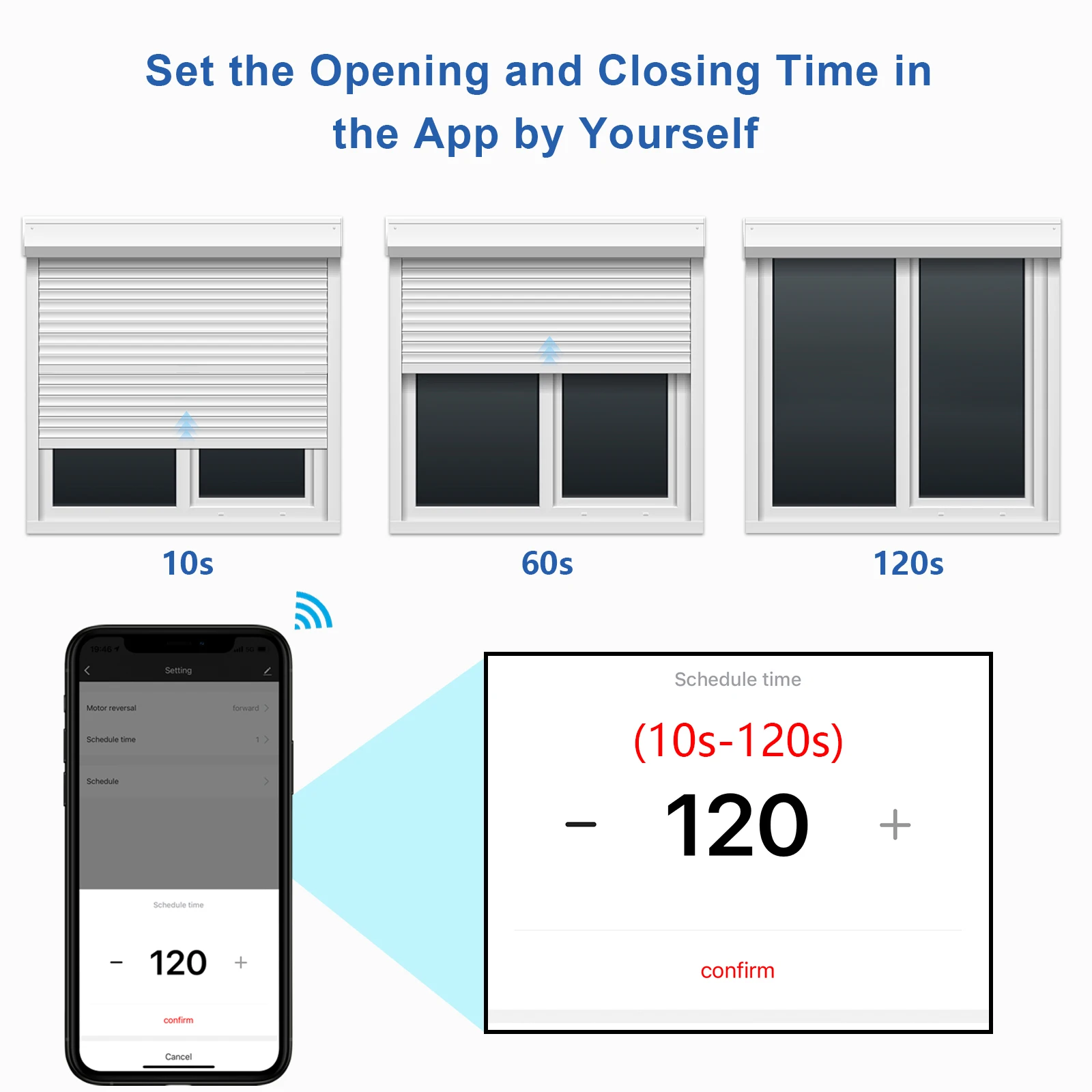

– Running Time Setting: Running Time Setting 10-120s.
– Push Button Control;

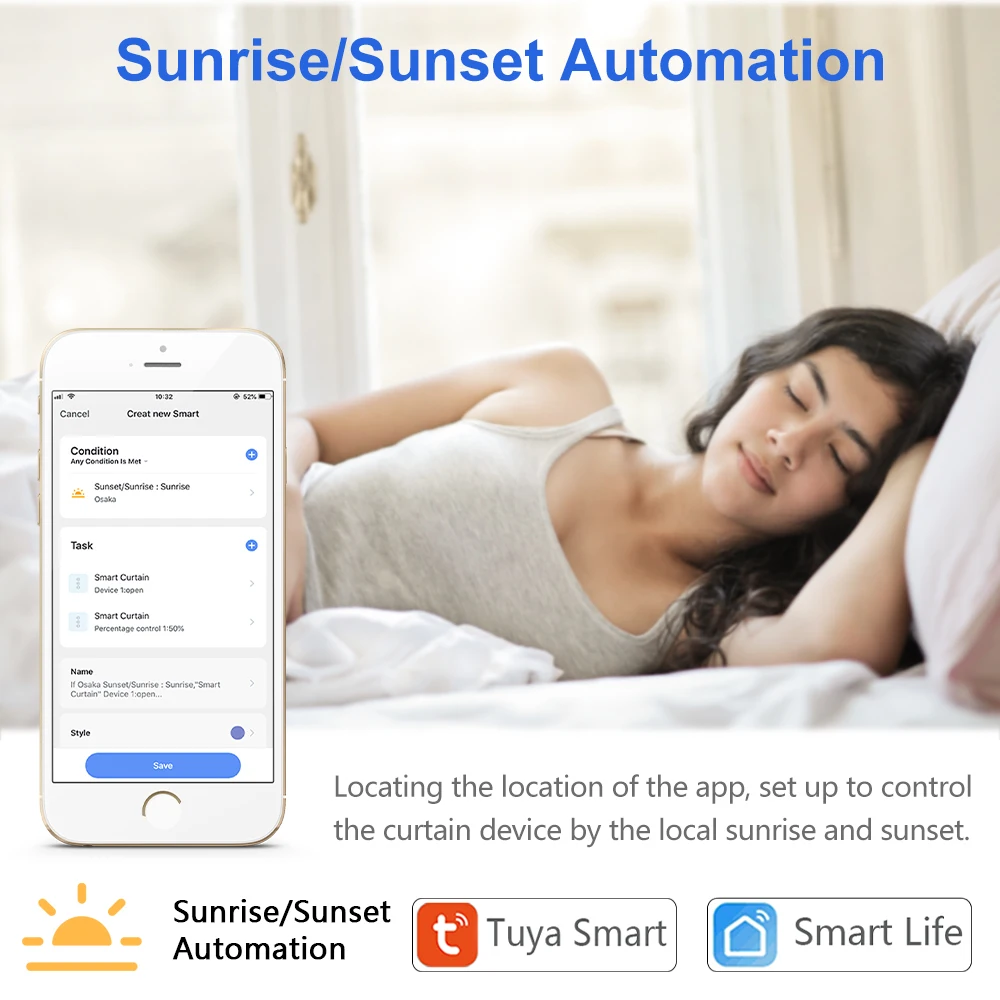

– Sunrise/Sunset Automation: You can set the sunrise/sunset automation in the smart life app.
– Timer and Schedule: You can set a timer to open or close the curtains at a specified time.
– Device Sharing: You can create group in the APP to manage all the blinds in your house and share the device to all your family members.
Product Parameters
Input Voltage:100-250VAC, 50/60Hz
Wiring:Neutral Wire, L1, L2, Earth Wire
Max Load: 600 W
Standby Consumption: below 0.5W
Dimensions: 80mm*80mm*30mm
Button Type: push button
Colour: White

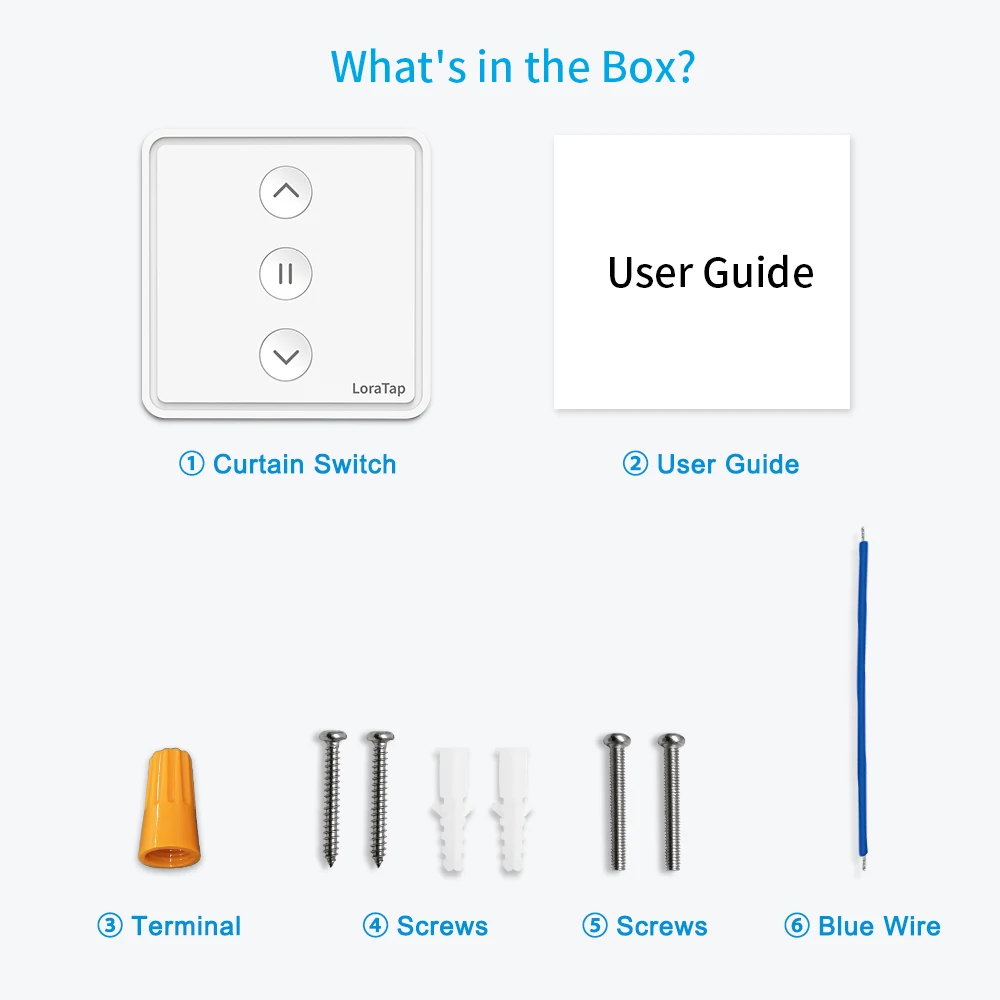

Package Contents
1 * Curtain Switch
1 * User Guide
1 * Terminal
2 * Screws Kit
1 * Blue Wire

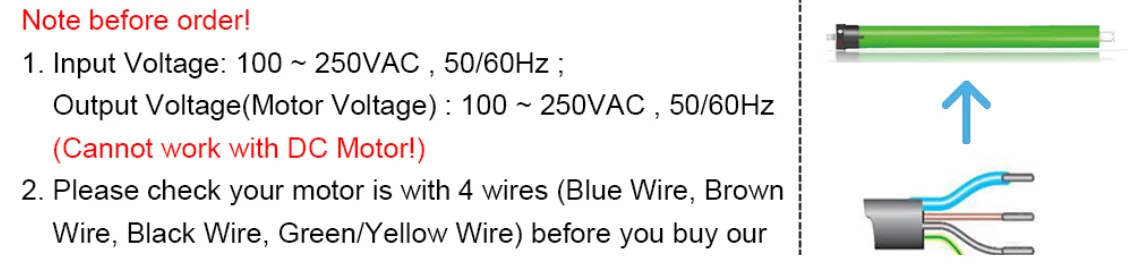

Note before order!

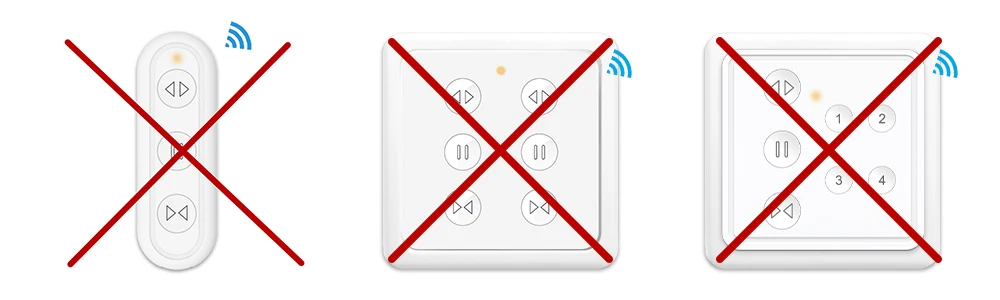

– This is a Wi-Fi only Curtain Switch, it can’t work with our RF curtain remote. Please don’t buy the extra RF remote to add the remote control, they are not compatible.
– Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.

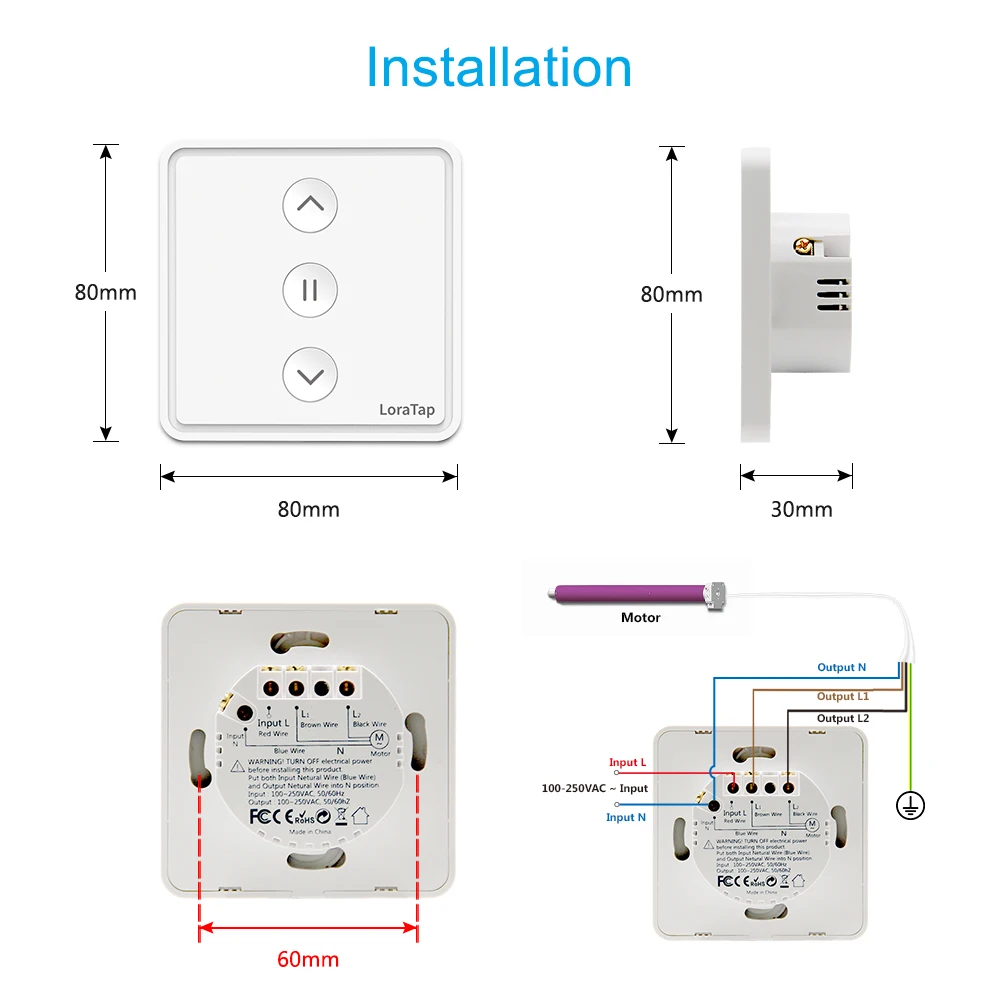

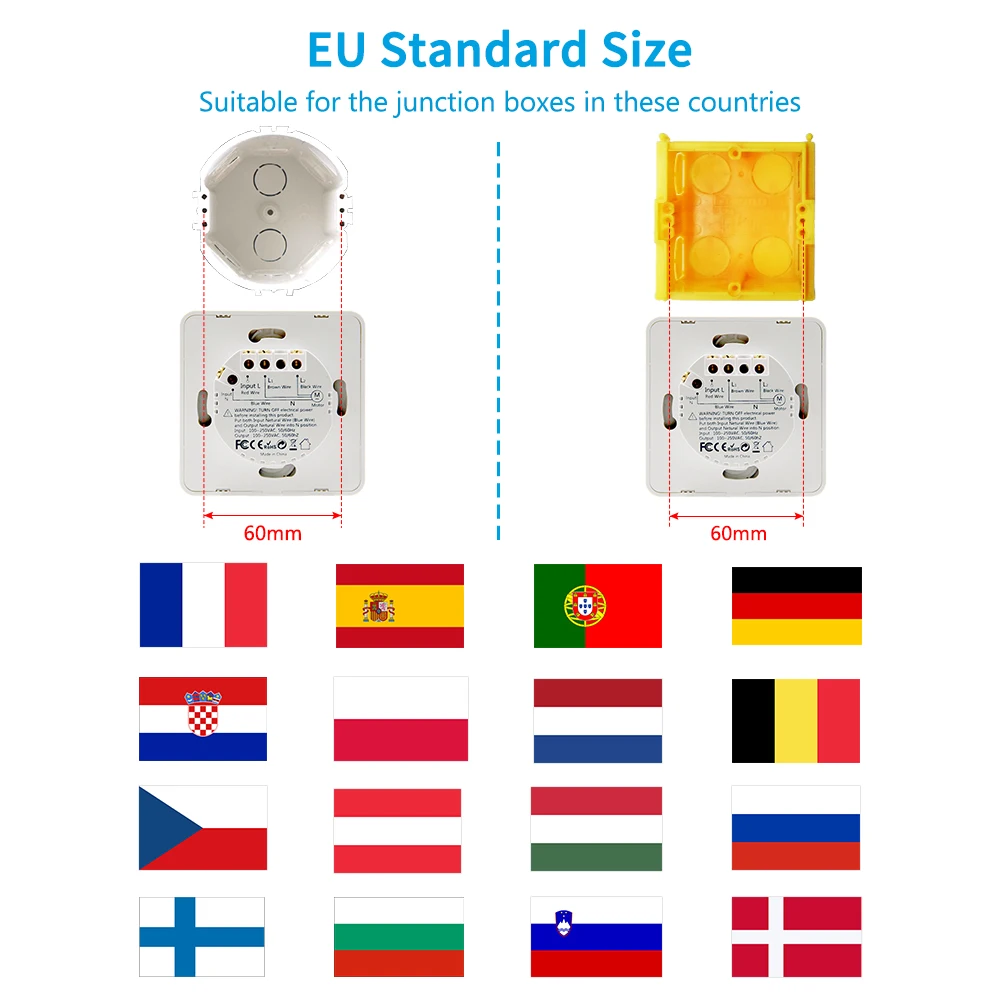

Installation
– 80mm*80mm EU standard size Switch
– Suitable for the junction box in most of the countries.
We have all the accessories you need in the box, you don't need to pay extra cost.
FAQ
1、What are the dimensions of the part that goes into the wall?
The size of the bottom of the product is 49mm, and the height is 25mm.
2、It is necessary to install a module with this switch electric roller shutter
No, after installation, our products can control the curtain motor through the mobile app, or the device can be controlled by pressing buttons, and there is no need to install additional modules.
3、Partial opening, is it functional with Alexa?
Alexa currently can only voice control the device on/off, off, pause, and cannot control the device in percentage.
4、Do you have this model in ZigBee? I only see the double blind
Yes, we have a Zigbee version of the product, and you can see a link to the Zigbee version of the curtain switch at the top of this product details.
5、Are tactile pushers? Or mechanical
This product is a push button type switch, not a mechanical switch.
E***r (verified owner) –
Perfect. Works phenomenally, with assembly and configuration instructions. The app allows you to configure the working time of the blinds.
G***t (verified owner) –
Super product, works flawlessly
T***t (verified owner) –
Works perfectly well and replaces a recessed module. I just can’t find the partial opening function as easily as on the recessed module.
d***o (verified owner) –
It works correctly
AliExpress Shopper (verified owner) –
Works perfectly, easy to install and pair with the app.
AliExpress Shopper (verified owner) –
Fast delivery. The switch works perfectly. Easy connection with the SmartLife app.
AliExpress Shopper (verified owner) –
ideal for programming the opening and closing of your shutters. Manual use is easy. The installation is quick.
Attention, only works on 2.4GHz Wi-Fi.
I use the SmartLife app, which is very easy to use.
E***r (verified owner) –
The item is as described on its page, and it works well. It connects to Wi-Fi with the Smart Life app and functions correctly.
