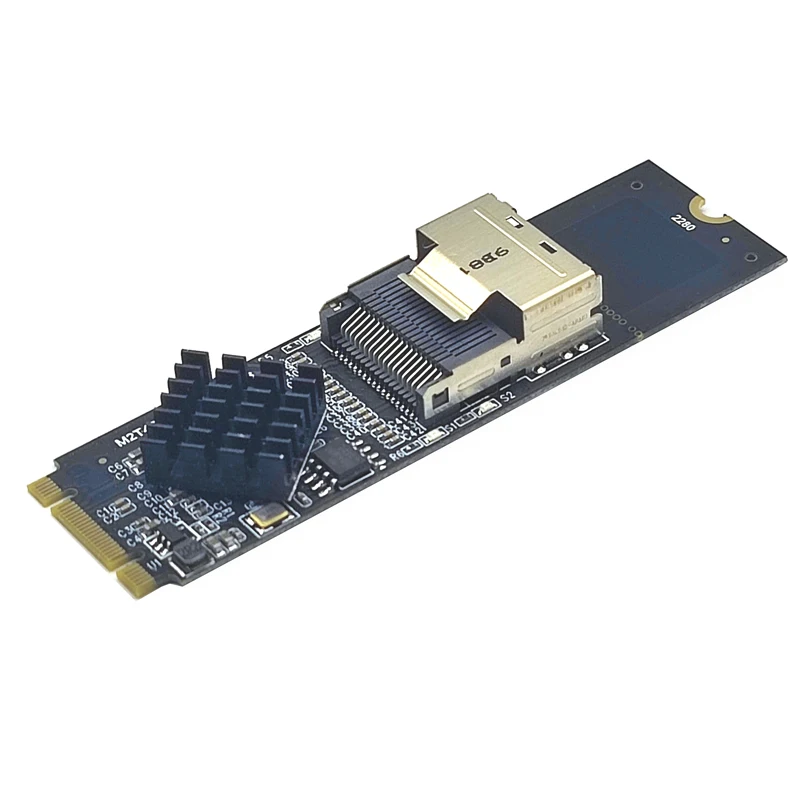

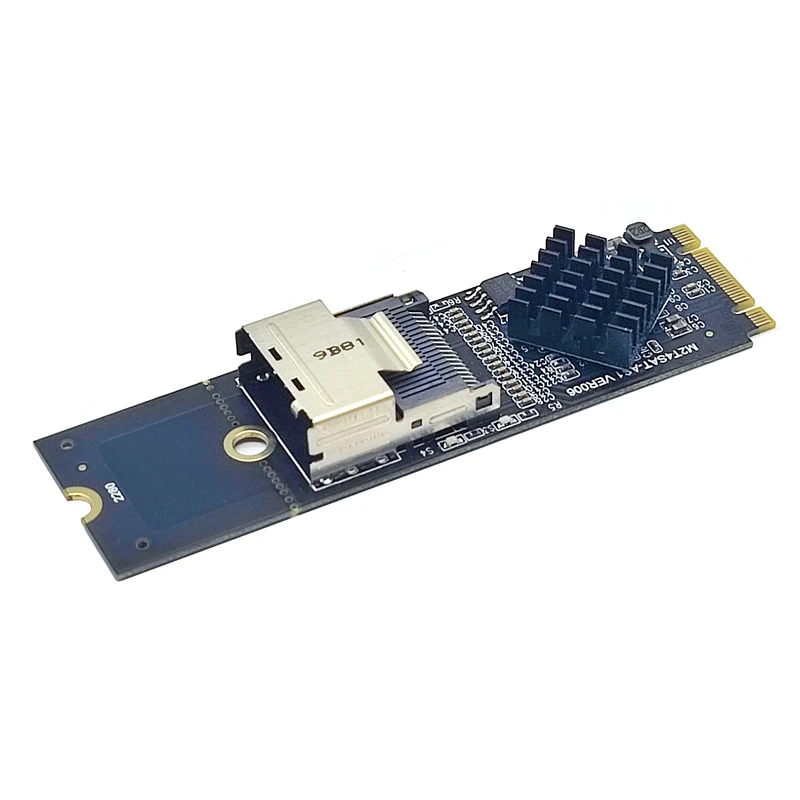

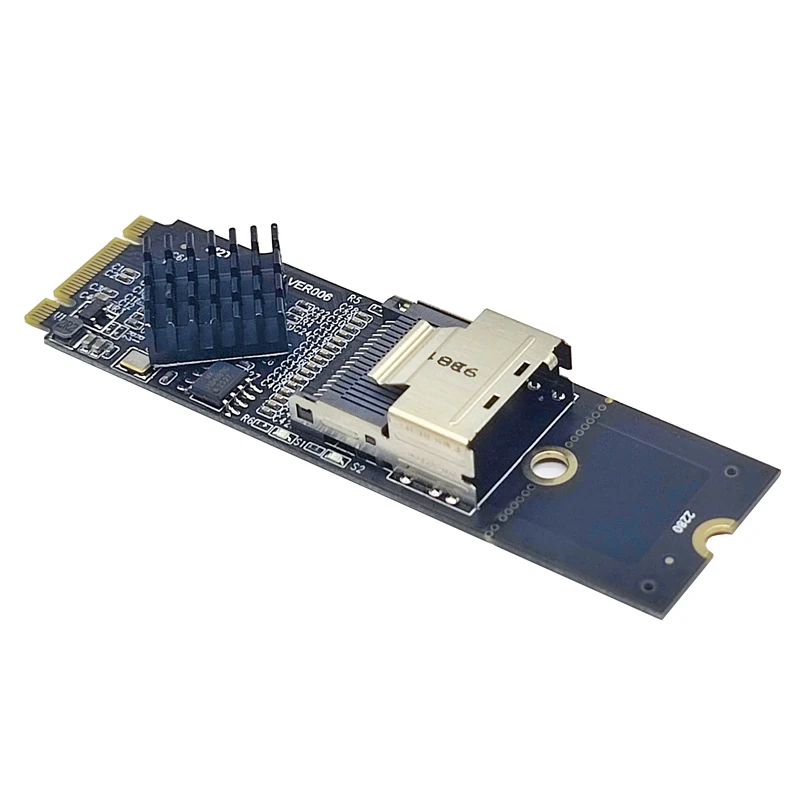

M.2 NVME to Mini SAS SFF-8087 Expansion Card Support 4 Port SATA3.0 6Gbps HDD SSD SATA Controller SFF8087 to M2 NVME Adapter
Description
- High-concerned chemical: None
- Model Number: MINI SAS SFF8087 to M2 NVME Adapter with SATA NOTE:NOT Support SACable
- Package: Yes
- Interface Type: PCI Express
- Brand Name: IRhasta
- Origin: Mainland China
- Certification: CE
- Type: Add On Cards
- Main Chips: ASMedia ASM1064
- SATA Port Quality: 4-Port SATA3.0
- M2 Type: M key
- Feature: with heatsink cooling
- Fearture1: nvme to sff8087
- Fearture2: m.2 to sff8087
- Fearture3: nvme to sas sff-8087
- Fearture4: m2 to sff8087
- Fearture5: m2 to mini sas sff8087
- Note!: NOT Support SAS Hard Disk Drives
NOTE:
NOT Support SAS Hard Disk Drives!
Description:
Support M.2 NVME PCI-E Protocol
Compliance with Serial ATA Specification 3.0

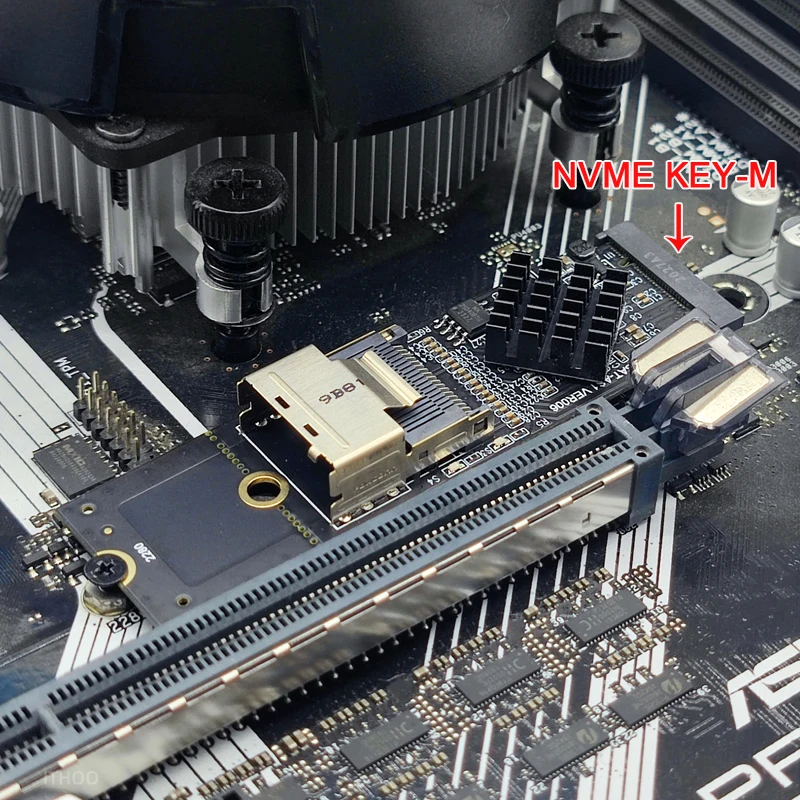

Bus Type of M.2 NVMEÂ M-Key interface
The supported communication rates are 6.0 Gbps
NVMEÂ to Mini SAS SFF-8087 Interface
Mini SAS SFF-8087Â can convert 4 port SATA3.0
M.2 NVMEÂ to 4 Port SATA3.0 Expansion Card
Specifications:
Item name: M.2 NVME to SAS Card
Interface:Â NVMEÂ M-KeyÂ
PCB board color: Black
Interface rate: 6Gbps
Feature: with Heatsink
Main control chip: ASMedia ASM1064
System support: WIN10/11, LINUX OS.
Notes:Â NOT Support SAS Hard Disk Drives
Package include:
1 x NVME to MiniSAS SFF8087 Card
1 x 70cm MiniSAS to 4x SATA3.0 Cable(optional)
Additional information
| Color | Card with 70cm Cable, NVME to SFF8087 Card |
|---|---|
| High-concerned chemical | None |
| Model Number | MINI SAS SFF8087 to M2 NVME Adapter with SATA NOTE:NOT Support SACable |
| Package | Yes |
| Interface Type | PCI Express |
| Brand Name | IRhasta |
| Origin | Mainland China |
| Certification | CE |
| Type | Add On Cards |
| Main Chips | ASMedia ASM1064 |
| SATA Port Quality | 4-Port SATA3.0 |
| M2 Type | M key |
| Feature | with heatsink cooling |
| Fearture1 | nvme to sff8087 |
| Fearture2 | m.2 to sff8087 |
| Fearture3 | nvme to sas sff-8087 |
| Fearture4 | m2 to sff8087 |
| Fearture5 | m2 to mini sas sff8087 |
| Note! | NOT Support SAS Hard Disk Drives |
8 reviews for M.2 NVME to Mini SAS SFF-8087 Expansion Card Support 4 Port SATA3.0 6Gbps HDD SSD SATA Controller SFF8087 to M2 NVME Adapter
Vendor Information
Related Products
U***r (verified owner) –
This works very well. Doesn’t seem to get hot.
Z***s (verified owner) –
Very fast delivery, poor shipping protection but item arrved undamaged. Item works as expected. Cable could be a bit longer.
n***r (verified owner) –
Quick delivery and working perfect with my hardware
AliExpress Shopper (verified owner) –
as described Top
I***n (verified owner) –
Perfect deal !
A***n (verified owner) –
Delivered fast. It is a nice interface bridge to connect the sata3 interfaces. It can be placed to mini pc to make the nas server from it. I just connected, the drivers installed instantly under win11. I did not try to connect the sata drives yet, but it seems the bridge works. Thank you seller.
A***r (verified owner) –
@andrebolzanvideo on YouTube of the installation
g***r (verified owner) –
Aspm works with my hp g6 mini !
