M5Stack StickC PLUS2 ESP32 IoT Development Kit IR BT and WiFi 1.14-inch Screen IoT Automation Controller Modules

M5Stack StickC PLUS2 ESP32 IoT Development Kit IR BT and WiFi 1.14-inch Screen IoT Automation Controller Modules

(8 customer reviews)

~~119.92$~~ 104.20$

In Stock

Bundle

Clear

Description

High-concerned chemical: None
Communication method: Bluetooth-Compatible,Wi-fi,IR
Camera Equipped: No
State of Assembly: Ready-to-Go
Model Number: M5StickC PLUS2
Compatibility: others
Brand Name: M5Stack
Origin: Mainland China
Certification: CE

M5StickC PLUS2 ESP32 IoT Development Kit

Product Features

ESP32-PICO-V3-02-Base, support WiFi
Built-in 6-Axis IMU
IR transmitter
Microphone
RTC
Buttons, LCD(1.14 inch)
Built-in Lithium Polymer Battery@200mAh
Extendable Socket
Built-in Passive Buzzer
Wearable & Wall mounted
Compatible with multi-platform development:
UIFlow, MicroPython, Arduino, .NET nanoFramework

Applications

Internet of things terminal controller
Wearable devices
Stem education product
DIY creation

Package Includes

1x M5StickC Plus2

Specification

Resources Parameters

ESP32: ESP32-PICO-V3-02, 240MHz dual core,support wifi,2 MB SPI PSRAM,8 MB SPI flash

PSRAM: 2 MB PSRAM

Flash: 8 MB flash

Power Input: 5V @ 500mA

Port: TypeC x 1, GROVE(I2C+I/0+UART) x 1

LCD screen: 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2

Button: Custom button x 3

Power indicator LED: RED LED(non-programmable)

MEMS: MPU6886

Buzzer: built-in buzzer

MIC: SPM1423

RTC: BM8563

Battery: 200mAh @ 3.7V

Antenna: 2.4G 3D Antenna

PIN port: G0, G25/G36, G26, G32, G33

Operating Temperature: 0°C to 40°C

Case Material: Plastic ( PC )

Product Size: 48*25*13mm

Package Size: 114*64*23mm

Product Weight: 17g

Package Weight: 24.8g

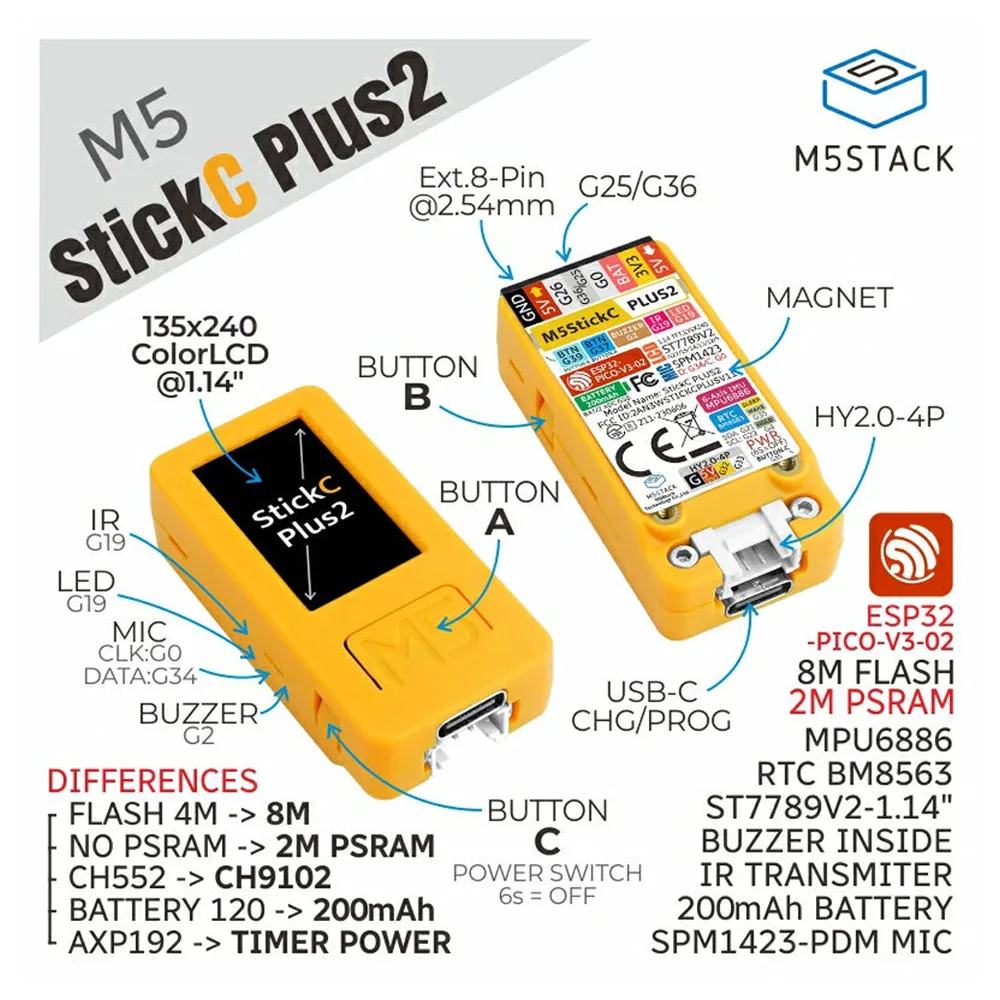

Product Comparison


Product Name	Soc	Power management	Battery Capacity	Memory	UART Chip	Body Color
M5STICKC PLUS	ESP32-PICO-D4	AXP192	120mAh	520KB SRAM and 4MB Flash	SRAM and 4MB Flash	orange red
M5STICKC PLUS2	ESP32-PICO-V3-02		200mAh	2MB PSRAM and 8 MB flash CH9102	CH9102	orange

Product details

Schematics

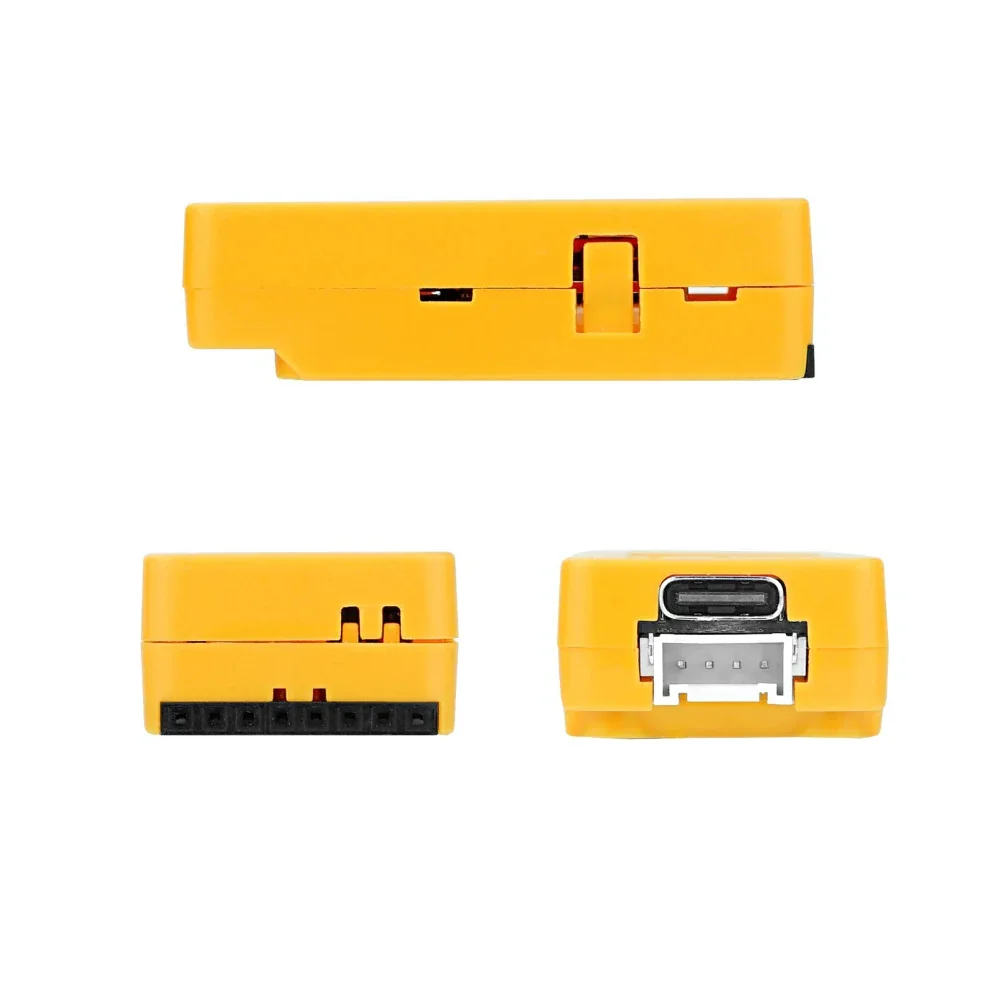

Module Size

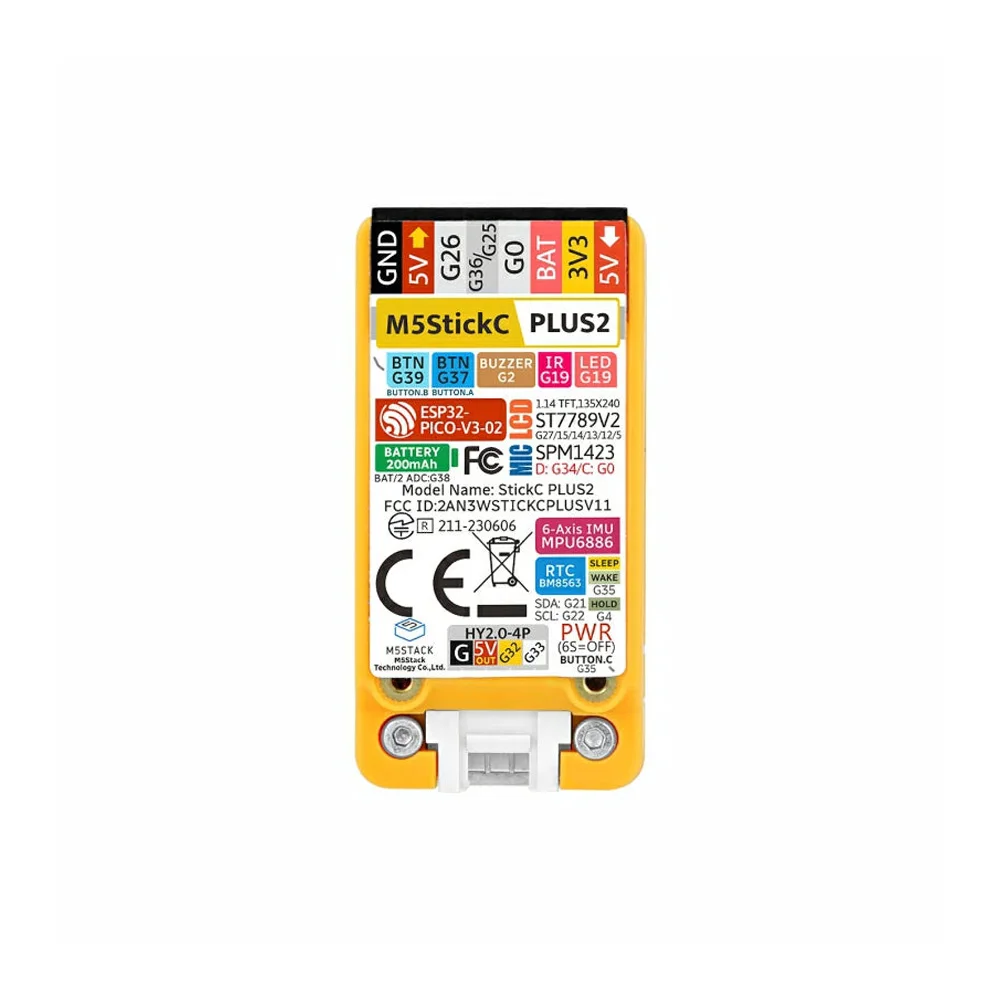

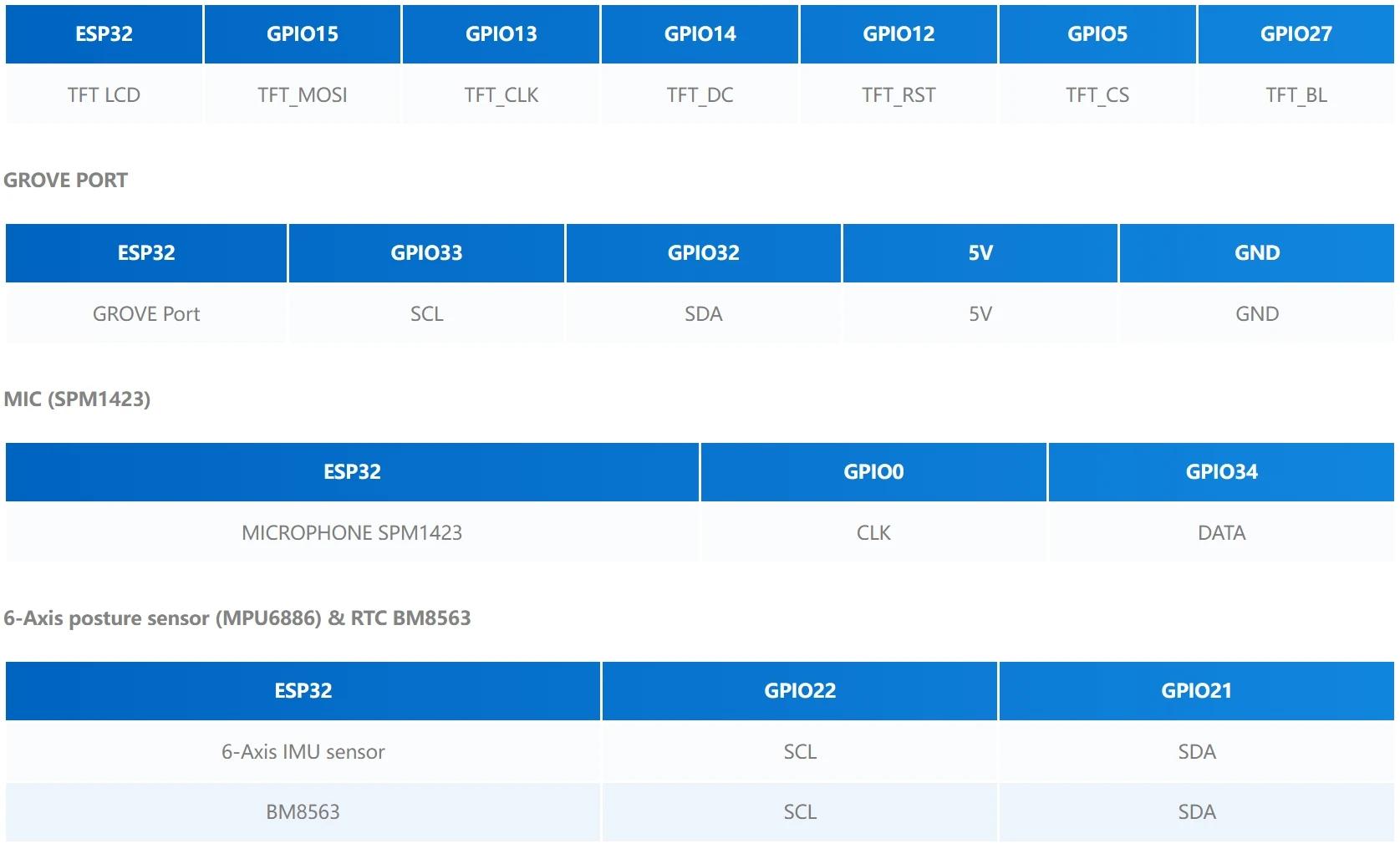

PinMap

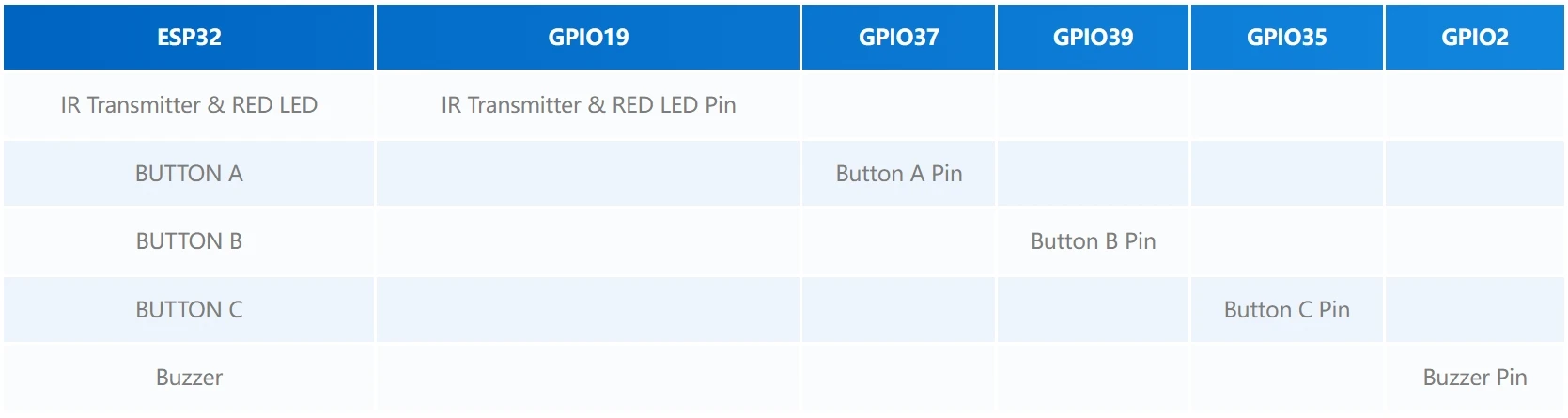

RED LED & IR Transmitter & BUTTON A & BUTTON B & Buzzer

TFT LCD

Driver IC:ST7789V2

Resolution:135 * 240

Product Description

M5StickC PLUS2 is an iterative version of M5StickC PLUS, featuring the ESP32-PICO-V3-02 chip as the main controller with built-in WiFi functionality. The compact device integrates a wealth of hardware resources within its small form factor, including infrared, RTC, microphone, LED, IMU, buttons, buzzer, and more. It boasts a 1.14-inch TFT screen with a resolution of 135*240, driven by the ST7789V2. The battery capacity has been increased to 200mAh, and the interface also supports HAT and Unit series products. This compact and versatile development tool is designed to spark limitless creative possibilities.

M5StickC PLUS2 facilitates the rapid prototyping of IoT products, streamlining the entire development process. Even beginners in programming can easily build interesting applications and apply them to real-life scenarios using M5StickC PLUS2.

FAQ

Q1: Why is my M5StickC Plus2 black screen/won't boot?

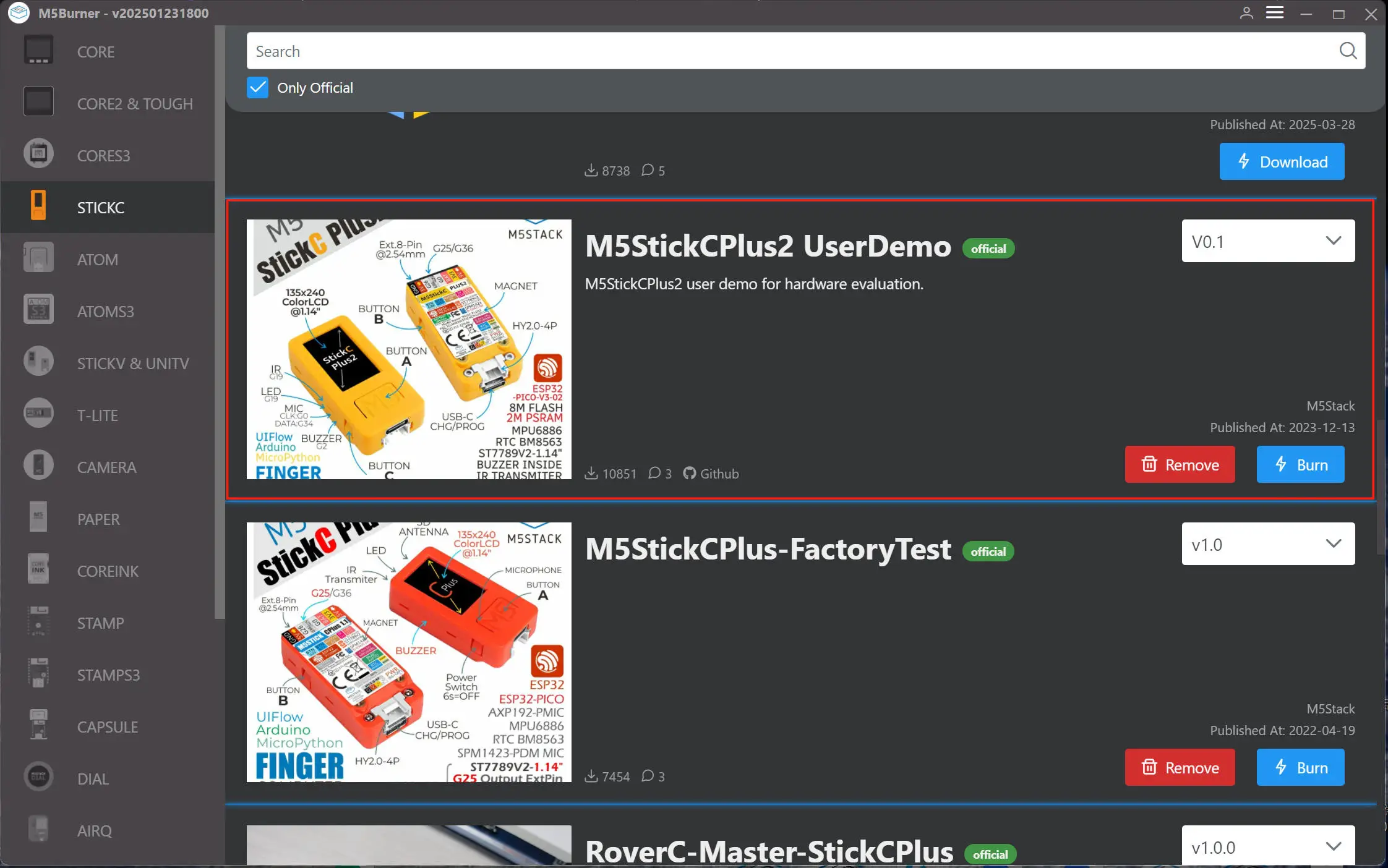

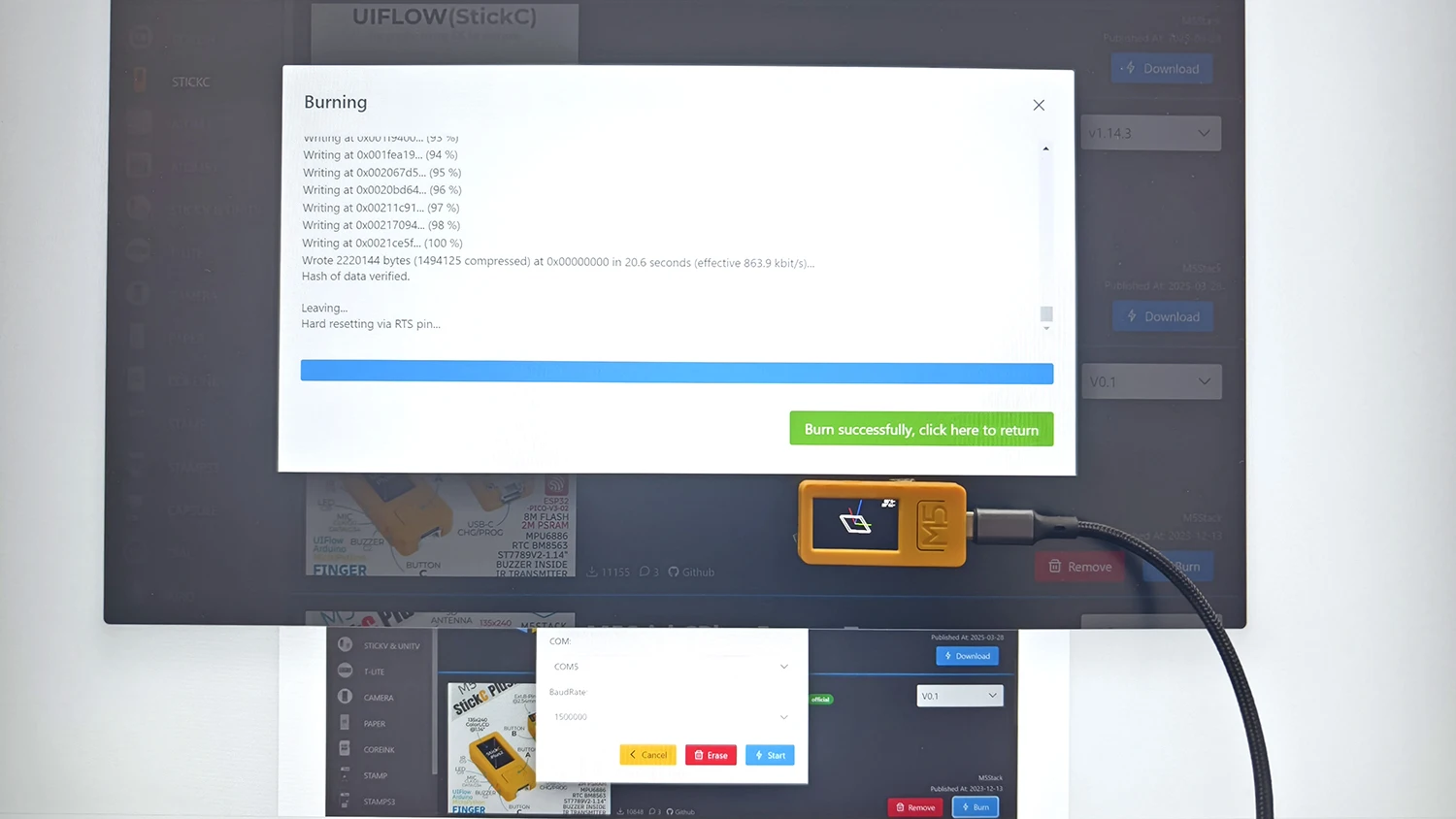

Solutions: M5Burner Burn official Factory Firmware "M5StickCPlus2 UserDemo"

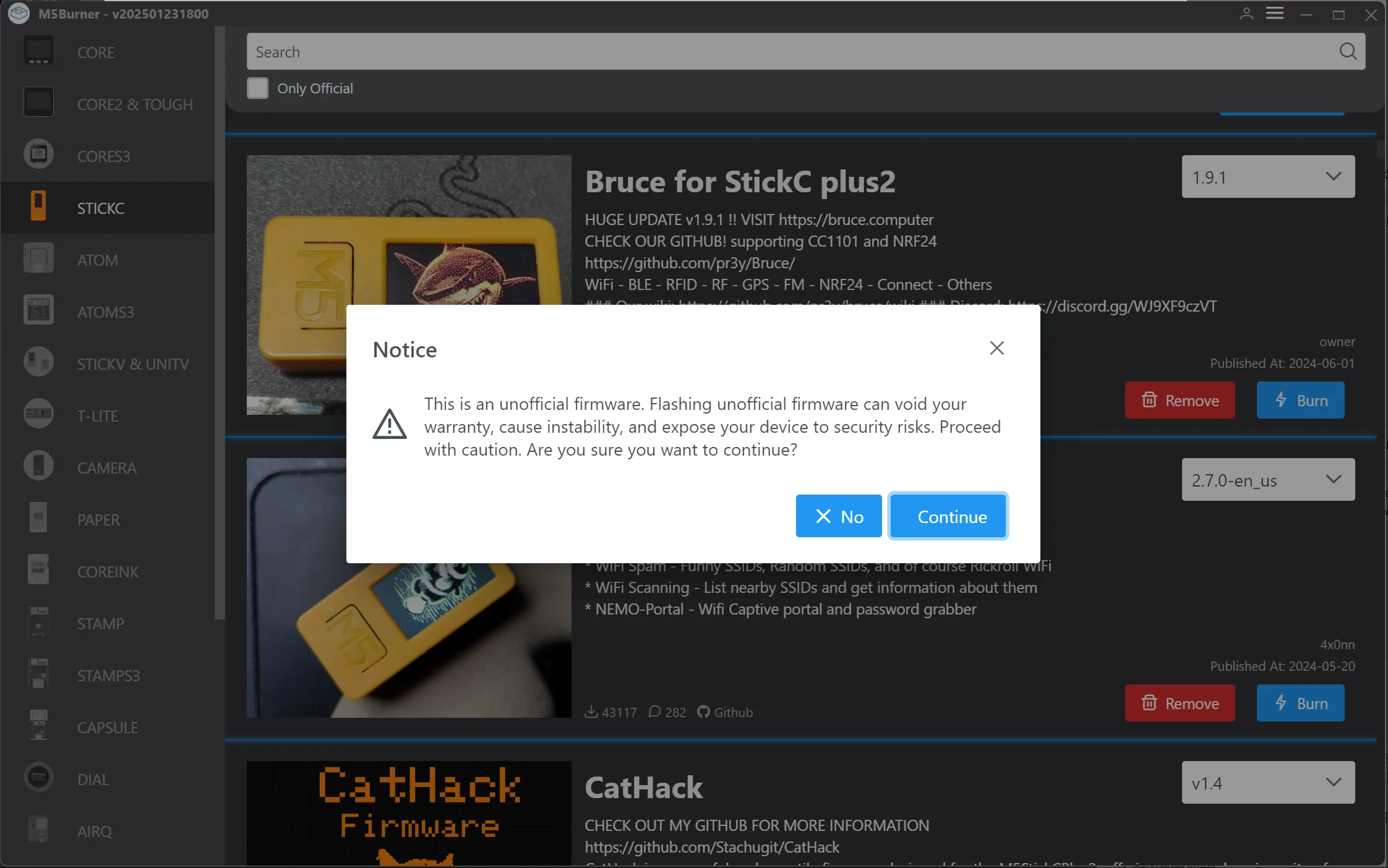

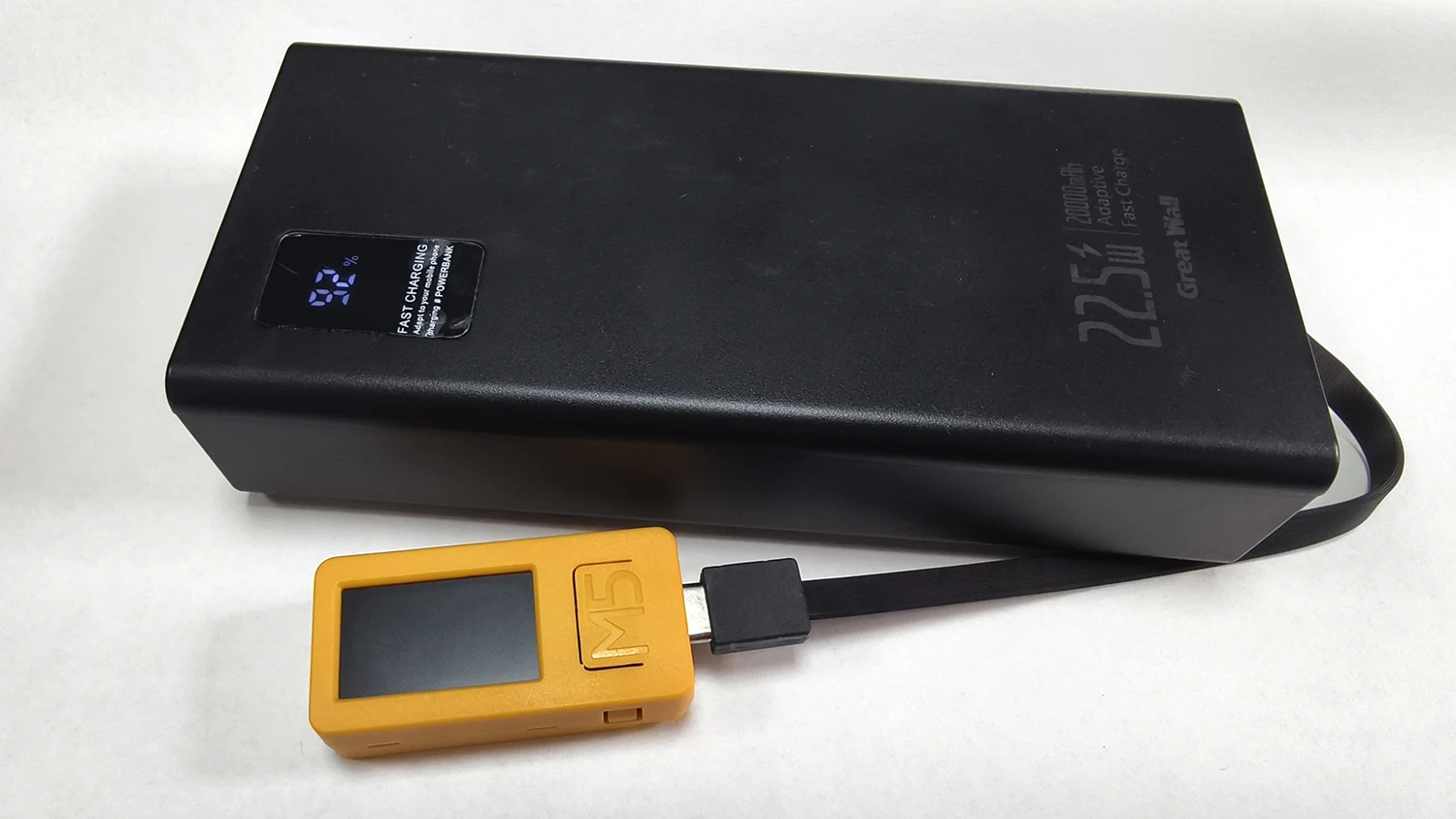

Q2: Why it working time only 3 hours? Why does it 100% charge in 1 minute, remove the charging cable it will turn off?

Solutions: "Bruce for StickC plus2" This is an unofficial firmware. Flashing unofficial firmware can void your warranty, cause instability, and expose your device to security risks. Proceed with caution.

Please burn back official firmware.
