About this item

• High-quality and High-Strength: The pliers head is made of premium steel and processed by heat treatment, making it sturdy and durable with stronger spreading force.
• High Stability: The widened base and triangular support of the manual hydraulic pump ensure a stable placement without shaking or sliding, improving the safety of use.
• High Efficiency: With the maximum 30mm spreading stroke and 8T hydraulic pressure, this product can meet different working requirements and allow for fast and efficient separation work, saving time and effort.
• Split Design: The flange spreader and manual hydraulic pump can be freely dismantled according to your needs. The manual hydraulic pump can also be used for other equipment, which is very economical and convenient.
• Good Sealing Performance: The thick cylinder has good air tightness, does not leak oil, and can provide enough pressure, so you can use it with confidence.

Details

Non-slip Handle: The ergonomic insulated handle provides a comfortable grip without slipping, enhances stability and safety in use, and ensures labor-saving operation, and electricity prevention.

Dust-proof Cover: It can prevent dust from entering when not in use, ensuring the cleanliness of the joint and extending the product’s service life.

Application

It can be widely used for pipeline maintenance/repair/inspection, flange/valve replacement, cylinder head opening, power plant, jacking work, maintenance gasket, pressure vessel, bearing disassembly, oil and electric drilling, motor rotor disassembly, offshore platform, shipbuilding, fire breaking, industrial equipment, power maintenance, construction work, fire safety, horizontal movement of workpieces and other industry fields.

Specification

Material: Cr45 Steel, Plastic

Process: Heat Treament

Assembly Required: Yes

Working Type: Hydraulic Pressure

Flange Spreader Model: FYQ-30

Hydraulic Pump Model: CP-180

Oil Storage Capacity: About 1L/33.8oz

Threaded Connector Specification: ZG3/8

Max. Hydraulic Output: 8T/17637 1bs

The Thickness of the Tip: 10mm/0.39in

Max. Separation Distant of Tip: 30mm/1.18in

The Width of the Tip: 26mm/1.02in

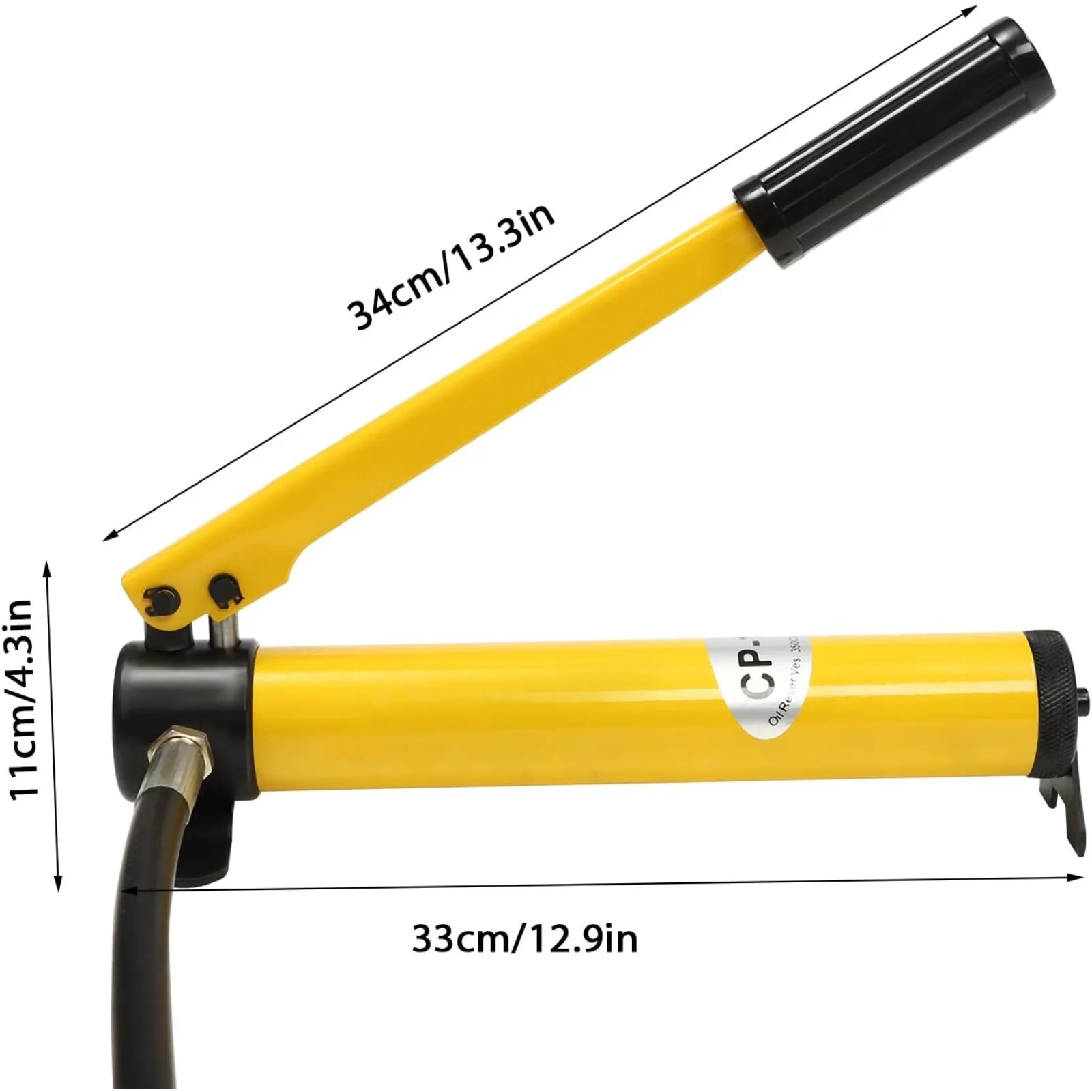

Hydraulic Pump Size: 33*34*11cm/13*13.4*4.3inch

Hydraulic Pump Hose Length: About 1m/3.28ft

Gross Weight: 7kg/15.43 1bs

Package Included

1* Flange Spreader

1* Hydraulic Pump

Notes

1.Please do not use it overpressure. Please timely replace the O-ring oil seal if it is broken.

2.Please do not lengthen the handle yourself, otherwise, it may easily cause pump overpressure and damage to oil seal accessories.
