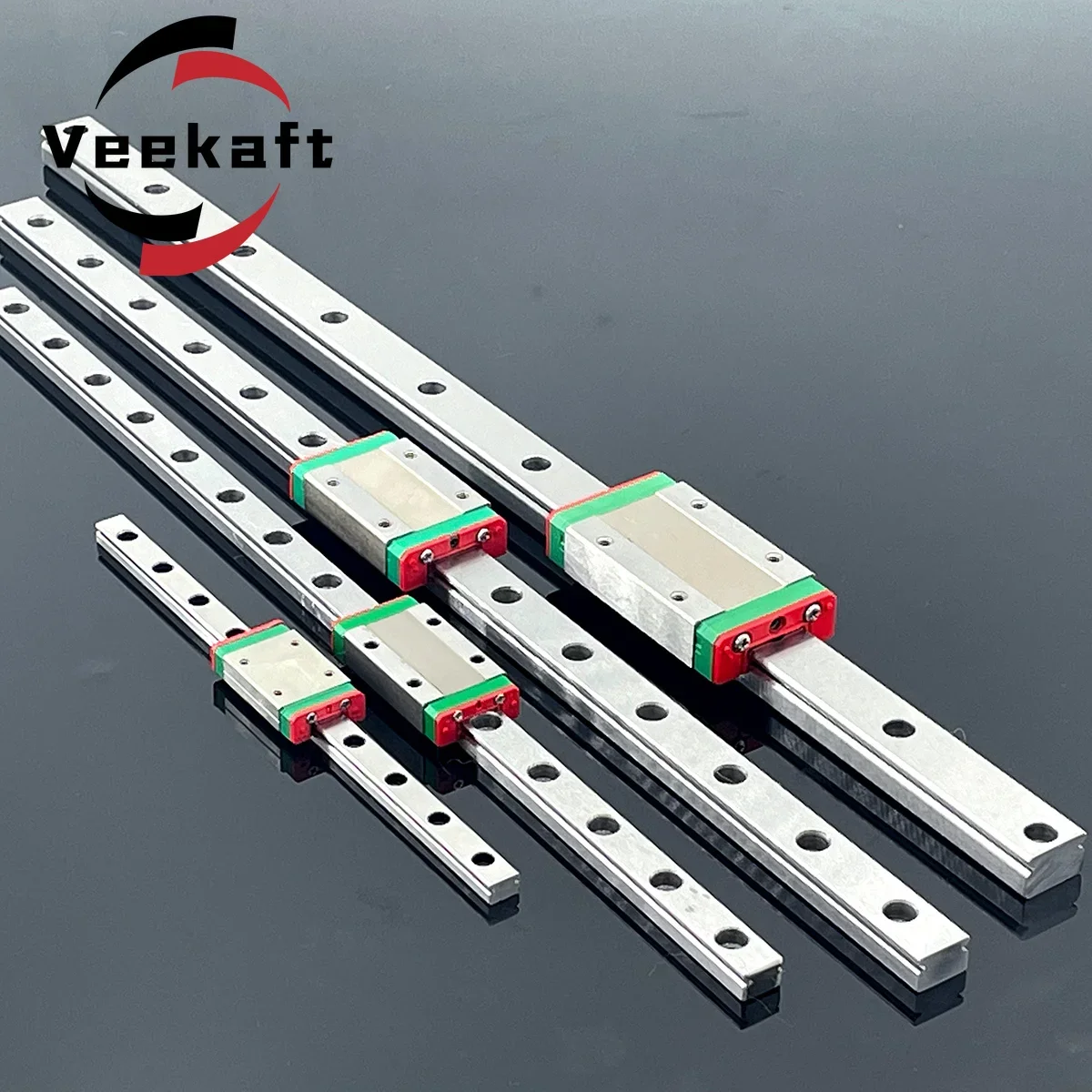

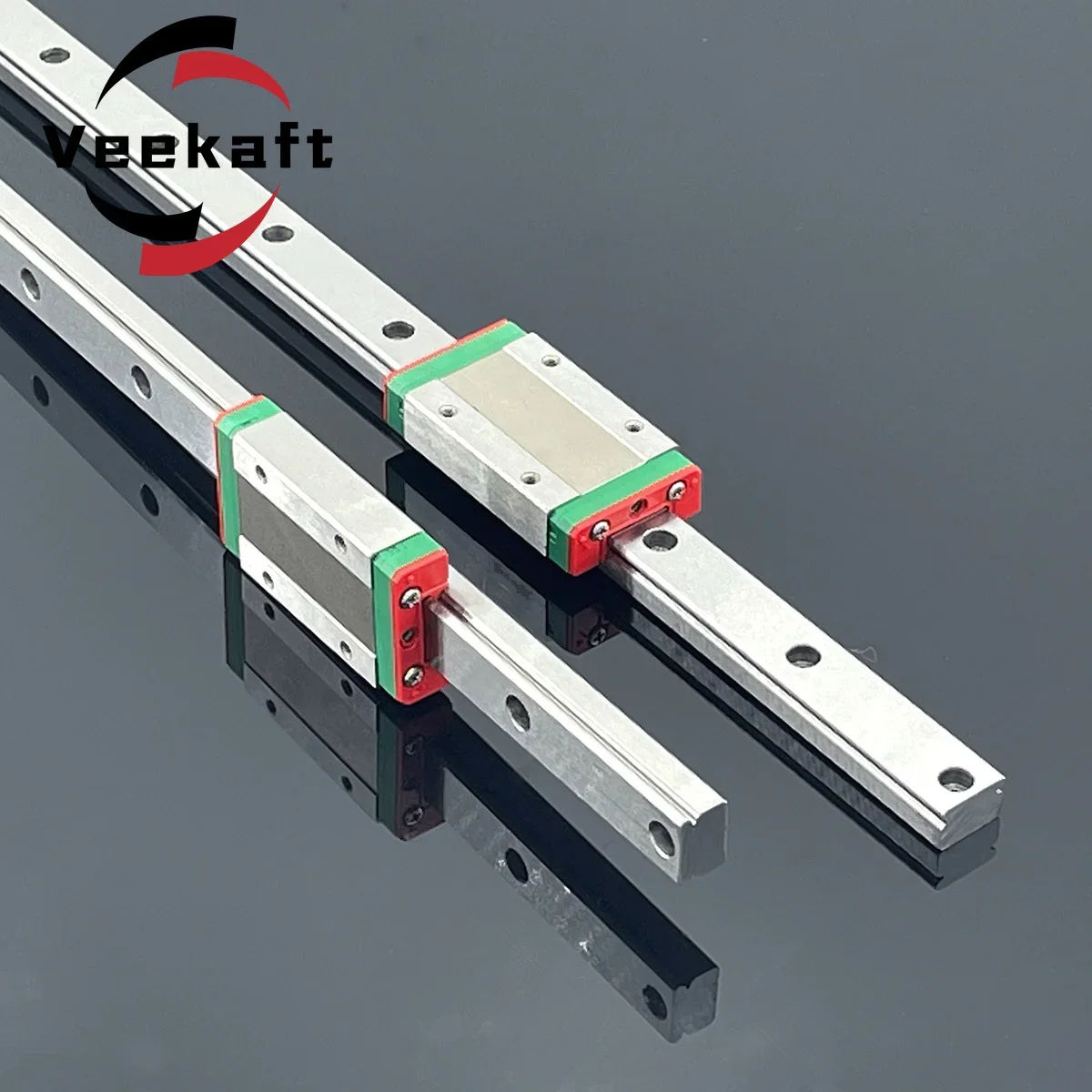

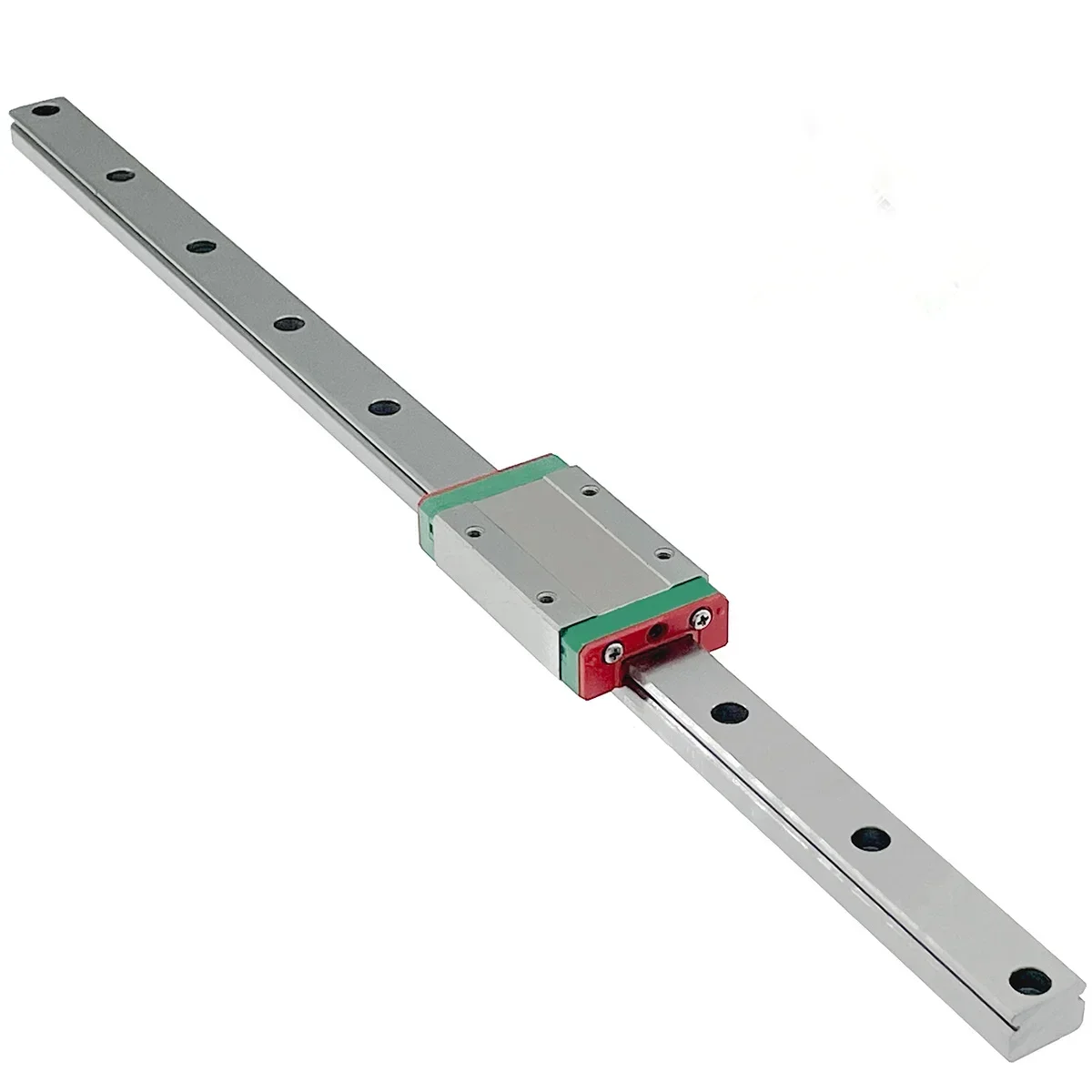

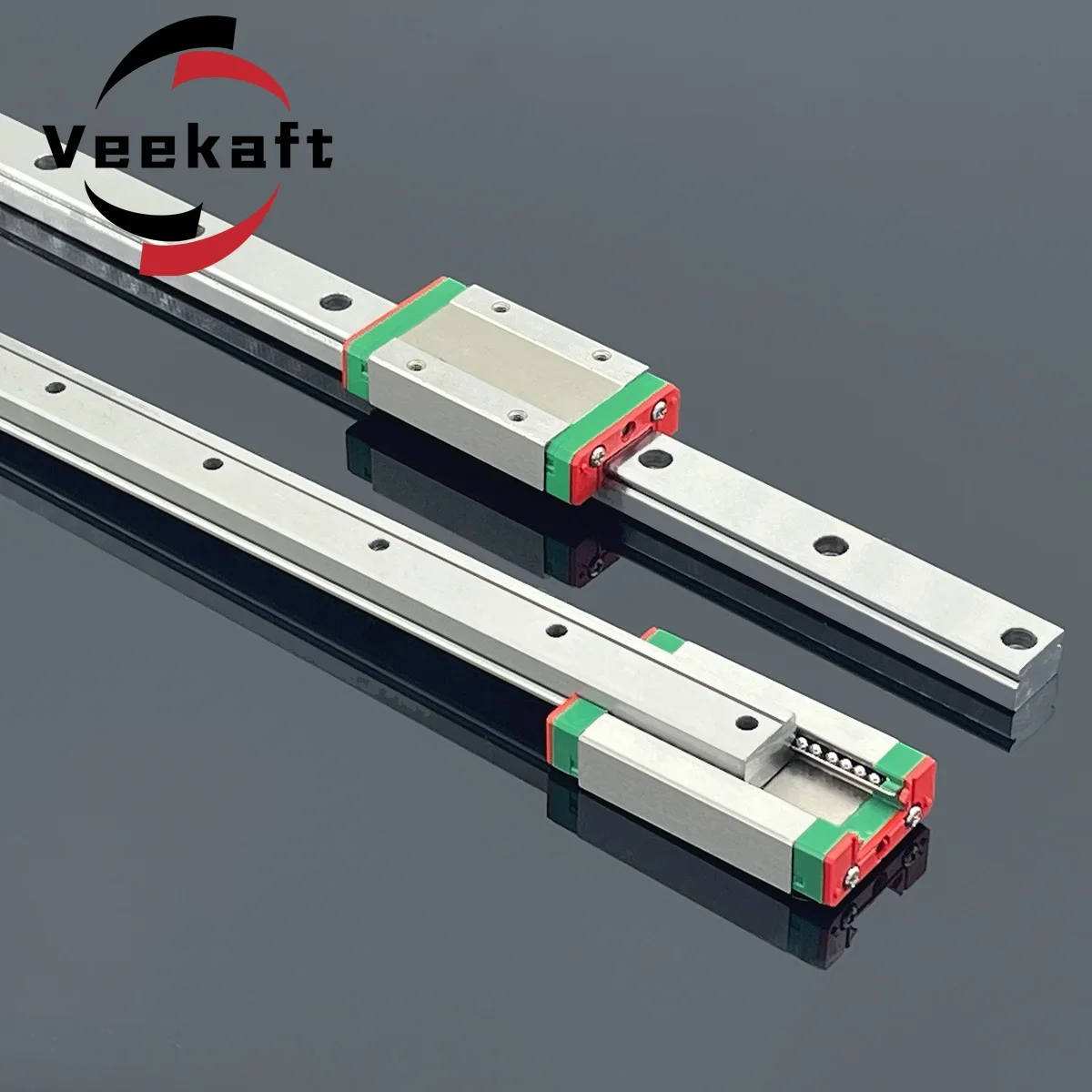

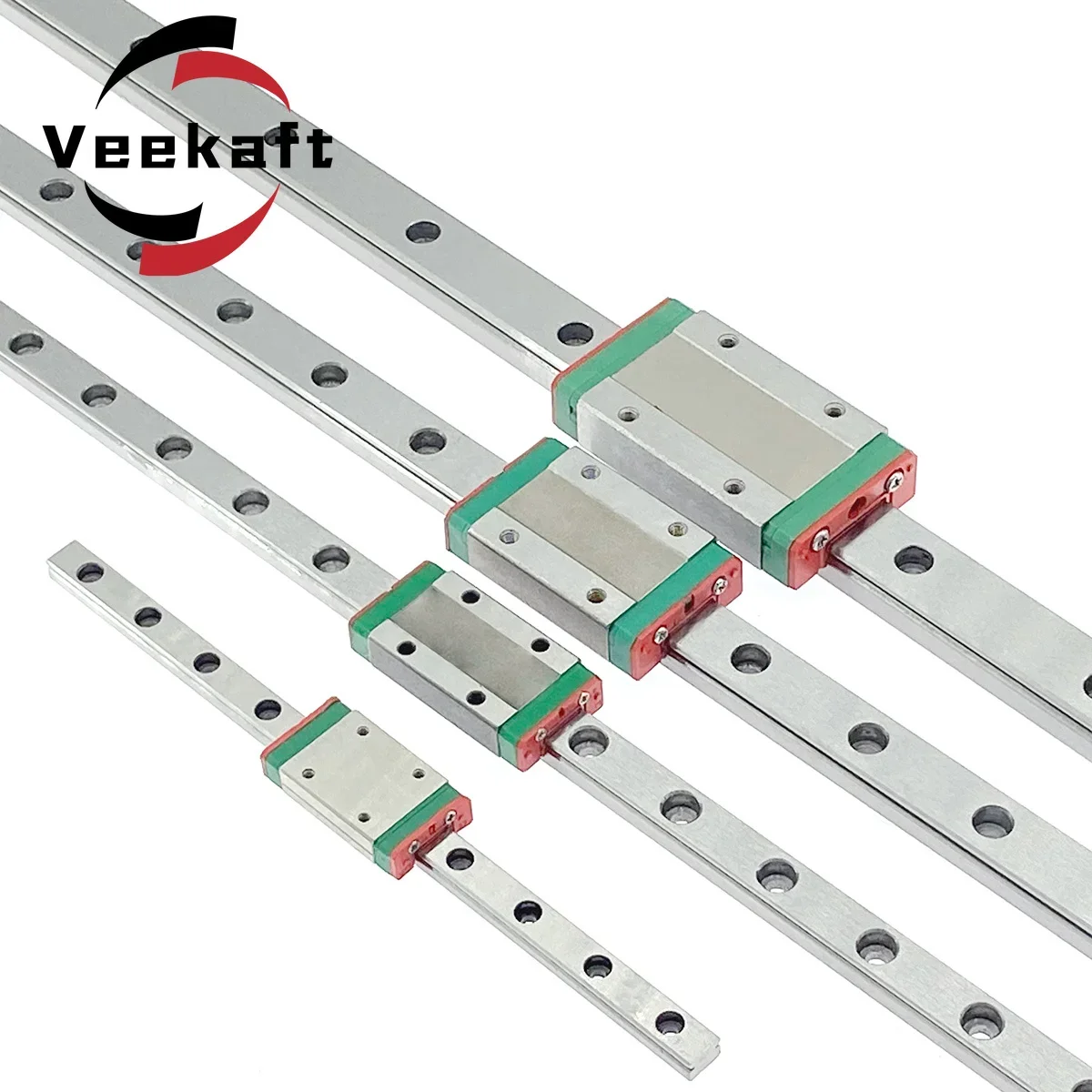

MGN7 MGN9 MGN12 MGN15 200 400 500 800mm miniature linear rail slide 1pc MGN linear guide 1PC MGN Block for CNC FA 3d printer.
Description
- High-concerned chemical: None
- Brand Name: veekaft
- Model Number: MGN7 MGN
- Guide Width or Diameter: MGN
- Origin: Mainland China
- Certification: None
Packing Quantity:
1 set= 1 pc MGN12H/C(block)+1 pc guide
If you choose single 1 MGN12C or 1 MGN12H,
the actual quantity will be 1 block (do not include the guide).
* The guide rail and the slider are Class C, we think it is not necessary to provide additional steel balls, because the precision size of the steel ball may not match the size of the slider steel ball, such as -2μ -4μ ± 0 +2μ, which may shorten the slip The useful life of the block.
The slide block preload is ZF (normal clearance)/Z0 (no preload)/Z1 (light preload)
The pre-tightening force of ZF-Z0-Z1 increases successively,
Z0/ZA is shipped randomly and the price is the same.
When the slider is vertical,
ZF can slide under the gravity of the slider.
Z0 can slide under thrust.
This is only a rough description, not rigorous, without considering factors such as lubricating oil, it can only be used as a reference. (Considering that some buyers use this as a standard for the quality of the slider)
We recommend that most 3D printers or light desktop devices use ZF/Z0 preload
Z1 is only suitable for occasions where accuracy and life are required.
We also provide nickel-plated rails/chrome-plated rails/blackened rails/44C martensitic stainless steel rails, as well as stainless steel 440C sliders/plated sliders
If you are interested in them, please contact us.
Additional information
| High-concerned chemical | None |
|---|---|
| Brand Name | veekaft |
| Model Number | MGN7 MGN |
| Guide Width or Diameter | MGN |
| Origin | Mainland China |
| Certification | None |
| Guide Length | 200mm, 300mm, 400mm, 500mm, 600mm, 700mm, 750mm, 800mm, 100mm, 150mm, 250mm, 350mm, 450mm, 550mm, 650mm, only 1pc MGN block |
| Color | MGN12C, MGN12H, MGN15C, MGN15H, MGN7C, MGN7H, MGN9C, MGN9H |
