Minco Heat 200w/㎡0.5~16㎡ Tile Cement Heating Flooring Cable Electric Warm Mat Twin Conductor Electric Warm Strand Mat
Description
- High-concerned chemical: None
- Floor Heating Part Type: Floor Heating Mats
- Model Number: FHMT200
- Type: Floor Heating Parts
- Material: Anti-flammable PC
- Brand Name: MINCO HEAT
- Origin: Mainland China
- Certification: CE
- Rated voltage: AC200~240V 50/60Hz
- Power: 200W/sqm

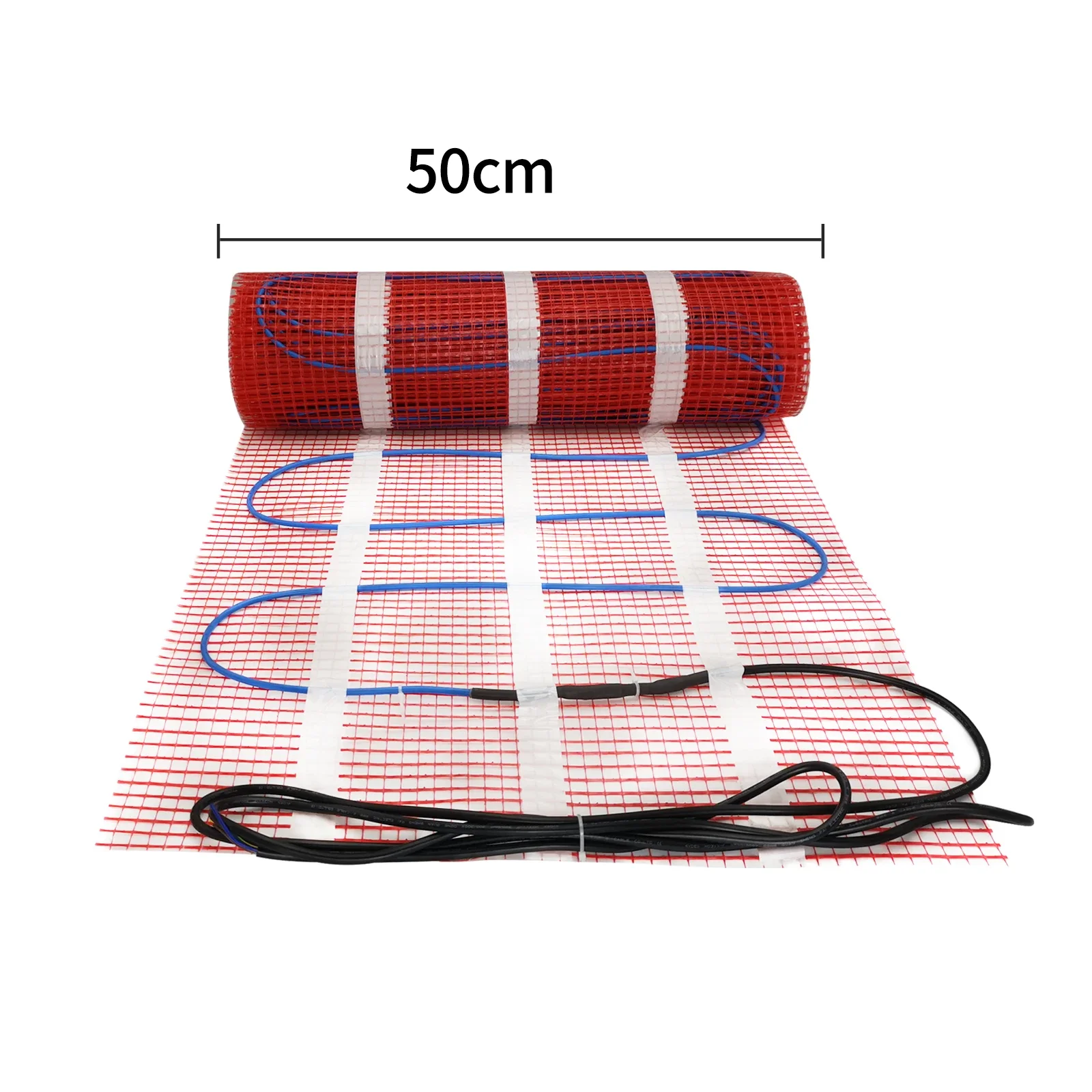

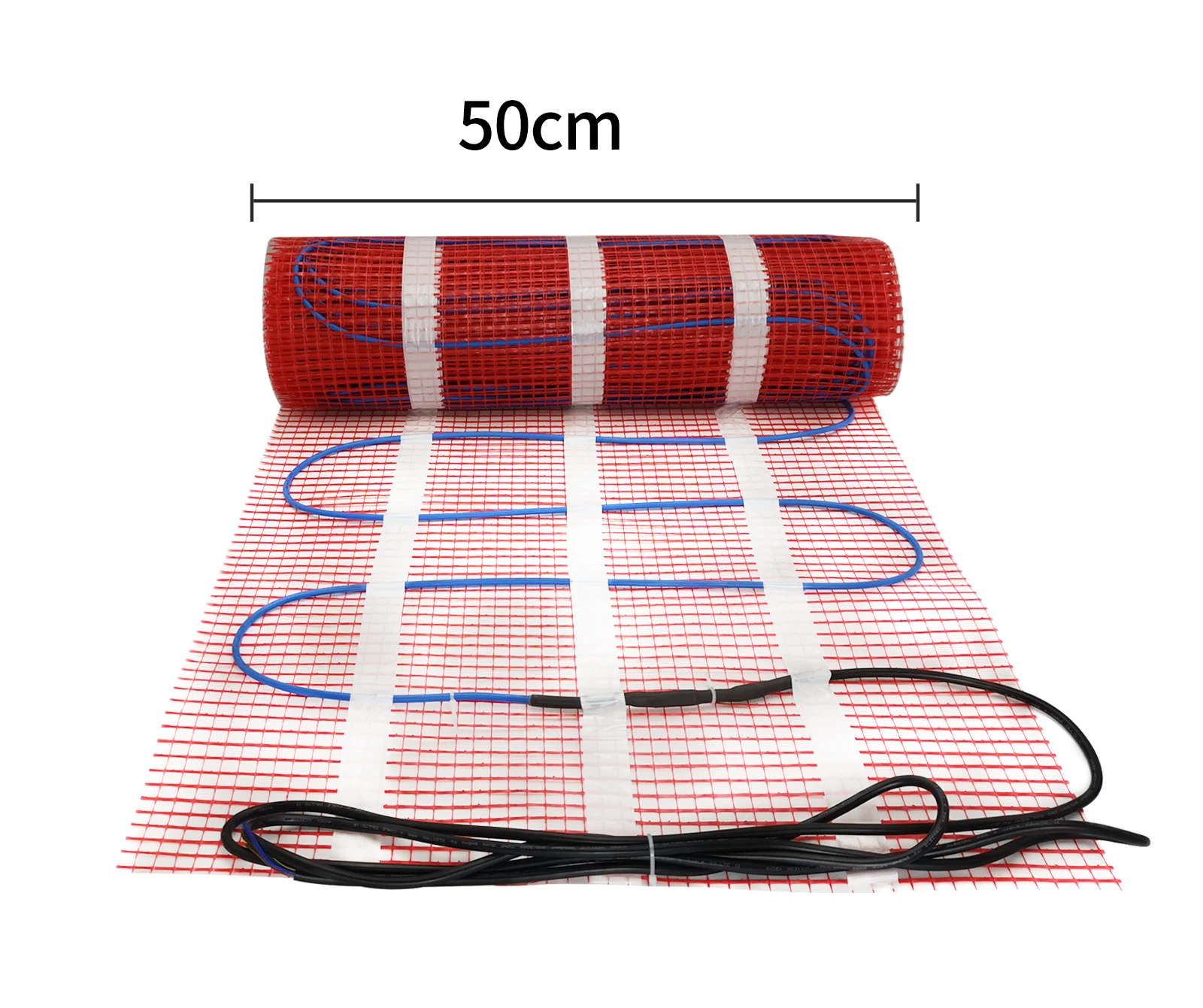

- Width: 50cm
- Oversheath material: PVC
- Number of conductor: Twin conductor
- Length of powe cord: 2.25 meters
- Length of sensor cable: 3 meters
Minco Heat 200w/㎡0.5~16㎡ Tile Cement Heating Flooring Cable Electric Warm Mat Twin Conductor Electric Warm Strand Mat
Description:
Underfloor Heating and radiators distribute heat differently. Underfloor Heating provides an even distribution of heat, whereas radiators provide an uneven distribution which typically creates hot and cold spots in your home.
With Underfloor Heating, up to 90% of the available floor is heated. This means even distribution of heat throughout the entire room, and a more efficient way of heating up your home.
Specifications:

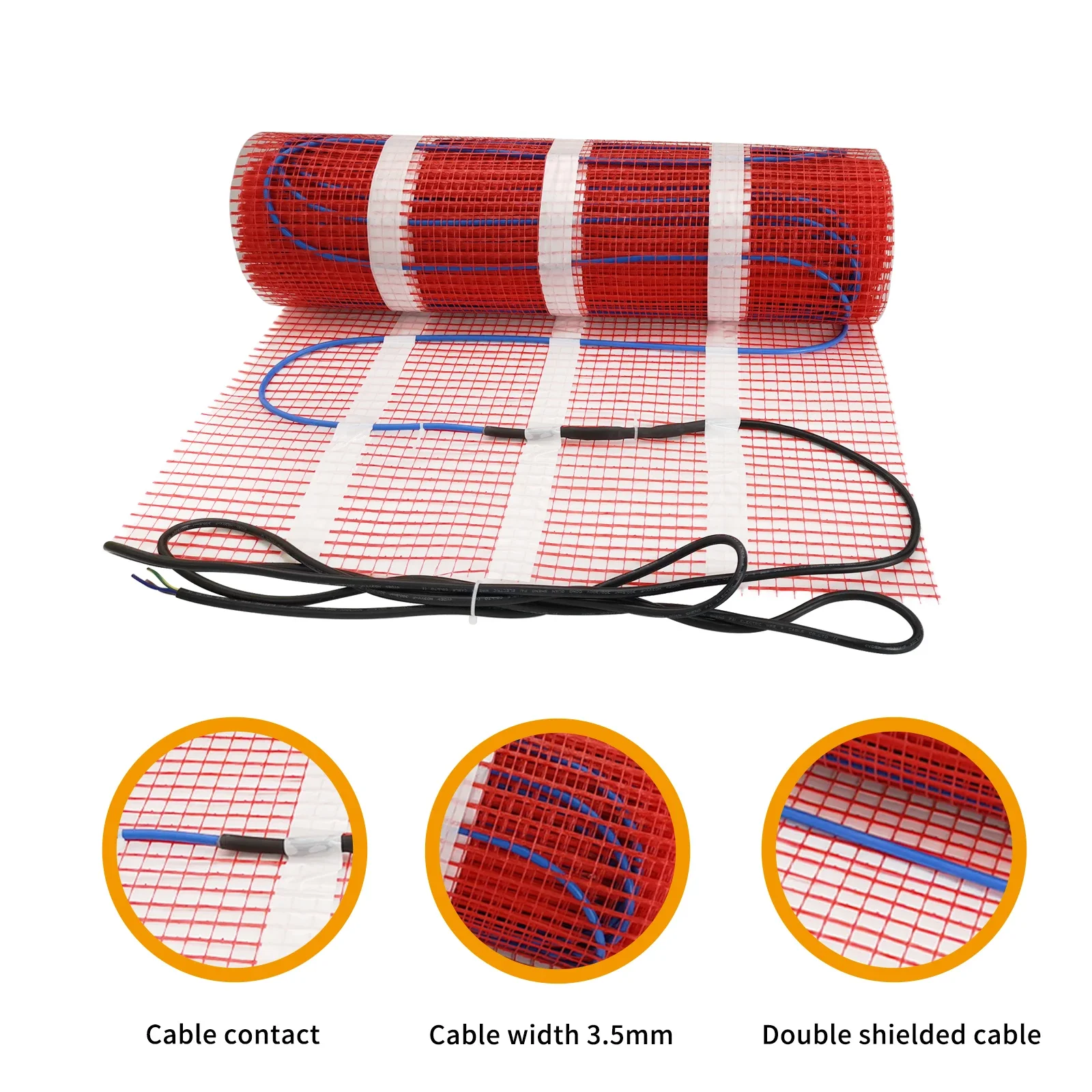

Cable Construction:Twin conductor
Operating voltage:230V
Power output:200W/m2(Note:For use in High Heat Loss Areas)
Cable spacing:100mm
Cable diameter:3.6mm±1
Min. bending radius :25mm
Conductor insulation:Fluoropolymer/XLPE/Rubber
Outer insulation:PVC
Max. heating temperature:60~80°C
Min. installation temperature:5°C
Length of cold lead:2.25m
How to Calculate How Much Electric Underfloor Heating Mat you require
1.Work out the area of the room.
2.Take away area of all fixed items in the room (EG: Baths,Sinks,Toilets,Kitchen Counters).
3.Take away another 10% to leave room at the edges and between the mats.
4.Round that down to the nearest whole number EG:5.64㎡≈5㎡mat

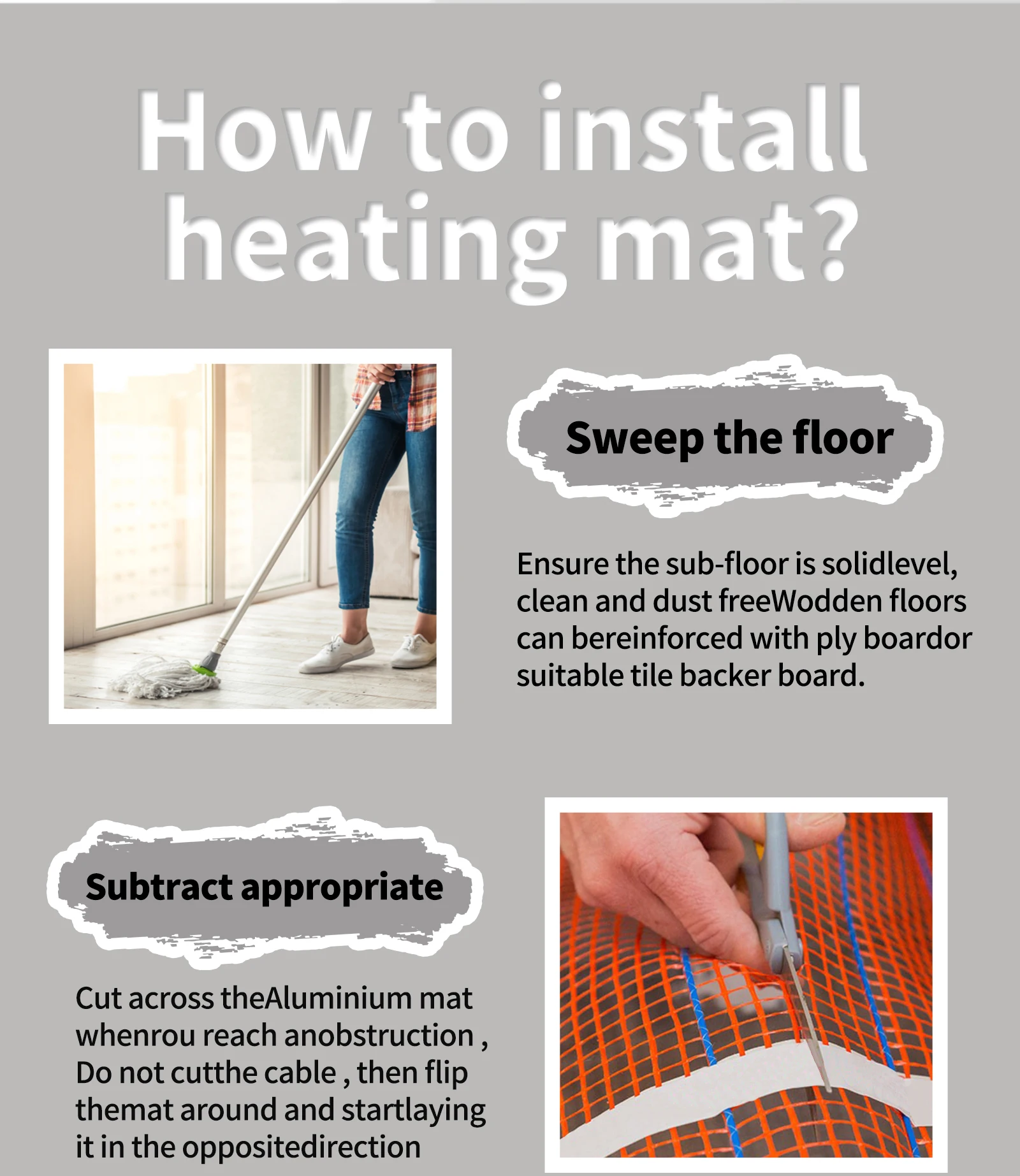

This heating mat comes with self-adhesive on the back, so it’s easy to install.
As the illustration show
Note:
BEFORE and AFTER installing the heating mat, please measure resistance to make sure the heating mat is working
You can cut the mat to make it fit into your room as long as you DON’T cut the wire, doing so will break your heating mat beyond repair!
When you reach an obstacle, cut the mesh and rotate the mat around it then continue to lay
Note: If you need other wattages or sizes, please contact me, we have all sizes for sale.(For example 100w/150w)
Photos
Additional information
| High-concerned chemical | None |
|---|---|
| Floor Heating Part Type | Floor Heating Mats |
| Model Number | FHMT200 |
| Type | Floor Heating Parts |
| Material | Anti-flammable PC |
| Brand Name | MINCO HEAT |
| Origin | Mainland China |
| Certification | CE |
| Rated voltage | AC200~240V 50/60Hz |
| Power | 200W/sqm |
| Width | 50cm |
| Oversheath material | PVC |
| Number of conductor | Twin conductor |
| Length of powe cord | 2.25 meters |
| Length of sensor cable | 3 meters |
| Color | 200w 0.5square meter, 200w 1.5square meter, 200w 10 square meter, 200w 11 square meter, 200w 12 square meter, 200w 13 square meter, 200w 14 square meter, 200w 15 square meter, 200w 16 square meter, 200w 1square meter, 200w 2.5square meter, 200w 2square meter, 200w 3.5square meter, 200w 3square meter, 200w 4 square meter, 200w 4.5square meter, 200w 5 square meter, 200w 6 square meter, 200w 7 square meter, 200w 8 square meter, 200w 9 square meter |
