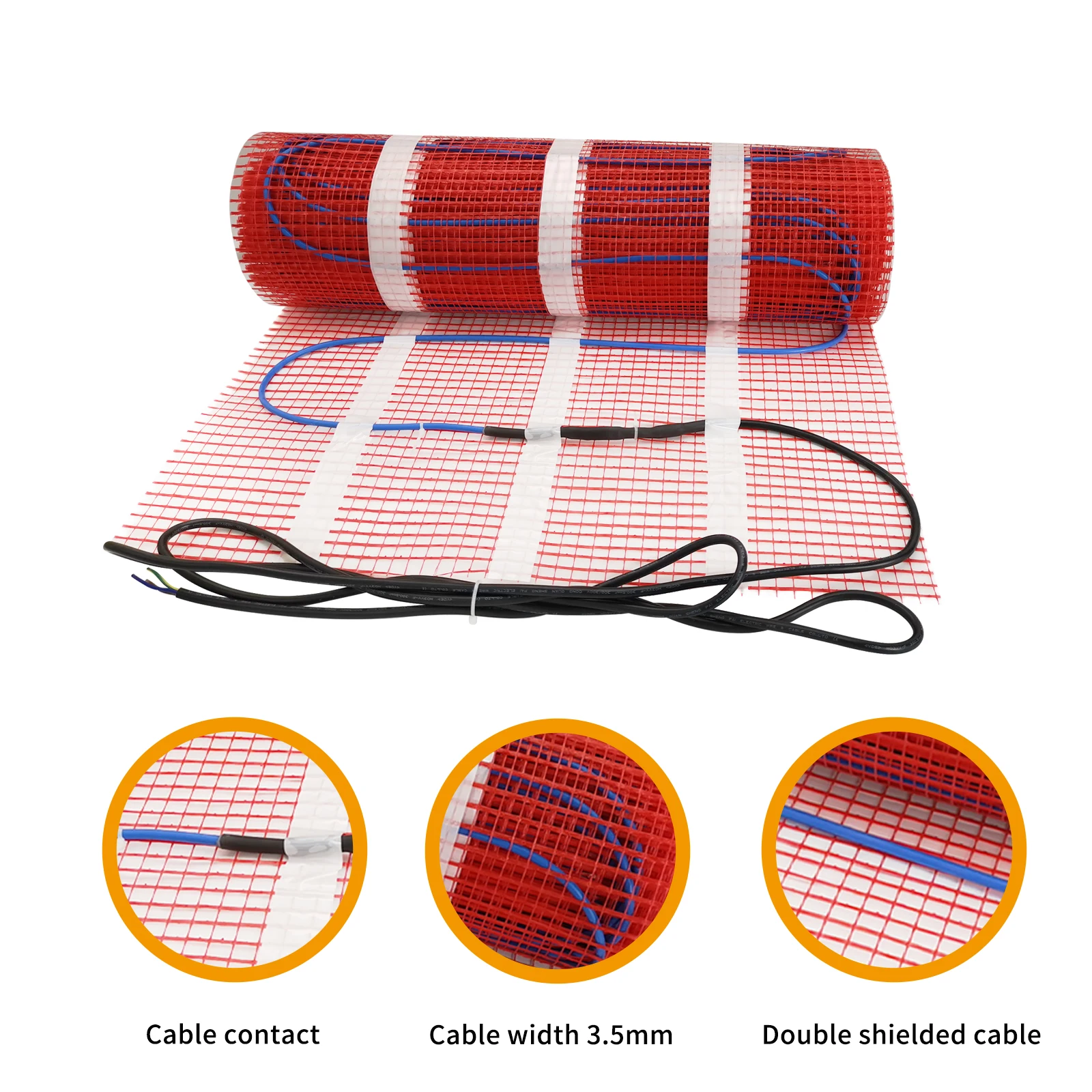

MINCO HEAT AC200~240V 200w/m2 0.5 to 5m2 Floor Warming Mat for Snow Melting Underfloor Heating System
52.56$ – 154.57$Price range: 52.56$ through 154.57$
In Stock
Loading...
Description
- High-concerned chemical: None
- Voltage: 220 V
- Floor Heating Part Type: Floor Heating Mats
- Model Number: FHMT
- Type: Floor Heating Parts
- Material: PE
- Brand Name: MINCO HEAT
- Origin: Mainland China
- Certification: CE
- Power (W): 200w/m2
- Working Voltage: AC200~240V
- Width: 50cm
- Power: 200w per 1 square meter
Main Parameters :
1. Cable Construction: Twin conductor
2. Operating voltage: AC200~240V
3. Power output: 100W/m2, 150W/m2, 200W/m2
4. Cable spacing: 100mm
5. Cable diameter: 3.6mm±1
6. Min. bending radius: 25mm
7. Conductor insulation: Fluoropolymer/XLPE/Rubber
8. Outer insulation: PVC
9. Max. heating temperature:
– 100w/m2 can reach about 40~60C;
– 150w/m2 can reach about 50~70C;
– 200w/m2 can reach about 60~80C;
10. Min. installation temperature: 5°C
11. Length of cold lead: 2.25m
1. Cable Construction: Twin conductor
2. Operating voltage: AC200~240V
3. Power output: 100W/m2, 150W/m2, 200W/m2
4. Cable spacing: 100mm
5. Cable diameter: 3.6mm±1
6. Min. bending radius: 25mm
7. Conductor insulation: Fluoropolymer/XLPE/Rubber
8. Outer insulation: PVC
9. Max. heating temperature:
– 100w/m2 can reach about 40~60C;
– 150w/m2 can reach about 50~70C;
– 200w/m2 can reach about 60~80C;
10. Min. installation temperature: 5°C
11. Length of cold lead: 2.25m
What is under floor heating mat kits?
 Underfloor Heating mat kits is a highly practical and economic way of adding warm comfort  to your home. These heating systems produce a maintained even heat distribution  wherever it is installed within the home, this is coupled with low installation  and running costs, underfloor heating is an economical way of creating that  perfect ambient temperature.
 Underfloor heating systems can be used both as a central heating unit and as a supplemental system. It is always our recommendation to partner your heating  system with insulation. This lowers heat up times significantly and further increases efficiency.
Â
Description:
 200W/sqm output – This range is used for simple floor warming within living areas where primary heating is not essential and there are other sources of heating available such as radiators. This can also be used as a primary heat source in some circumstances when used in conjunction with flooring insulation. This heating mat comes with self-adhesive on the back, so it's easy to install.
 The ultra-thin floor is an excellent heating system. It is easy to install, suitable for a variety of ground decoration materials, whether it is concrete floor, wooden floor, or the old tile floor or terrazzo floor.
Â
Application: indoor heating, this fast heating system is the best choice for home places.
Â
Product advantages :Â
1. easy to install, suitable for a variety of ground decoration materials;
2. installed in the tile adhesive, the elevation of the ground almost no effect;
3. can be laid directly on the original ground without having to deal with the original ground;
4. start the system after 20-30 minutes to get the expected ground temperature.
Â
Additional information
| Color | 50cmX10m-1000W, 50cmX1m-100W, 50cmX2m-200W, 50cmX3m-300W, 50cmX4m-400W, 50cmX5m-500W, 50cmX6m-600W, 50cmX7m-700W, 50cmX8m-800W, 50cmX9m-900W |
|---|---|
| High-concerned chemical | None |
| Voltage | 220 V |
| Floor Heating Part Type | Floor Heating Mats |
| Model Number | FHMT |
| Type | Floor Heating Parts |
| Material | PE |
| Brand Name | MINCO HEAT |
| Origin | Mainland China |
| Certification | CE |
| Power (W) | 200w/m2 |
| Working Voltage | AC200~240V |
| Width | 50cm |
| Power | 200w per 1 square meter |
