Mini Active OTDR Fiber Optic Tester smart odtr Opitcal Fiber Reflectometer Breakpoint Loss living Test OPM VFL 1310 1550 1625nm
Description
- Wireless function: No
- High-concerned chemical: None
- Fiber Type: Single Mode
- Connector Type: SC/FC/ST
- Model Number: GR-230
- Brand Name: GREATOOL
- Origin: Mainland China
Mini-OTDR 7-IN-1
Multi-functional / Multi-Touch / Compact / Portable
7-in-1
integrate multiple functions
Integrate 7 functions:
OTDR / VFL / OPM / LS / Event Map / Loss Test / Led
Color & clear display

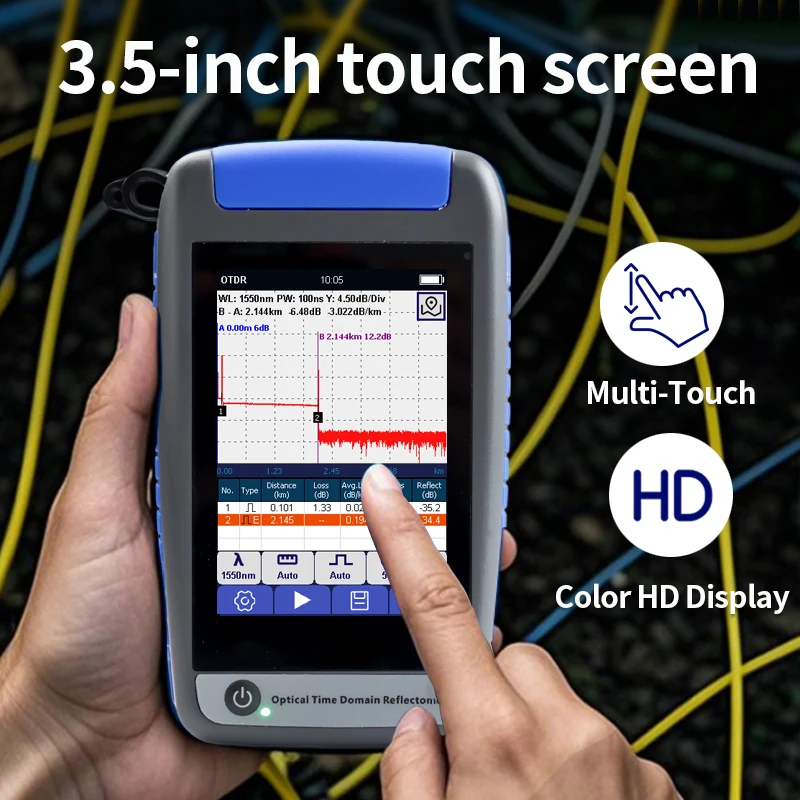

3.5-inch touch screen
Supports multi-touch
Reliable long-distance use
Hassle-Free Testing up to 60km
Stable performance from 3m to 60km
Minimum test distance: 3m
Test Rang is 100m to 80km

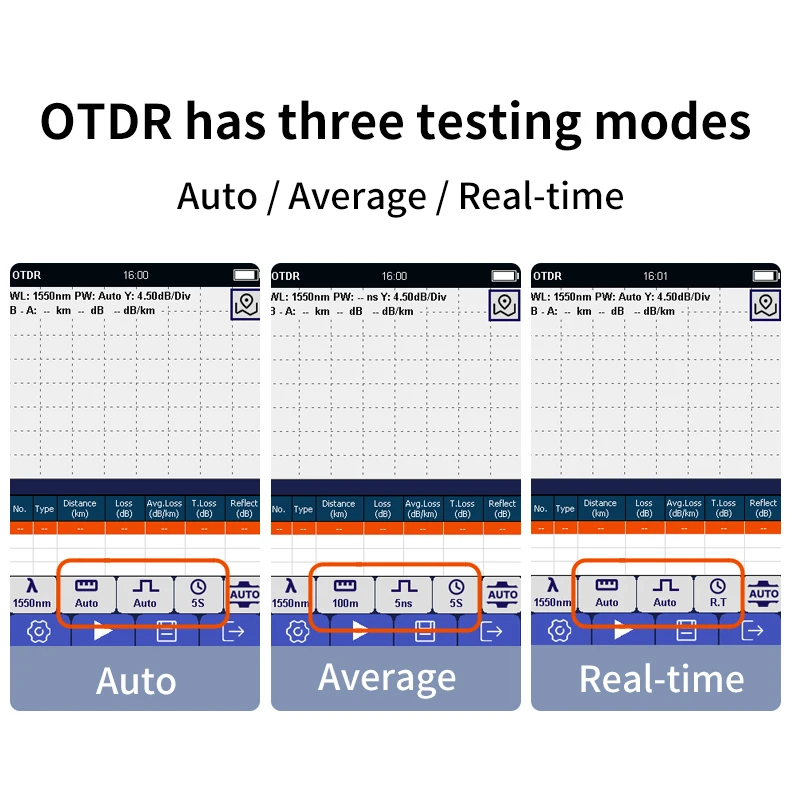

One-Touch Testing
One-Click Automatic Line Testing
Can test line breaks, weak light points, bends, and losses
ï¼®o.1: Bend point at 43.4 m (2.63 dB loss).
No.2: Break point (end of line), total length 79.65 m (total loss 2.63 dB).
Total line length: 98.02 m, total loss: 0.04 dB. The end point is a break.
Point 1: Flange connection at 0.101 km (loss 1.33 dB )
Point 2: Break point at 2.145 km (1.45 dB total attenuation)
Total line length: 3.06m with 0.02dB loss, perfect for short-distance testing.
Quick-locate feature
One-click event mapping
Visualized results for enhanced fault analysis
Quick-read results
Event Map for clearer results
â‘ Launch
â‘¡ Termination (End,Break point)
â‘¢ Reflective Event (likely Connector)
â‘£ Non-Reflective Event
(likely bending or splice）
⑤ Optical Splitter
(likely 1×4 splitter)
1.42.38m – Attenuation point (8.07dB loss)
Event Type: Non-reflective loss (likely bending or splice)
2.70.46m – Connection point
Event Type: Reflective Ecent (likely bending or splice)
3.Total Length: 100.07m
Integrate multiple functions
All-in-One Multi-Function Device
VFL / OPM / LS / Loss Test / Event Map / Led
Long battery life

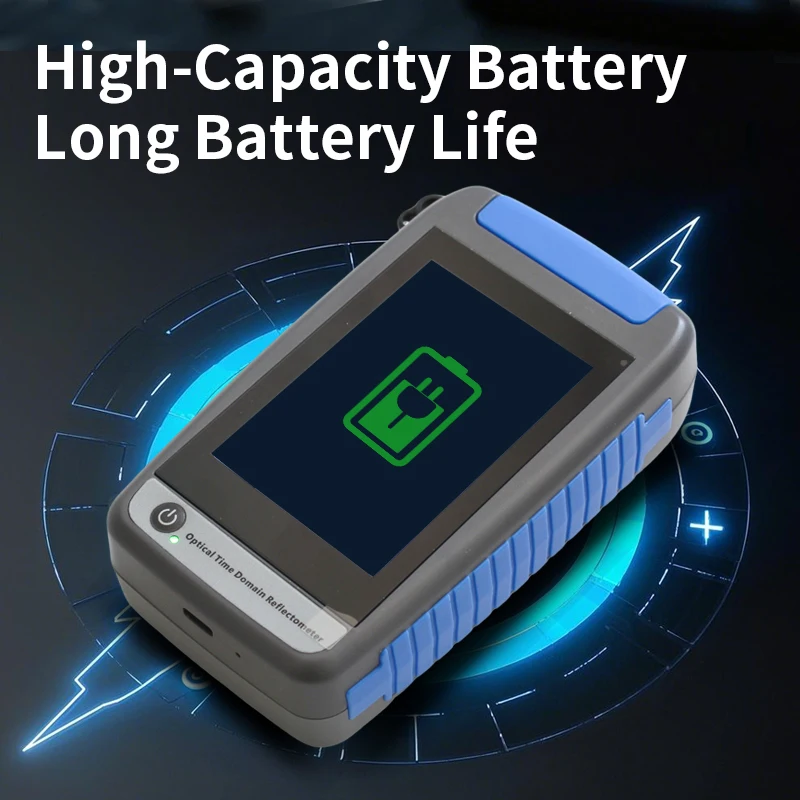

Built-in rechargeable Li-ion
2000mAh Li-ion battery, lasts 4-5 hours
Stores/Archives print reports
Device stores up to 400 records internally, Expandable memory, supports up to 32GB SD card
In-depth understanding
Interface Description

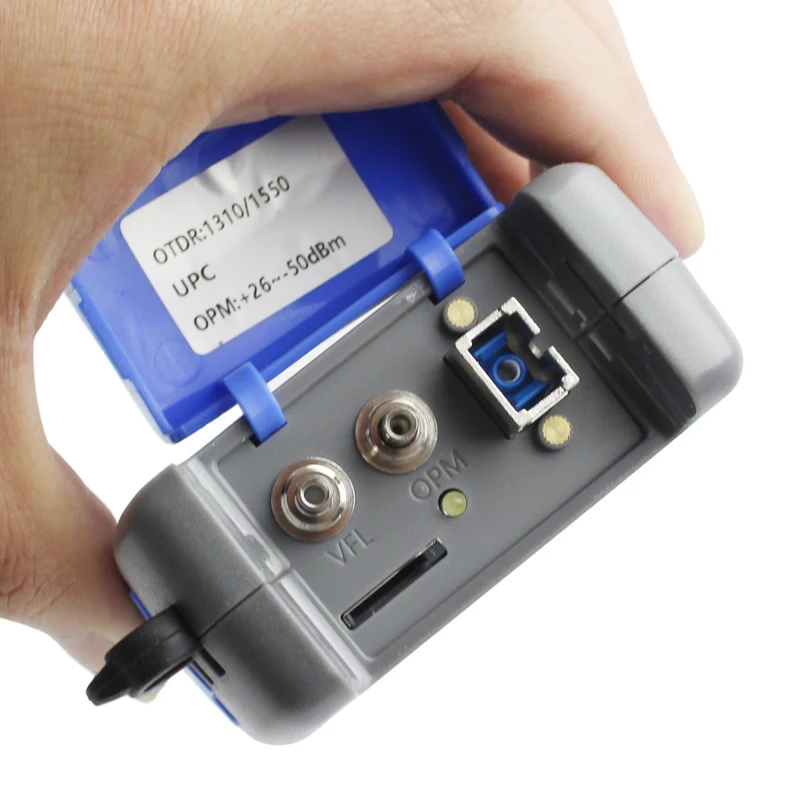

â‘ OTDR / Ls Port â‘¡ OPM Port â‘¢ VFL Port â‘£LED
⑤ TF Card Slot ⑥ Power / LED Switch ⑦ USB-C Port ⑧ Reset Button
Technical Specifications
|
Model |
GR-230M |
GR-230T |
|
Wavelength |
1310/1550nm±20nm |
1550nm±20nm |
|
Dynamic range |
22/20dB |
20dB |
|
Fiber type |
G.652D/G.657A1 |
|
|
Dead zone |
EDZ:2m;ADZ:8m |
|
|
Measuring range |
100m/500m/1km/2km/5km/10km/20km/40km/60km/80km |
|
|
Pulse width |
5ns/10ns/20ns/50ns/100ns/275ns/500ns/1us/2us/5us/10us |
|
|
OPM |
||
|
Wavelength |
850/1270/1300/1310/1490/1550/1577/1610/1625/1650nm |
|
|
Range |
-50~+26dBm |
|
|
Frequency |
270Hz/330Hz/1kHz/2kHz |
|
|
Uncertainty |
±5% |
|
|
Connector |
Universal:FC/SC/ST |
|
|
Laser source |
||
|
Wavelength |
OTDR wavelength |
|
|
Power |
-5dBm±3dB |
|
|
Uncertainty |
±5% |
|
|
Connector |
SC |
|
|
VFL |
||
|
Wavelength |
650nm |
|
|
Power |
10mw |
|
|
Other |
||
|
Battery |
2000mAh/3.7V |
|
|
Adapter |
USB-C |
|
|
Memory |
Inside ≥ 400 External:SD (up to 32GB) |
|
Packaging
Host / Carrying Case / Charging Cable / Lanyard / UserGuide / Cleaning Swabs
Additional information
| Color | GR-230F2(APC), GR-230M(APC), GR-230M(UPC), GR-230T(APC), GR-230T(UPC), GR-230TF(APC), GR-230TF(UPC), GR230M(APC), GR230M(UPC), GR230T(UPC) |
|---|---|
| Wireless function | No |
| High-concerned chemical | None |
| Fiber Type | Single Mode |
| Connector Type | SC/FC/ST |
| Model Number | GR-230 |
| Brand Name | GREATOOL |
| Origin | Mainland China |
