Mini IR Thermal Sensor Night Vision External Thermographic Cameras 32x32Resolution Multiple Color Modes for Android Mobile Phone

Note: Your mobile phone needs to support OTG function to use this product.

Description:

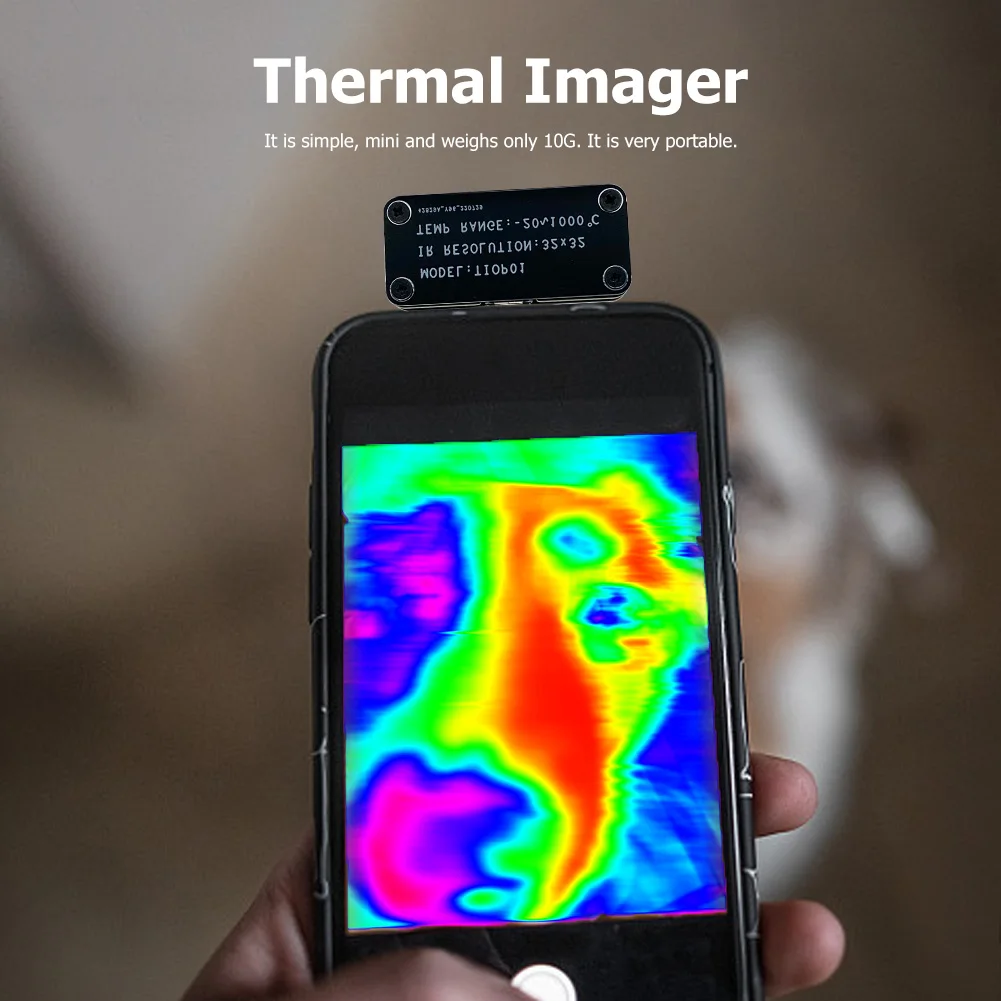

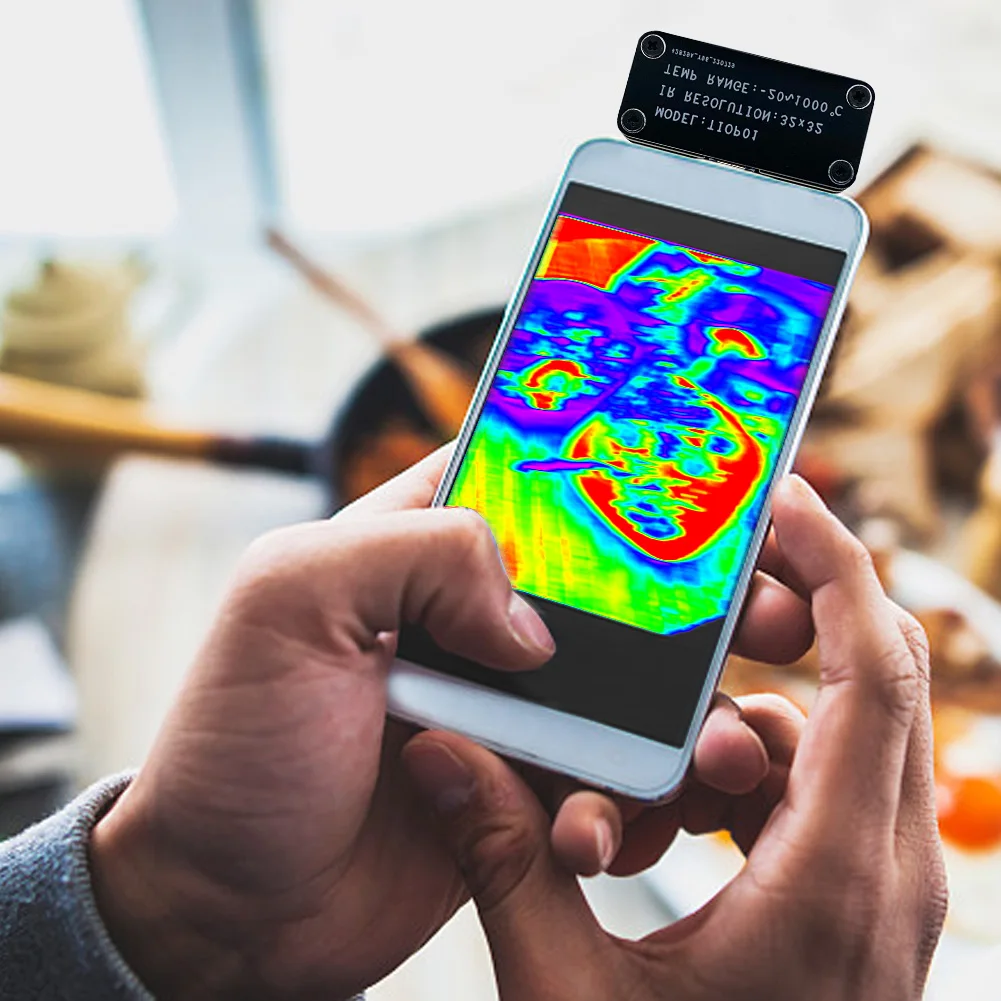

TIOP01 is a mobile phone-based thermal imager that needs to be used with a mobile phone APP (currently supports Android), with a resolution of 32*32, plug and play, very simple!

Specification:
Power Type: Charger
Sensor Resolution: 32×32
Temperature measurement range: -20~1000°C
Temperature measurement accuracy: ±3°C
Field angle: 33°
Maximum frame rate: 5FPS
Color Mode: 5
Interface: TYPE-C
System requirements: Android 8.0~12
Working temperature: 0~50°C
Storage temperature: -40~80°C
Material: ABS+PC
Dimensions: About 44×29.2x19mm/1.73×1.15×0.74in
Note: Only support Android system mobile phone use

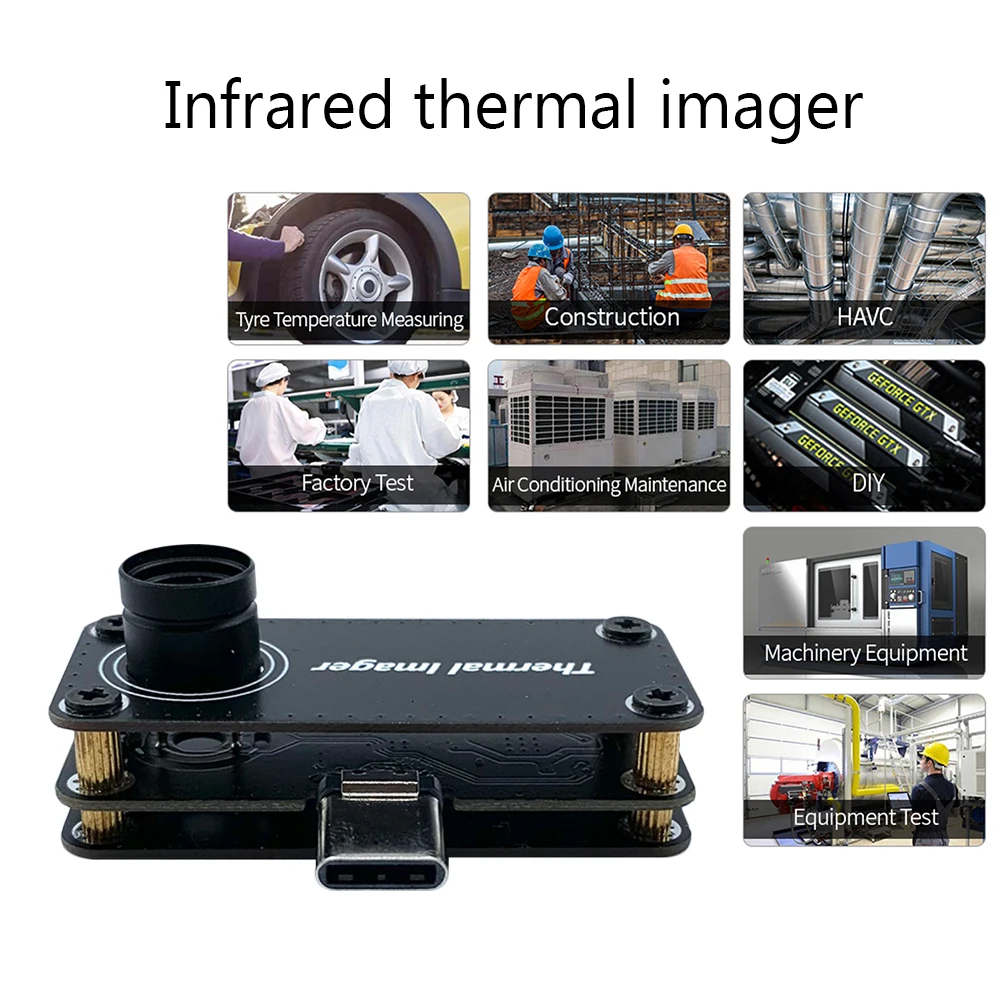

Application: Widely used in electronic equipment development, PCB testing, heating construction, non-contact temperature testing, illegal intrusion and other industries and fields

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
