Mini Tattoo Power Supply 1pcs Professional Black/Red/Blue Power Supply For Tattoo Rotary Machine Gun Tattoo Tool Free Shipping
Description
- Is Batteries Included: No
- High-concerned chemical: None
- Commodity Quality Certification: ce
- Origin: Mainland China
- Type: Tattoo Power Supply
- Certification: CE
We will carefully check and try to ship all products before delivery, so that you can be 100% satisfied and have no worries about shopping.
100% of all our products are taken in kind, color difference is inevitable, different environments, displays, etc. will cause color difference problems
This power supply does not contain a pedal hook
Introduction to 1.
A new generation of mini tattoo power supply, the volume is only the size of the palm; the use of metal shell, beautiful appearance, excellent workmanship; voltage setting
Accurate, the voltage below 18V can be adjusted arbitrarily. Suitable for all kinds of tattoo machine power supply, is the ideal tattoo artist tattoo tool.
2. Technical Specifications
Model specifications: PS-002K
Rated input voltage: 100-240Vac 50/60Hz
Input voltage range: 90-264Vac 50/60Hz
Input current: 0.5Amax
Output voltage: 0-18Vdc ± 2% can be arbitrarily adjusted
Output current: 1.5A (max)
Shell material:
Dimensions: L10cm * W7.0cm * H2.5cm

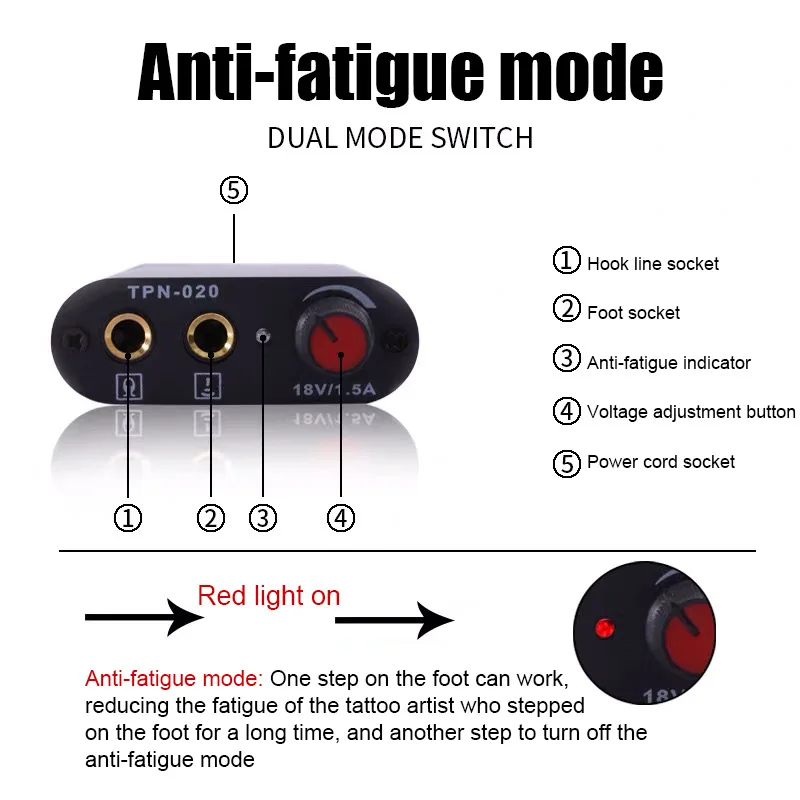

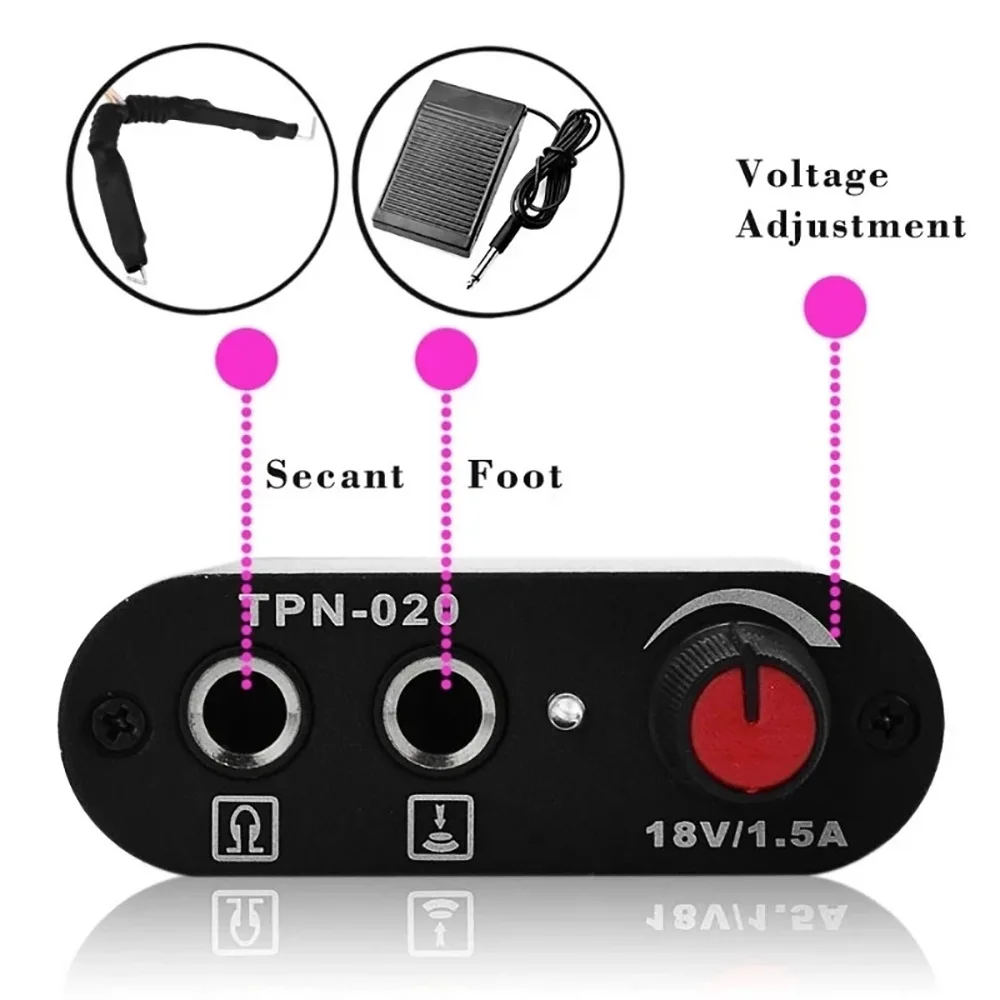

3. Structure Diagram

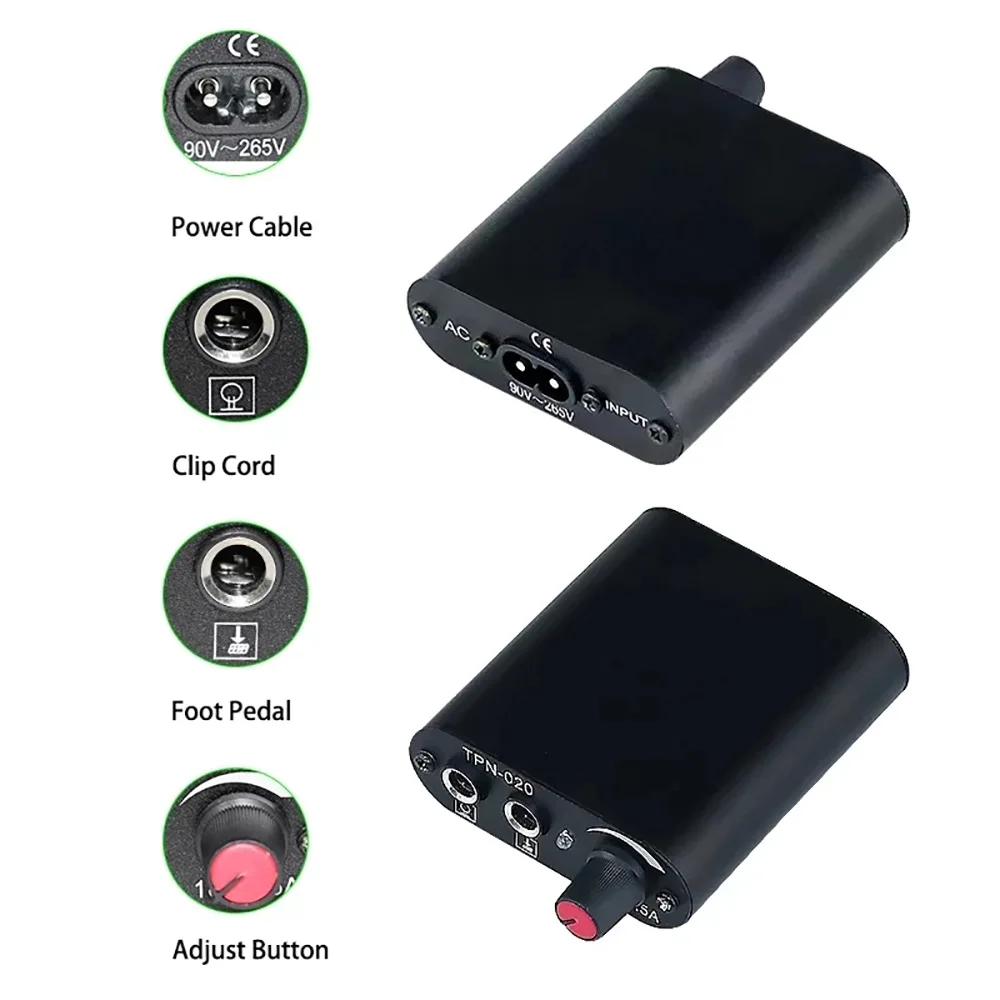

1. AC power input socket
2. Power output jack
3. Foot switch
4. Power output indicator
5. Output voltage regulation
4. method of use
1. Power-on preparation: plug one end of the randomly distributed AC cable into the power socket behind the TPN-020, as shown in the above figure, and plug the other end into the mains
Socket; insert the foot switch into the 3-position jack shown in the figure above, and insert the tattoo machine into the 2-position jack shown in the figure above.
2. Turn on the power supply: step on the foot and the LED lights up, indicating that the jack at position 2 shown in the above figure has voltage output.
3. Set voltage: Adjust the knob at the position 5 shown in the figure above to set the output voltage to the required value. After 5 minutes, the power will automatically turn off.
5. considerations
(1) Please use it within the rated input and output range. When it is abnormal, please check whether the input and output lines are connected normally.
(2) Do not use heavy pressure, do not fall, such as shell deformation, please stop using.
(3) high pressure danger, do not disassemble the machine without authorization.
Additional information
| Color | EU, US |
|---|---|
| Is Batteries Included | No |
| High-concerned chemical | None |
| Commodity Quality Certification | ce |
| Origin | Mainland China |
| Type | Tattoo Power Supply |
| Certification | CE |
