MINI1300 Antenna Analyzer HF/VHF/UHF Measuring S Parameter Frequency Analyzer 0.1-1300MHz LCD Touch Display Spectrum Analyzer

1005006942738199

138.57$ – 601.89$

In Stock

(0 customer reviews)

Color

Clear

Description

Battery Included: Yes
High-concerned chemical: None
Model Number: Antenna Analyzer
Interface: USB
DIY Supplies: Electrical
Origin: Mainland China
Display Size: 3.0 – 4.9 Inches
Certification: None

U.S. buyer attention:
The areas where the US warehouse does not deliver goods are: Hawaii, Alaska, Puerto Rico, Guam and other US overseas territories. And the military address. But you can choose ship from China.

Spanish buyers attention:
If your address includes following postal code please do not choose the Spanish warehouse.
The zip code starts with 35/38.
Overseas warehouse cannot be delivered. But you can choose ship from China

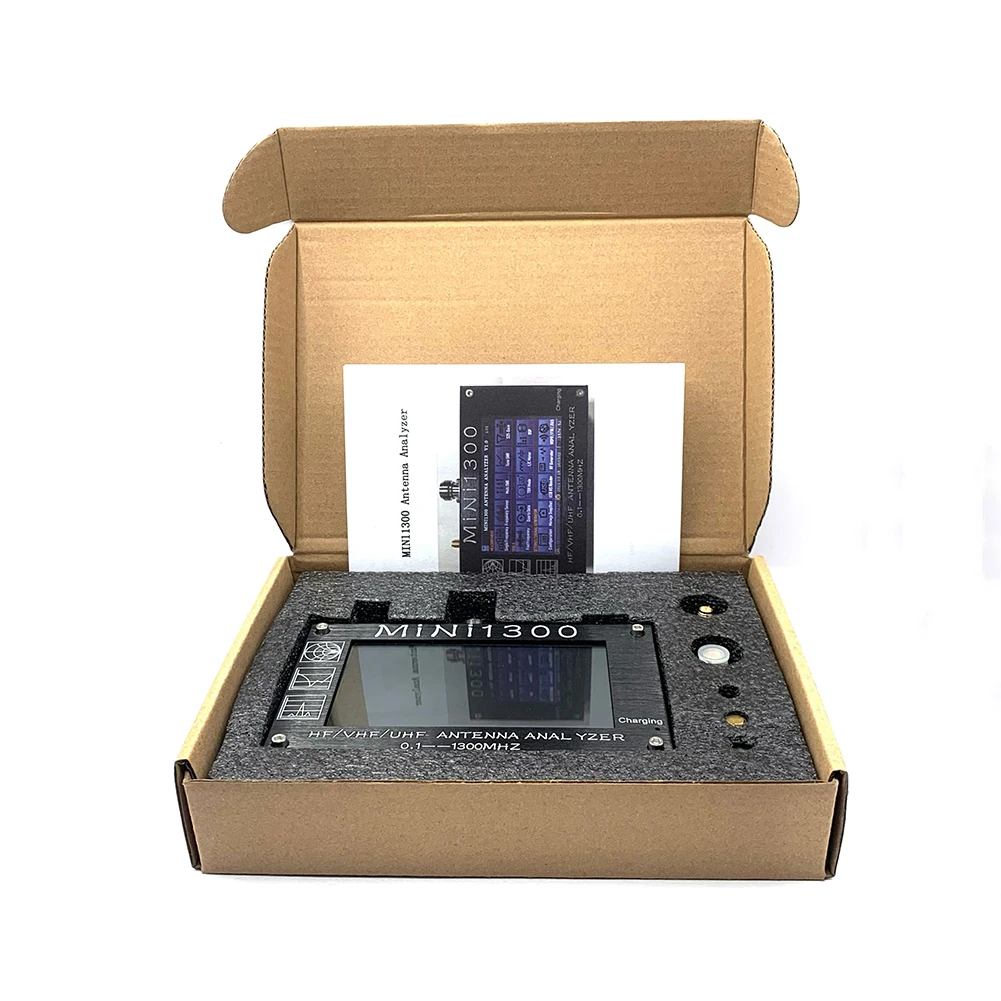

Mini1300

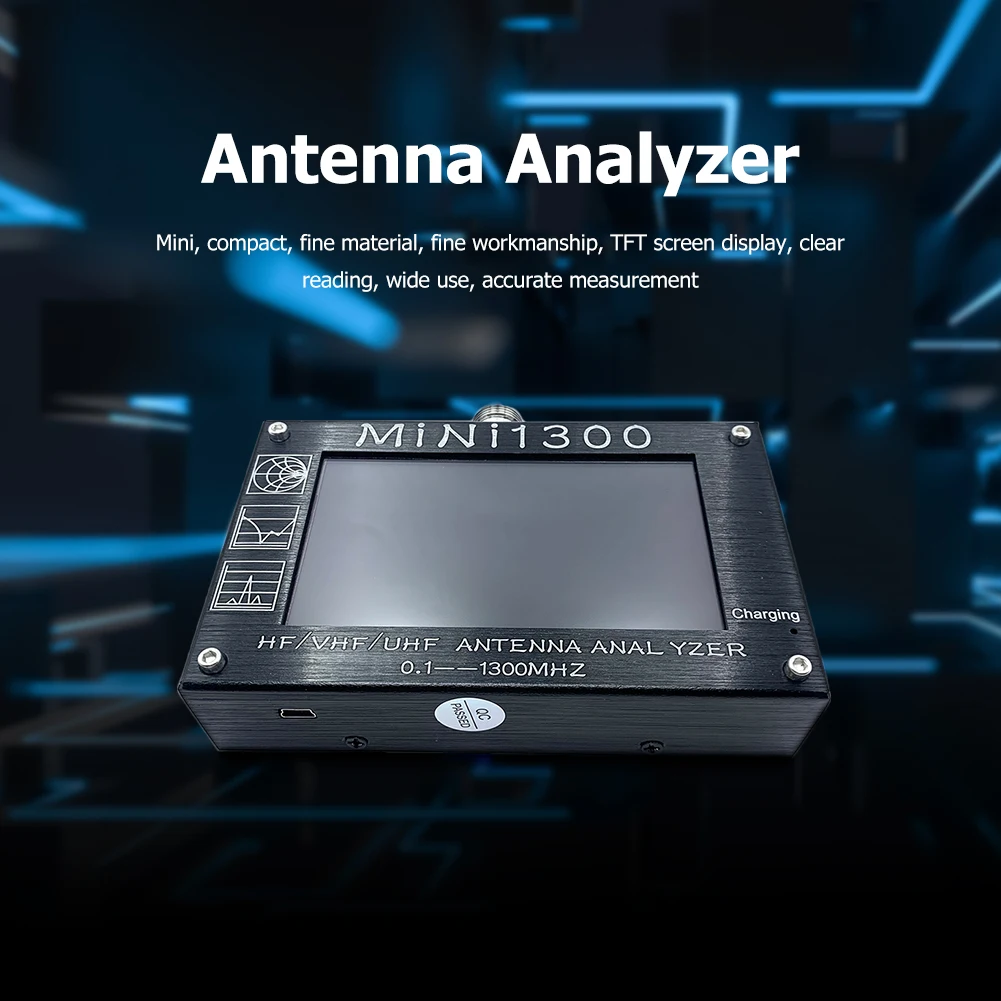

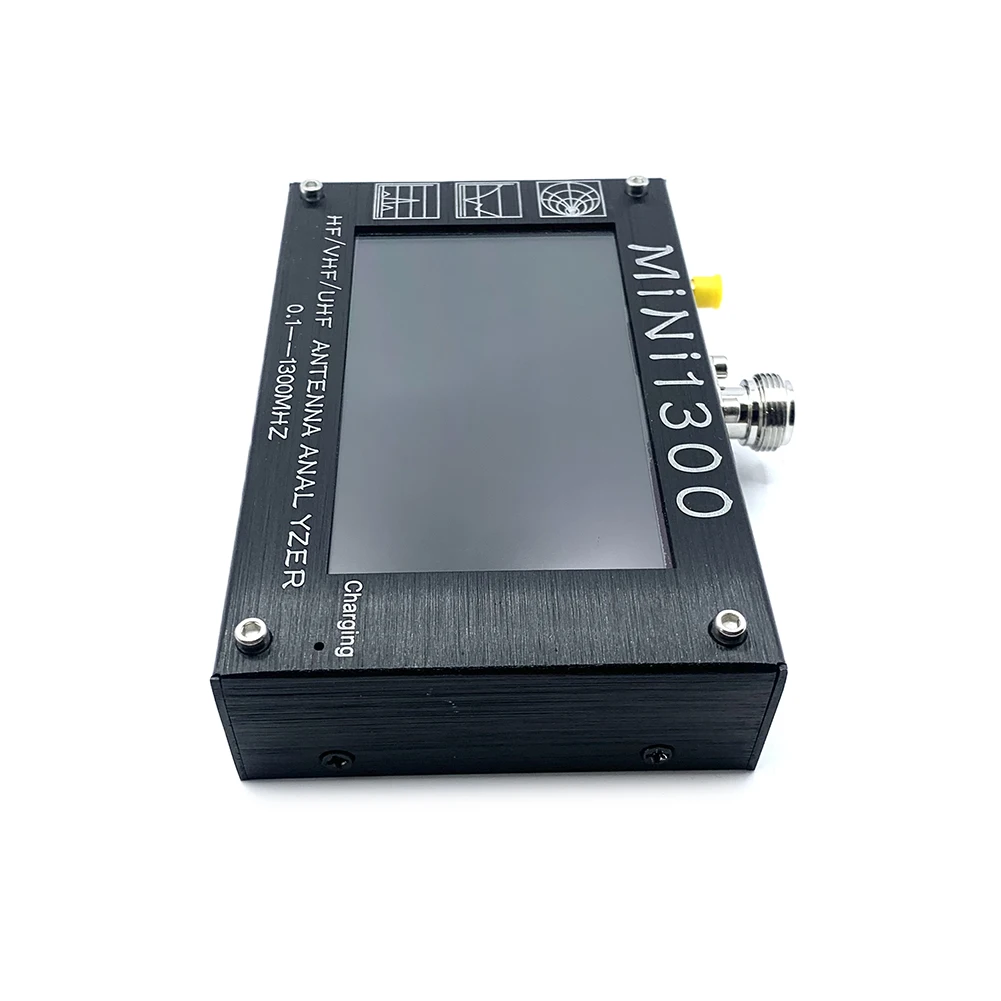

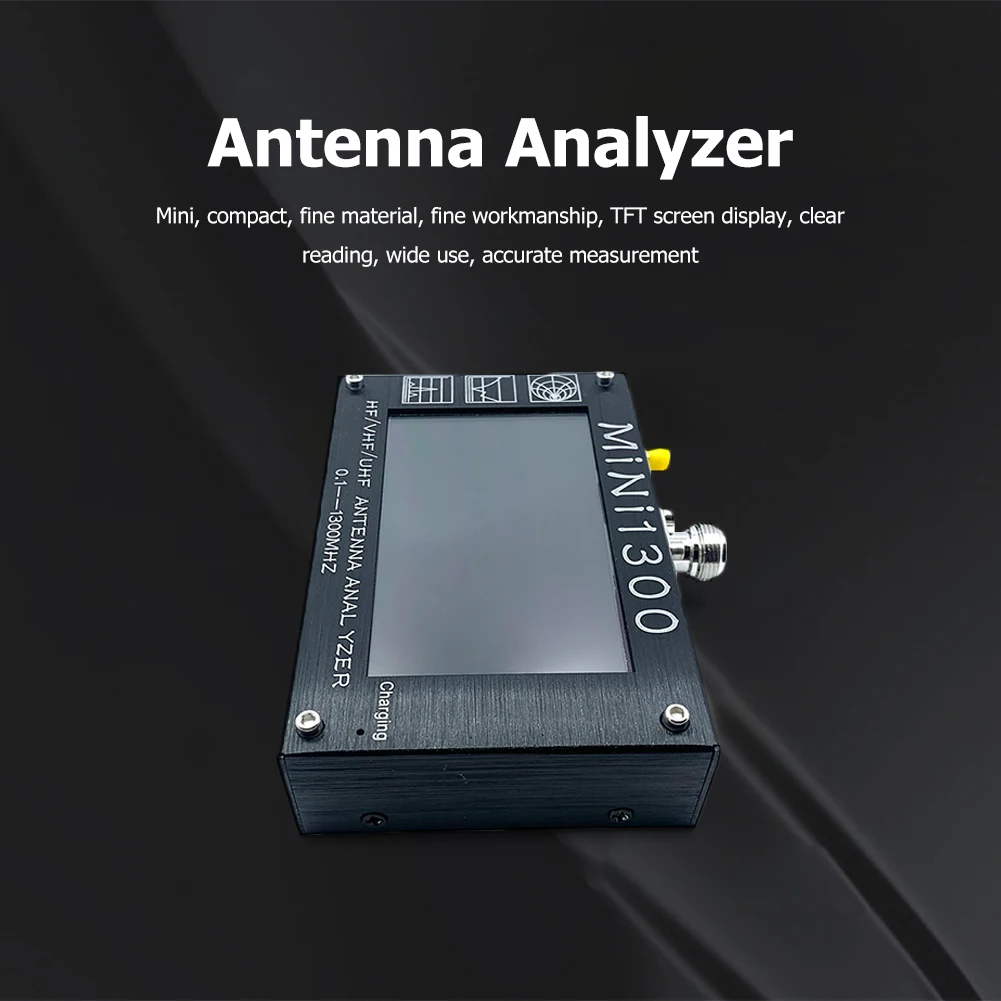

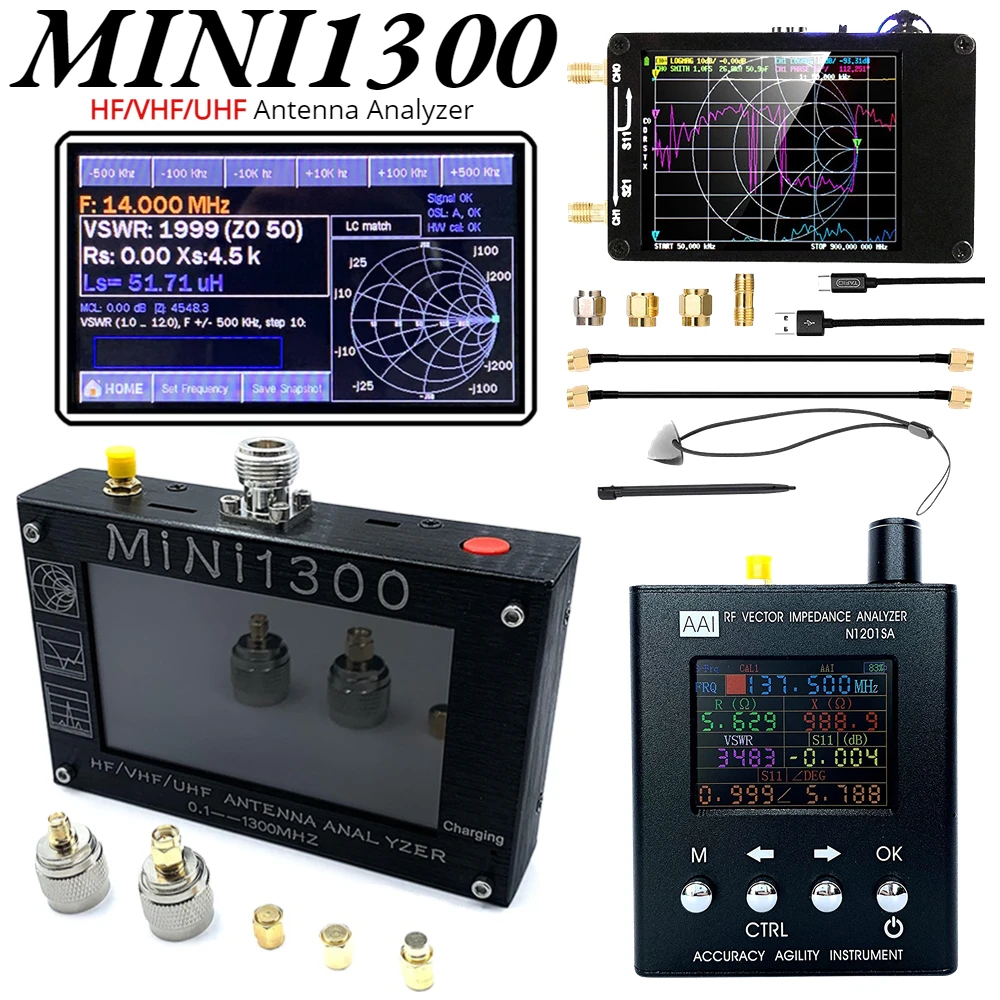

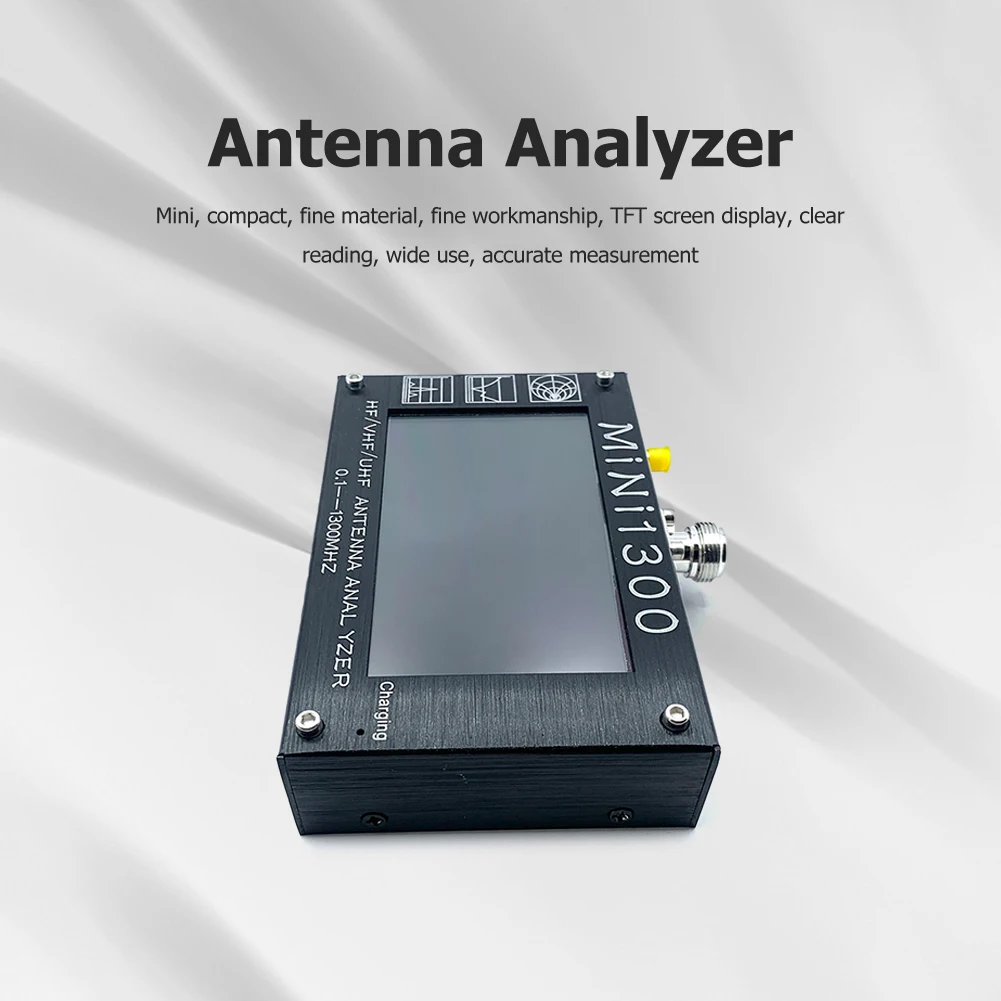

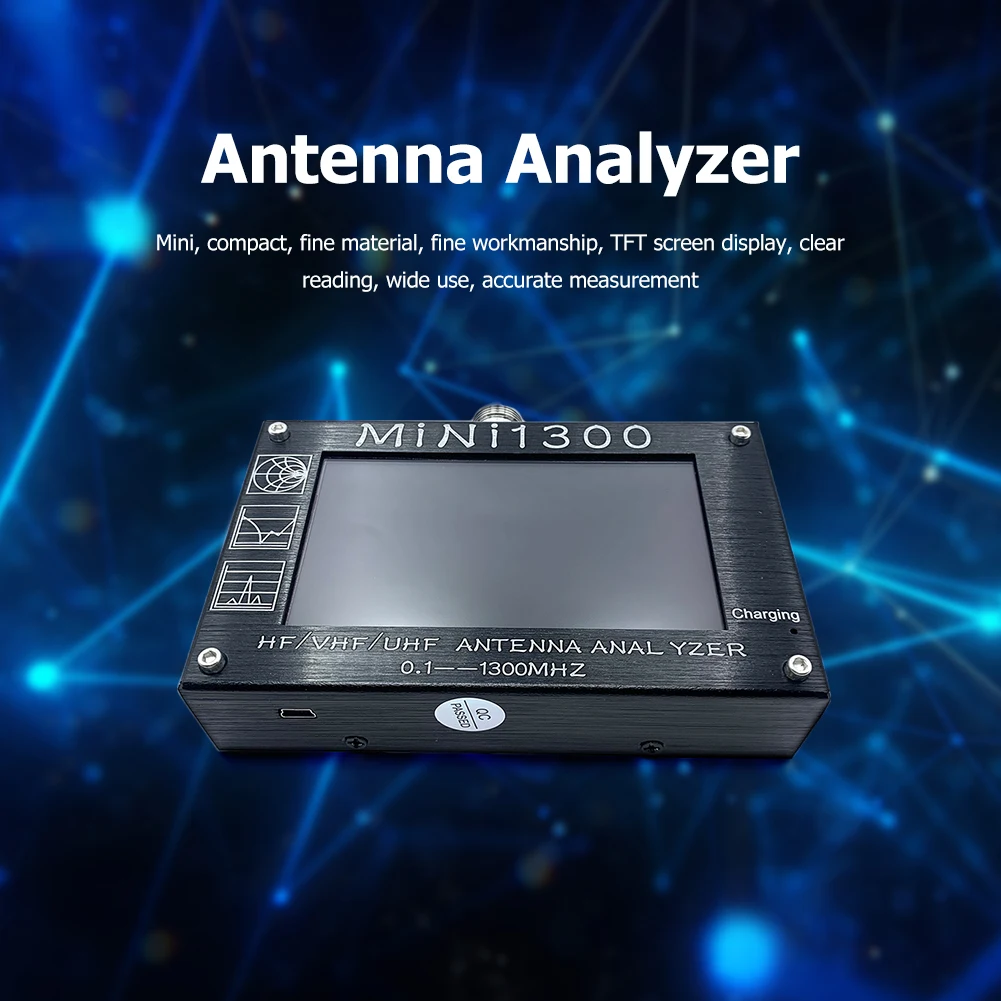

HF/VHF/UHF Antenna Analyzer 0.1-1300MHz Mini1300 Antenna Analyzer Measuring S Parameters Frequency Analyzer Aluminum Alloy Shell

Feature:

1. 100% Brand New Vector Network Analyzer:
The new spectrum analyzer size: 133 x 85 x 29 mm/5.2 x 3.3 x 1.1in, has high quality MF/HF/VHF input for 0.1-1300MHz.

2. Powerful Frequency Meter:
This antenna analyzer is lightweight, Input/Output Impedance: 50 ohms, maximum charging current: 5V/1.5A with 4.3inch TFT touch screen display make more accurate clear reading and easy to operate.

3. Accurate Measurement:
Built-in charging circuit and DC-DC booster, measurement parameters: SWR, R, +Jx, -Jx, |Z|, return loss; Measurement modes: single point measurement, sweep (frequency sweep) and TDR mode; SWR measurement range: 1.0-1999 (single point mode), 1.0-20.0 (sweep mode).

4. Wide Application:
This analyzer acts as an inexact signal source and frequency counter. Display mode: numerical display, curve display, analog chart. The aluminum shell is better RF performance than plastic shell.

5. Satisfaction Guarantee:
We strive to provide each customer with the highest standard of customer service to ensure you have a pleasant shopping experience. If you have any issues, inquiries or need assistance, please feel free to contact us directly.

Specification:

Certification: NONE
Origin: Mainland China
DIY Supplies: ELECTRICAL
Interface: USB
Model Number: Antenna Analyzer
Frequency range: 0.1-1300MHz
HF/VHF/UHF continuous coverage
Input/Output Impedance: 50 ohms
Measurement parameters: SWR, R, +Jx, -Jx, |Z|, return loss
Measurement modes: single point measurement, sweep (frequency sweep) and TDR mode
SWR measurement range: 1.0-1999 (single point mode), 1.0-20.0 (sweep mode)

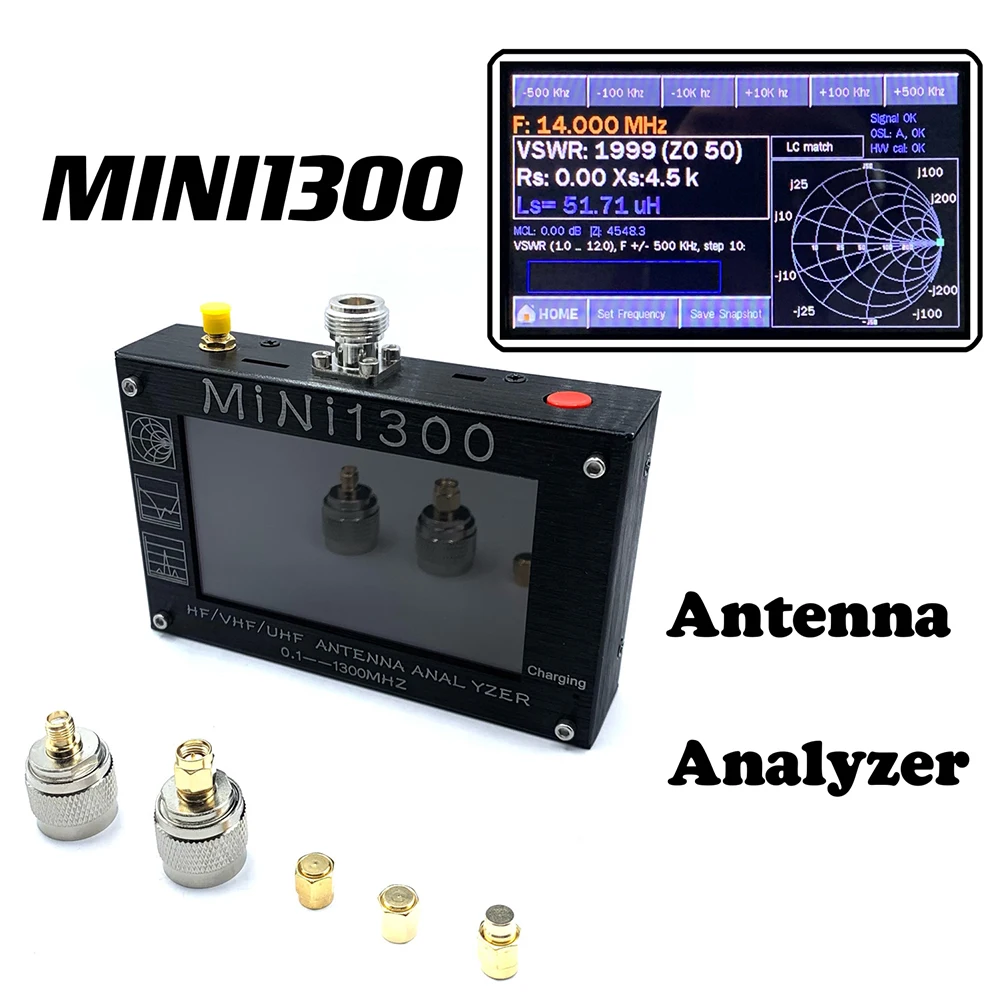

Display mode: numerical display, curve display, analog chart

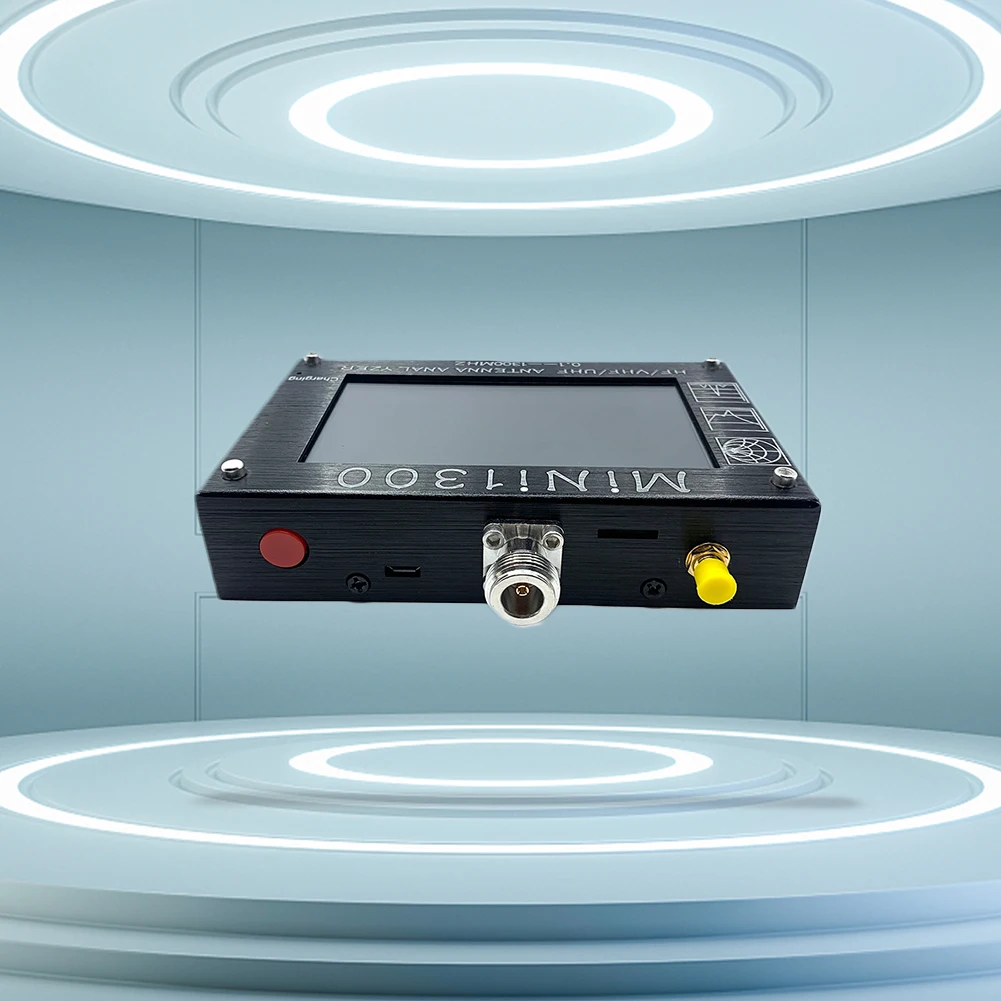

Connector type: UHF N-type connector
VNA: SMA

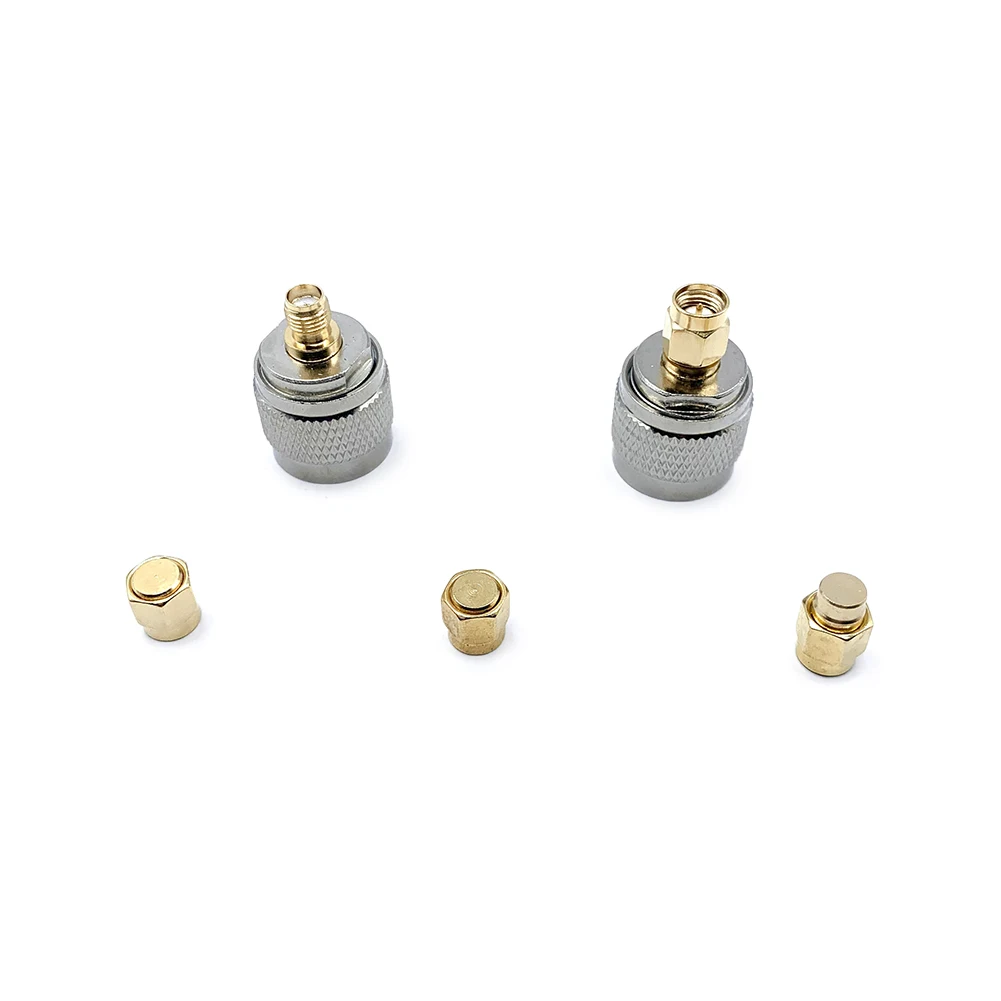

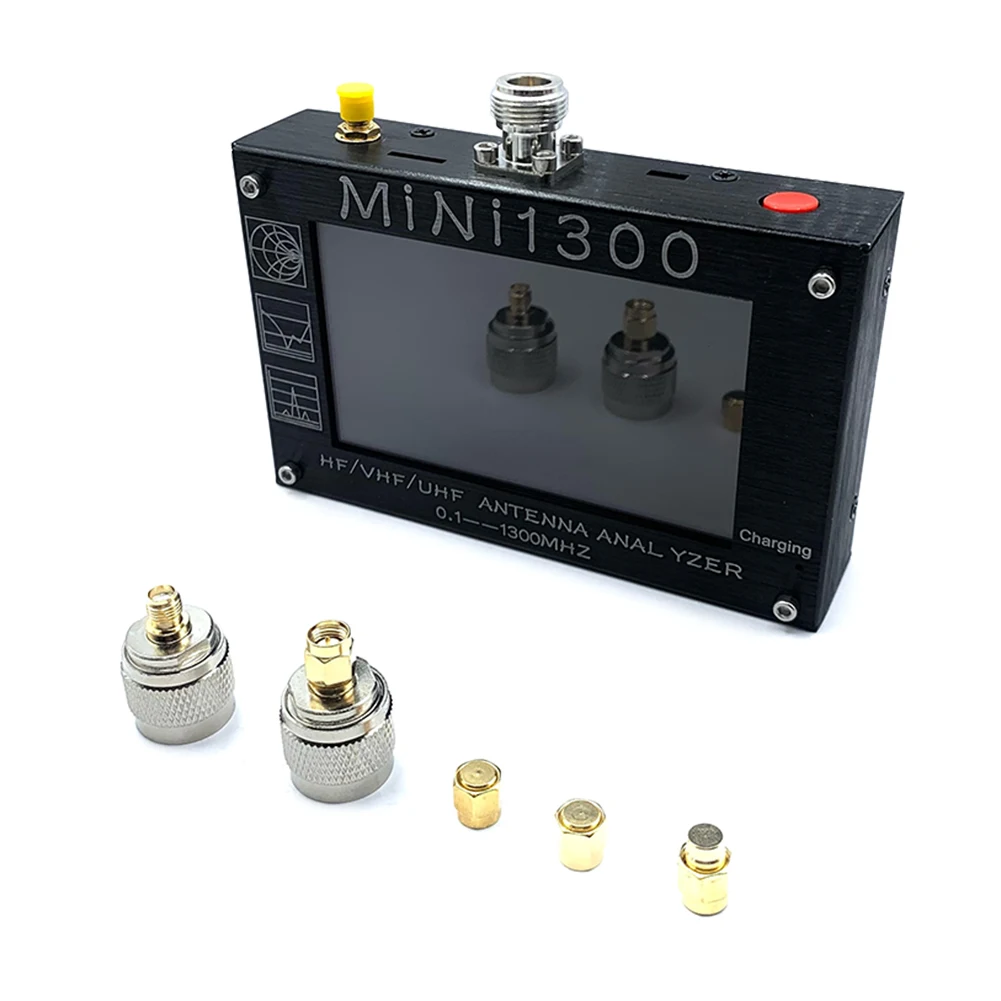

SMA OPEN-SHORT-LOAD Calibration Kit x 1
LCD Size: 480×272 4.3"/109.2mm TFT LCD Display
Touch Screen Type: Capacitive
All capacitive touchscreen on display – no buttons required
Power supply: USB or internal power supply
Built-in charging circuit and DC-DC booster
Maximum charging current: 5V/1.5A
External storage method: TF card

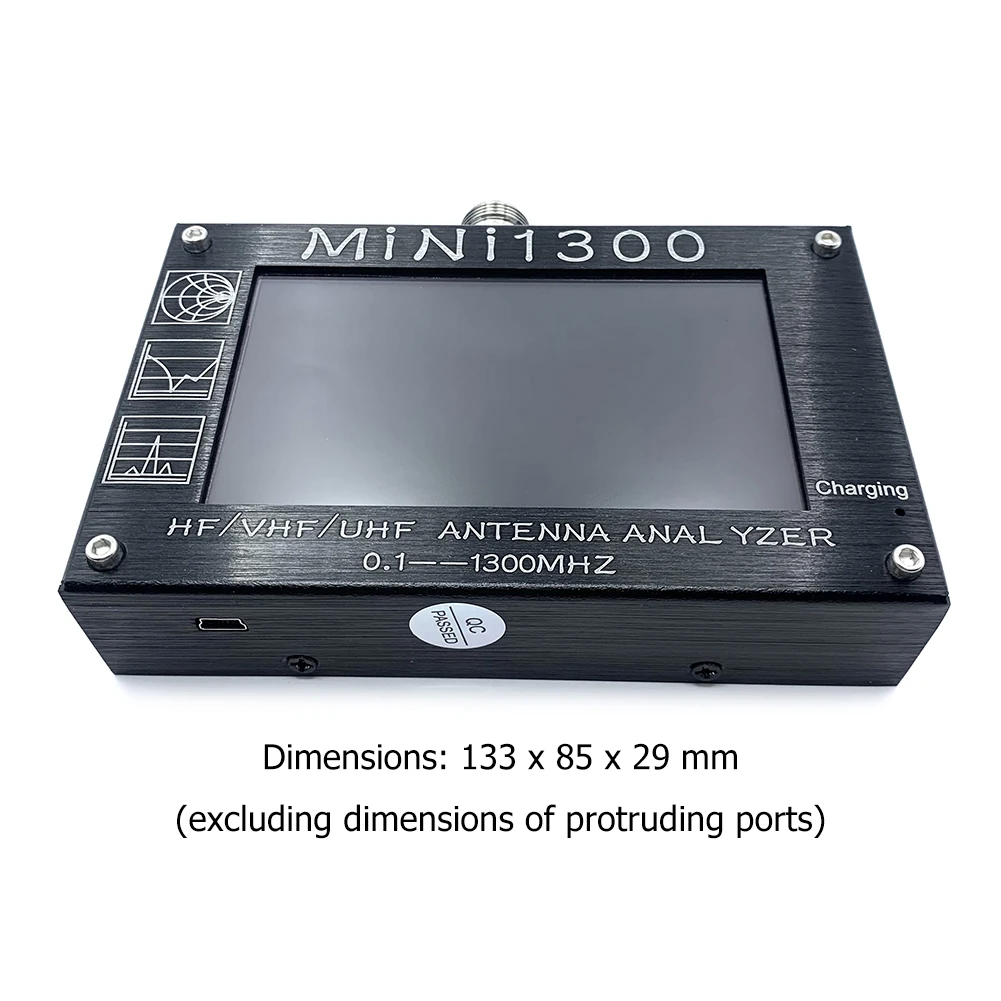

Dimensions: about 133 x 85 x 29 mm/5.2 x 3.3 x 1.1in (excluding dimensions of protruding ports)

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

SJ-001

Upgraded Vector Network Antenna Analyzer MF HF VHF UHF with Shell SD Card Slot Antenna Analyzer Tester
Feature:
1. With the addition of the ABS casing and the new packaging, Compared to many customers using 3D printed housing, it saves costs.
2. Support typec-type c line, more convenient to connect to mobile phones ,Support to most Android phones with the same screen display(Doesn’t support for iPhone). Solve the problem of small screen, insufficient brightness and so on.
3.Support time domain analysis function (TDR)
4.The battery usage can be displayed on the interface.
5.The product serial number is attached to the back
6.Changed the outer packaging, the world cover hot stamping carton, plastic inner protection. Reduce problems caused by transportation shocks and other processes.

Specification:
PCB: 54mm x 85.5mm x 11mm (without connectors, switch size)
Measurement frequency: 10KHz-1.5GHz
RF output: -13dbm (max -9dbm)
Frequency accuracy: <0.5ppm
Measurement range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz, with extended firmware enabled)
Port SWR: < 1.1
Display: 2.8" TFT (320×240)
USB interface: USB Type-C; Communication method: CDC (serial)
Power supply: USB 5V 120mA, built-in 400mAh power supply, maximum charging current 0.8A
Calibration points: 101 (fixed)
Scan points: 101 (fixed)
Display Tracks: 4, Markers: 4, Save Settings: 5
Measure S-parameters, VSWR, phase, delay, Smith chart, etc.
Size: About 110*75mm

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 x Vector Network Analyzer Multitester Kits

Additional information

Color	2.8 inch SJ-001, 4.3 inch Mini1300
Battery Included	Yes
High-concerned chemical	None
Model Number	Antenna Analyzer
Interface	USB
DIY Supplies	Electrical
Origin	Mainland China
Display Size	3.0 – 4.9 Inches
Certification	None
