Description
- High-concerned chemical: None
- Wattage: other
- Brand Name: MOES
- Certification: CE
- Origin: Mainland China
MOES Tuya ZigBee Smart Knob Thermostat Star Ring Series Temperature Controller Water Boiler Electric Heating With Alexa Google
BY MOES
Star Ring Smart Knob Thermostat

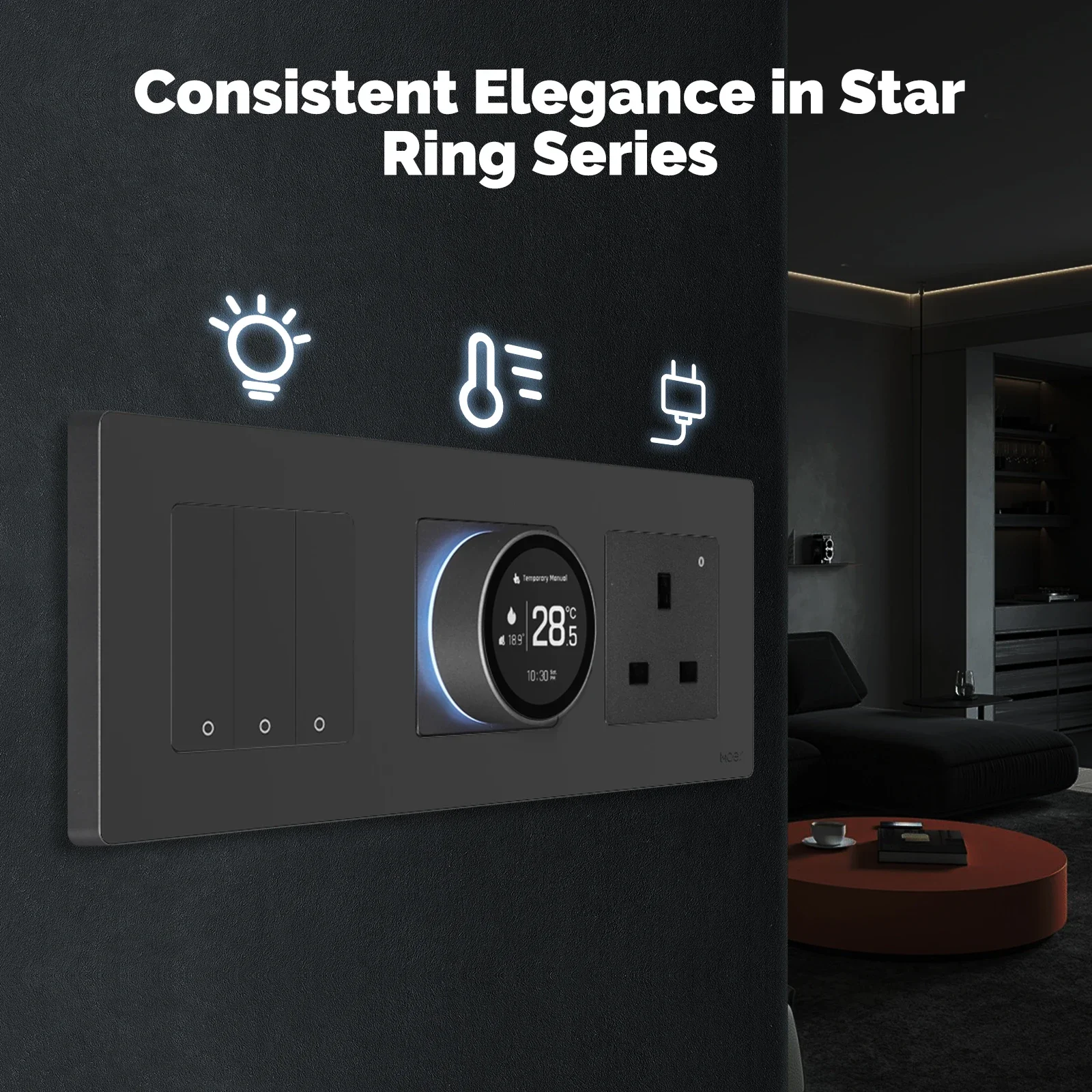

Consistent Elegance in Star Ring Series
APP Remote Control
Voice Control

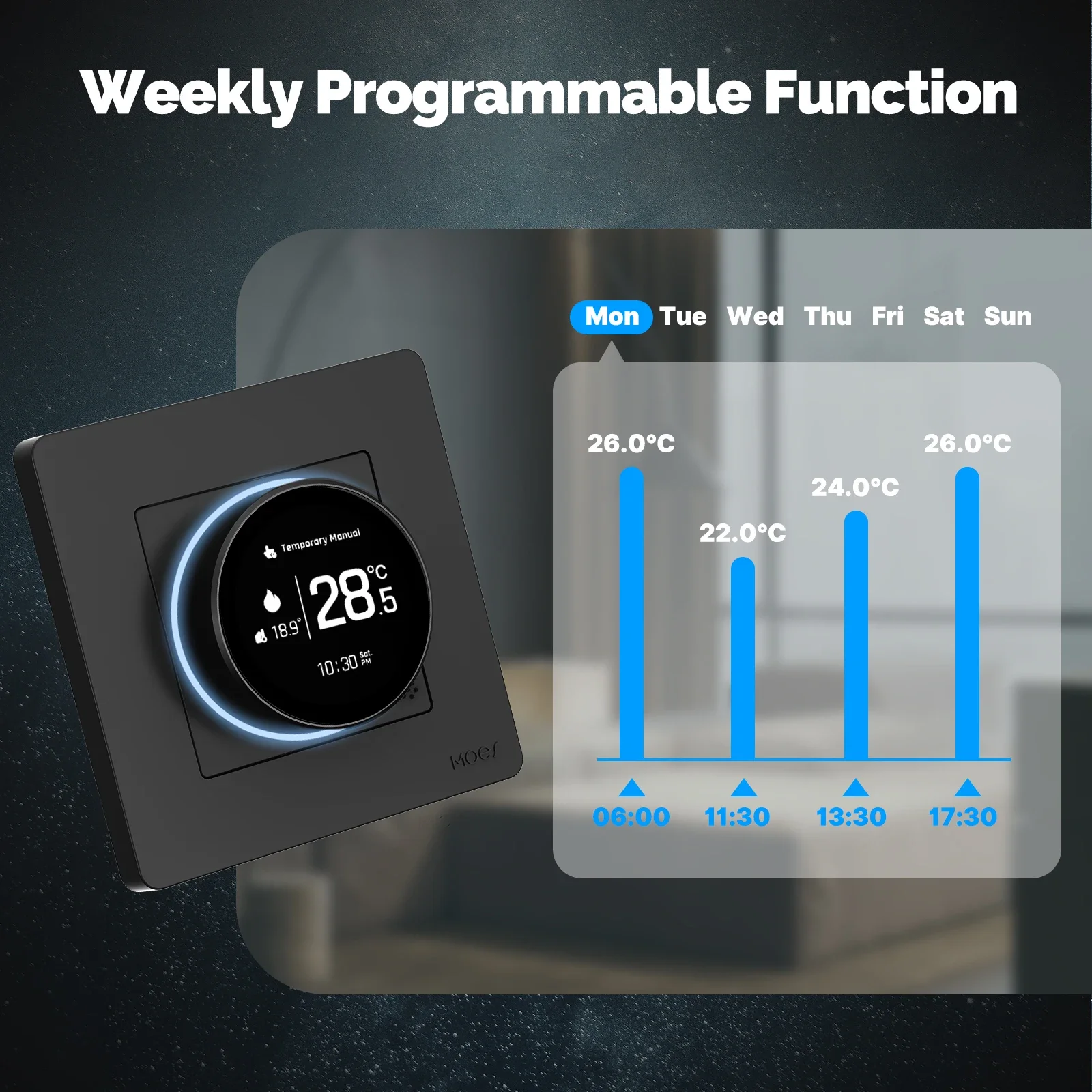

Weekly Programmable Function
Display Panel Supports 9 Languages
Notice before purchase
NOTE: ZigBee gateway is required, please purchase in addition.
0%-100% Adjustable Standby Screen Brightness
The brightness of the standby screen can be adjusted to 0-100% on the APP or the product screen. The product has the backlight effect of the ambient light, and the ambient light can be set to on/off.
Three Versions for Different Types of Heating
The three products are designed for different heating methods: water heating, electric heating, and boiler. Please choose the corresponding GA, GB, or GC thermostat according to your home heating method.
Child Lock Function
In order to avoid the danger or waste of electricity caused by children touching the switch by mistake, the child lock can be activate by App.
Smart Linkage
The smart home linkage advantage brought by smart thermostat is incomparable to traditional temperature control. Assuming that there is a sensor linkage with the human body, when it senses that a person has left the room, the smart temperature control and smart lights will automatically turn off, which also has the effect of energy saving.
Energy Saving Mode: Save Up to 20% on Your Electricity Bills
After turning on the energy-saving mode, the heating temperature will be adjusted to the energy-saving temperature you set in the APP. Statistics show that it can save you up to 20% of electricity bills.
Temperature Calibration
In case of the temperature variation between the floor and the air, you can set the calibration value by App, to make sure the final temperature reaches your ideal value.
Protect from Excessively High or Low Temperature
After the high temperature protection function is turned on, when the temperature reaches the set peak, the thermostat will automatically close to protect the safety of the temperature control system and the family; When the low temperature protection function is turned on, the thermostat will automatically turn on when the temperature is too low to ensure that your home is maintained at a suitable and safe temperature.

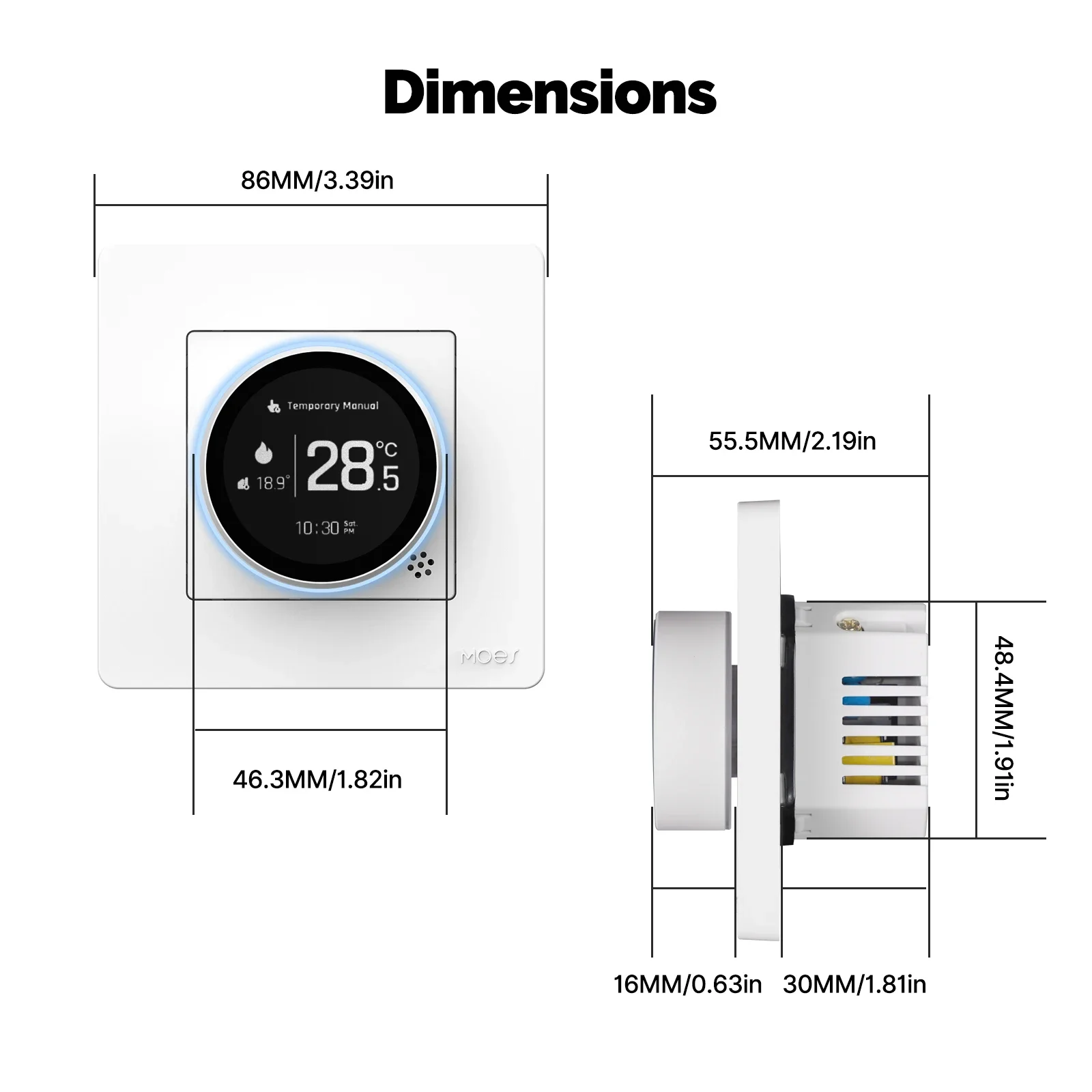

Dimensions
Technical Specifications:
Voltage / Frequency:95-245V AC, 50/60Hz
Current Load:5A (water heating, gas boiler)16A (electric heating)
Communication Method:ZigBee
Module Model:ZT3L
Max RF Power:+20dBm
Operating Frequency:2.405-2.480GHz
Zigbee Standard:IEEE 802.15.4
Sensor:NTC3950, 10K
Accuracy:±1℃
Set Temp. Range:5~35℃
Display Temp. Range:5~99℃
Storage Temp.:0~45℃
Power Consumption:<1.5W
Timing Error:<1%
Shell Material:PC +ABS (Fireproof)
Protection Class:IP20
Packing List
Smart Thermostat *1
External temperature sensor cable (For GB version only) *1
Manual *1
AliExpress Shopper (verified owner) –
The product is perfectly packaged. It works perfectly. A very good temperature sensor with accuracy down to 0.5 degrees checked with a mercury thermometer. Highly recommended.
AliExpress Shopper (verified owner) –
Works very well. With Home Assistant, many options for changes.
D***a (verified owner) –
Everything is fine, I am satisfied. The device works properly, it is aesthetically pleasing and well-made.
AliExpress Shopper (verified owner) –
Very fast delivery.
High-quality product.
Temperature can be calibrated. Works perfectly.
e***r (verified owner) –
This moes zigbee smart knob thermostat is an excellent choice for smart heating/cooling control.
Integration and functionality:
Integration is seamless: it connects to zigbee2mqtt (z2m) and home assistant (ha) without any issues.
Effective control: i use it reliably to control both heating (water boiler) and cooling (ac) based on the season.
Design and cons:
Display quality: the screen quality, featuring the “star ring” design, is very good and highly visible.
Only drawback: the main limitation is the lack of configuration options on the device itself:
You cannot set the day of the week displayed on the screen.
You cannot define whether the display shows the ambient temperature or the setpoint temperature.
Overall, it’s a great, cost-effective, and compatible thermostat that performs its core function (temperature control) very well via ha.
AliExpress Shopper (verified owner) –
Works well , zigbee manager and google home as well, so good
Realy nice and adjustable device. Design is nice.
Cover of the plastic feel a liittle cheap but ok,
R***n (verified owner) –
Most instructions are poor for this (especially if wiring to a multi-zone install). It has a smart learning function too (which isn’t mentioned). Was a slight faff to add to smart things, but got there. Looks good so far! Can’t complain about the delivery time, ordered on the 23rd december and received on the 29th! Impressive! !
AliExpress Shopper (verified owner) –
I use it in my two.roomks and it’s silent easy to set up. Definitely recommend to buy. Smart lige ako helps to contoll it remotely
