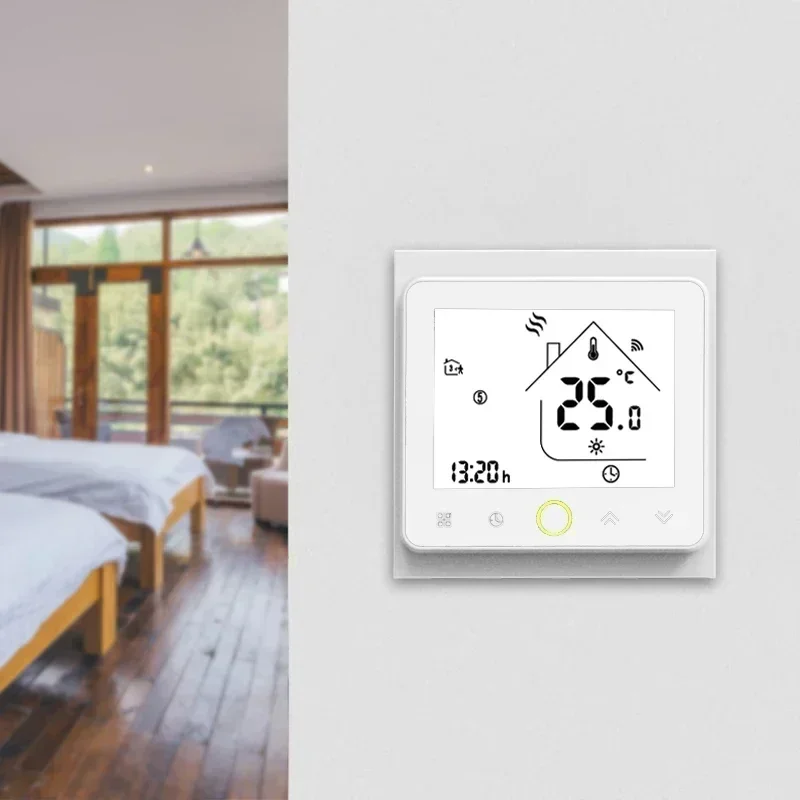

MOES WiFi Water/Electric Floor Heating Thermostat Gas Boiler Temperature Controller Smart Alexa tuya Google Voice zigbee Control
Description
- High-concerned chemical: None
- Communication method: Zigbee,Wi-fi
- Brand Name: MOES
- Origin: Mainland China
- Certification: CE
- Power Supply: 95-240VAC, 50~60HZ
- Fan Relay Amps: Resistance:5A Inductive:3A
- Valve Relay Amps: Resistance:3A/ Inductive:1A
- Sensor: NTC3950, 10K
- Accuracy: +-0.5’C
- Set Temp. Range: 5 -35’C
- Dispaly Temp. Range: 5 ~ 99’C
- Ambient Temp.: 0 ~ 45’C
- Ambient Humidity: 5 ~ 95 % RH (Non Condensing)
By MOES
Attention:
1.Water Heating / Water Gas Boiler , doesn’t include Floor sensor
2.The ZigBee style needs to be used with a gateway, and the package does not include a gateway
Installation Height
Need to be installed at the correct location (1.2-1.4 meters) for the display toshow data clearly
VOICE CONTROL
voice control via Alexa and Google assistant

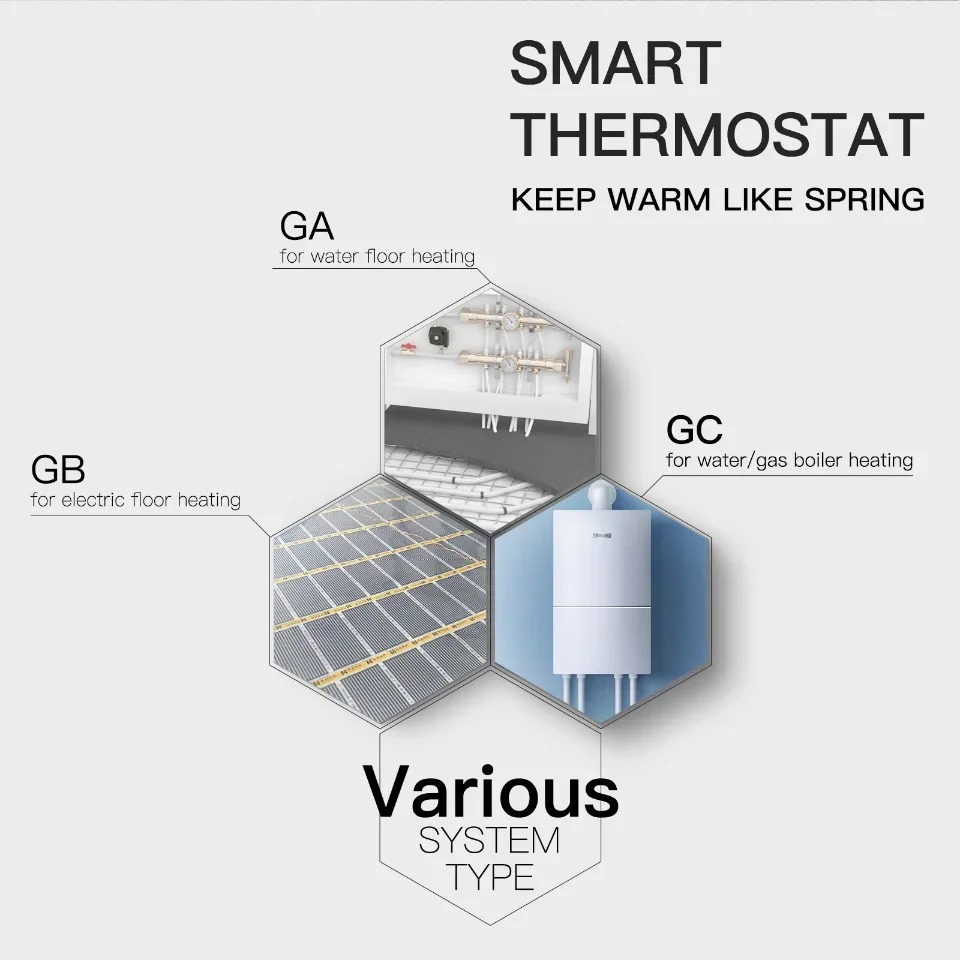

SMART THERMOSTAT KEEP WARM LIKE SPRING
TIMER FUNCTION
weekly programmable
RELIABLE DESIGN
LCD Display x Soft Touch
Wireless Remote Control
WiFi connection allows to control house temperature on smart phones whenever and wherever you are
SHARE DEVICE
Device share to your family members to control the smart thermostat together

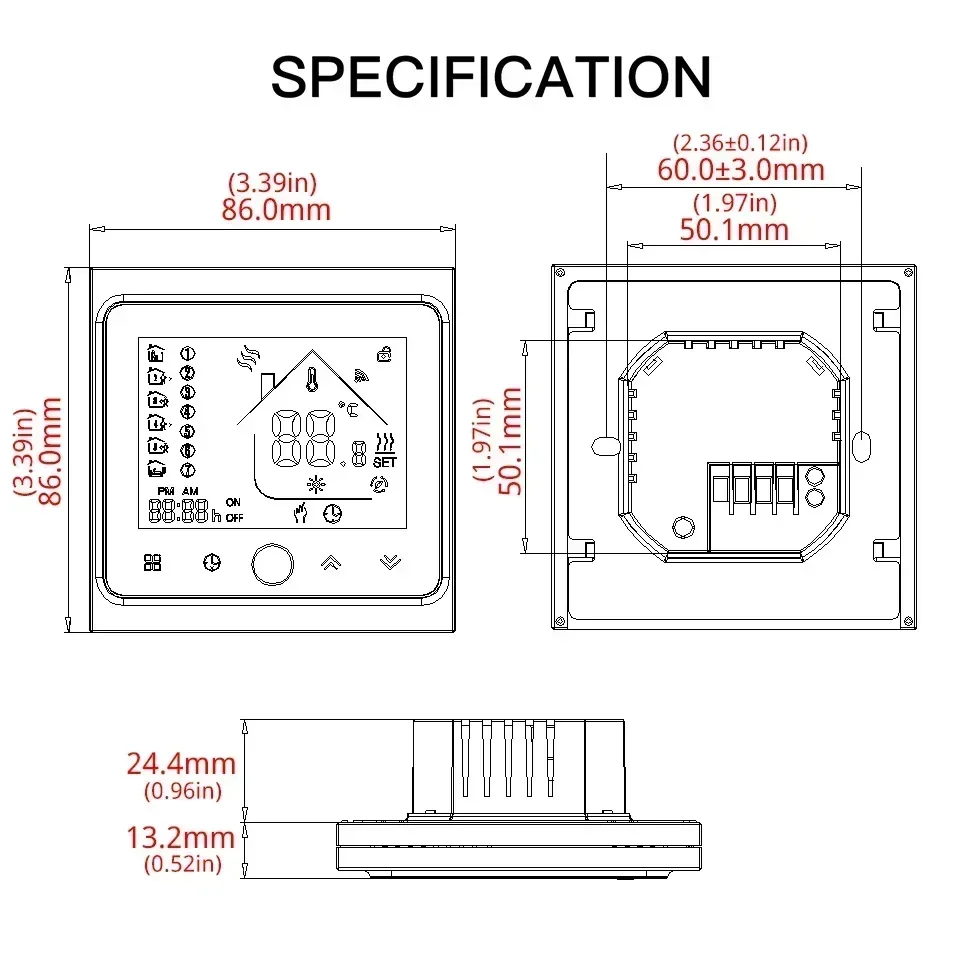

Fit for various hidden box
compatible with standard 86mm square cassettes and 6Omm european cassettes to meet all installation environments

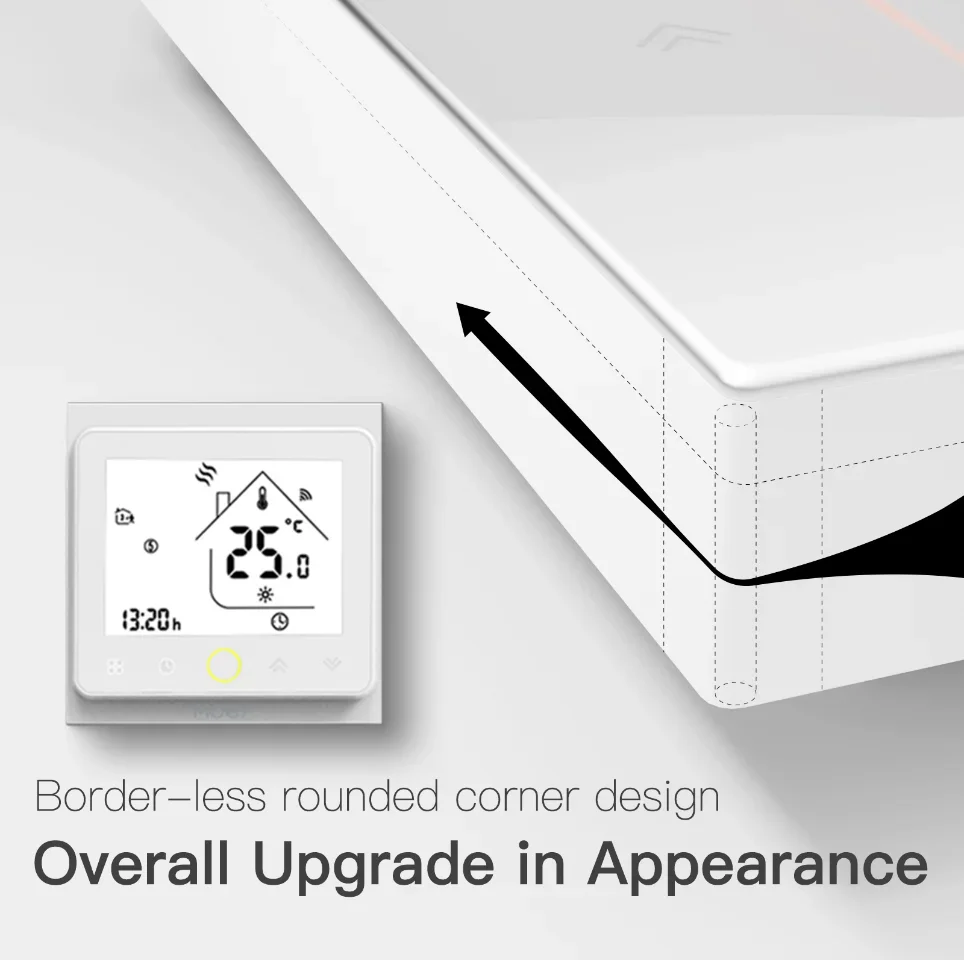

Overall Upgrade in Appearance
Border-less rounded corner design
WIRING INSTRUCTIONS
Applicable type:GA For Water Heating
NOTE:This thermostat is only suitable for the control of thermal actautor
Wiring Instructions
Applicable type:GC For Gas Boiler Heating
Wiring Instructions
Applicable type:GB For Electric Heating
Additional information
| Bundle | Electric Heat GB, Gas boiler GC, Water Heat GA |
|---|---|
| High-concerned chemical | None |
| Communication method | Zigbee,Wi-fi |
| Brand Name | MOES |
| Origin | Mainland China |
| Certification | CE |
| Power Supply | 95-240VAC, 50~60HZ |
| Fan Relay Amps | Resistance:5A Inductive:3A |
| Valve Relay Amps | Resistance:3A/ Inductive:1A |
| Sensor | NTC3950, 10K |
| Accuracy | +-0.5'C |
| Set Temp. Range | 5 -35'C |
| Dispaly Temp. Range | 5 ~ 99'C |
| Ambient Temp. | 0 ~ 45'C |
| Ambient Humidity | 5 ~ 95 % RH (Non Condensing) |
| Color | WIFI Black, WIFI White, Zigbee Black, Zigbee White |
