Multi-frequency 250-915 MHz clone copy replication remote control 868 MHz brand garage door remote control 433MHz remote control

1 , Name：Universal Remote Control

2 , Material：ABS

3 , Buttons : 4 Buttons

4 , Battery：CR2032（Include Battery)

5 , Distance：30-150m (Open area)

6 , Corresponding frequency: 250-915MHz

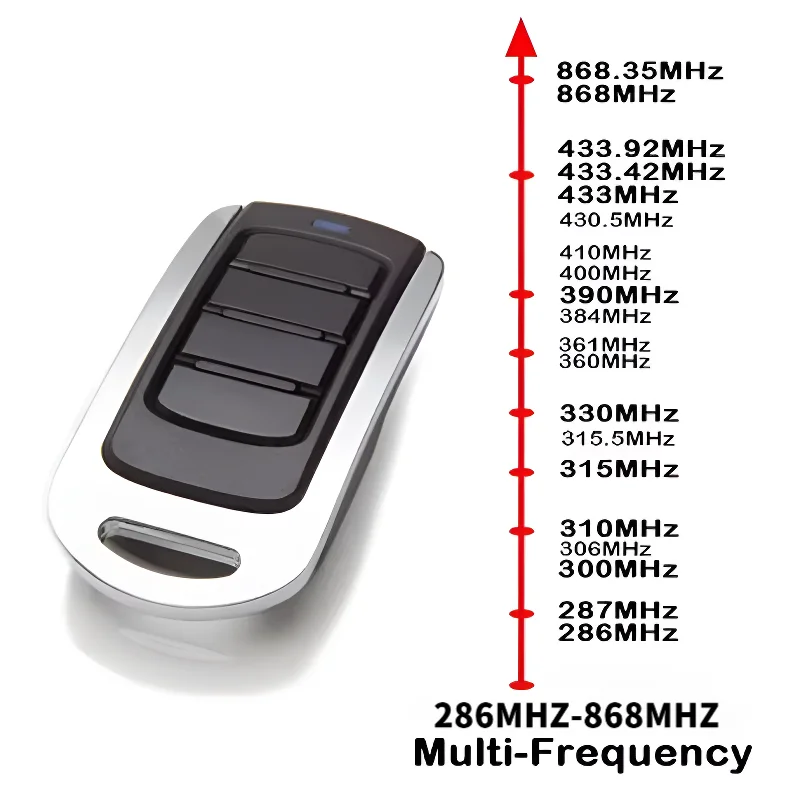

7 , Learning frequency range: 287MHz,300MHz ,306MHz ,310MHz ,315MHz, 315.5MHz ,330MHz, 360MHz ,390MHz, 410MHz, 430.5MHz, 433.42MHz, 433.92MHz, 868.35MHz, 286-361MHz, 384-400MHz.

8 , Scope of use：Uses: garage doors, Gate Doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products, Alarm Systems etc

9 , If your remote control is a fixed code, after cloning, the new remote control will work.

10 , If your remote control is rolling code, after cloning, the new remote control needs to be programmed / activated on the receiver, the new remote control works

Features

Chrome-Plated Buttons

Hard plastic with a chrome-plated finish, providing crisp and precise tactile feedback.

LED Indicator

Clearly displays the operating status for easy monitoring.

Sleek and Compact Design

Smooth, rounded body ensures a comfortable grip and fits effortlessly in any space.

How to Copy a Remote Control After Receiving It?

01 Clear Existing Codes First

Simultaneously press the two buttons in the first row (as shown in the diagram) until the indicator light flashes three times. Then release either button and press the other button three times (while still holding the first one). The indicator will start flashing rapidly, indicating the codes have been cleared successfully. (After clearing, a short press on any button will not light up the indicator.)

02 Copy and Pair

Hold the original remote control in one hand and the copy remote in the other, placing them close together. Press the corresponding button you wish to copy on both remotes simultaneously. The LED indicator will flash slowly twice, then rapidly three times, and finally stay lit continuously, indicating successful copying. Repeat this process for all other buttons as needed.

How to Restore After Accidental Code Clearance?

If you accidentally clear the codes, you can restore the previously saved remote control codes by simultaneously pressing the two buttons in the second row of the copy remote until the indicator flashes rapidly.

(Note: This method only works if you have cleared the codes by mistake and have not yet performed any new copying operations.)

Application Scenarios

Various Electric Doors

Electric garage doors, barriers, security gates

Vehicles

Motorcycles, electric scooters (remote control copying)

Home Applications

Lighting fixtures, projection screens, electric windows and doors

Include

Remote Control

Battery

Keychain

English Manual

Note-Note-Note

When you receive the remote control, if you don't know how to use it, please contact us first, because this is a multi-frequency remote control, which can be compatible with many brands, and the cloning method for special brands is different, so when you don't When you can use it, please remember to contact us
