Description
- High-concerned chemical: None
- Model Number: SXG80*120
- Guide Width or Diameter: 15mm
- Origin: Mainland China
- Certification: CE
- Effective Stroke: 50mm-1200mm Optional
- Total length: Effective Stroke+190mm
- Ballscrew type: SFU1605/SFU1610
- Horizontal load: 80KG (Max)
- Vertical load: 40KG (Max)
- Module material: Industrial Aluminum Profile
- Module width: 1200mm

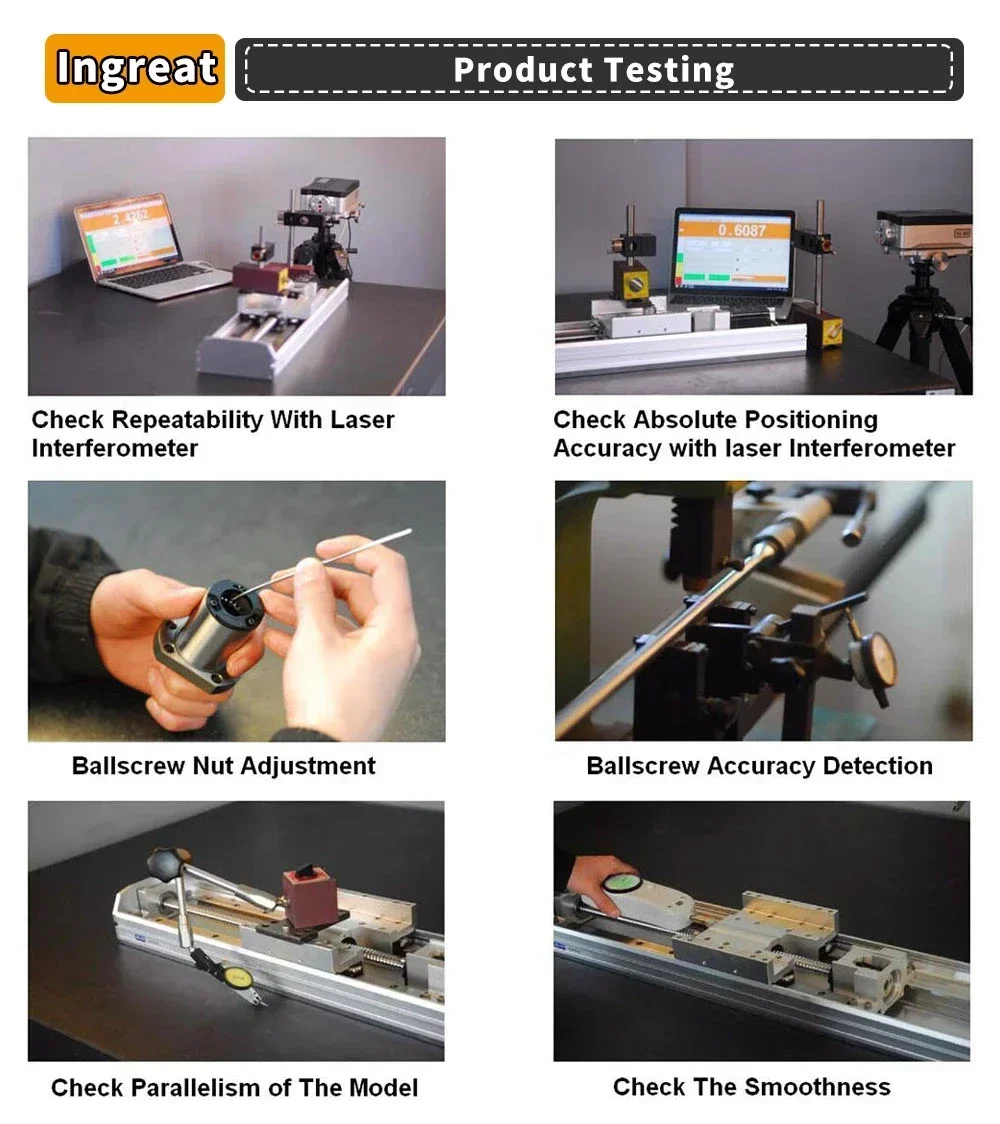

- Repeat positioning accuracy: ±0.03mm
- Ballscrew accuracy: C7
- Rail width/diameter: 15mm
- product type 1: Aluminum Profile Table
- product type 2: CNC Workbench
- product type 3: XYZ Axis Table
- product type 4: CNC Table
- product type 5: Optical Axis Table
- product type 6: Sliding Table Kit
- product type 7: Motor Linear Kit
- product type 8: Linear Guide Rail
- product type 9: Motor Linear Rail Kit
- product type 10: xyz stage
- product type 11: linear stage
If you choose Nema 23 57mm/Nema 34 86mm/60mm servo bracket:
1* Anti impact coupling
(If you want a SFU1610, please contact us)
(If you want a 80 servo motor bracket, please contact us)
1* Double rail slide tableIf you choose 1.2/2/3Nm Motor kit:
1* Double rail slide table
1* Nema 23 57mm Open-loop Stepper Motor
1* TB6600 Drive
1* Anti impact couplingIf you choose 1.5/2/3.2Nm All in one kit:
1* Double rail slide table
1* Nema 23 57mm Closed Loop Stepper Motor Drive All-in-one
1* Anti impact coupling
1*
Double rail slide table1* Anti impact coupling
(If you want a SFU1610, please contact us)
(If you want a 80 servo motor bracket, please contact us)
If you choose Manual Slide table:
1* Double rail slide tableIf you choose 1.2/2/3Nm Motor kit:
1* Double rail slide table
1* Nema 23 57mm Open-loop Stepper Motor
1* TB6600 Drive
1* Anti impact couplingIf you choose 1.5/2/3.2Nm All in one kit:
1* Double rail slide table
1* Nema 23 57mm Closed Loop Stepper Motor Drive All-in-one
1* Anti impact coupling

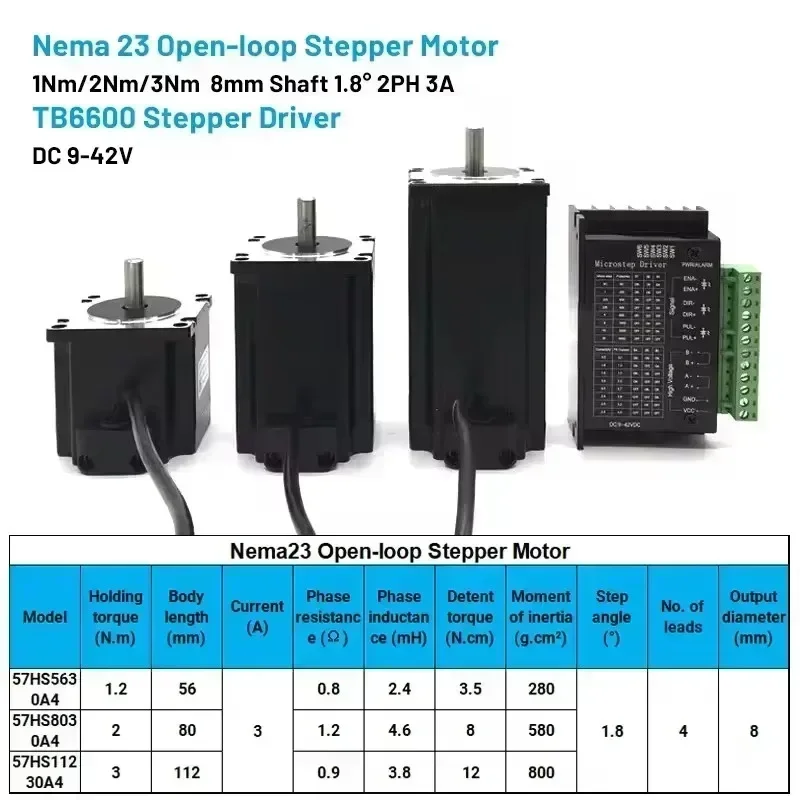

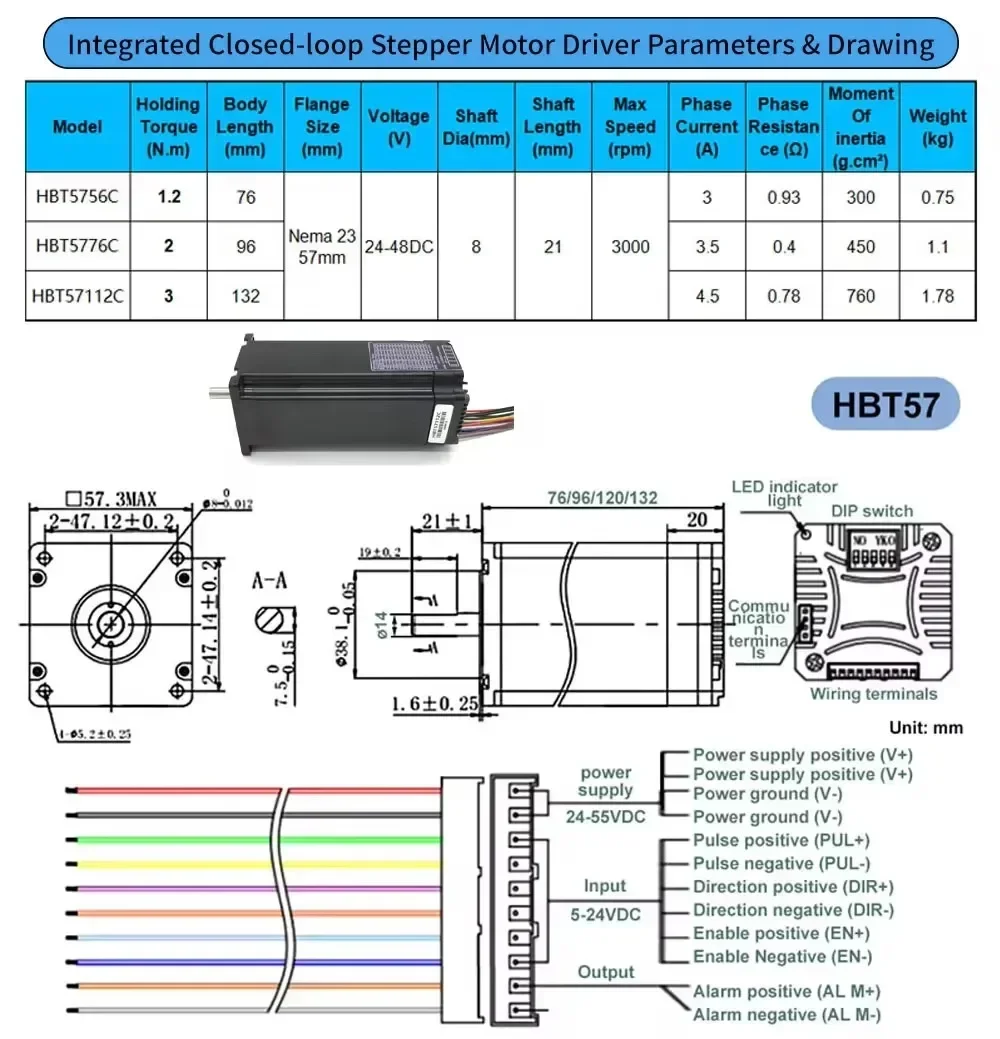

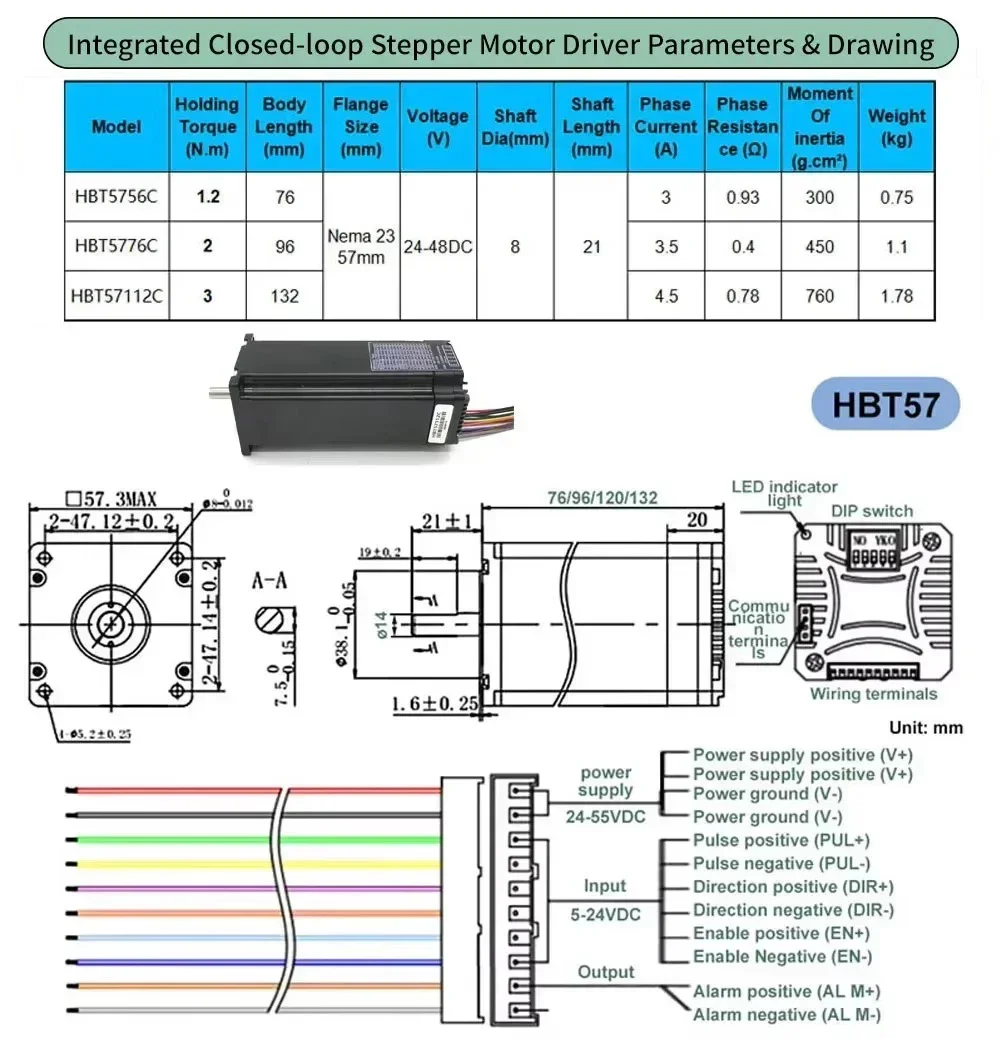

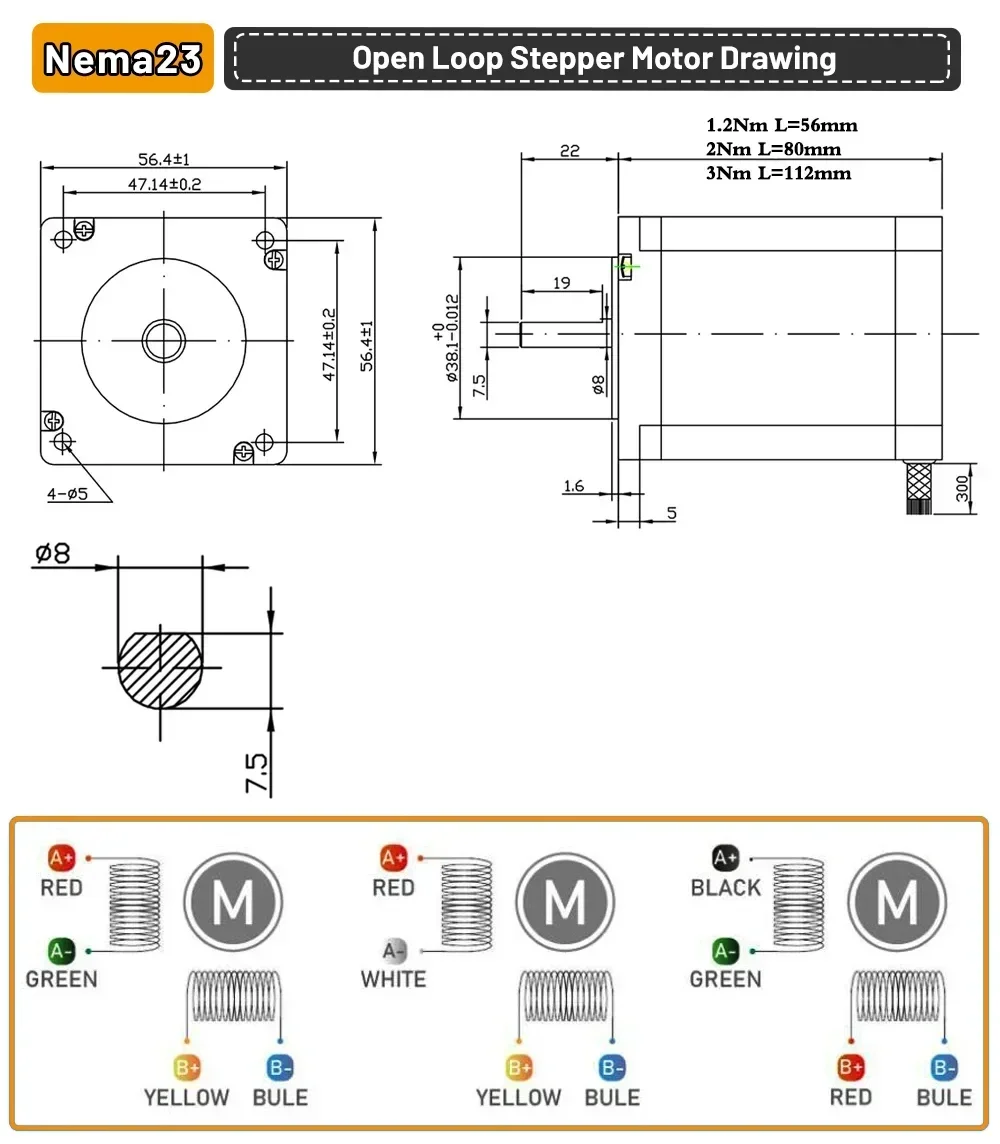

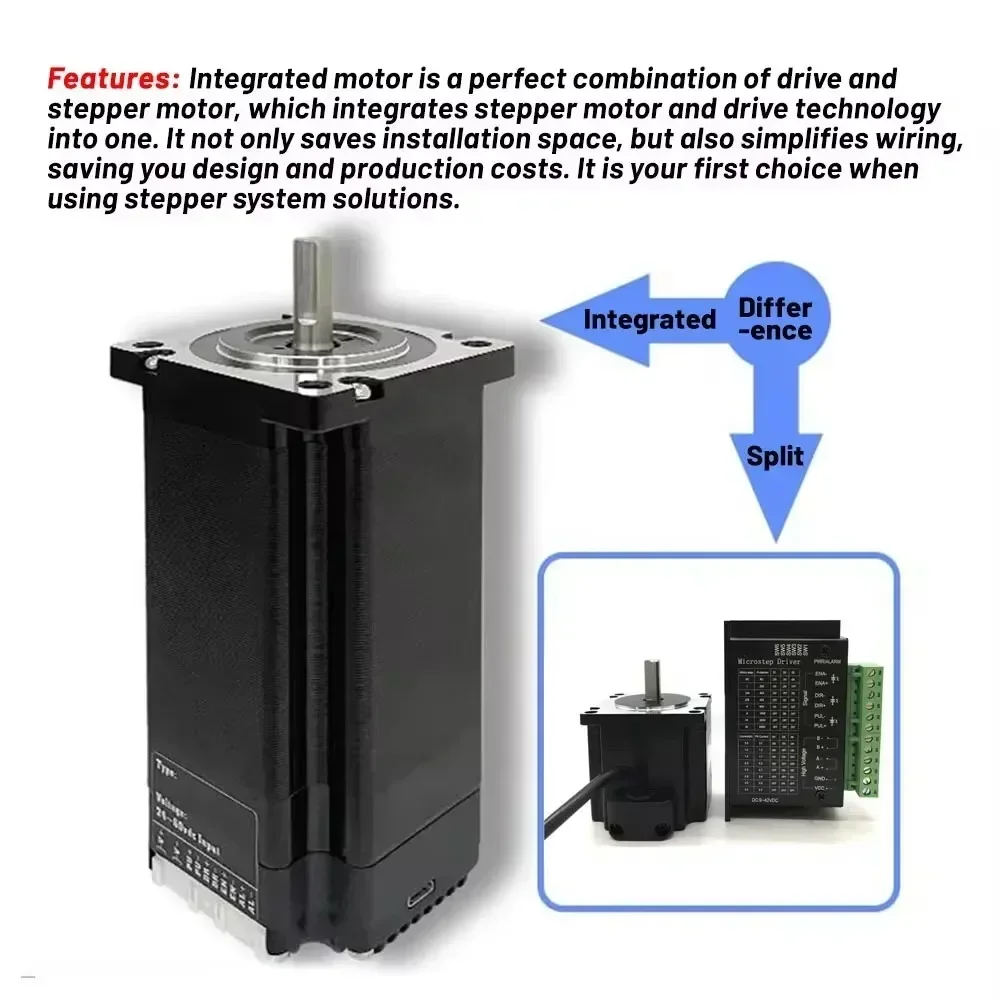

Nema23 57mm Flange Stepper Motor and Closed-Loop Motor All-in-one | ||||||
Model | Holding torque | Body length | Current | Phase resistance | Moment of inertia | Output diameter |
57HS5630A4 | 1.2 | 56 | 3 | 0.8 | 280 | 8 |
57HS8030A4 | 2.0 | 80 | 3 | 1.2 | 580 | 8 |
57HS11230A4 | 3.0 | 112 | 3 | 1.6 | 800 | 8 |
HBT5756C | 1.5 | 76 | 3 | 0.93 | 300 | 8 |
HBT5776C | 2 | 96 | 3.5 | 0.4 | 450 | 8 |
HBT57112C | 3.2 | 132 | 4.5 | 0.78 | 760 | 8 |

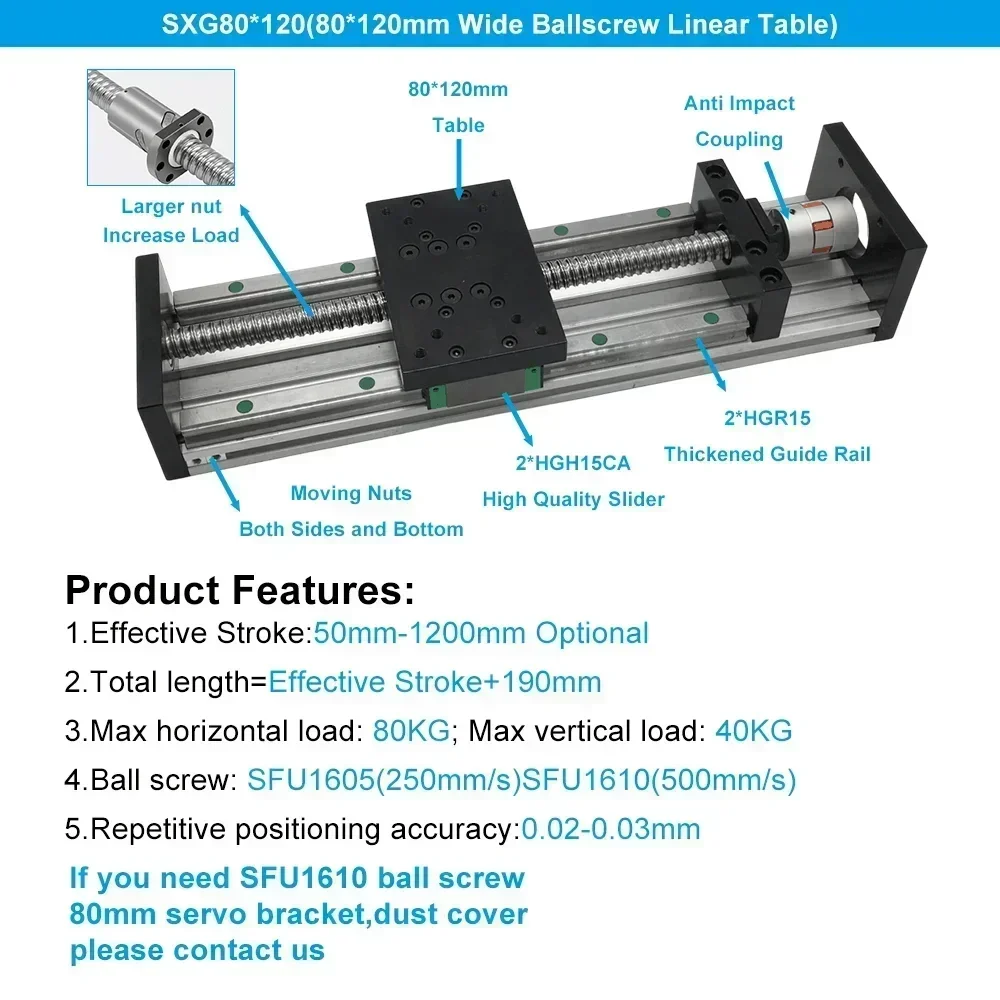

Sliding Table Technical Parameters:

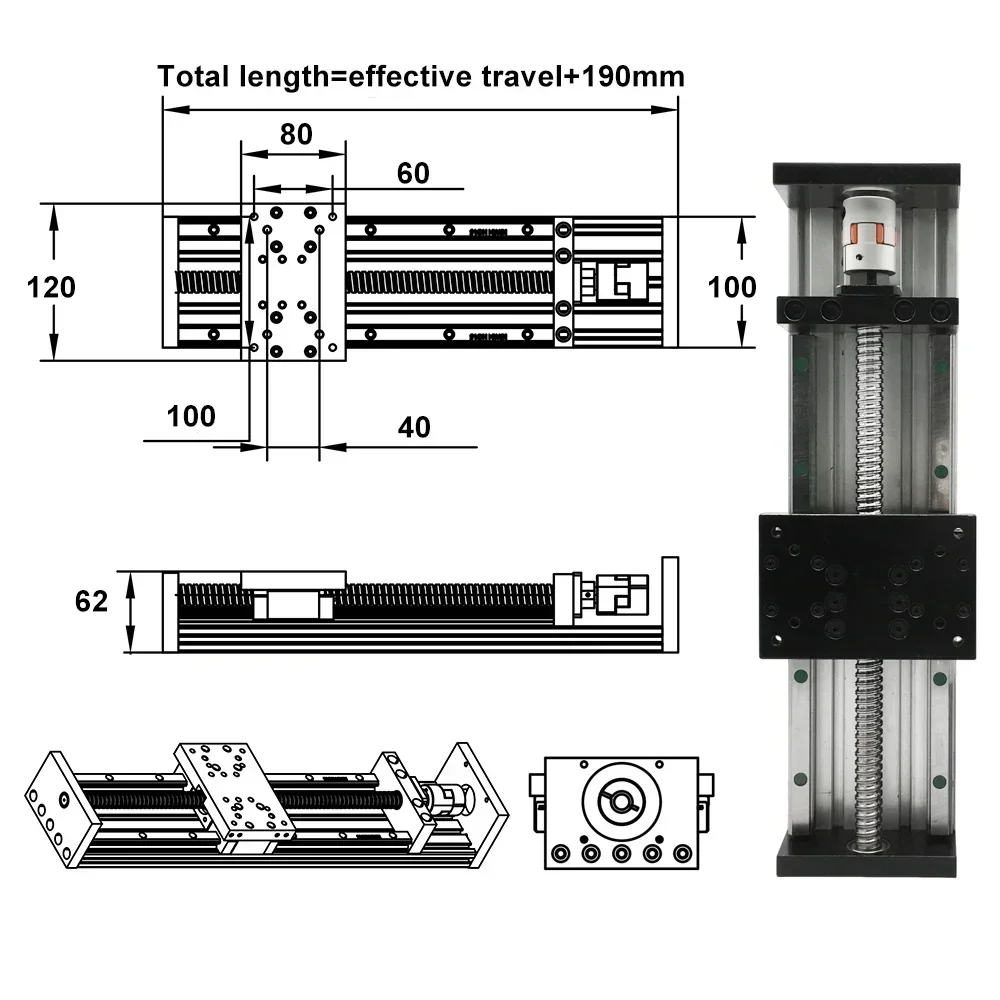

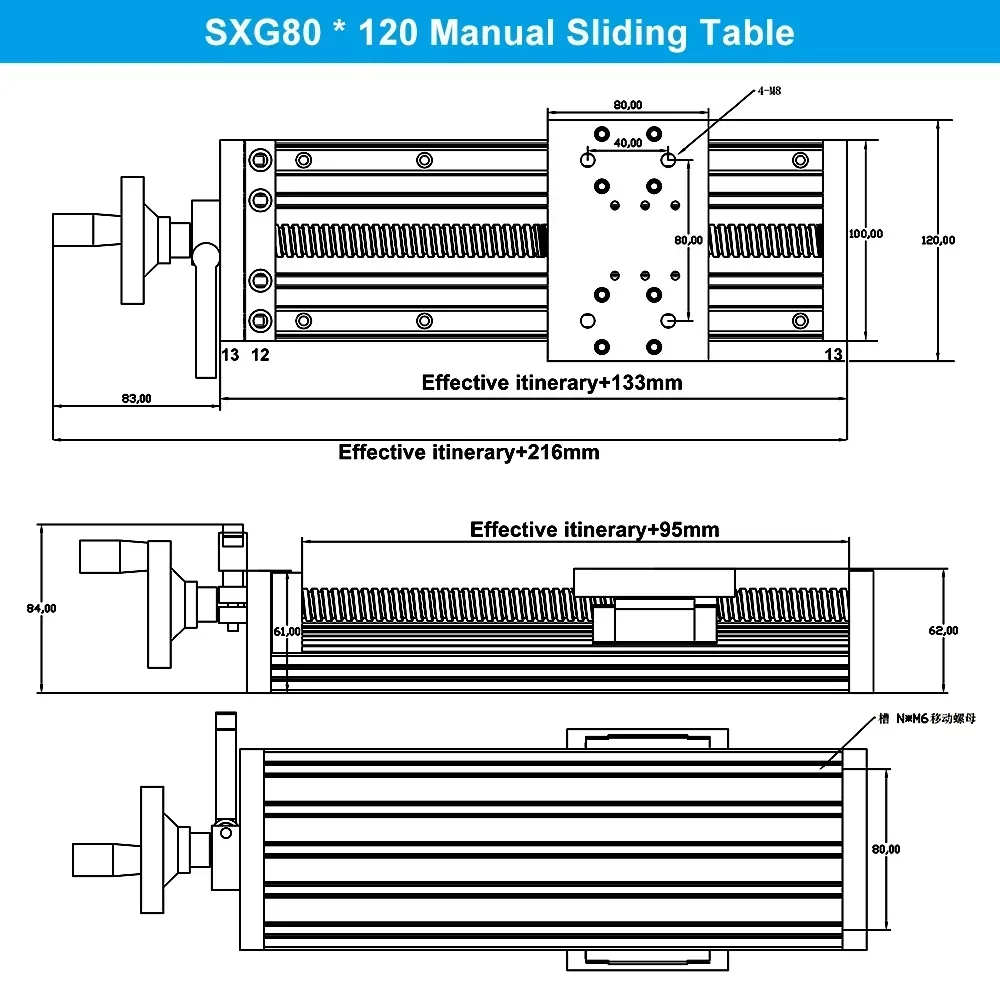

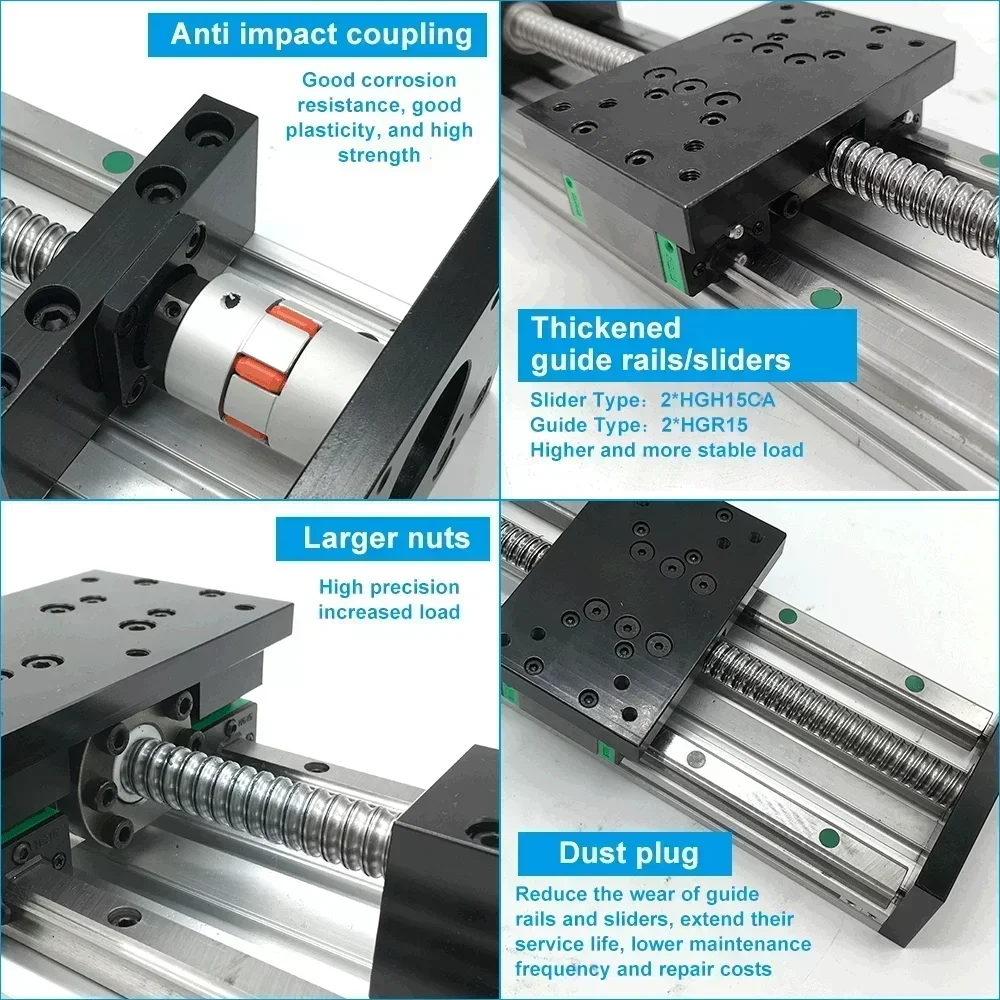

●Model: SXG80*120
●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) / SFU1610
●Model: SXG80*120
●Ballscrew type: SFU1605 (Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm) / SFU1610
●Ballscrew accuracy: C7 level
●Effective stroke: 50mm-1200mm Optional
●Total length: Effective Stroke+190mm
●Mobile panel size: 80*120mm
●Slider Type:2*HGH15CA
●Guide Type:2*HGR15
●Horizontal load: 80KG (Max)
●Vertical load: 40KG(Max)
●Ballscrew Repeat positioning accuracy: ±0.3mm
●Material: Industrial Aluminum Profile
●Total length: Effective Stroke+190mm
●Mobile panel size: 80*120mm
●Slider Type:2*HGH15CA
●Guide Type:2*HGR15
●Horizontal load: 80KG (Max)
●Vertical load: 40KG(Max)
●Ballscrew Repeat positioning accuracy: ±0.3mm
●Material: Industrial Aluminum Profile
Drive Technical Parameters:
●Model: TB6600
●Manual: https://drive.google.com/open?id=1NHNwZy4P7mjvHdQcrkXWJ-gS2cBF_tMk
●Input voltage: DC 9-42V
●Input/ Output current: 0.5-3.5A
●Maximum power: 150W
●Subdivision: 1,2,4,8,16,32
●Operating environment temperature: -10～45℃
●Storage temperature: -40℃～70℃
●Manual: https://drive.google.com/open?id=1NHNwZy4P7mjvHdQcrkXWJ-gS2cBF_tMk
●Input voltage: DC 9-42V
●Input/ Output current: 0.5-3.5A
●Maximum power: 150W
●Subdivision: 1,2,4,8,16,32
●Operating environment temperature: -10～45℃
●Storage temperature: -40℃～70℃
