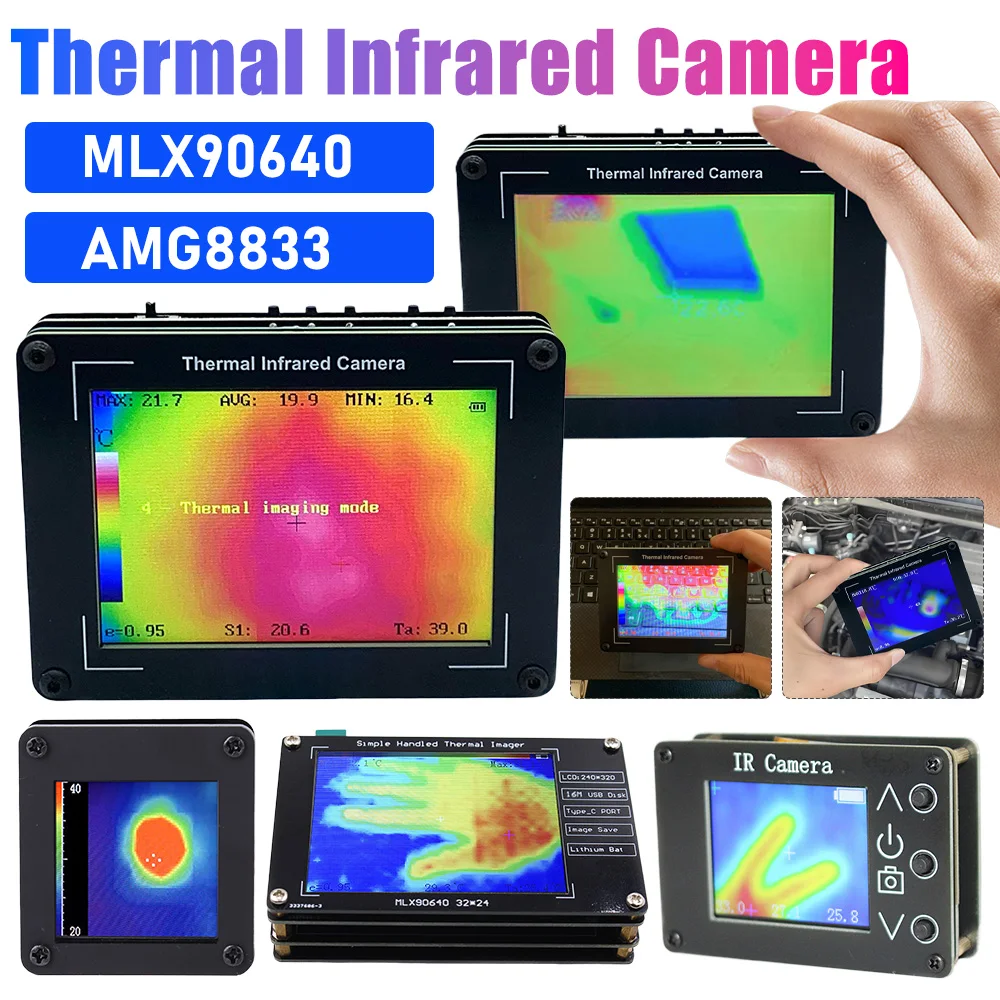

(MLX90640 3.5 inch)–Thermal Infrared Camera
|
3.5 Inch Thermal Infrared Camera -40-450℃ Measurement 32×24 Pixel Thermal Imaging Camera Infrared Thermal Imager for Inspection Electrical/Mechanical Building
Feature:
1.Professional thermal imaging technology: This high-performance infrared thermal imager is equipped with the advanced MLX90640ESF-BAB infrared sensor and OV2640 visible light camera, providing clear thermal images for various applications.
2.High-resolution display: The infrared imager features a 32*24 pixel far-infrared array and a 480*320 pixel 3.5-inch TFT LCD screen, ensuring clear image details for diverse inspection needs.
3.Wide temperature measurement range: Capable of measuring temperatures from -40°C to 450°C with an accuracy of ±2°C, making it ideal for industrial, construction, and environmental monitoring scenarios.

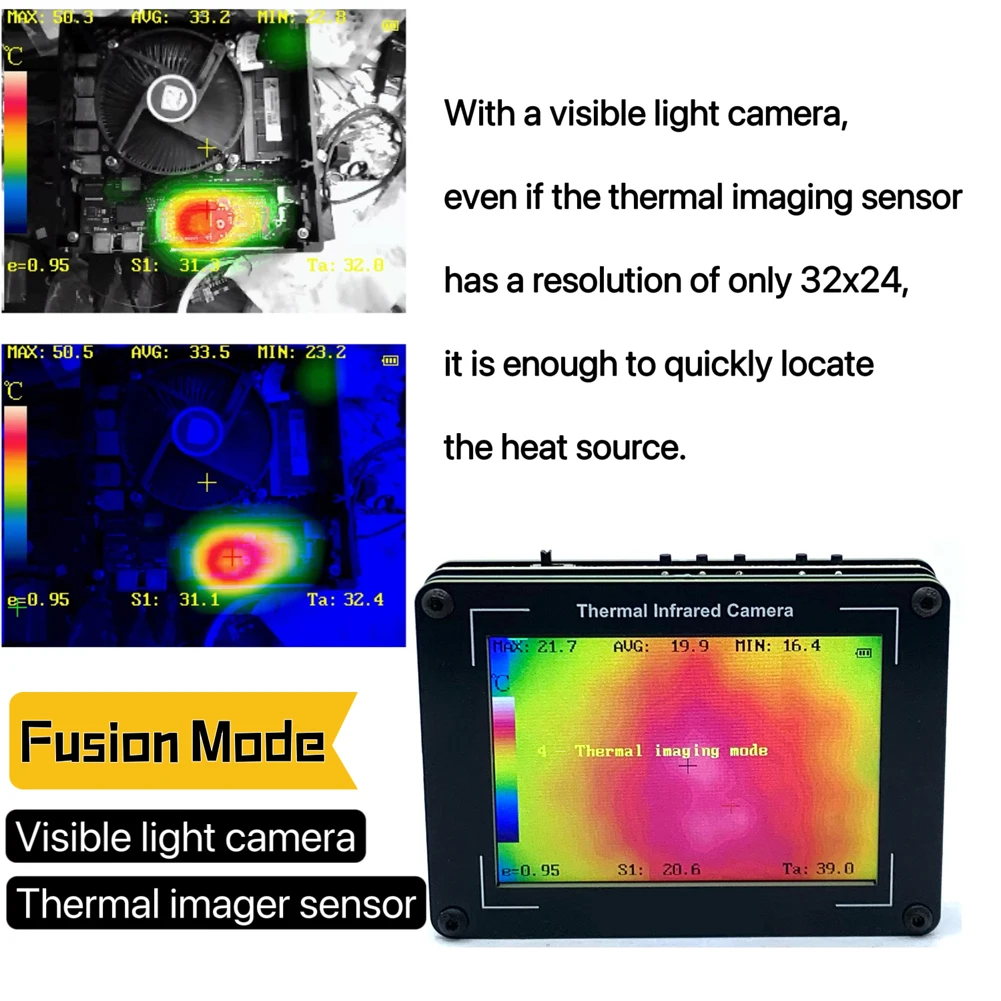

4.Multiple display modes: Offers four display modes (semi-overlay, overlay, visible light, and thermal imaging), allowing you to switch as needed for optimal visualization in different settings.
5.Intelligent temperature tracking: Automatically tracks maximum and minimum temperatures, with fixed center target temperature cursor displaying target object temperature, facilitating quick identification of temperature anomalies.
Specification:
Origin: Mainland China
-Infrared sensor: MLX90640ESF-BAB
-Visible light camera model: OV2640
-Hardware resolution: 32*24 pixels
-Screen resolution: 480*320 pixels
-Temperature measurement range: -40°C to 450°C
-Measurement accuracy: ±2°C
-Operating temperature: 0°C-50°C
-Refresh rate: 4Hz
-Field of view: FOV=55°*35°
-Emissivity: adjustable between 0.01 and 0.99
-Charging specifications: USB Type-C, 5V/1A
-Battery specifications: 3.7V 1800mAh lithium-ion battery
Casing material: ABS

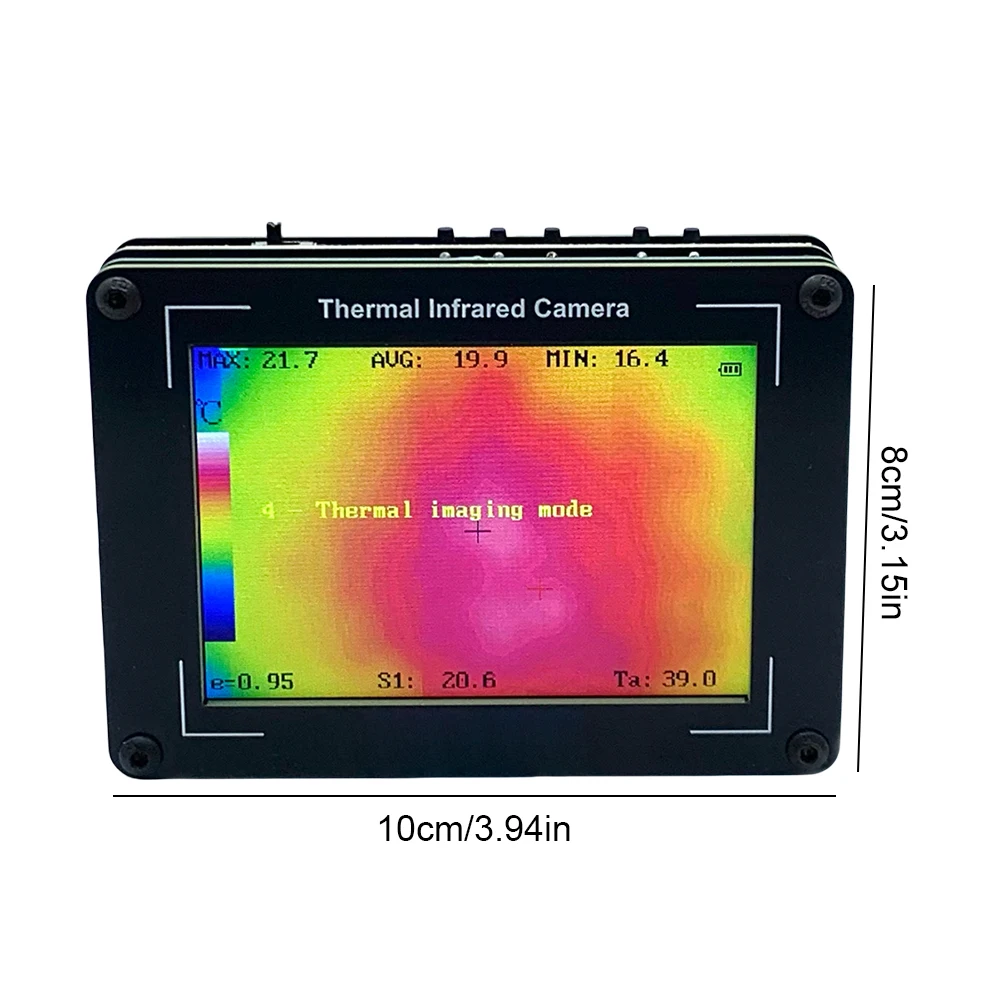

Product size: about 100.00×80.00×20.00mm
Product size: 3.94×3.15×0.79inch
Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.
|
|
(AMG8833)–Thermal Imager
|
Portable AMG8833 Temperature Thermal Imager Camera Infrared Handheld Thermograph Digital High Precision Detector Sensor
Feature:
1. AMG8833 infrared thermal sensor is adopted, with stable and professional performance.
2. The module can be directly powered by USB 5V to generate infrared images.
3. The pixel is 8×8, and the farthest detection distance is 7m/23ft.
4. Small size, light and portable, easy to carry and use.
5. Made of high-quality printed circuit board, with maximum durability.
Specification:
Type: Thermal Imager
Material: printed circuit board
Color: as shown
Temperature accuracy:
Type of high performance and high gain: typical ±2.5℃ ±4.5 ℉
High performance and low gain type: typical ±3.0℃ ±5.4 ℉
Human detection distance: about 7M/22,966 feet or less (reference value)
NETD:
Typical 0.05℃ 32.900℉ 1Hz
Typical 0.16℃ 32.288℉ 10Hz
Viewing angle: 60°
Optical axis clearance: within the typical normal range of ±5.6
Current consumption:
4.5mA (normal mode)
0.2mA (sleep mode)
0.8mA (standby mode)
Number of pixels: 64 (vertical 8 x horizontal 8 matrix)
External interface: 1＞2;c (express mode)
Installation frequency: 10 frames/second or 1 frame/second
Output mode: temperature output
Temperature resolution: 0.25℃/32.45℉
Output temperature range of thermistor: -20℃-80℃(4℉-176 ℉)
Output resolution of thermistor: 0.0625℃/ 32.1125℉
Note:
Please note that the new and old models of this product will be sent randomly. Please make sure you don’t mind before ordering.
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
|
|
(MLX90640 2.8 Inch)–Thermal Imager
|
MLX90640 Infrared Temperature Sensors Lightweight 2.8 Inch Digital Thermal Imaging Camera USB Charging for Industrial Components
Feature:
1. Excellent Chip: Infrared sensor, 32 * 24 pixel far-infrared array, with clear imaging. Real time measurement, the measurement range is – 40 ℃ to+300 ℃, and the dynamic refresh rate is 8Hz. 2.8 inch large LCD color screen, 240 * 320 resolution, clearly display and track the maximum temperature, minimum temperature and center point temperature.
2. Material: FR4 epoxy outer sheath material is used to better protect the internal components and have a long service life. Integrated design, smooth operation without external equipment.
3. Storage: The thermal imager is equipped with SPI flash memory chip, which has the function of taking pictures and storing photos, and can store up to 99 photos. Through the data transmission interface, you can view and copy image files by connecting a data cable to a computer or mobile phone.
4. USB Powered: Built in lithium-ion battery, USB Type-C charging design, long battery life, support charging when in use.
5. Widely Used: It integrates surface temperature measurement and real-time thermal imaging functions, and is applicable to both human body temperature detection and industrial temperature detection. It is small in size, light in weight, convenient to carry, and does not take up too much space.
Specification:
Name: Thermal imager
Material: Epoxy board + printed circuit board
Battery: 3.7V 800mAh lithium ion battery (included)
Infrared sensor: MLX90640ESF-BAB
Hardware resolution: 32 * 24 pixel far-infrared array
Screen resolution: 320 * 240 pixels
Temperature measurement range: – 40 ℃ to 300 ℃
Measurement accuracy: ± 2 ℃
Operating temperature: 0 to 50 ℃
Working humidity: ≤ 70%
Refresh frequency: 8Hz
Field of vision: Horizontal 55 ° * 35 ° vertical
Emissivity: 0.95
Charging specification: USB Type-C5V/1A
Working time: ≥ 4 hours
Size: About 85x55x20mm/3.34×2.16×0.78inch
Widely used:
1. High precision non-contact temperature measurement and body temperature detection.
2. Intelligent measurement and control of building ambient temperature.

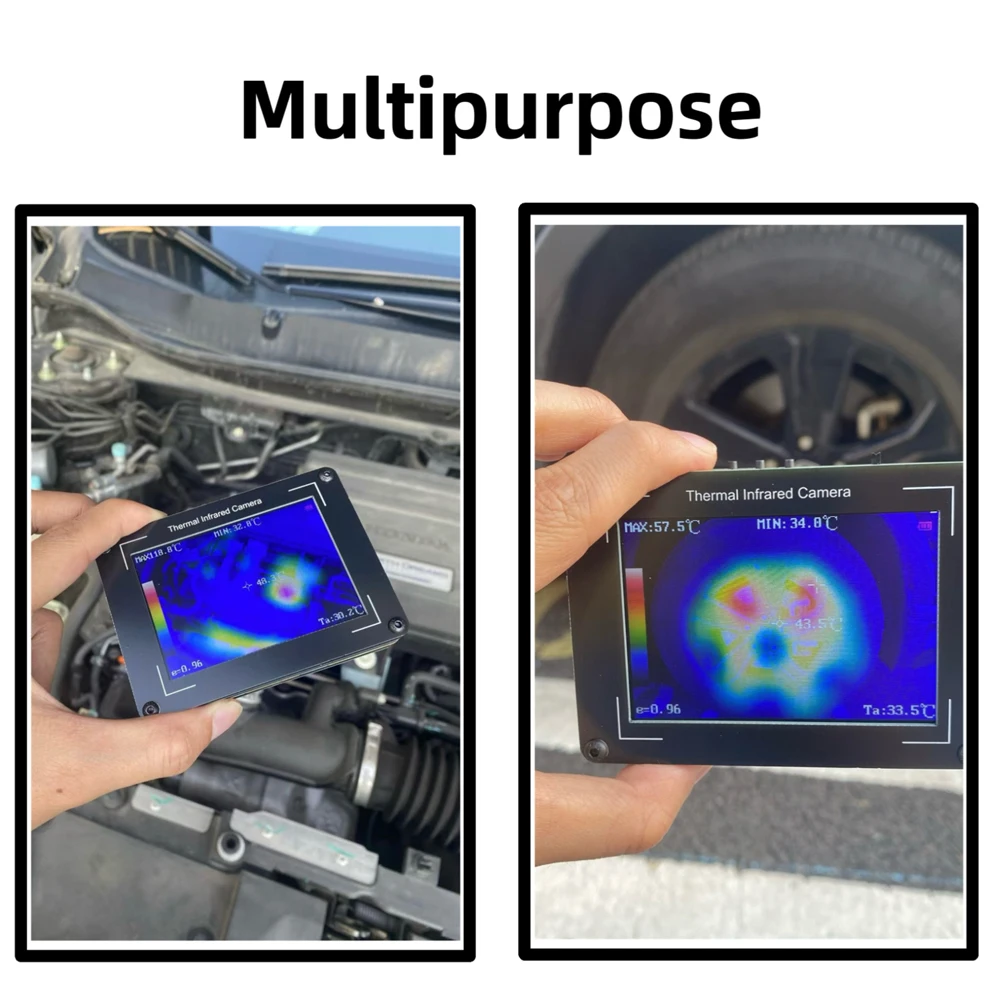

3. Vehicle maintenance inspection and temperature detection of vehicle parts.
4. Microwave oven and microwave oven temperature detection and control.
5. Temperature monitoring of industrial components.
6. Visual temperature sensor.
7. Leakage and maintenance of floor heating equipment.
8. Thermal inspection of circuit boards and components.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
|
|
(MLX90640 1.8 Inch)–Thermal Imager
|
|
Infrared Temperature Sensor Digital Handheld Thermal Imager LCD Display 1.8 Inch 160*120 Pixel for Household/industrial Use
Feature:
1. High Refresh Rate: The thermal image has a market leading refresh rate of up to 8Hz, and can quickly and accurately read the emperature.
2. Wide Temperature Range: The measurement range of the infrared temperature sensor is – 40~+300 ℃, suitable for various environments and applications.
3. High Resolution Display: The infrared thermal image is a 1.8 inch TFT screen with a resolution of 160 * 120, providing clear and detailed readings of the highest, lowest, and center temperatures.
4. Portable: The infrared thermal imager uses an acrylic shell, which effectively protects the camera from damage and makes it . In addition, its compact size makes it easy to transport and use in various locations.
5. Convenient Power Supply: The thermal image does not have a built-in battery, and can be powered through a USB connection. It is convenient to use and does not require waiting time.
Specification:
Certification: NONE
Origin: Mainland China
Style: Handheld
Display Size: 1.9 Inches & Unde
Material: acrylic acid+printed circuit board
Module: MLX90640
Infrared sensor: MLX90640ESF-CSB
Resolution: 32x 24
Temperature measurement range: -40 ℃-300 ℃
Measurement accuracy: ± 2 ℃ (center point, 20~50 ℃)
Working temperature: 10 ℃~50 ℃
Operating humidity: ≤ 70%
Refresh rate: 8Hz
Field of view: 55 ° x35 °
TFT size: 1.8 inches (display resolution: 160×128)
Emissivity: 0.95
Power port: Micro USB 5V
Battery specification: 210MAH
Shell material: ABS
Size: 66X46X20mm/2.59X1.81X0.78inch
Operating instructions:
1. Charging: Use USB Type-C cable, 5V/1A
2. Open/Close: Long press the middle key
4. Take a picture: Press the middle key
5. Review photos: Press the up or down button
6. Exit photo: Long press the up or down button
7. Copy photos: Connect the computer with a USB cable, and the computer will receive a disk.
Note: You cannot change photos on disk or place other files on disk. Please fully charge and turn off the computer before connecting it
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
|
|
Product
|
Included
|
|
MLX90640 3.5 inch：
|
1 X Thermal Imager
1 X Type-C Cable
1 X English User Manual
|
|
AMG8833：
|
1 x Thermal Imager
|
|
MLX90640 2.8 Inch：
|
1 x Thermal imager
1 x Data cable
1 x Wiping cloth
|
|
MLX90640 1.8 Inch：
|
1 x Thermal Imager
|
|
