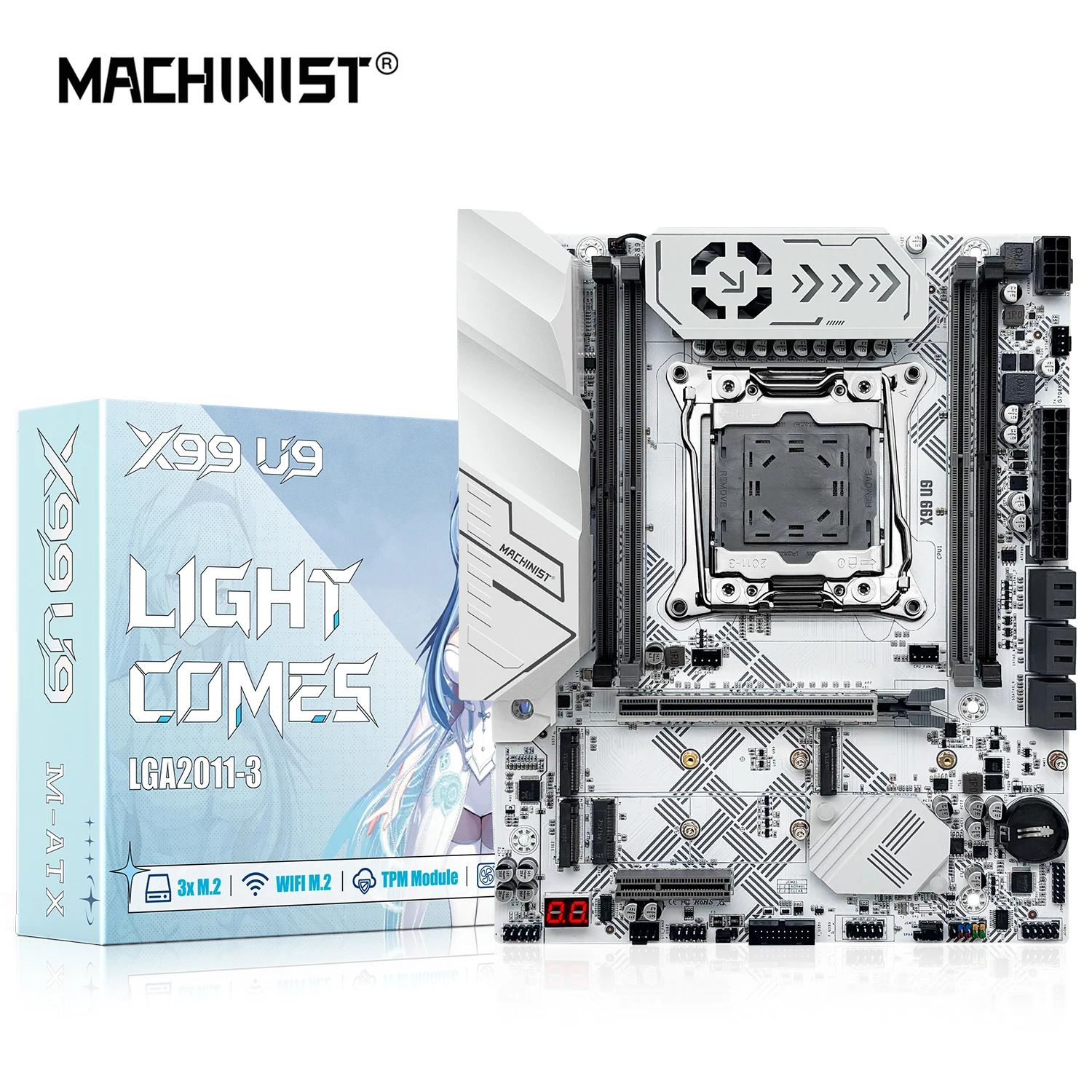

New X99 U9 MACHINIST X99 Motherboard Set Kit Optional LGA2011-3 Xeon E5 2630 V4 CPU Support TPM2.0 DDR4 Memory NVME M.2 usb3.0

Description

> > Please check our Bundle carefully before purchasing.Purchase a single motherboard. We don't send CPU and memory. Please check carefully

> > The TPM interfaces of the X99 V9S and X99 U9 models can only be installed using the TPM2.0 accessory suitable for ASUS 14-pin.

>> Motherboard information:

Brand :MACHINIST.

Motherboard model :X99 U9 white.

Processor :Intel LGA 2011-3 pin series processor.

Chipset: X99/C612 Chipset.

>> CPU:

Processor Series: Xeon E5 2630V4 (10 cores/20 threads)

Main frequency: 2.2GHz up to 3.1GHz

Socket type: LGA 2011-3

3rd level cache: 25MB

Technology: 14nm

> > Memory:

Technology: Four-channel DDR4.

The maximum capacity is 128GB (32G x 4).

Memory slot :4*DDR4.

Supported memory types: Supports DDR4 desktop memory and server memory.

Please use international brands such as Samsung, Kingston, Sandy, Micron and Hynix. Other brands may be incompatible.

>> Others:

Diagnosis card :1;

TPM interface: Applicable to ASUS 14-pin TPM2.0;

M.2 interface: 3 NVME M.2 interfaces;

WIFI: 1 NGFF M.2;

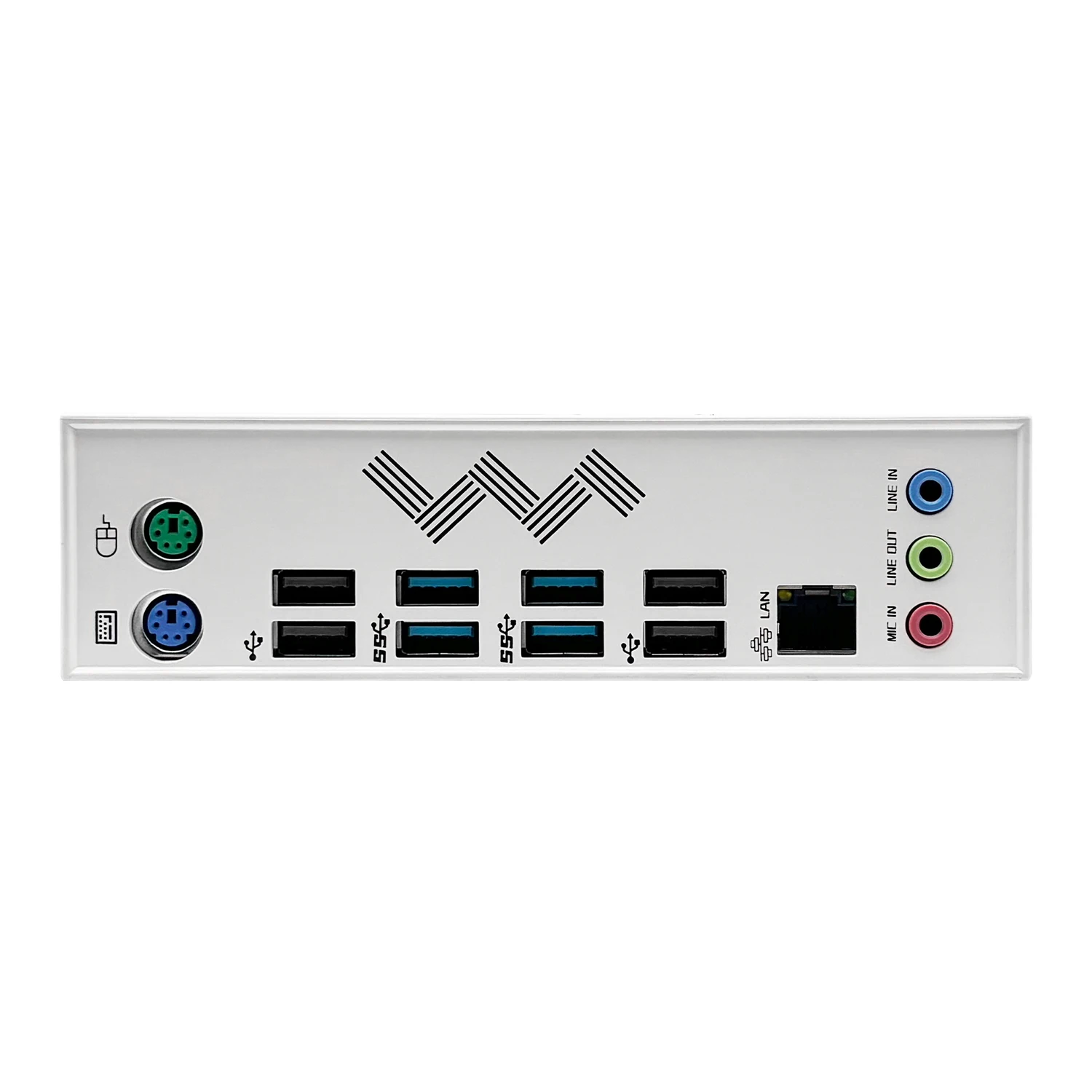

USB interface :4 USB2.0 ports; 4 USB3.0 ports;

Ethernet: Gigabit network card;

PCIe: 1 PCIe 16x, 1 PCIe 4x;

SATA interface :6 (6 SATA3.0);

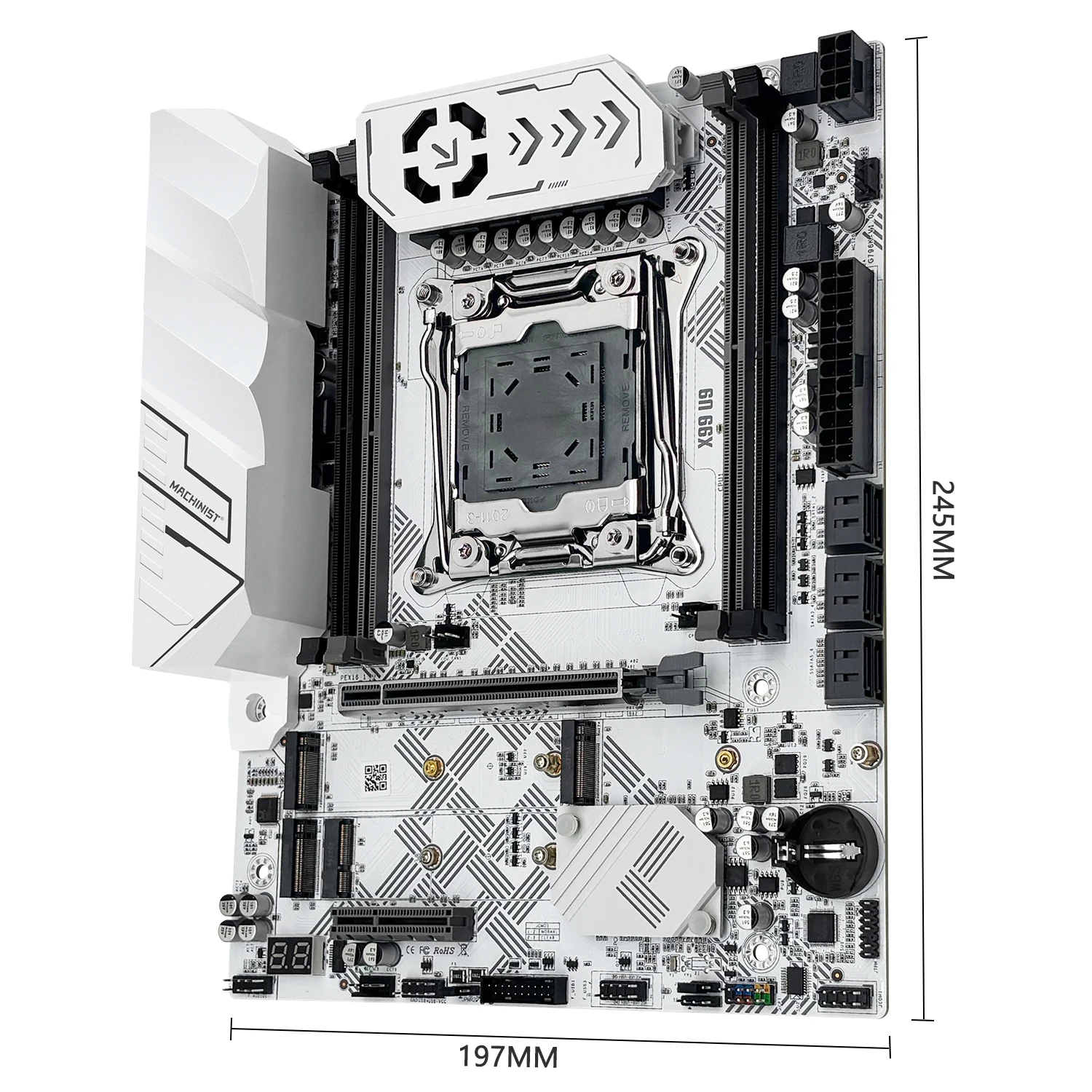

Overall dimensions :245mm * 197mm.

> > Regarding the tariff issue, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase goods in our store. We are not responsible for tariffs. Thank you for your understanding.
> > Note:

(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1 to 3mm.

(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
