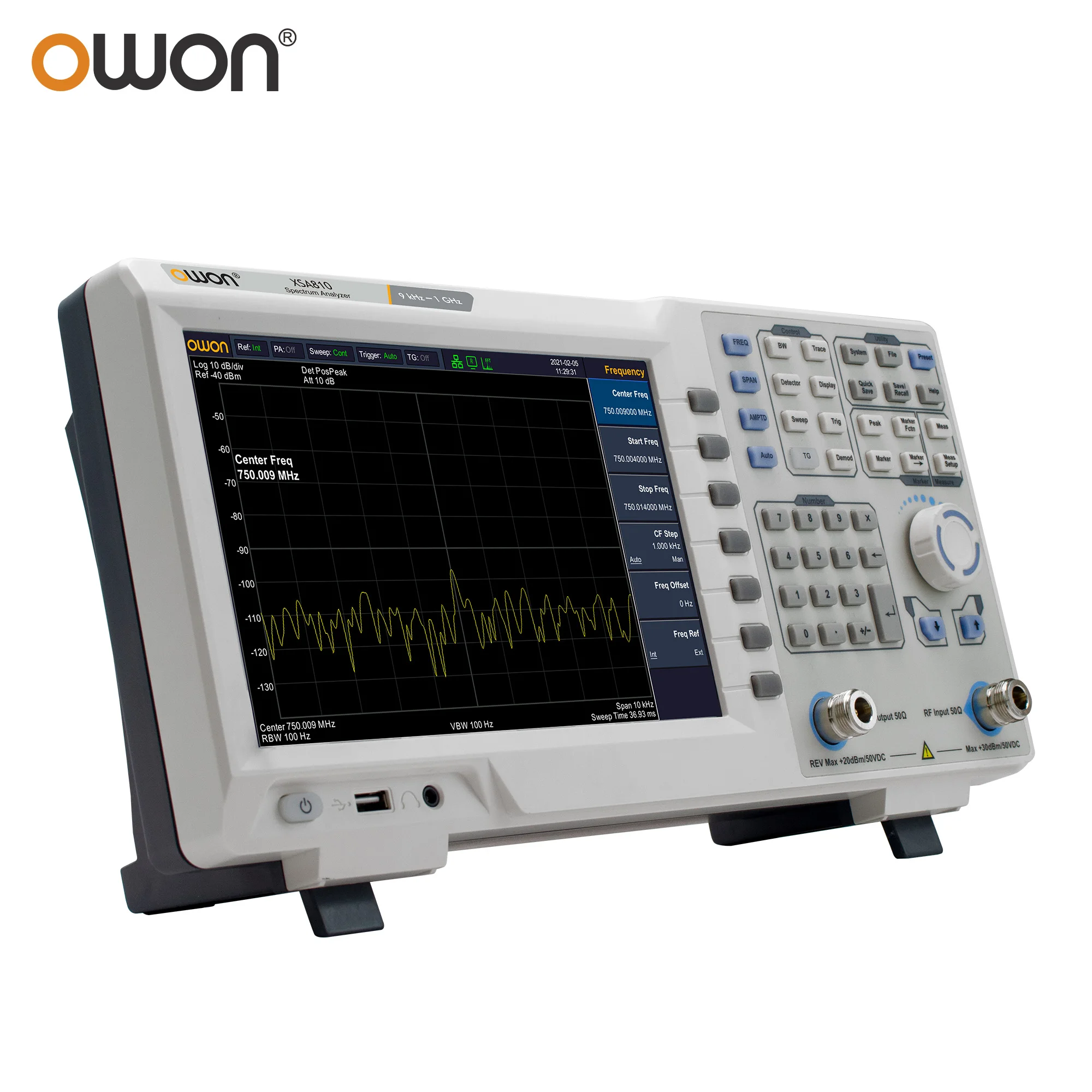

Model

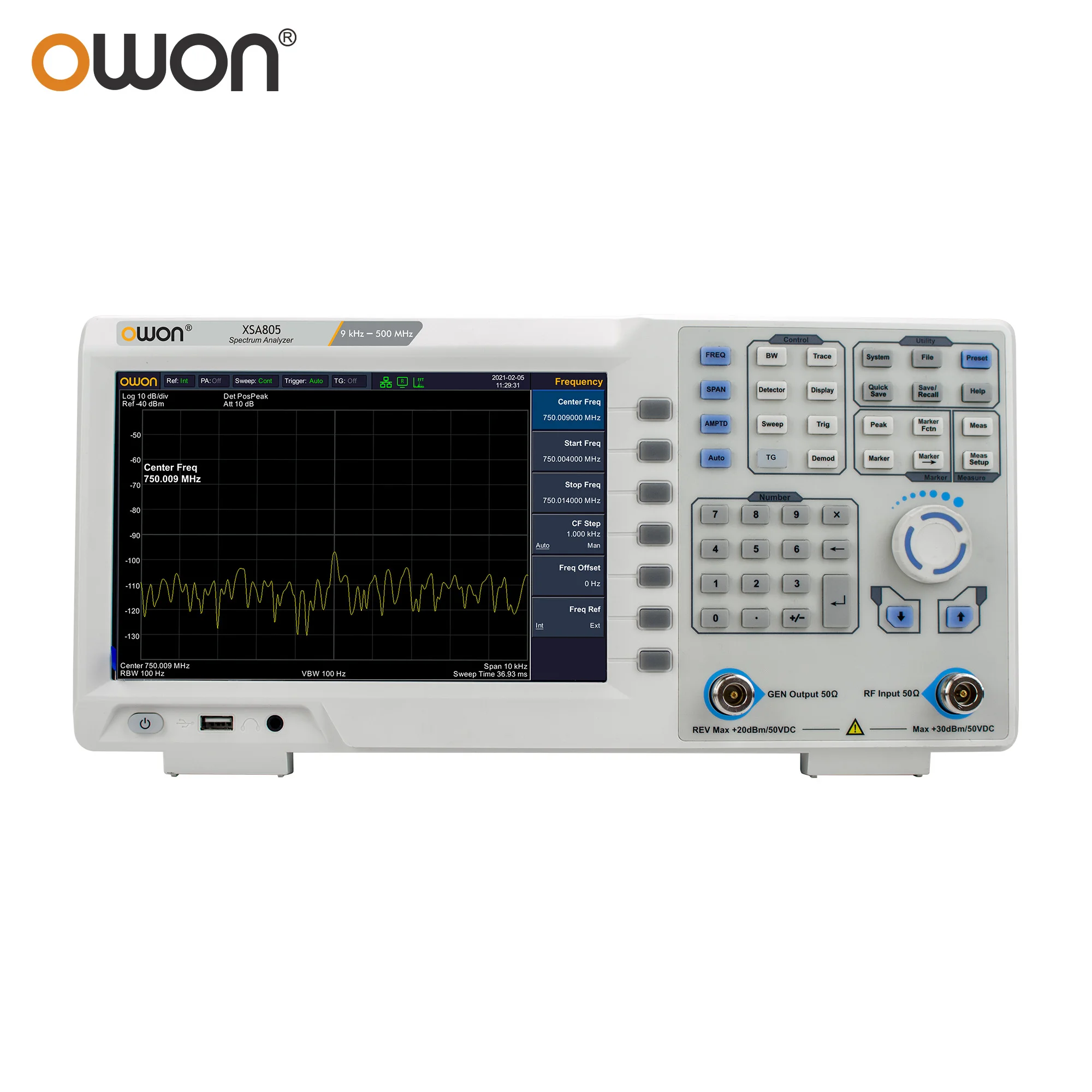

XSA805(TG)

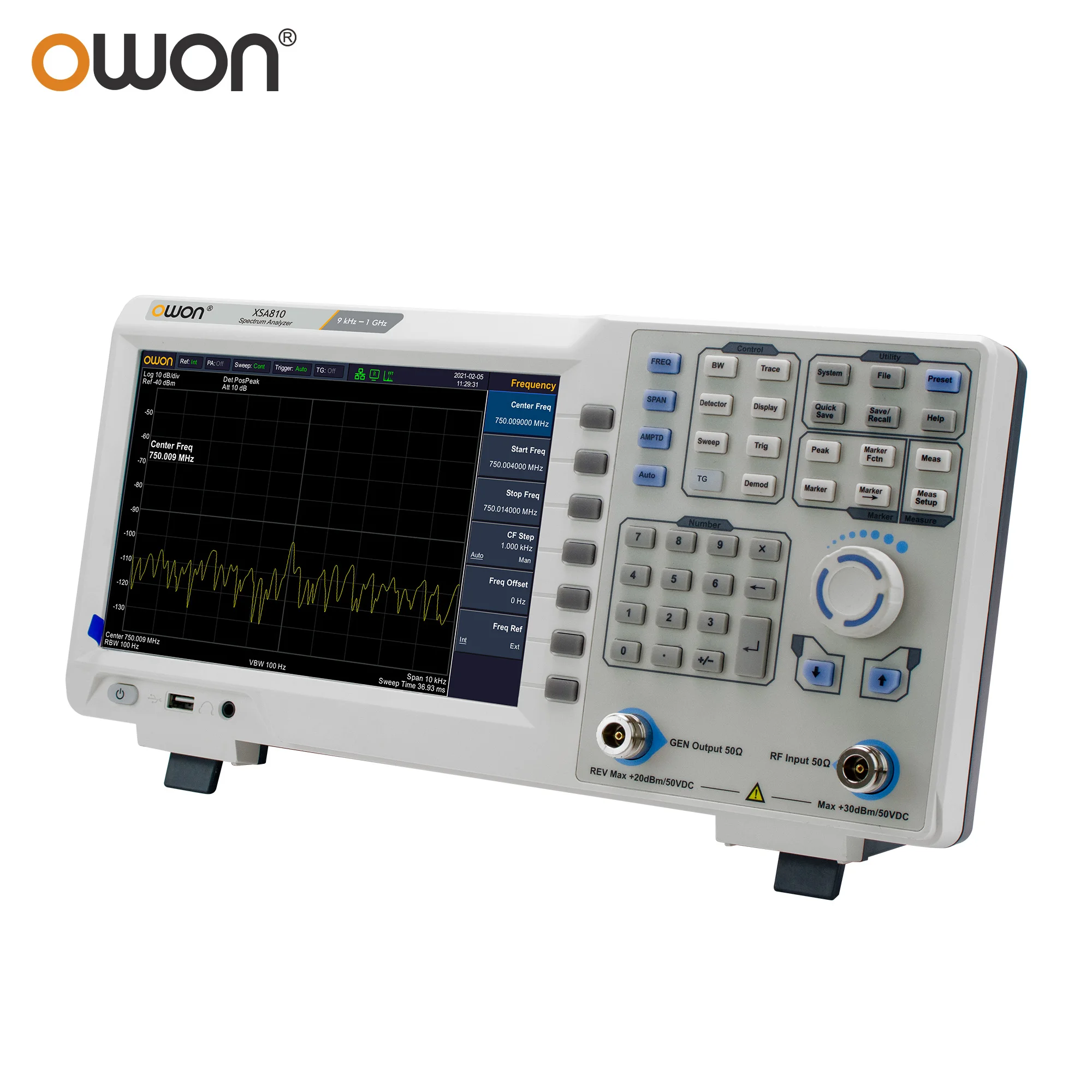

XSA810(TG)

XSA815(TG)

Frequency

Range

9kHz-500MHz

9kHz-1GHz

9kHz-1.5 GHz

Resolution

1Hz

Frequency span

Range

0 Hz，100 Hz to maximum frequency of device

Accuracy

± span /（swept points -1）

Internal reference

Reference frequency

10 MHz

Reference frequency accuracy

±[（days from last calibrate × freq aging rate）+ temperature stability + initial accuracy ]

Temperature stability

<0.5ppm （15℃ to 35℃）

Aging rate

<1ppm/year

Readout

Marker frequency resolution

span/（the number of sweep points -1）

Uncertainty

±（freq indication × freq reference uncertainty +1%× span +10%× resolution bandwidth + Marker Frequency Resolution）

Frequency counter

Resolution

1 Hz，10 Hz，100 Hz，1 kHz

Accuracy

±（marker freq × freq reference uncertainty + counter resolution）

Bandwidth

Resolution bandwidth (-3 dB)

1Hz to 1MHz（in 1 to 10 sequence）， 1MHz，3MHz

Resolution filter shape factor

<5 nominal（Digital implement, similar to Gauss Pattern）

Accuracy

<5% nominal

Video bandwidth (-3 dB)

1Hz to 1MHz

Amplitude Specification

Amplitude and electric level

Amplitude measurement range

DANL to +10 dBm， 100KHz to 10MHz，close the preamplifier

DANL to +20 dBm， 10MHz to 1.5GHz, close the preamplifier

Max input DC voltage

50 VDC

Max. continuous wave RF power

+20dBm (100mW), attenuation= 40dB

Max. damage level

+30dBm(1W)

Displayed average noise level（DANL）attenuation = 0 dB, RBW = VBW = 100 Hz, sample detector, trace average ≥ 50, 20℃ to 30℃ , input impendence = 50 Ω

Preamp off

-95 dBm (typical), < -88 dBm ( 9 kHz to 1 MHz)

-140 dBm (typical), <-130dBm (1MHz~500MHz)

-138 dBm (typical), <-128 dBm (500MHz~max)

Preamp on

-135 dBm (typical), <-128 dBm ( 9 kHz to 1 MHz)

-160 dBm (typical), <-150 dBm (1MHz~500MHz)

-158 dBm (typical), <-148 dBm (500MHz~max)

Phase noise

20 ℃ to 30 ℃，fc=1 GHz

Phase noise

<-80 dBc/Hz @10 kHz offset，

<-100 dBc/Hz @100 kHz offset

<-115 dBc/Hz @1 MHz -500MHz offset

Level display range

Log scale coordinate

0.01dB ~255dB

Linear scale coordinate

0 to reference level

level unit

dBm, dBuW, dBpW, dBmV, dBuV, W,V

Points

760

Number of traces

5

Detectors

Positive-peak, negative-peak, sample, normal, RMS, Average, quasi-peak (with EMIoption)

Trace functions

Clear write, Max Hold, Min Hold, View, Blank, Average, Trace math

Frequency response

20℃ to 30℃，30%~70% relative humidity, 10 dB input attenuation, reference 50 MHz

Preamp off（fc≥9KHz）

＜0.7dB；

Preamp on（fc≥9KHz）

＜1.0 dB；

Accuracy

RBW Switching Uncertainty

Relative to 10 kHz RBW

＜0.1 dB

Input Attenuation Switching Uncertainty

20℃ to 30℃， fc=50 MHz，Preamplifier Off， 10dB RF attenuation，input signal 0~40 dB

＜0.5 dB

Absolute Amplitude Uncertainty

20℃ to 30℃， fc=50 MHz，peak detector, 10 dB RF attenuation，preamplifier off,

input signal level =-10 dBm
＜ 0.4 dB

Reference Level Range

-80 dBm to +30 dBm, in 1 dB step

Reference Level Resolution

Log scale 0.01 dB; linear scale 4 digits

Uncertainty

95% confidence level, S/N > 20 dB, RBW = VBW = 1 kHz, preamplifier off, attenuation = 10 dB, -50 dBm < input level ≤ 0 dBm, fc > 10 MHz, 20℃ to 30℃

＜ 0.7 dB

VSWR

input≥ 10 dB，300 kHz to max；

<1.5，nominal

Distortion and spurious response

Second harmonic distortion

fc ≥ 50 MHz，Preamp off, signal input -20 dBm, 10 dB RF attenuation, 20 ℃ to 30 ℃

＞ +45 dBm

Third-order intermodulation

fc ≥ 50 MHz, two -20 dBm tones at input mixer spaced by 200 kHz, attenuation = 0 dB

＞ +10 dBm

1 dB Gain Compression

fc ≥ 50 MHz， 0 dB RF attenuation，Preamp off , 20 ℃ to 30 ℃

＞0 dBm, nominal

Residual response

connect 50 Ω load at input port，0 dB input attenuation，20 ℃ to 30 ℃

<-90dBm，nominated

Intermediate frequency

＜-60 dBc

System related sidebands

Referenced to local oscillators, referenced to A/D conversion, referenced to subharmonic of first LO, referenced to harmonic of first LO

＜-60 dBc

Input related spurious

-30 dBm signal at input mixer，20 ℃ to 30 ℃

<-60 dBc

Sweep time and triggering

Sweep time

SPAN ≥ 100 Hz 10ms to 3000s

zero sweep width 10ms to 3000s

Sweep time uncertainty

SPAN≥ 100 Hz  5%（nominal）

zero sweep（Sweep time >1 ms） 5%（nominal）

Mode

Continue, single

Trigger

Free run, video, external

External trigger level

5 V TTL level

Tracking generator

Output frequency range

100 kHz to 1.5 GHz（Tracking generator）

Output power level range

-40 dBm to 0 dBm

Output power level resolution

1dB

Output flatness

±3dB

Tracking generator spurious

Harmonic spurious -30 dBc (Tracking generator output power -10 dBm)

Non-harmonic spurious -40 dBc (Tracking generator output power -10 dBm)

Tracking source to input terminal isolation

-60 dB (Tracking generator output power 0 dBm)

Maximum safe reverse level

Average total power:+30 dBm，DC : ±50 VDC

Inputs and Outputs

Front panel RF input connector

50 Ω，N-type female

Front panel track generator output

50 Ω，N-type female

Internal/ External Reference

50 Ω，N-type female

External Trigger Input

50 Ω，N-type female

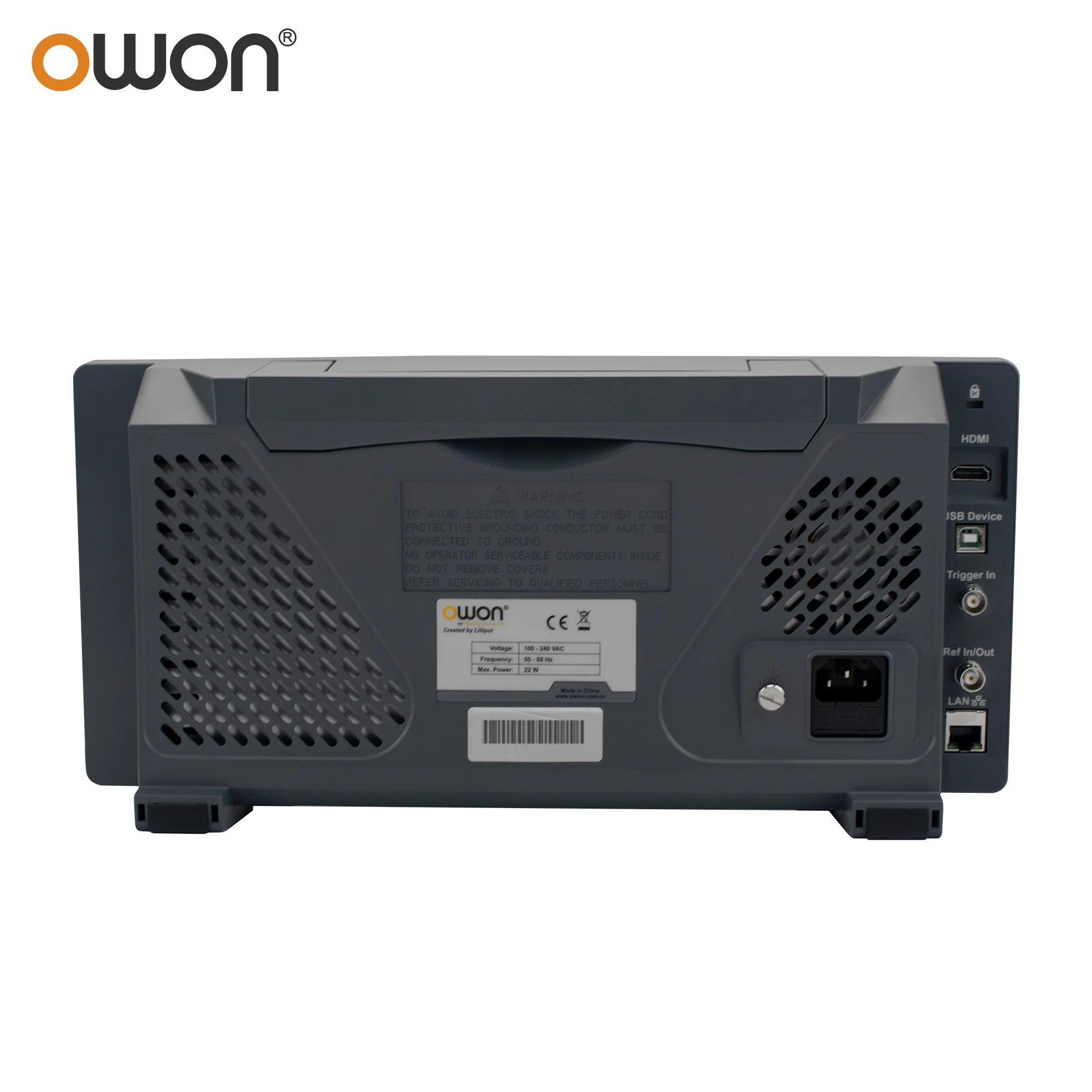

Communication port

USB HOST, USB DEVICE, LAN, earphone port, HDMI

General technical specification

Display

TFT LCD，9 inches (1280*800)

Weight (without package)

About 3.7 kg

Dimension (W × H × D)

375mm*185mm*120mm

Working temperature

0℃ to 40 ℃

Storage temperature

-20 °C to +60 °C

Power

100V – 240V 50/60Hz
