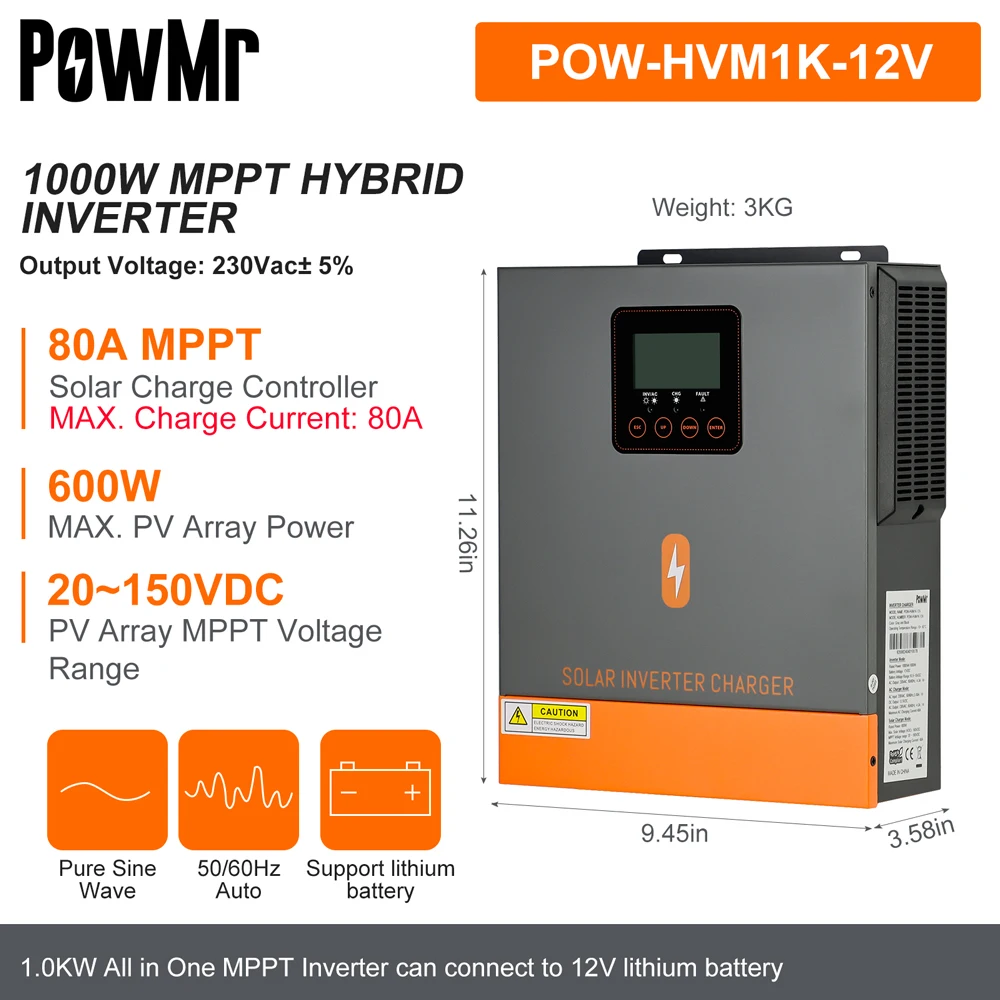

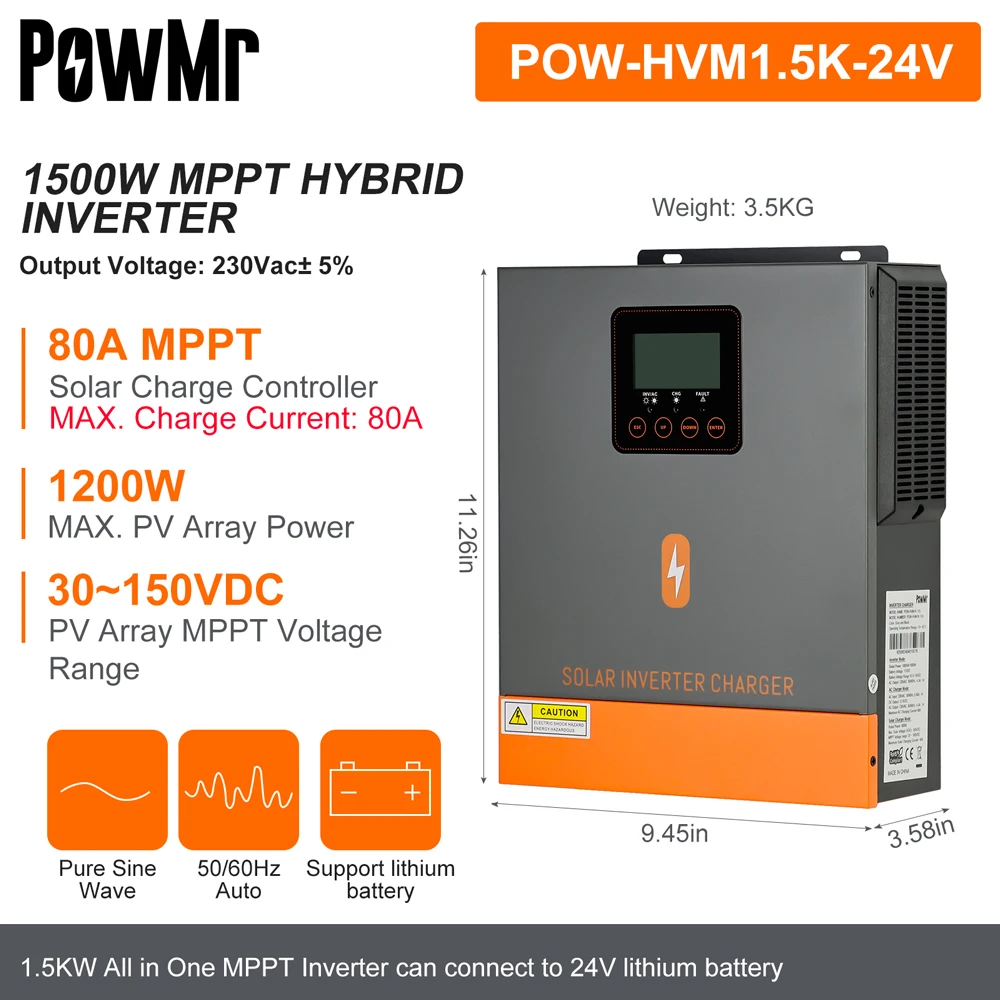

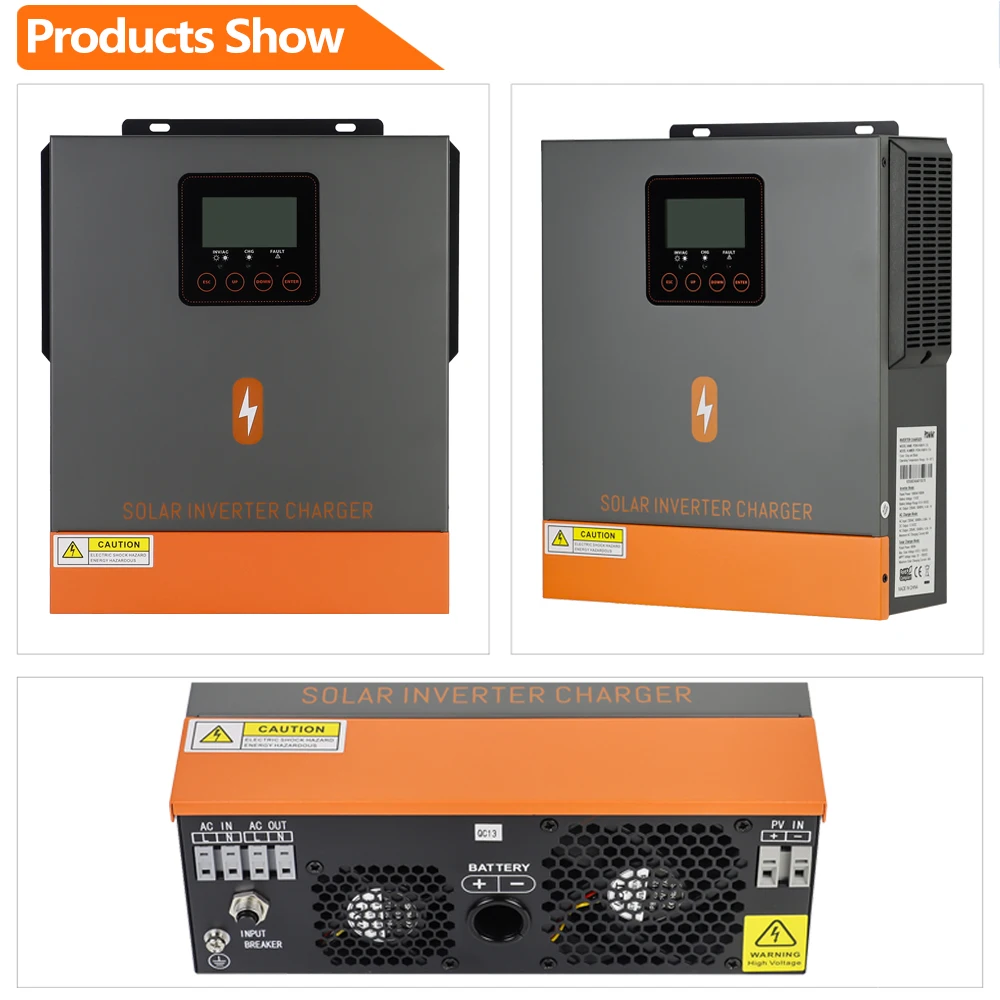

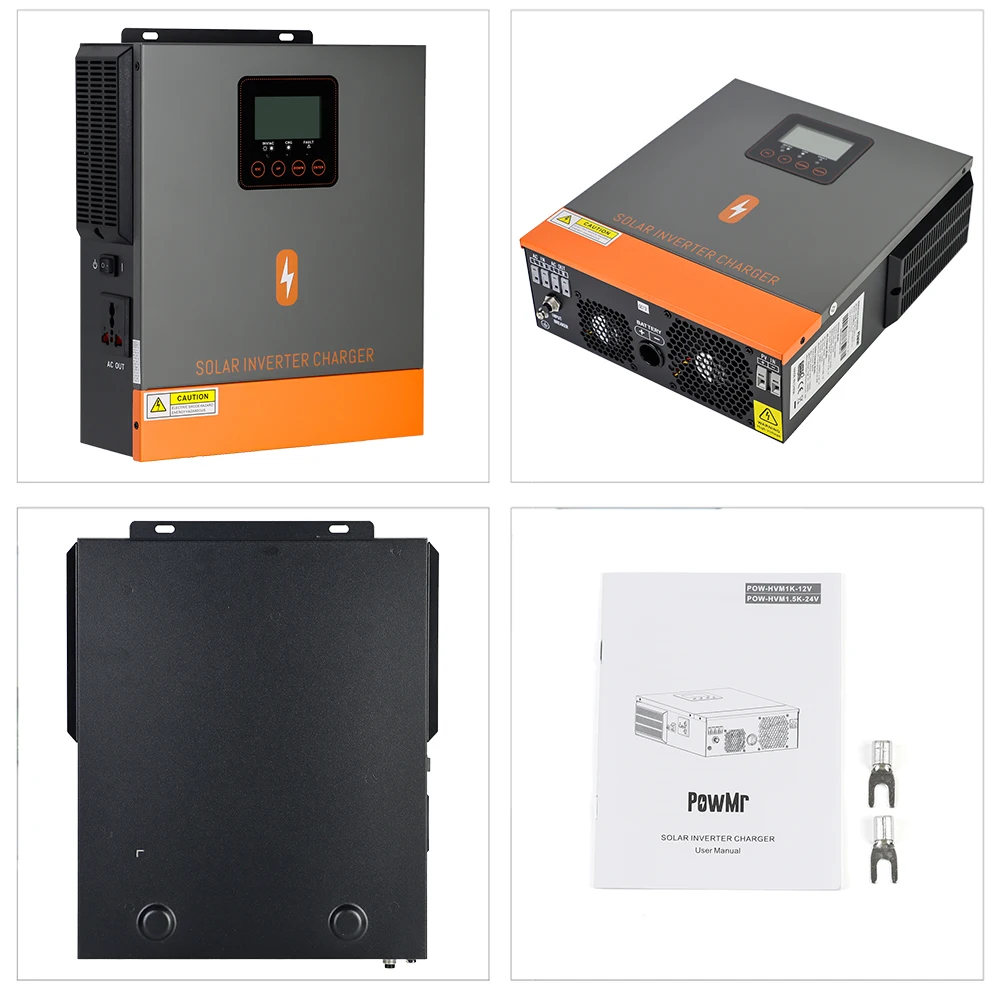

PowMr 1000W 1500W Hybrid Solar Inverter 12V 24V 220V Off Grid Pure Sine Wave Inverter Dual Output with MPPT 80A Solar Charger
Description
- High-concerned chemical: None
- is_customized: Yes
- Output Current: MPPT 80A
- Model Number: POW-HVM1K-12V/POW-HVM1.5K-24V
- Output Power: 1 – 200 KW
- Size: 286*240*91cm
- Output Type: SINGLE
- Weight: 4KG
- Brand Name: PowMr
- Output Frequency: 50HZ/60HZ
- Is Smart Device: No
- Origin: Mainland China
- Certification: CE
- Max Input Voltage: 20V-150V
- Max PV Input Power: 600W/1200W
- Rated Output Power: 1000W/1500W
- Battery Voltage: 12V/24V
- Battery Type: lead-acid/Lifepo4/Lithium
- Max Charging Current: 80A
- Feature 1: Dual Output
- Feature 2: Off Grid Inverter
- Feature 3: Pure Sine Wave
Feature:
* Pure sine wave inverter
* Configurable input voltage range for home appliances and personal computers via LCD setting
* Configurable battery charging current based on applications via LCD setting
* Configurable AC/Solar Charger priority via LCD setting

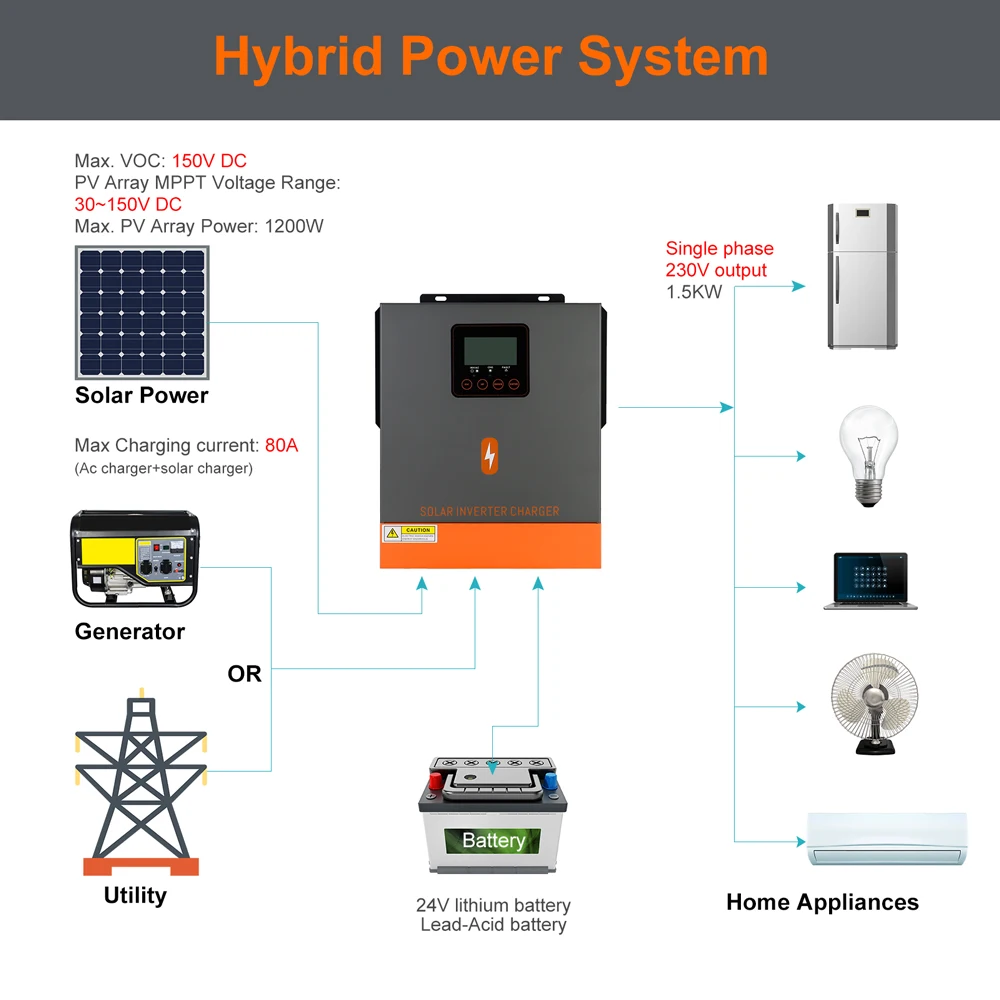

* Compatible with mains voltage or generator power
* Auto restart while AC is recovering
* Overload/ Over temperature/ short circuit protection
* Smart battery charger design for optimized battery performance
* Cold start function
Specification:
|
INVERTER MODEL |
POW-HVM1K-12V |
POW-HVM1.5K-24V |
|
Input Voltage Waveform |
Sinusoidal (utility or generator) |
|
|
Nominal Input Voltage |
230Vac |
|
|
Max AC Input Voltage |
300Vac |
|
|
Nominal Input Frequency |
50Hz / 60Hz (Auto detection) |
|
|
Output Short Circuit Protection |
Circuit Breaker |
|
|
Efficiency (Line Mode) |
>95% ( Rated R load, battery full charged ) |
|
|
Transfer Time |
10ms |
|
|
Rated Output Power |
1000VA/1000W |
1500VA/1500W |
|
Output Voltage Waveform |
Pure Sine Wave |
|
|
Peak Efficiency |
94% |
|
|
Surge Capacity |
2* rated power for 5 seconds |
|
|
Nominal DC Input Voltage |
12Vdc |
24 Vdc |
|
Utility Charging Mode |
||
|
Charging Algorithm |
3-Step |
|
|
Floating Charging Voltage |
13.5Vdc |
27Vdc |
|
MPPT Solar Charging Mode |
||
|
Max. PV Array Power |
600W |
1200W |
|
PV Array MPPT Voltage Range |
20~150Vdc |
30~150Vdc |
|
Max. PV Array Open Circuit Voltage |
150Vdc |
|
|
Max solar charging current |
40Amp |
|
|
Max(AC+Solar) Charging current |
80Amp |
|
|
General Specifications |
||
|
Safety Certification |
CE |
|
|
Operating Temperature Range |
-10°C to 50°C |
|
|
Storage temperature |
-15°C~ 60°C |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
Additional information
| Color | 1000W 12V, 1500W 24V |
|---|---|
| High-concerned chemical | None |
| is_customized | Yes |
| Output Current | MPPT 80A |
| Model Number | POW-HVM1K-12V/POW-HVM1.5K-24V |
| Output Power | 1 – 200 KW |
| Size | 286*240*91cm |
| Output Type | SINGLE |
| Weight | 4KG |
| Brand Name | PowMr |
| Output Frequency | 50HZ/60HZ |
| Is Smart Device | No |
| Origin | Mainland China |
| Certification | CE |
| Max Input Voltage | 20V-150V |
| Max PV Input Power | 600W/1200W |
| Rated Output Power | 1000W/1500W |
| Battery Voltage | 12V/24V |
| Battery Type | lead-acid/Lifepo4/Lithium |
| Max Charging Current | 80A |
| Feature 1 | Dual Output |
| Feature 2 | Off Grid Inverter |
| Feature 3 | Pure Sine Wave |
| Output Voltage | 220-240V |
