Features:

* Support three-phase pure sine wave output (350~415V).

* Supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac.

* With time period charging and discharging setting function, it helps users to take advantage of peak and valley tariffs and save electricity costs.

* Supports two PV inputs, with the function of simultaneously tracking the maximum power charging or carrying capacity of two MPPT.

* Dual MPPT, efficiency up to 99.9%, single maximum current of 22A, perfectly adapted to high- power modules.

* Energy-saving mode function to reduce no-load energy losses.

* With two output modes of utility bypass and inverter output, with uninterrupted power supply function.

* Supports lead-acid battery and li-ion battery connections.

* Support CAN, USB, and RS485 communication.

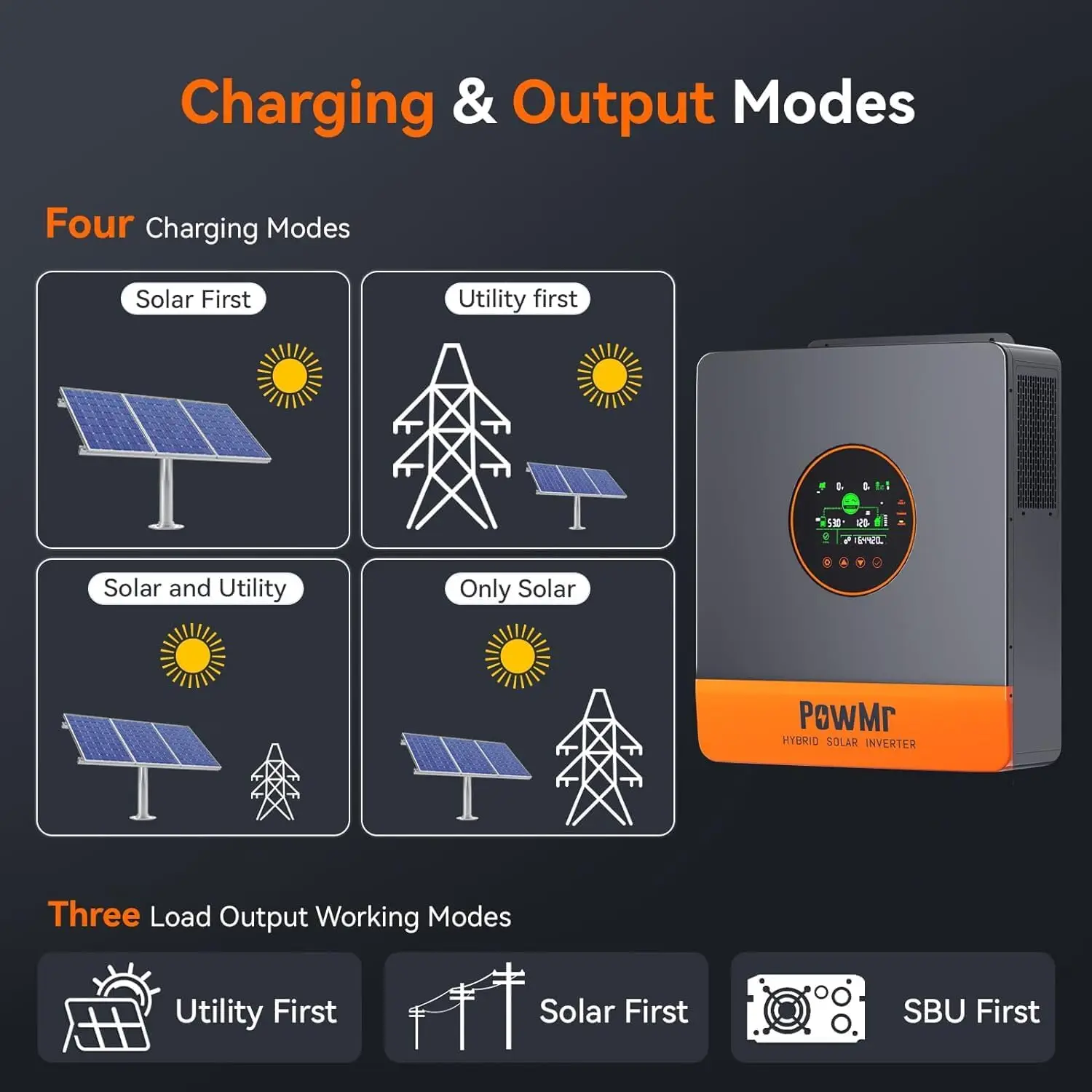

* 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains and PV charging.

* With a dual activation function when the li-ion battery is dormant; either mains or photovoltaic power supply access can trigger the activation of the li-ion battery.

* LCD large screen dynamic flow diagram design, easy to understand the system data and operation status.

* 360° protection with complete short-circuit protection, over-current protection, over-voltage protection, under-voltage protection, over-load protection, etc.

Dual-MPPT Solar Charge Controllers for Higher Power

Built-in Dual-MPPT solar charge controllers, each with 99.9% efficiency and 22A current(Max. PV Input) in a single circuit. With support for 2 solar inputs and simultaneous tracking of 2 solar maximum power charging/carrying capacity functions, it maximizes your solar power efficiency. With up to 800V PV input voltage, this model is ideal for high power.

Support Three-phase Pure Sine Wave Output

The 48V 220/380V three phase hybrid Inverter supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac. It supports CAN, USB, and RS485 communication for enhanced connectivity. Experience reliable and efficient power conversion with this versatile inverter, perfect for a variety of applications.

Energy-saving Mode Function

With time-slot charging and discharging setting function, it helps users to take advantage of peak and valley tariffs and save electricity costs. Excess solar energy generated during the day is intelligently stored in the battery, ready for use by home appliances during the evening peak of electricity consumption. This not only ensures reliable electricity usage but also significantly reduces energy expenses. Zero battery discharge time enables inverter as UPS power supply.
