PowMr 6.2KW 4.2KW Hybrid Solar Inverter 24V 48V 220V On Off Grid Inverters Dual Output with MPPT 120A Solar Battery Charger

PowMr 6.2KW 4.2KW Hybrid Solar Inverter 24V 48V 220V On Off Grid Inverters Dual Output with MPPT 120A Solar Battery Charger

(0 customer reviews)

603.64$ – 736.59$

In Stock

Color

Input Voltage

with WIFI
without WIFI

Output Voltage

220-240V

Clear

Description

EANCode: –
High-concerned chemical: None
is_customized: Yes
Output Current: MPPT 120A
Model Number: –
Size: 420*310*120mm
Output Type: SINGLE
Weight: 10KG
Brand Name: PowMr
Output Frequency: 50HZ 60HZ
Is Smart Device: Yes
Origin: Mainland China
Certification: CE
Type 1:: Grid Tie Inverter
Type 2:: MPPT Solar Inverter
Nominal Output Voltage:: 220/230/240VAC
Feature:: Pure Sine Wave Inverter
Battery Voltage:: 24V/48V
Battery Type:: Lifepo4 Batteries, Lithium Batterie
Max PV Panel Input Power:: 6200W/8000W
Max Panel Input Voltage:: 500V
Rated Output Power:: 4200W/6200W
Maximum Solar Charging Current:: 120A
Maximum AC Charging Current: 80A: 80A
Type1:: DC/AC Inverters
Capacity:: 4.2KW/6.2KW
Function 1:: Grid-tie Hybrid Inverter Charger
Function 2:: On /off grid inverter

PowMr 6.2KW 4.2KW Hybrid Solar Inverter On Grid Pure Sine Wave Inverter 24V 48V 230V Dual Output with MPPT 120A Solar Charger

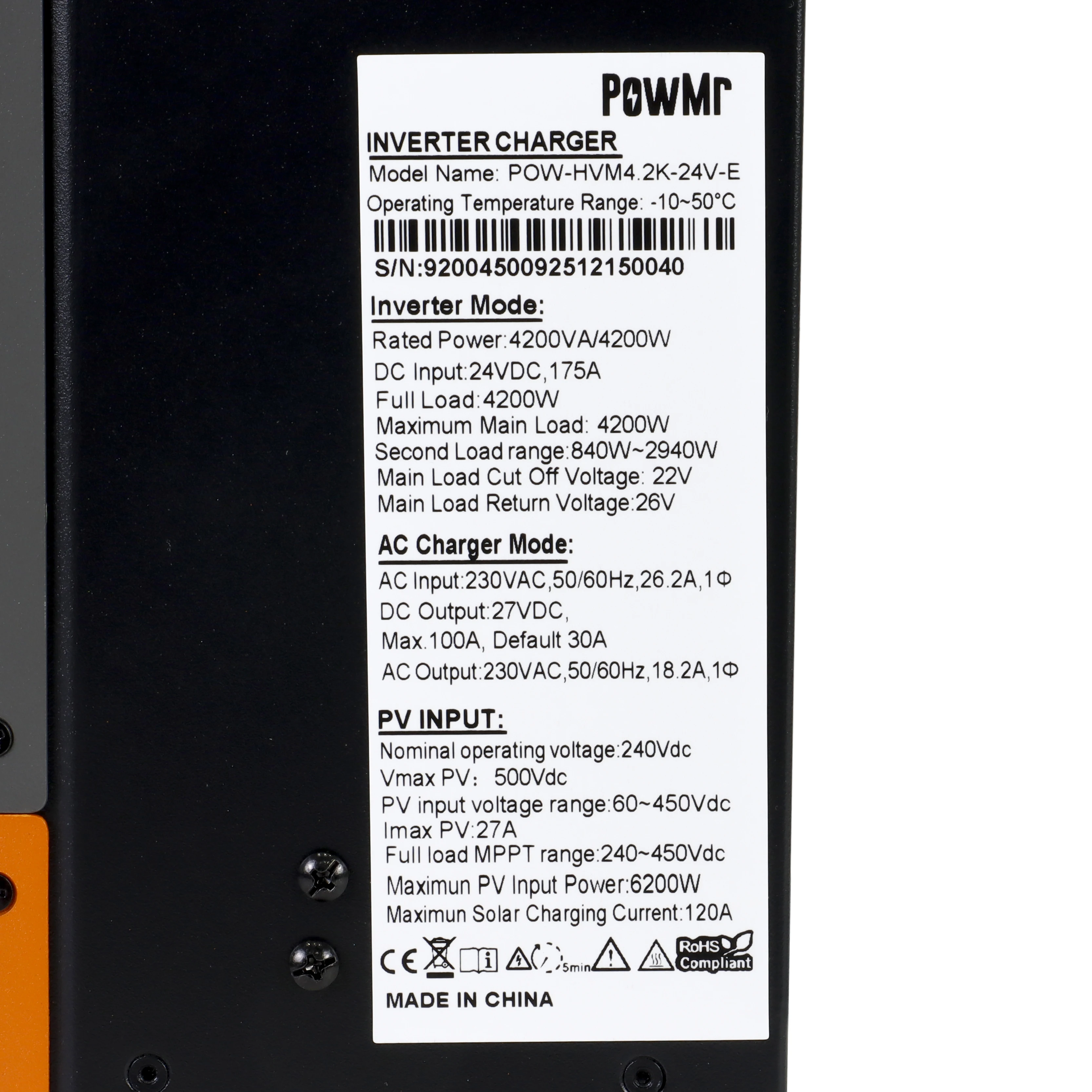

INVERTER MODEL	POW-HVM4.2K-24V-E	POW-HVM6.2K-48V-E
Line Mode Specifications
Input Voltage Waveform	Pure Sine Wave(Utility or Generator)
Nominal Input Voltage	230Vac
Max AC Input Voltage	300Vac
Efficiency(Line Mode)	>95%( Rated R load,battery full charged)
Transfer Time	10ms typical(UPS);20ms typical(Appliances)
Inverter Mode Specifications
Rated Output Power	4.2KW	6.2KW
Output Voltage Waveform	Pure Sine Wave
Output Voltage Regulation	230Vac±5%
Output Frequency	50HZ
Peak Efficiency	0.93
Overload Protection	3s@≥150% load;5s@101%~150% load
Surge Capacity	2* rated power for 3 seconds
Nominal DC Input Voltage	24Vdc	48Vdc
Cold Start Voltage	23.0Vdc	46.0Vdc
No Load Power Consumption	25W	50W
Charge Mode Specifications
Charging Algorithm	3-Step
AC Charging Current (Max)	100A	100A
Max. PV Array Power	6200W	8000W
Nominal PV Voltage	240Vdc	360Vdc
PV Array MPPT Voltage Range	60Vdc~450Vdc (Battery Connected) 120Vdc~450Vdc (Battery Disconnected)	60Vdc~450Vdc (Battery Connected) 120Vdc~450Vdc (Battery Disconnected)
Max. PV Array Open Circuit Voltage	500Vdc
Max Charging Current(AC charger plus solar charger)	120A	120A
Grid-Tie Operation
Nominal Output Voltage	220/230/240VAC
Feed-in Grid Voltage Range	195-253VAC
Feed-in Grid Frequency Range	49-51±1Hz/59-61±1Hz
Nominal Output Current	18.2A	26.9A
Maximum Conversion Efficiency(DC/AC)	97%
Two Load Output Power
Full Load	4200W	6200W
Maximum Main Load	4200W	6200W
Maximum Second Load	840W-2940W	1240W-4340W
Main Load Cut Off Voltage	22VDC	44VDC
Main Load Return Voltage	26VDC	52VDC

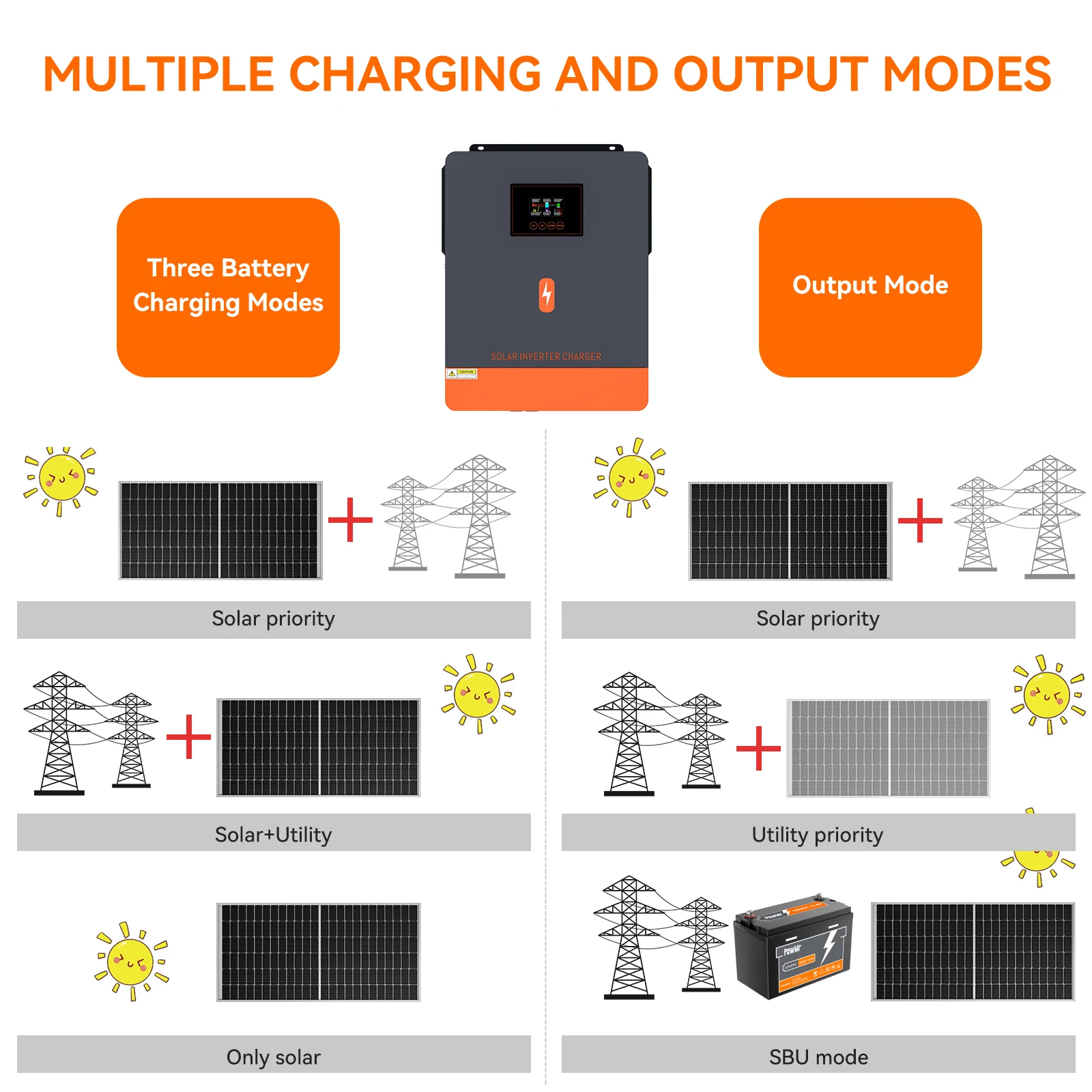

【Charging & Output Modes】

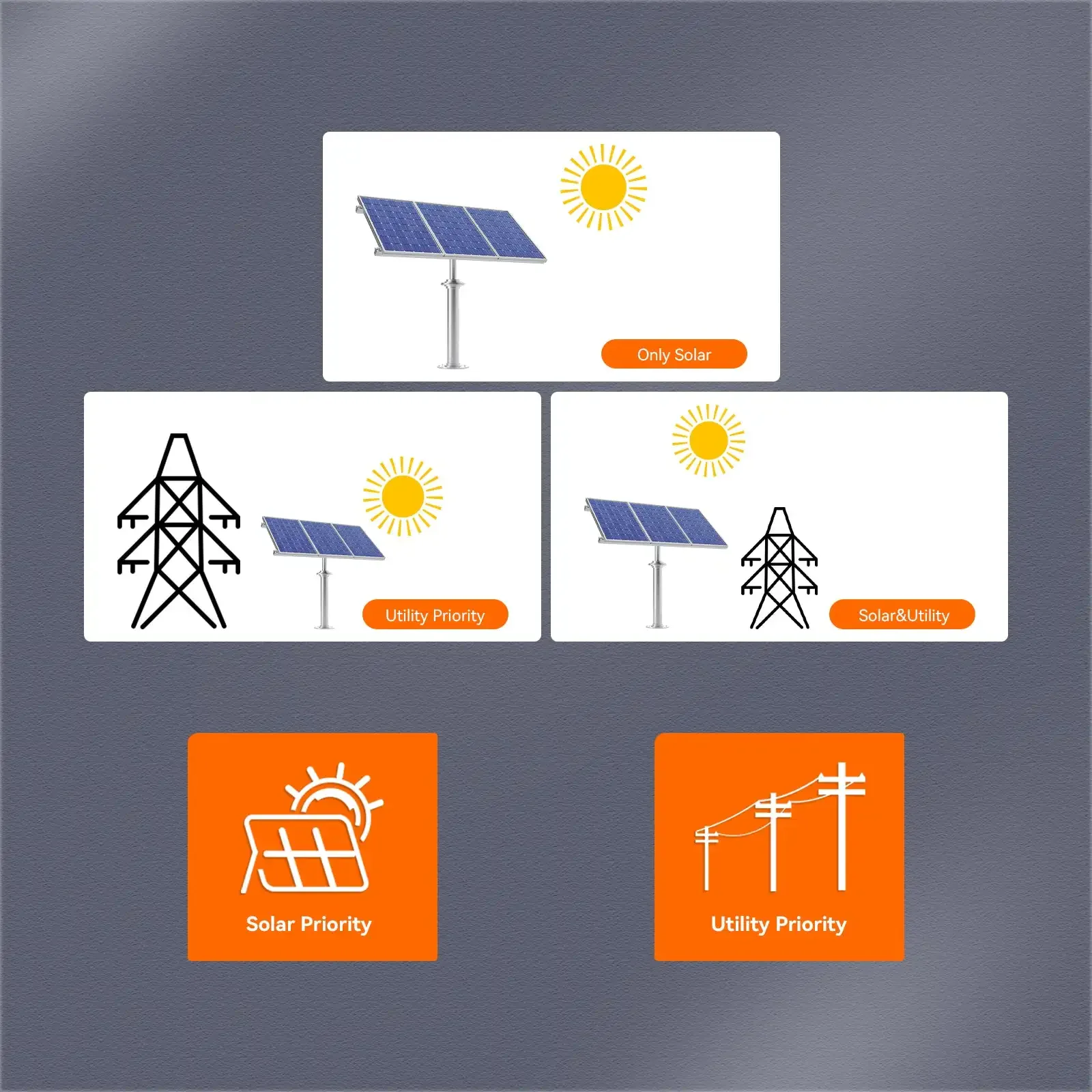

Solar Inverter support 3 charging modes(Choose solar power/Utility power/AC power to charge battery) and 3 output modes(choose Sola/Utility/Battery which source to power your load at first priority)

【Compatible various batteries】

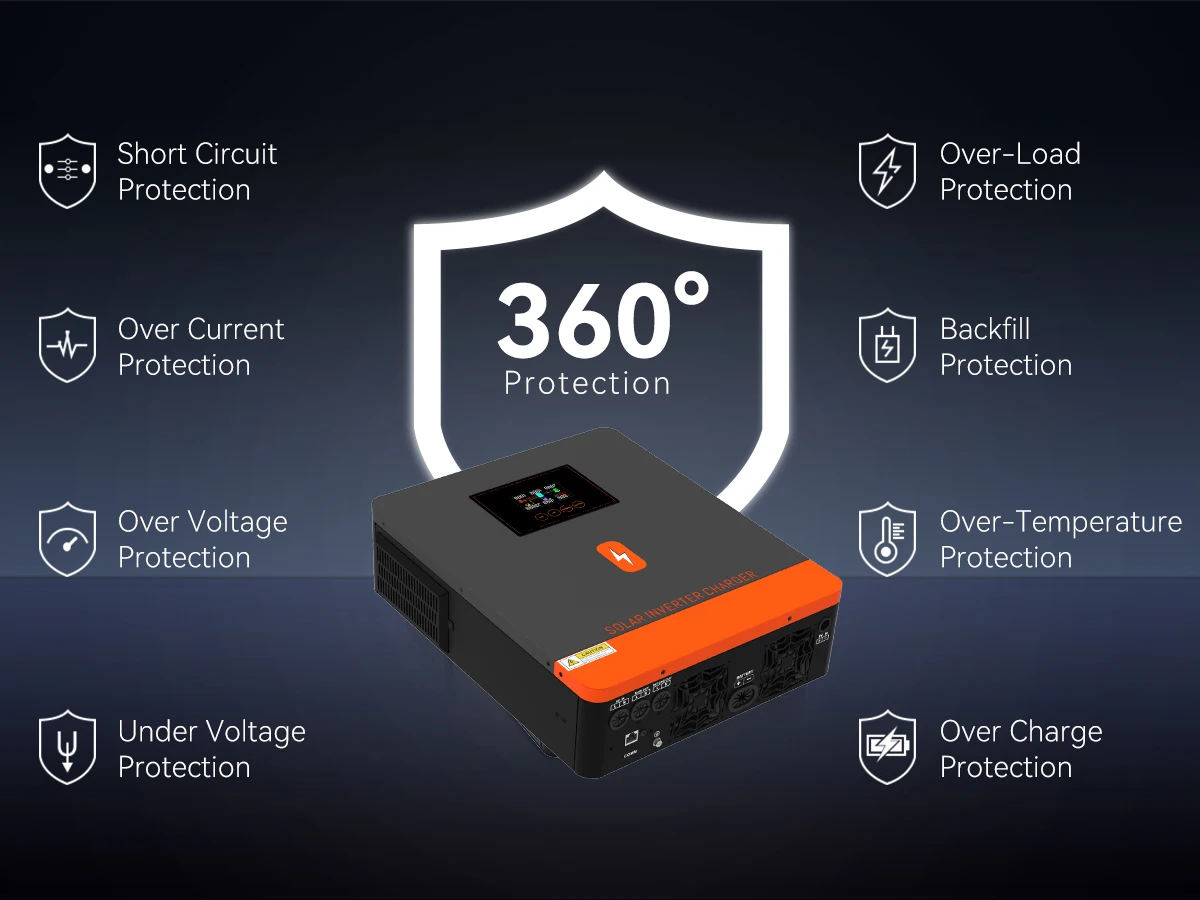

Compatible with various 24V(4.2KW) 48V(6.2KW) batteries such as AGM, Gel, Lead-acid, Lithium-ion and LiFePO4 batteries. Built-in lithium activation along with comprehensive battery protection features including short circuit protection, over/under voltage protection effectively protects battery life.

Additional information

Color	4.2KW 24V, 6.2KW 48V
EANCode	–
High-concerned chemical	None
is_customized	Yes
Output Current	MPPT 120A
Model Number	–
Size	420310120mm
Output Type	SINGLE
Weight	10KG
Brand Name	PowMr
Output Frequency	50HZ 60HZ
Is Smart Device	Yes
Origin	Mainland China
Certification	CE
Type 1:	Grid Tie Inverter
Type 2:	MPPT Solar Inverter
Nominal Output Voltage:	220/230/240VAC
Feature:	Pure Sine Wave Inverter
Battery Voltage:	24V/48V
Battery Type:	Lifepo4 Batteries, Lithium Batterie
Max PV Panel Input Power:	6200W/8000W
Max Panel Input Voltage:	500V
Rated Output Power:	4200W/6200W
Maximum Solar Charging Current:	120A
Maximum AC Charging Current: 80A	80A
Type1:	DC/AC Inverters
Capacity:	4.2KW/6.2KW
Function 1:	Grid-tie Hybrid Inverter Charger
Function 2:	On /off grid inverter
Input Voltage	with WIFI, without WIFI
Output Voltage	220-240V
