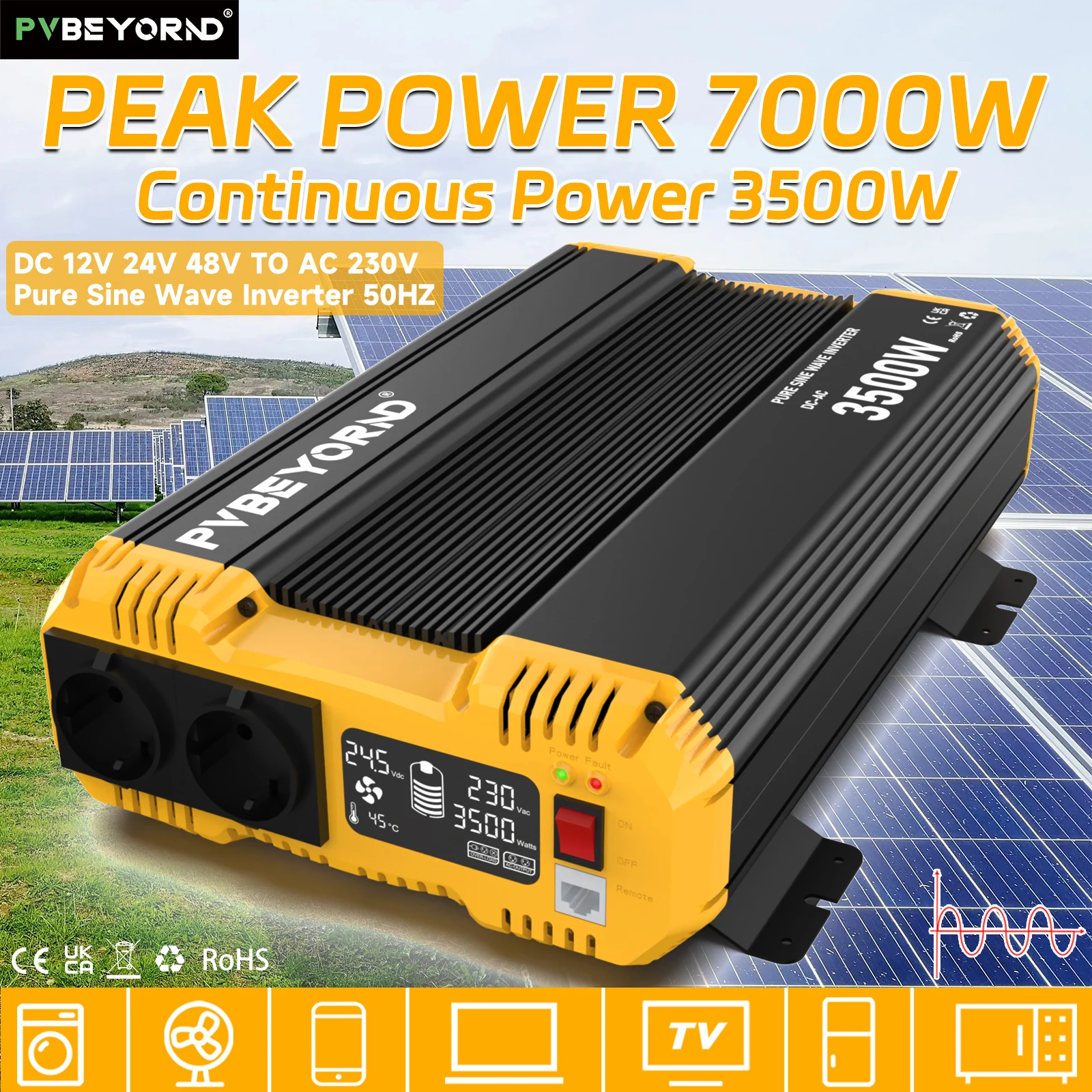

PVBEYORND Pure Sine Wave Inverter 7000W Sine Wave Inverter DC 12V 24V 48V To AC 220V 230V 50HZ Continuous Power 3500W Off-grid
Description
- High-concerned chemical: None
- is_customized: None
- Output Frequency: 50HZ
- Model Number: PSW
- Type: DC/AC Inverters
- Weight: 5.75KG
- Size: 47.4*26.8*10.5CM
- Output Type: DUAL
- Brand Name: PVBEYORND
- Origin: Mainland China
- Certification: CE,FCC,RoHS,KC,weee
Enjoy More Discounts
Dear friends, you can enjoy even more discounts and lower prices by using the discount codes we’ve partnered with Aliexpress when paying for your orders.
Ordering Method for Ukrainian Customers:
Dear Ukrainian friends, if you can pick up your order from Poland, we suggest you fill in a shipping address in Poland or another EU country. This way, we can ship from our German warehouse to your provided EU address via DHL. This usually takes about a week.
Feature
1. Pure sine wave, intelligent filtering, does not interfere with electrical appliances, and protects electrical appliances. The conversion efficiency is high (up to 95%), and the power consumption of the product itself is low, which can greatly extend the battery life.
2. Buzzer reminder. Once the protection function of the inverter is triggered, the inverter will immediately shut down the power supply, the load will enter the protection mode, and the buzzer will remind people.
3. Almost all electrical appliances can be used, including TV/LED lights/LCD monitors, especially inductive load appliances such as refrigerators, freezers, and induction cookers.

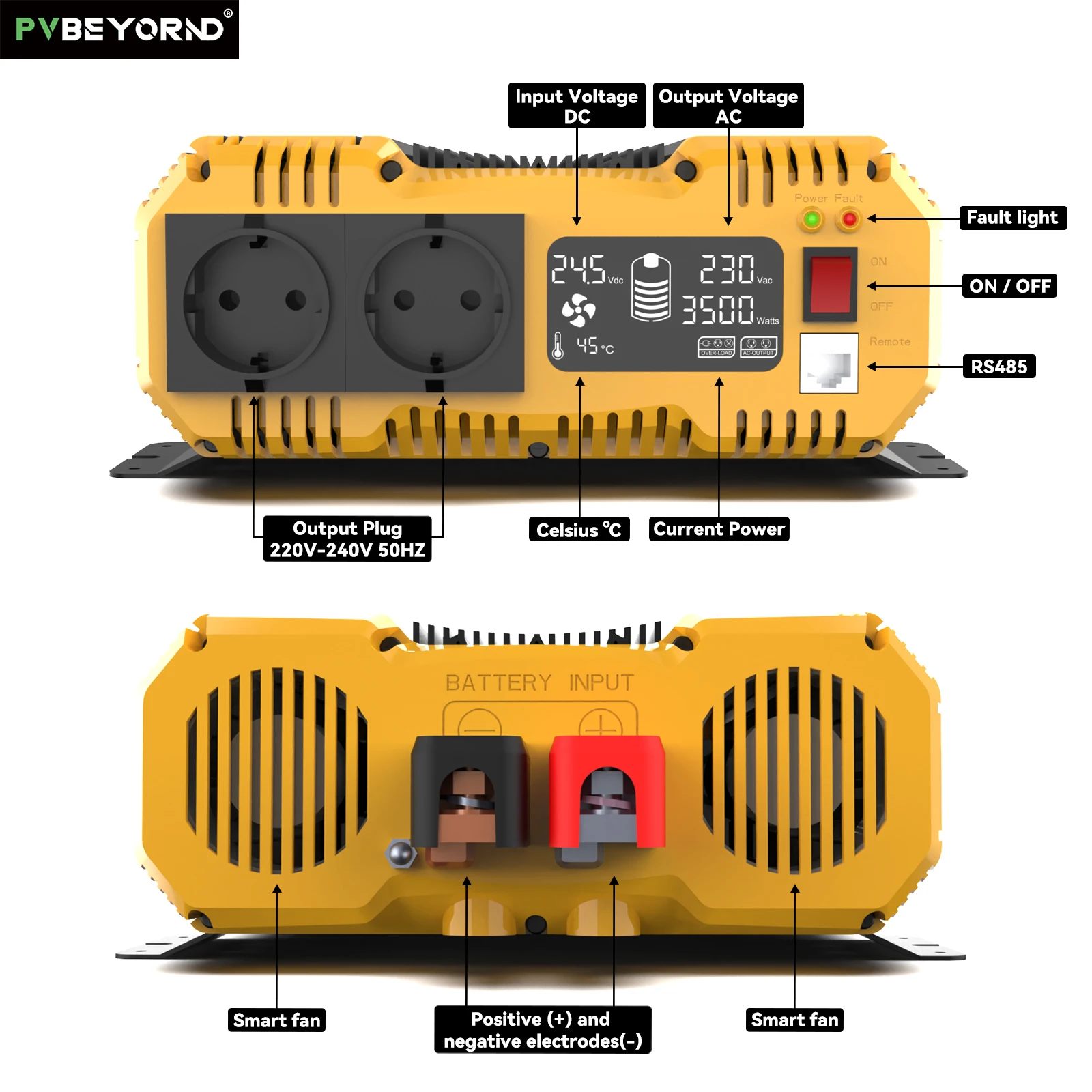

4. The 3M long cable can be connected to the display panel, which can not only control the on and off of the inverter but also display the current voltage and power
5.Aluminum-magnesium alloy body, strong shell can effectively protect the product itself, with double air ducts, high-quality heat sink for heat dissipation, good thermal conductivity, can quickly reduce the temperature of components, and ensure long-term work
Adequate Working Capacity
The power we marked is the power that the inverter can actually achieve and can run for a long time. You can give full play to its maximum performance 100% for a long time, which is a guarantee for the product
Product Information
Type: Pure Sine Wave Inverter
Output Current Waveform: Pure Sine Wave
Continuous Power: 1500W / 2000W / 2500W / 3000W / 3500W
Peak Power: 3000W / 4000W / 5000W / 6000W / 7000W
Input Voltage: 12V / 24V / 48V
Output Voltage: 220V – 240V
Output Frequency: 50HZ
Plug Specifications: EU

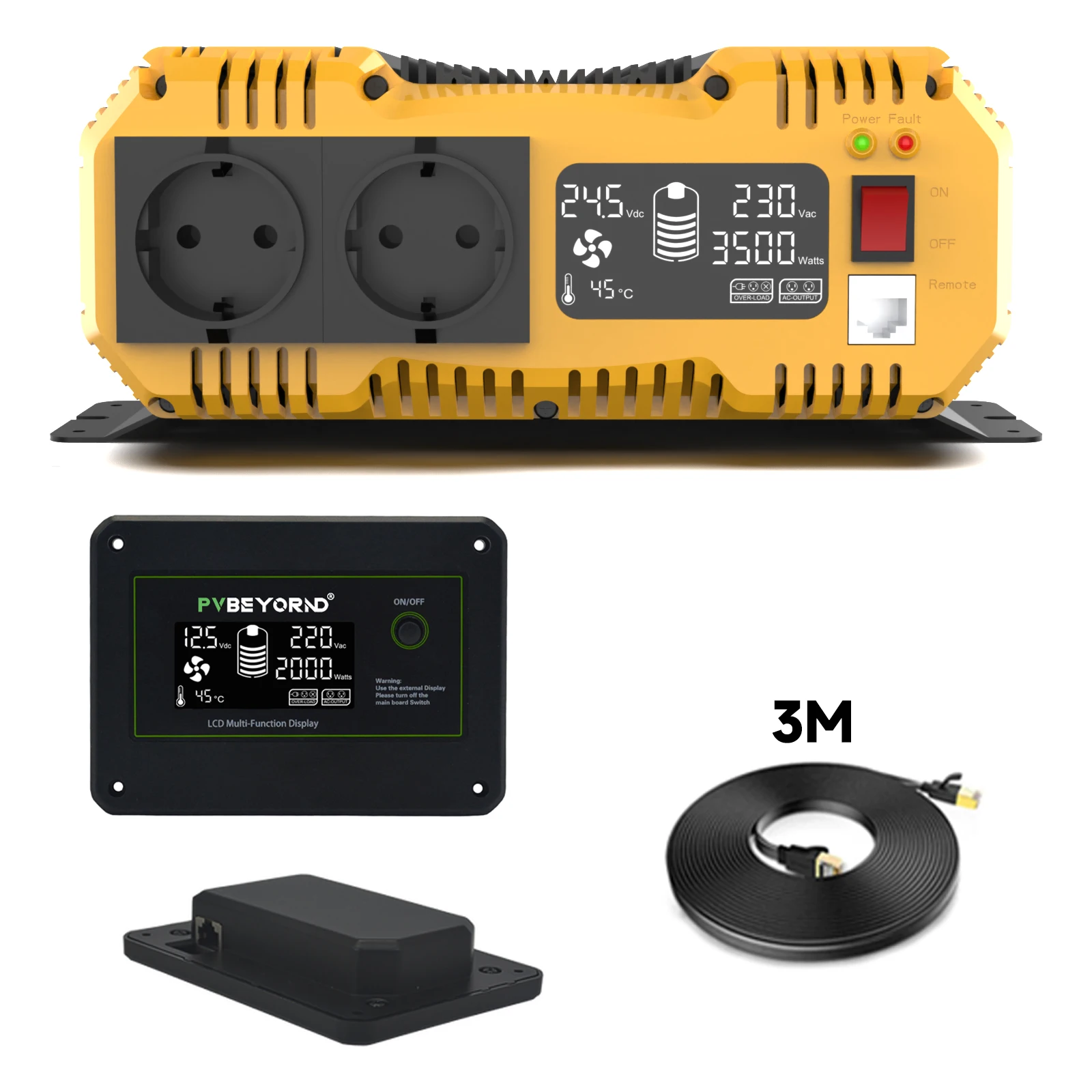

Packing List
1 x PVBEYORND Pure Sine Wave Inverter
1 x Control panel
1 x 3M control panel cable
1 x Positive and negative power cord
1 x User Manual

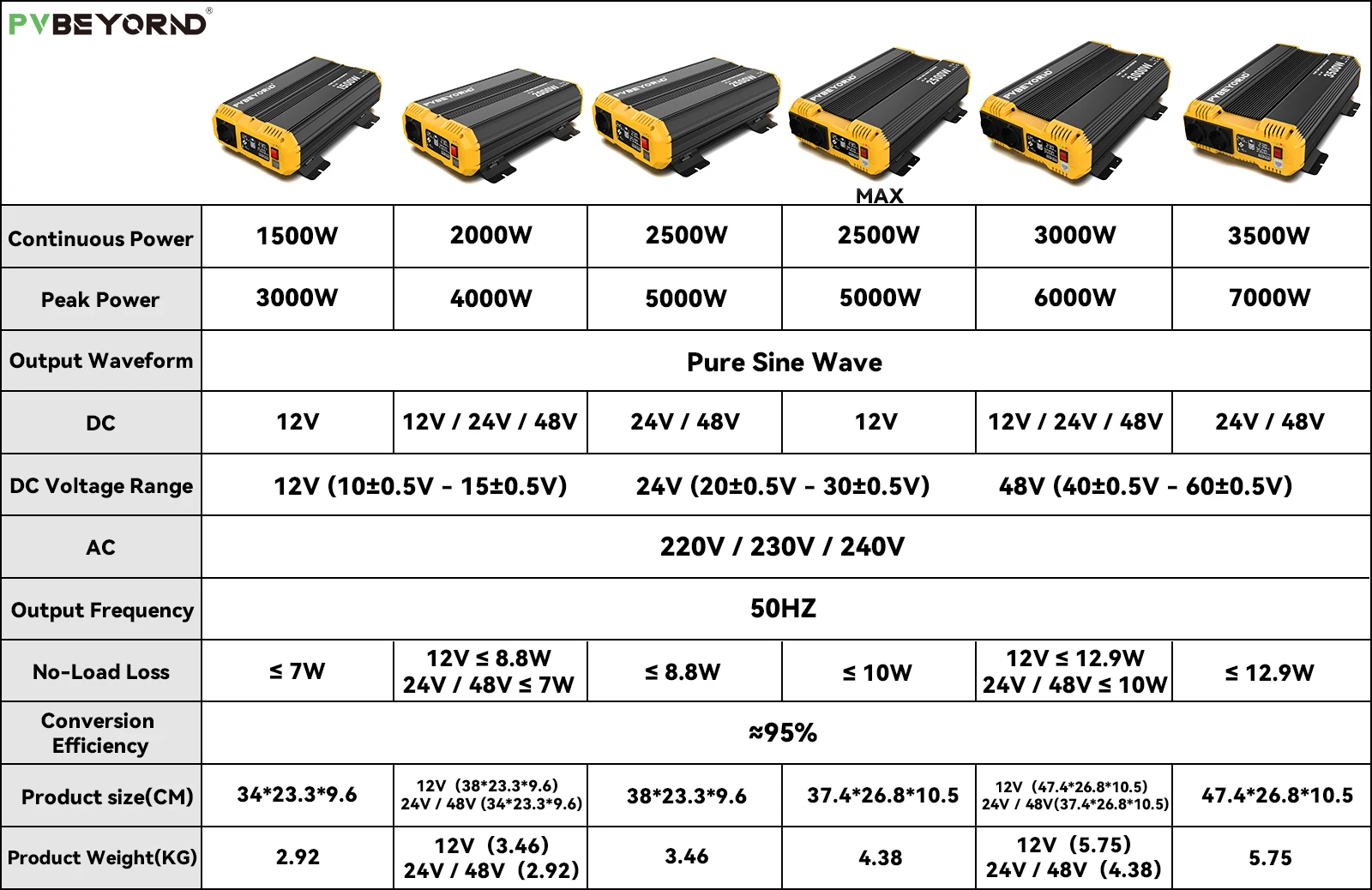

Basic Data
The following are the parameters of each specification of the inverter, including continuous power, peak power, output waveform, available input voltage range, output voltage range, frequency, no-load current, conversion efficiency, product size, and product net weight

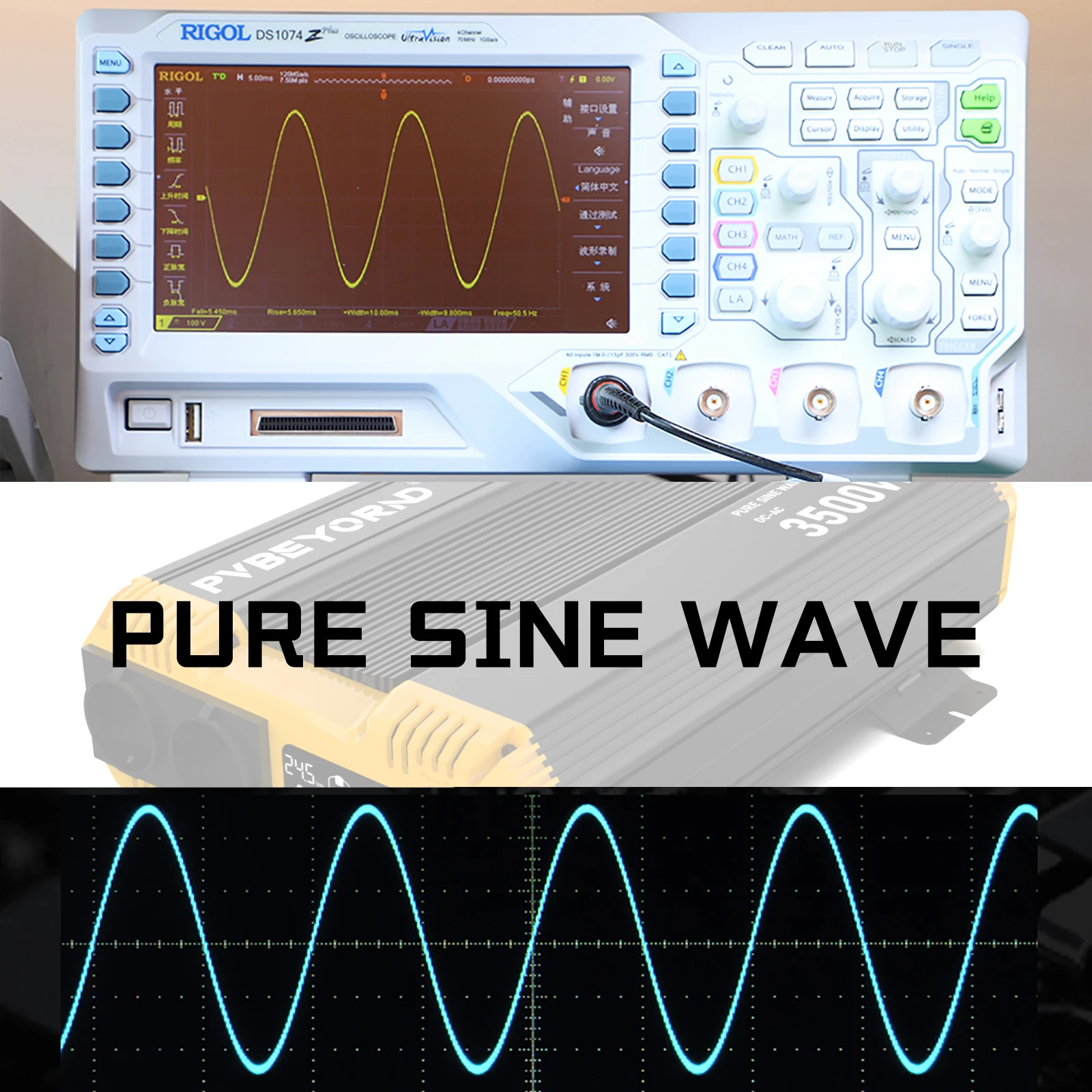

Pure Sine Wave
The pure sine wave inverter outputs the same electricity as the usual power grid, with a wide range of applications, high overload capacity, and excellent stability, providing the same AC current as the usual household. In the case of power satisfaction, almost any household appliances can be driven.
WIDE APPLICATION FIELD
Whether it is household electricity or outdoor electricity, RV power supply, industrial electricity, etc., our equipment can support it, not just refrigerators, microwave ovens, washing machines, TVs and boilers, etc.
Higher conversion efficiency
By optimizing the circuit structure and using a higher-quality copper core, resistance can be significantly reduced, maximizing the value of every ampere of current.

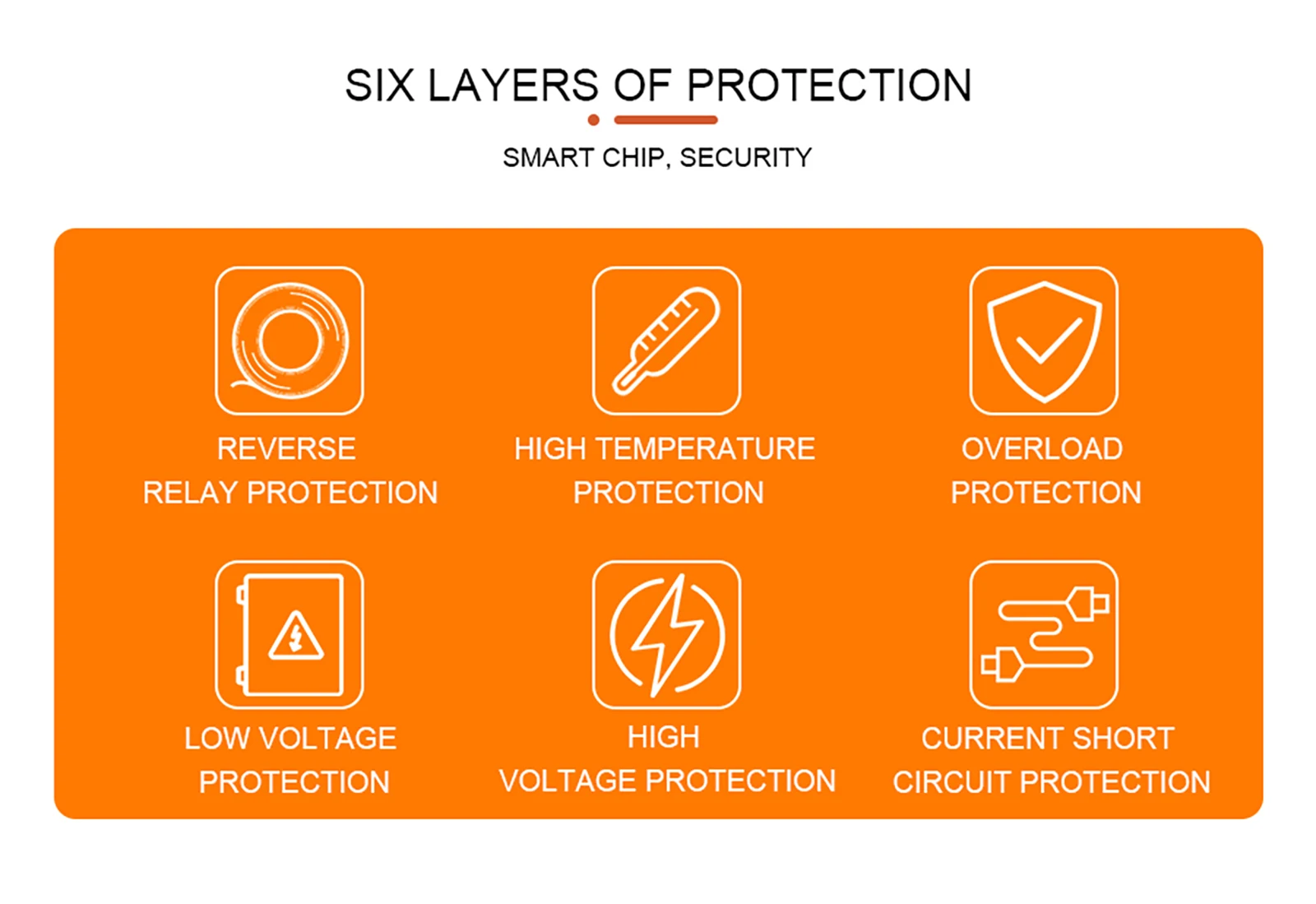

Six Protection Functions
Positive and negative reverse polarity protection: by blowing the internal fuse
High temperature protection: When the temperature is higher than 85°C, the AC output will be turned off, and the alarm will sound 5 times/stop for 5 seconds (continuous mode). Automatically return to normal when the temperature is lower than 75°C
Overload protection: When the load is greater than 110%~130%, the AC output will be turned off after the alarm lasts for 15 seconds (the reset switch is restored). If the load is greater than 130%~150%, the alarm lasts for 5 seconds and then closes the AC output, (the reset switch is restored). When the load is greater than 150%%, the AC output will be turned off after 2 seconds, (the reset switch will be restored)
Low voltage protection: 12V model low voltage protection is 10V±4%, 24V model low voltage protection is 20V±4%, 48V model low voltage protection is 40V±4%. When the low voltage protection is triggered, the inverter will shut down automatically
High voltage protection: 12V model high voltage protection is 15V±4%, 24V model high voltage protection is 30V±4%, 48V model high voltage protection is 60V±4%. When the high voltage protection is triggered, the inverter will automatically shut down
Short circuit protection: turn off the device within 2 seconds (need to reset the switch to recover)
Additional information
| Ships From | GERMANY |
|---|---|
| High-concerned chemical | None |
| is_customized | None |
| Output Frequency | 50HZ |
| Model Number | PSW |
| Type | DC/AC Inverters |
| Weight | 5.75KG |
| Size | 47.4*26.8*10.5CM |
| Output Type | DUAL |
| Brand Name | PVBEYORND |
| Origin | Mainland China |
| Certification | CE,FCC,RoHS,KC,weee |
| Color | EU Inverter 1500W, EU Inverter 2000W, EU Inverter 2500W, EU Inverter 2500WMAX, EU Inverter 3000W, EU Inverter 3500W |
| Input Voltage | 12V, 24V, 48V |
| Output Voltage | 220V-240V 50HZ |
