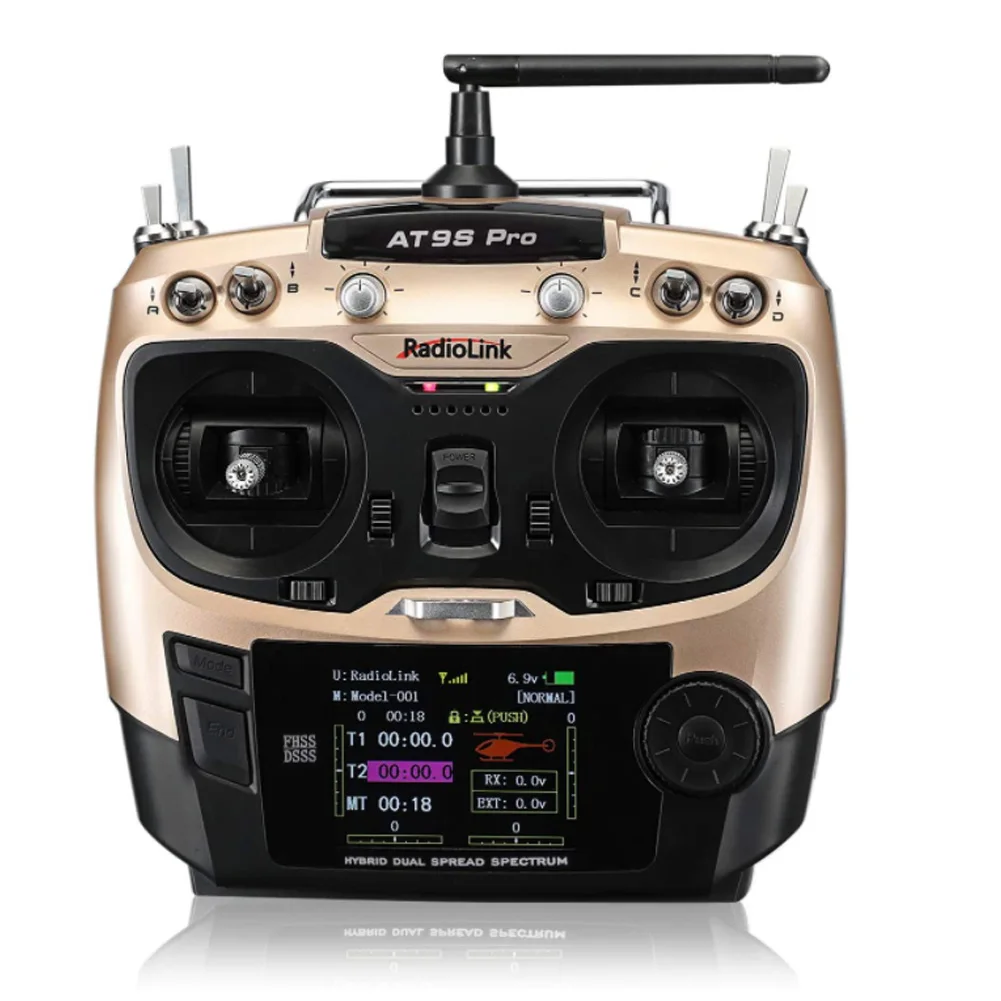

Radiolink AT9S Pro TX 10/12CH RC Radio Controller Transmitter With R9DS RX 2.4G Receiver for RC FPV Racing Drone

Radiolink AT9S Pro TX 10/12CH RC Radio Controller Transmitter With R9DS RX 2.4G Receiver for RC FPV Racing Drone

(0 customer reviews)

484.97$ – 486.28$

In Stock

Color

Clear

Description

Is Batteries Included: No
High-concerned chemical: None
Brand Name: flyhike
Quantity: 1 pcs
Material: Composite Material
Upgrade Parts/Accessories: Transmitter
Remote Control Peripherals/Devices: Remote Controller
Certification: CE
Use: Vehicles & Remote Control Toys
Tool Supplies: Assembled class
Model Number: VZJU8024-R
Origin: Mainland China
Four-wheel Drive Attributes: Assemblage
Recommend Age: 12+y
Size: 183X100X193mm
RC Parts & Accs: Radio Systems
For Vehicle Type: Airplanes

Note:

1. The AT9S Pro operation menu support English, Chinese. (You could update multi-language
firmware to get other language Menu interface)

2. According to the choice to select AT9S Pro mode: Mode 1 Right hand or Mode 2 Left hand

3. Color: have Grey and Orange color, but we usually send in random color.

Radiolink 2019 AT9S Pro Version TX 10/12CH RC Transmitter Radio Controller Support TBS Crossfire CRSF Protocols for Racing Drone, Quadcopter, Fixed Wing, Helicopter, Car Vehicles and more (Mode 1/2)

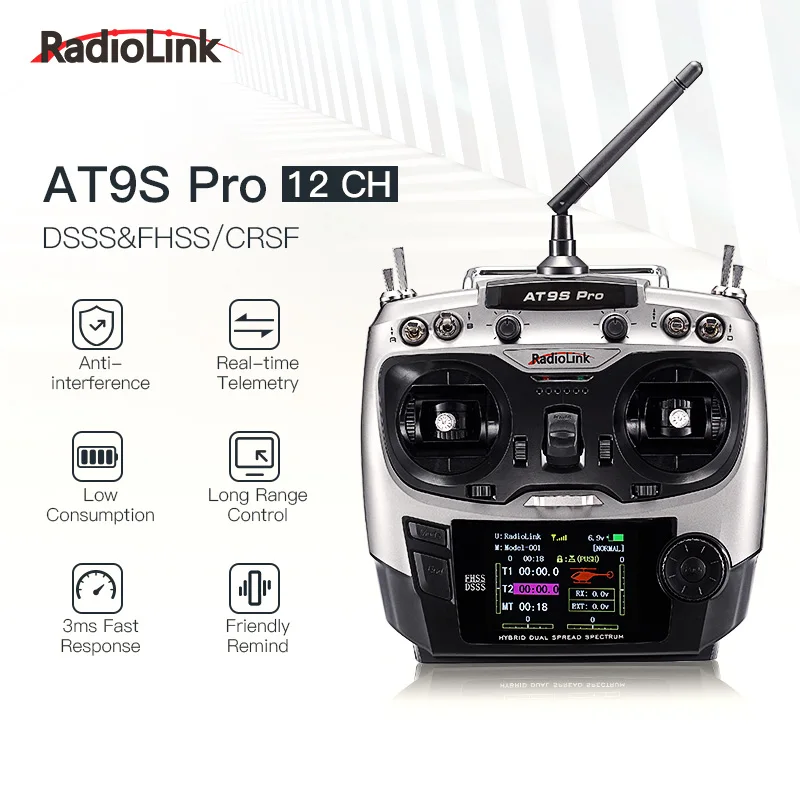

AT9S Pro Overview

DSSS* and FHSS* which reduce overall signal interference and allow the AT9S Pro to produce a highly constant and stable transmission signal present on all 10/12 channels.

Setting simplicity, Excellent Anti-interference, Real-time Telemetry, USB upgrade, Voltage Protection, 3ms fast response for 10/12 channels, outstanding range over 2.4 miles(4km) (actual control distance is according the local environment).

AT9S PRO Features:

Excellent Anti-interference: The rc transmitter with DSSS&FHSS working
synchronously to keep the excellent anti-interference performance, only 3ms
for10 channels response.

CRSF Protocol Supported: On the basis of the RadioLink unique communication
technology of DSSS and FHSS, CRSF protocol from Blacksheep is added. Compatible
with TBS Crossfire 915 module.

Compatible with SBUS, PPM, PWM and CRSF: With DSSS&FHSS protocol, SBUS,
PPM and PWM can operate simultaneously for seamless user control. With CRSF
protocol.

Real-time Information: When PRM-03 module works with flight controller,
model voltage, speed, climb, throttle, longitude, latitude, altitude, GPS, RSSI,
flight mode, yaw, roll, pitch and distance are displayed on the LCD screen
display.

Adapts to Most of Types of Aircraft: Easy to understand user software makes
quick work of changing aircraft types, Rotary Wing, Fixed Wing, Glider,
Multicopter, Car, Boat, Robot.

USB Based Update: Transmitter is easily updated with the latest firmware by
USB cable to connect PC.

Voltage Protection System: RadioLink’s voltage protection software ensures
vital components are protected from a reverse polarity connection.

Support for Universal Battery: JST 2Pin connector supports multiple type
batteries: 8 pcs AA or 2s-4s LiPo battery. (Not included batteries) A 3s 1800mAh
liPo battery can work more than 12 hours.

AT9S ProTransmitter Specifications:

Channels: 10ch/12ch

Mode: Mode 1 or Mode 2

Signal: SBUS/PWM/PPM/CRSF

Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)

Channel Bandswidth: 5.0 MHz

Spread Spectrum: DSSS&FHSS/CRSF

Modulation Mode：QPSK

Adjacent Channel rejection: >38dbm

Transmission Power:

DSSS & FHSS <100mW(20dbm)

CRSF: 10mW/25mW/100mW/500mW/1W/2W(Optional)

Operating Current: DSSS&FHSS < 90mA@12V

CRSF Depends on the transmission power selecte

Operating Voltage: 7.4~18.0V

4096 Section Precision

Screen: 2.8 inches 16 colorful screen, 240*320 pixels

Channel: 12 channels , 5-12 channels are customized

Size: AT9S Pro 183*100*193mm

Weight: 0.88kg

Control Range: 4 kilometers in the air (Maximum range is tested in an
unobstructed area free of interference)

Compatible receivers:

12CH – R12DSM, R12DS,

10CH- R9DS, R6DS,R6DSM

CRSF Protocol: Receiver from BLACKSHEEP

R9DS Receiver Specifications

Signal: SBUS,PWM

Channel: PWM 9 channels, SBUS 10 channels

Control Distance: 900m on ground,1500m air

Working Voltage: 4.8-10V

Working Current: 38-45mA（input voltage: 5V）

Size: 43*24*15mm

Weight: 11g

Package Included:

AT9S Pro 1/2 Mode x 1

R9DS Receiver x 1

Radiolink Lanyard x 1

Mode 1/2 Changing Parts x 1

Simple User Manual x 1
